2015 MAZDA MODEL 6 ECU

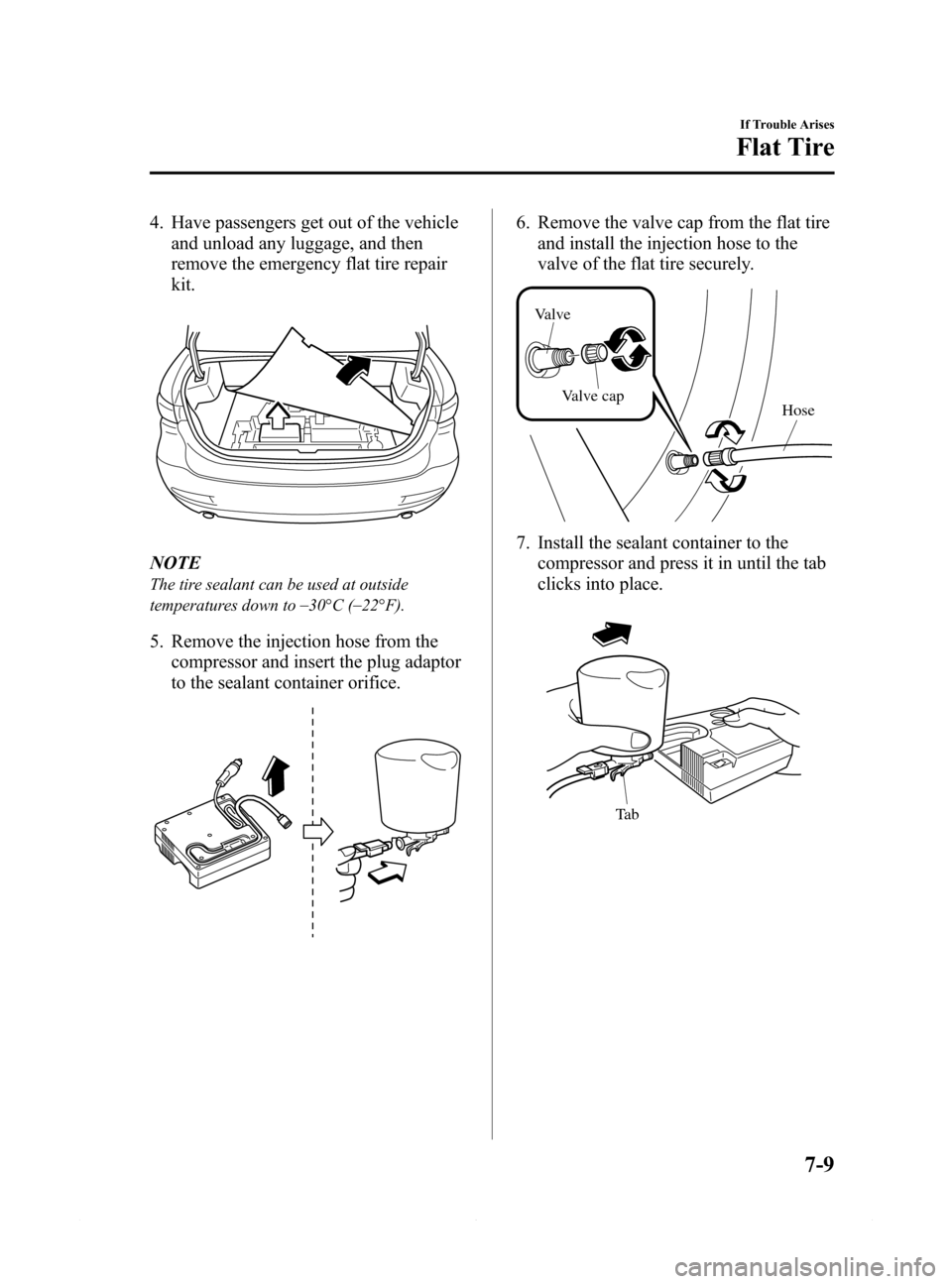

Black plate (469,1)
4. Have passengers get out of the vehicle
and unload any luggage, and then
remove the emergency flat tire repair
kit.
NOTE
The tire sealant can be used at outside
temperatures down to_
30°C (_
22°F).
5. Remove the injection hose from the
compressor and insert the plug adaptor
to the sealant container orifice.
6. Remove the valve cap from the flat tire
and install the injection hose to the
valve of the flat tire securely.
Hose Valve cap Valve
7. Install the sealant container to the
compressor and press it in until the tab
clicks into place.
Ta b
If Trouble Arises
Flat Tire
7-9
Mazda6_8DQ8-EA-13L_Edition3 Page469
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (478,1)
4. Turn the lug wrench counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf)108―147
(12―14, 80―108)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the
stud, which could cause the wheel to
slip off and cause an accident.
5. Open the trunk mat.6. Remove the belt for securing the flat
tire.
7. Put the flat tire into the trunk on the left
and toward the back.
8. Fold the seat back forward on the right
side of the rear seat.
9. Thread the belt through the rear seat as
shown in the figure.
7-18
If Trouble Arises
Flat Tire
Mazda6_8DQ8-EA-13L_Edition3 Page478
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (479,1)
10. Thread the buckle through the wheel
as shown in the figure and secure it so
that the buckle does not contact the
wheel.
11. Thread the belt through the buckle,
then pull the belt end to secure the flat
tire.
12. Return the seat back on the right side
of the rear seat to its original position.
13. Remove the tire blocks and store the
tools and jack.
14. Check the inflation pressure. Refer to
Tires on page 9-7.
15. Have the flat tire repaired or replaced
as soon as possible.NOTE
Do not press the tire pressure monitoring
system set switch after installing the spare tire.
The switch is only to be pressed after installing
the repaired flat tire or installing a
replacement tire (page 4-23).
WARNING
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.
NOTE
To prevent the jack and tool from rattling, store
them properly.
If Trouble Arises
Flat Tire
7-19
Mazda6_8DQ8-EA-13L_Edition3 Page479
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (482,1)
5. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
6.(With i-ELOOP system)
“i-ELOOP charging”is displayed in
the multi-display of the instrument
cluster after the engine is started. The
message is no longer displayed when
the engine is running and the charging
is completed. The vehicle may be
driven after the message is no longer
displayed.
NOTE
If the vehicle is driven while the message is
displayed, a beep sound is heard.
If you turn the steering wheel while the
message is displayed, it will feel heavier than
normal, but this does not indicate an
abnormality. The steering operation will return
to normal after the message is no longer
displayed. Do not remove the jumper cables
while the message is displayed.
7. When finished, carefully disconnect the
cables in the reverse order described in
the illustration.
8. If the battery cover has been removed,
install it in the reverse order of
removal.NOTE
Verify that the covers are securely installed.
7-22
If Trouble Arises
Battery Runs Out
Mazda6_8DQ8-EA-13L_Edition3 Page482
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (487,1)
Tiedown Hooksí
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hooks
1. Remove the tiedown eyelet and the lug
wrench from the luggage compartment
(page 7-3).
2. Wrap a flathead screwdriver or similar
tool with a soft cloth to prevent
damage to a painted bumper, and open
the cap located on the front or rear
bumper.
Front
Rear
CAUTION
Do not use excessive force as it may
damage the cap or scratch the
painted bumper surface.
NOTE
Remove the cap completely and store it so as
not to lose it.
3. Securely install the tiedown eyelet
using the lug wrench or equivalent.
Consult an Authorized Mazda Dealer.
Front
Lug wrench
Tiedown eyelet
(Long type)
If Trouble Arises
Emergency Towing
7-27íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page487
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (488,1)
Rear
Tiedown eyelet
(Short type)
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying the
vehicle. Make sure that the tiedown
eyelet is securely tightened to the
bumper.
7-28
If Trouble Arises
Emergency Towing
Mazda6_8DQ8-EA-13L_Edition3 Page488
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (492,1)
If the light/indication remains illuminated
even though the oil level is normal or after
adding oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
qIf the check engine light
illuminates or flashes
If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.
The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
l(U.S.A. and Canada)
The fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on, or it
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
qIf the high engine coolant
temperature warning light (red)
illuminates or flashes
The light flashes when the engine coolant
temperature is extremely high, and
illuminates when the engine coolant
temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until
you can find a safe place to stop the
vehicle and wait for the engine to cool
down.
Illuminated light
This indicates the possibility of
overheating. Park the vehicle in a safe
place immediately and stop the engine.
Refer to Overheating (page 7-24).
CAUTION
Do not drive the vehicle with the high
engine coolant temperature warning
light illuminated. Otherwise, it could
result in damage to the engine.
7-32
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Mazda6_8DQ8-EA-13L_Edition3 Page492
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (497,1)
qIf the adaptive front lighting system
(AFS) OFF indicator light flashesí
The indicator light flashes continuously if
the system is malfunctioning. Consult an
Authorized Mazda Dealer.
NOTE
lEven if the AFS is not operating due to
some malfunction, the normal headlight
function is still operable.
lIf there is a malfunction with the headlight
auto-leveling function, the indicator light
flashes.
qIf the low engine coolant
temperature indicator light (blue)
does not turn off
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been sufficiently warmed
up, the temperature sensor could have a
malfunction. Consult an Authorized
Mazda Dealer.
qIf the turn signal/hazard warning
indicator light illuminates or flashes
at an abnormally high speed
If an indicator light remains illuminated
(does not flash) or if it flashes abnormally,
one of the turn signal bulbs may be
burned out. Consult an Authorized Mazda
Dealer.
qIf the security indicator light
illuminates or flashes
If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-37íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page497
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L
