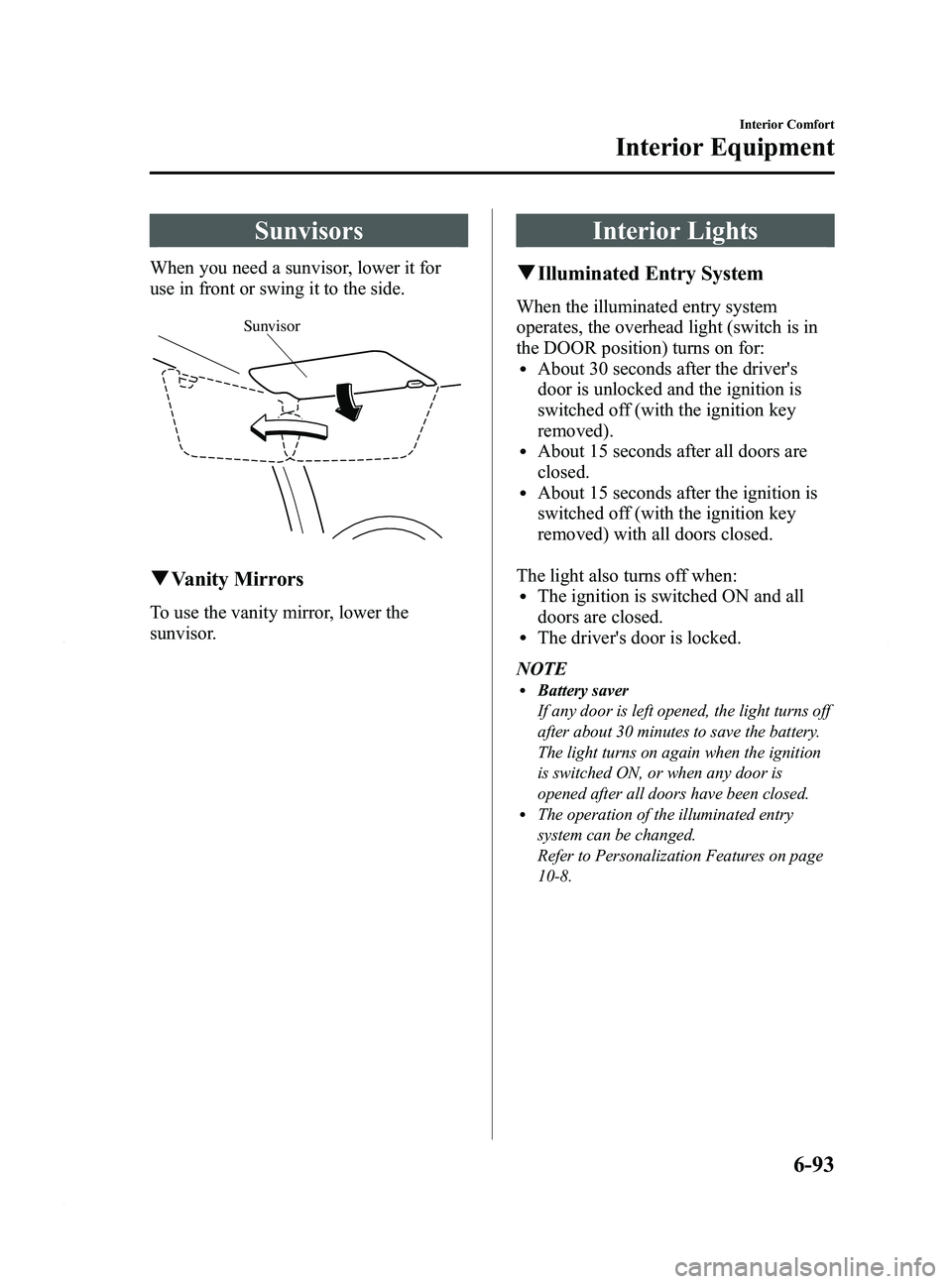

Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
Interior Lights
qIlluminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) turns on for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition is
switched off (with the ignition key
removed).
lAbout 15 seconds after all doors are
closed.
lAbout 15 seconds after the ignition is
switched off (with the ignition key
removed) with all doors closed.
The light also turns off when:
lThe ignition is switched ON and all
doors are closed.
lThe driver's door is locked.
NOTE
lBattery saver
If any door is left opened, the light turns off
after about 30 minutes to save the battery.
The light turns on again when the ignition
is switched ON, or when any door is
opened after all doors have been closed.
lThe operation of the illuminated entry
system can be changed.
Refer to Personalization Features on page
10-8.
Interior Comfort
Interior Equipment
6-93
Mazda5_8DW3-EA-14H_Edition3 Page289
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (316,1)
WARNING
Do not jack up the vehicle higher than
is necessary:Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up: Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the
vehicle to fall off the jack resulting in
an accident.
Never go under the vehicle while it is
jacked up: Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
8. Remove the lug nuts by turning them counterclockwise; then remove the
wheel.
qLocking Lug Nutsí
If your vehicle has Mazda optional
antitheft wheel lug nuts, one on each
wheel will lock the tires and you must use
a special key to unlock them. This key
will attach to the lug wrench and can be
stored with the spare tire. Register them
with the lock manufacturer by filling out
the card provided in the glove
compartment and mailing it in the
accompanying envelope. If you lose this
key, consult an Authorized Mazda Dealer
or use the lock manufacturer's order form,
which is with the registration card.
Special key
Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the wrench
counterclockwise.
7-10
In Case of an Emergency
íSome models.
Flat Tire
Mazda5_8DW3-EA-14H_Edition3 Page316
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (317,1)
To install the antitheft lug nut
1. Place the special key on top of the nut,and be sure to hold the key square to it.
If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.
2. Place the lug wrench on top of the special key, apply pressure, and turn it
clockwise.
Nut tightening torque
N·m (kgf·m, ft·lbf) 88 ―118 (9 ―12, 65 ―87)
q Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. 2. Mount the spare tire.
3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque: Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts
could loosen while driving and cause
the tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary.
In Case of an Emergency
Flat Tire
7-11
Mazda5_8DW3-EA-14H_Edition3 Page317
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (322,1)
Starting a Flooded Engine
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. If the engine does not start within fiveseconds on the first try, switch the
ignition off, wait ten seconds and try
again.
2. Make sure the parking brake is on.
3. Depress the accelerator all the way and hold it there.
4. Depress the clutch pedal (Manual transaxle) or the brake pedal
(Automatic transaxle).
5. Switch the ignition to START and hold it there ―for up to ten seconds. If the
engine starts, release the key and
accelerator immediately because the
engine will suddenly rev up.
6. If the engine fails to start, crank it without depressing the accelerator ―for
up to ten seconds.
If the engine still does not start using the
above procedure, have your vehicle
inspected by an Authorized Mazda
Dealer.
7-16
In Case of an Emergency
Emergency Starting
Mazda5_8DW3-EA-14H_Edition3 Page322
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (385,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 IG KEY1 50 A For protection of various circuits
2 AD FAN 30 A Cooling fan
3 GLOW2
HEATER2 FAN1 30 A Air conditioner
4 EGI MAIN 40 A Engine control system
5 INJ
FAN2 ――
6 ABS P 40 A ABS, DSC
7 P.SLIDE L ――
8 TCM
EVVT 20 A Transaxle control system
9 HEATER1 40 A Air conditioner
10 DCDC2
――
GLOW1
HEATER3 30 A Air conditioner
11 BTN 60 A For protection of various circuits
12 IG KEY2 40 A For protection of various circuits
Maintenance and Care
Owner Maintenance
8-53
Mazda5_8DW3-EA-14H_Edition3 Page385
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (450,1)
Personalization Features
The following“Personalization Features ”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Item Feature Factory Setting Available Settings
Key reminder
warning alarm The volume of the key reminder warning alarm
can be changed
High Low
Lights-on reminder
warning alarm The volume of the lights-on reminder warning
alarm can be changed
High Low/Deactivated
Turn indicator The beep volume level can be changed High Low/Deactivated
Illumination entry The time required for the interior lamp to turn
off automatically after all the doors are closed
can be changed
15 seconds 7.5/30/60 seconds
The time required for the interior lamp to
illuminate after unlocking any door can be
changed 30 seconds 7.5/15/60 seconds
The function that allows the interior lamp to
illuminate automatically when the doors are
unlocked can be changed Activated Deactivated
The function allowing the interior lamp to turn
off automatically when any door is opened
(or not securely closed) can be changed Activated Deactivated
The time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar) 30 minutes 10/60 minutes
Keyless entry The unlocking method using the retractable key
can be changed
Press × 2 Press × 1
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed 30 seconds 60/90 seconds
The flashing of the hazard warning lights when
the doors are locked/unlocked can be changed Activated Deactivated
The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be changed Activated Deactivated
Auto headlight on/off The headlight illumination on/off timing based
on surrounding lightness/darkness can be
changed Standard
(Illuminates under
average levels of darkness) Earlier/
Somewhat earlier/
Somewhat later/ Later
Two-step down
power window The two-step down power window function can
be changed
Activated Deactivated
10-8
Personalization Features
Mazda5_8DW3-EA-14H_Edition3 Page450
Thursday, December 18 2014 9:29 AM
Form No.8DW3-EA-14H

Black plate (452,1)
A
Accessory Socket ............................ 6-109
Add-On Non-Genuine Parts and
Accessories ....................................... 9-18
Air Bag Systems ............................... 2-46
Ambient Temperature Display .......... 6-96
Antenna ............................................. 6-11
Anti-Lock Brake System (ABS) ......... 5-8Warning light ............................... 5-8
Appearance Care ............................... 8-56
Audio System .................................... 6-11 Audio control switch .................. 6-47
Audio set .................................... 6-23
AUX/USB/iPod Mode ............... 6-50
Operating tips for audio
system ........................................ 6-12
Safety certification ..................... 6-59
Automatic Transaxle Driving tips ................................ 5-19
Fluid ........................................... 8-25
Manual shift mode ..................... 5-15
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
BatteryEmergency starting .................... 7-16
Maintenance ............................... 8-32
Replacement ............................... 8-36
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-58
Lights-on reminder ..................... 5-58
Seat belt warning ........................ 5-58
Tire inflation pressure warning ... 5-58
B
Before Starting the Engine .................. 4-5After getting in ............................. 4-5
Before getting in .......................... 4-5
Bluetooth® Audio ............................ 6-60
Bluetooth® Hands-Free .................... 6-70 Basic Bluetooth® Hands-Free
operation .................................... 6-74
Convenient use of the hands-free
system ........................................ 6-79
Hands-free setting ...................... 6-85
Mazda Bluetooth® Hands-Free
customer service ......................... 6-92
Safety certification ..................... 6-92
When Bluetooth® Hands-Free cannot
be used ....................................... 6-91
Body Lubrication .............................. 8-27
Bottle Holder ................................... 6-101
Brake/Clutch Fluid ........................................... 8-24
Brakes Anti-lock brake system (ABS) ..... 5-8
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-42
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops .................... 6-107
Cargo Sub-Compartment ................ 6-107
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-19
Center Console ................................ 6-104
11-2
Index
Mazda5_8DW3-EA-14H_Edition3 Page452
Thursday, December 18 2014 9:29 AM
Form No.8DW3-EA-14H

Black plate (454,1)
F
Foot Brake .......................................... 5-5
Front Seats .......................................... 2-2
FuelFiller lid and cap ........................ 3-20
Gauge ......................................... 5-42
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-50 Panel description ........................ 8-53
Replacement ............................... 8-50
G
Gauges .............................................. 5-40
Glove Compartment ........................ 6-104
H
Hazard Warning Flasher .................... 5-70
Hazardous Driving .............................. 4-7
Head Restraint .................................. 2-14
HeadlightsControl ....................................... 5-59
Flashing ...................................... 5-62
High-low beam .......................... 5-62
Leveling ..................................... 5-62
On reminder ............................... 5-62
Hood Release .................................... 3-21
Horn .................................................. 5-70
I
Ignition Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-93
Immobilizer System .......................... 3-25
I
Indicator Lights ................................. 5-44
Cruise ......................................... 5-55
DSC OFF .................................... 5-55
Headlight high-beam .................. 5-54
Low engine coolant
temperature ................................ 5-55
Power steering malfunction ........ 5-56
Security ...................................... 5-54
Shift position .............................. 5-54
TCS/DSC ................................... 5-55
Turn signal/hazard warning ........ 5-56
Information Display .......................... 6-95 Ambient temperature display ..... 6-96
Audio display ............................. 6-96
Climate control display .............. 6-96
Clock .......................................... 6-96
Information display functions .... 6-95
Trip computer ............................. 6-97
Instrument Cluster ............................. 5-40
Interior Care ...................................... 8-63
Interior Lights ................................... 6-93
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-63
Liftgate .............................................. 3-14
11-4
Index
Mazda5_8DW3-EA-14H_Edition3 Page454
Thursday, December 18 2014 9:29 AM
Form No.8DW3-EA-14H
