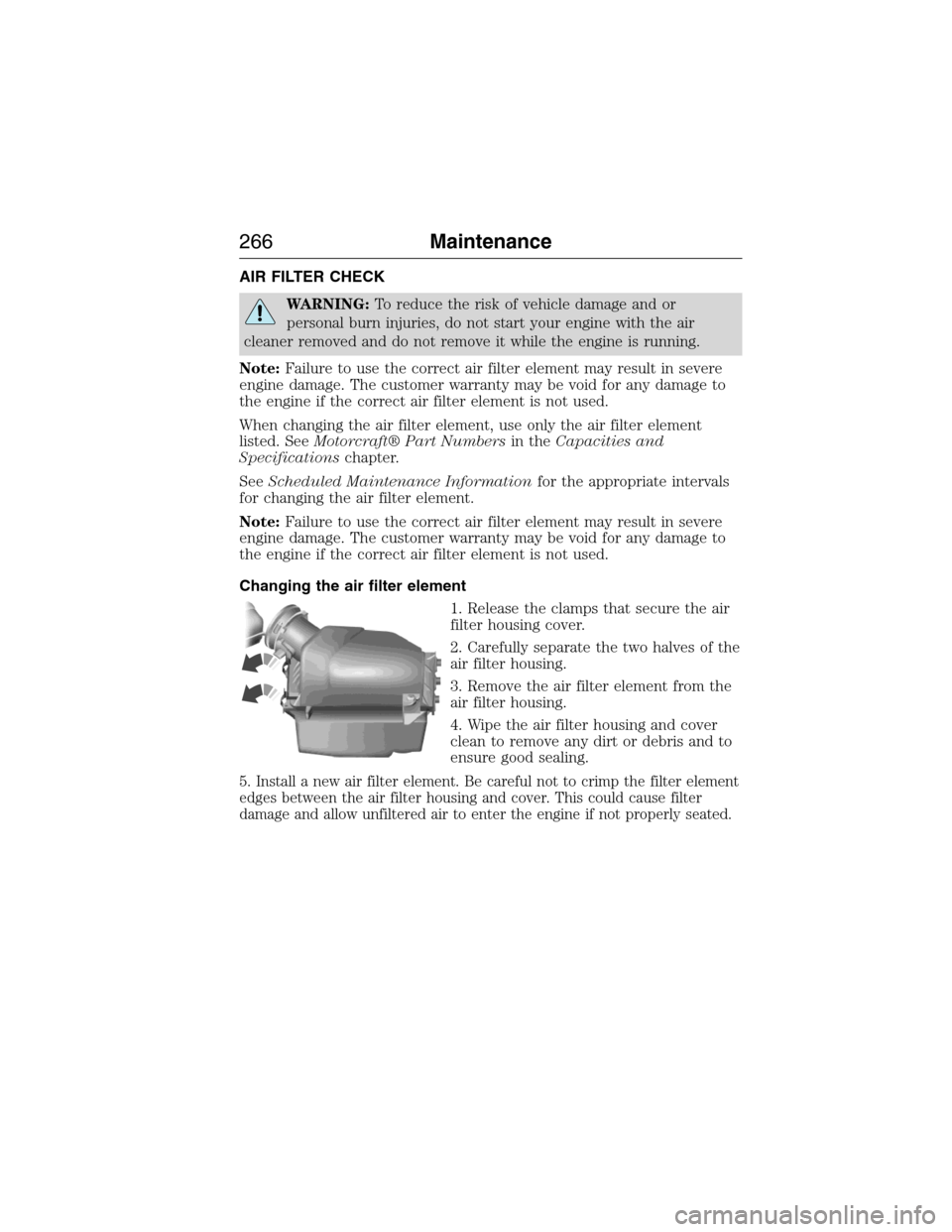

AIR FILTER CHECK
WARNING:To reduce the risk of vehicle damage and or
personal burn injuries, do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
When changing the air filter element, use only the air filter element
listed. SeeMotorcraft® Part Numbersin theCapacities and
Specificationschapter.
SeeScheduled Maintenance Informationfor the appropriate intervals
for changing the air filter element.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
Changing the air filter element
1. Release the clamps that secure the air
filter housing cover.
2. Carefully separate the two halves of the
air filter housing.
3. Remove the air filter element from the
air filter housing.
4. Wipe the air filter housing and cover
clean to remove any dirt or debris and to
ensure good sealing.
5. Install a new air filter element. Be careful not to crimp the filter element
edges between the air filter housing and cover. This could cause filter
damage and allow unfiltered air to enter the engine if not properly seated.
266Maintenance
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

•Lubricate hood latch, all door latches and trunk lid hinges with a light
grade oil.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contains contaminates that may cause engine damage.
•Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
•With your foot on the brake, shift through all the gears while the
engine is running.
Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 meters) every 15 days to lubricate
working parts and prevent corrosion.
Vehicle Care283
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver’s side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number.
XXXXXXXXXXXXXXXXX
Capacities and Specifications321
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal operating characteristic
and, by itself, does not necessarily indicate a concern or that the fluid
needs to be changed. However, discolored fluids that also show signs of
overheating and foreign material contamination should be inspected
immediately by a qualified expert, such as the factory-trained technicians
at your dealership. Your vehicle’s oils and fluids should be changed at the
specified intervals or in conjunction with a repair. Flushing is a viable
way to change fluid for many vehicle sub-systems during scheduled
maintenance. It is critical that systems are flushed only with new fluid
that is the same as that required to fill and operate the system, or using
a Ford-approved flushing chemical.
Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
every month or at six month intervals.
Check every month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
Windshield washer fluid level.
Check every six months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary.
Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if
necessary.
Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag, safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as
necessary.
Scheduled Maintenance431
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

Multi-point Inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help make sure your vehicle keeps
running great.
Multi-point Inspection
Accessory drive belt(s) Half-shaft dust boots (if equipped)
Battery performance Horn operation
Clutch operation (if equipped) Radiator, cooler, heater and A/C hoses
Engine air filter Suspension component for leaks or
damage
Exhaust system Steering and linkage
Exterior lamps and hazard
warning system operationTires (including spare) for wear and
proper pressure
**
Fluid levels*; fill if necessary Windshield for cracks, chips or pits
For oil and fluid leaks Washer spray and wiper operation
*Brake, coolant recovery reservoir, manual and automatic transmission
(with an underhood dipstick), power steering (if equipped) and window
washer
**If your vehicle is equipped with a temporary mobility kit, check the tire
sealant expiration Use By date on the canister. Replace as needed.
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It’s a comprehensive way to perform a
thorough inspection of your vehicle. It’s your checklist that gives you
immediate feedback on the overall condition of your vehicle. You’ll know
what’s been checked, what’s okay, as well as those things that may
require future or immediate attention. The multi-point vehicle inspection
is one more way to keep your vehicle running great!
432Scheduled Maintenance
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed below:
Normal vehicle axle maintenance:Rear axles and power take-off
units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3000 miles (4800 kilometers) or three months,
whichever comes first. This interval can be waived if the axle is filled
with 75W140 synthetic gear fluid meeting Ford specification
WSL-M2C192-A, part number F1TZ-19580-B or equivalent. Add friction
modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of
Traction-Lok rear axles (seeTechnical specificationsin theCapacities
and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100000 miles (160000 kilometers). Rear axle fluid change may be
waived if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent. Add
four ounces (118 mL) of additive friction modifier XL-3 (EST-M2C118-A) or
equivalent for complete refill of Traction-Lok rear axles. The axle fluid
should be changed anytime the axle has been submerged in water.
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5000 miles (8000 kilometers).
If the available API SM or SN oils are not available, then the oil change
service interval is 3000 miles (4800 kilometers).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions require frequent
inspection and replacement of the engine air filter and cabin air filter.
444Scheduled Maintenance
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

911 Assist™ ..............................379
A
ABS (see Brakes) .....................173
Accessing and using your USB
port ............................................358
Accessing your calendar ..........379
Accessory delay ..........................94
Adaptive Cruise Control ...........185
Adding (pairing) a phone ........366
Airbag supplemental restraint
system ..........................................45
and child safety seats ..............46
description ................................45
disposal ......................................55
driver airbag ..............................45
passenger airbag .......................45
side airbag ...........................45, 50
Air cleaner filter ...............266, 320
Air filter, cabin ..........................124
All Wheel Drive (AWD),
driving off road .........................165
Ambient mood/lighting .............386
AM/FM .......................................346
Antifreeze
(see Engine coolant) ................255
Anti-lock brake system
(see Brakes) ..............................173
Anti-theft system ..................76, 78
arming the system ..............76, 78
disarming a triggered
system .......................................78
Armrests ....................................135
Audio system
Single CD ................................330
Audio system (see Radio) .......330Automatic transmission
driving an automatic
overdrive .................................160
fluid, adding ............................260
fluid, checking ........................260
fluid, refill capacities ..............316
fluid, specification ..................316
Selectshift (SST) ....................161
Auxiliary Input Jack .................355
Auxiliary powerpoint ................142
A/V inputs ..........................331, 363
Axle
lubricant specifications ..........316
B
Battery .......................................262
acid, treating emergencies .....262
jumping a disabled
battery .....................................230
maintenance-free ....................262
replacement,
specifications ..........................320
servicing ..................................262
Blind Spot Information
System .......................................194
Booster seats ...............................27
Brakes ........................................172
anti-lock ...................................173
anti-lock brake system
(ABS) warning light ...............173
brake warning light ................173
fluid, checking and adding ....261
fluid, refill capacities ..............316
fluid, specifications .................316
lubricant specifications ..........316
parking ....................................173
shift interlock ..........................163
trailer .......................................218
446Index
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

C
Capacities for refilling fluids ....316
Cargo management system ......204
Cargo net ...................................203
CD ..............................................330
CD player ..........................328, 357
CD voice commands .................358
Cell phone use ............................15
Changing a tire .........................308
Child safety restraints ..........23, 25
Child safety seats
attaching with tether straps ....25
automatic locking mode
(retractor) .................................36
LATCH .......................................23
Child safety seats -
booster seats ...............................27
Cleaning the touchscreen ........335
Cleaning your vehicle ...............274
engine compartment ..............276
instrument panel ....................280
interior .....................................278
plastic parts ............................275
washing ....................................274
waxing .....................................276
wheels ......................................281
wiper blades ............................277
Climate voice commands .........398
Clock ..................................330, 384
Collision Warning System .........199
Console ......................................143
overhead ..................................143
Coolant ......................................255
checking and adding ..............255
refill capacities ........................316specifications ..........................316
Cross Traffic Alert ....................194
Cruise control ...........................184
Customer Assistance ................227
Ford Extended Service
Plan ..........................................325
Getting roadside assistance ...227
Getting the service you
need .........................................233
Ordering additional owner’s
literature .................................240
Utilizing the
Mediation/Arbitration
Program ...................................237
D
Defrost .......................................121
rear window ............................123
Dipstick
automatic transmission
fluid ..........................................260
engine oil .................................254
Display settings .........................385
Driving under special
conditions ..................164, 166, 169
sand .........................................168
snow and ice ...........................170
through water .................168, 224
Dual automatic temperature
control (DATC) .........................121
E
Electronic message center .......106
Electronic stability control ......177
Emergencies, roadside
jump-starting ..........................230
running out of fuel .................152
Index447
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)
