2015 LINCOLN MKT fuse

Fuse or relay
numberFuse amp
ratingProtected components
23 15A Steering wheel control module,
Instrument cluster
24 15A Datalink connector, Steering
wheel control module
25 15A Not used (spare)
26 5A Push button start switch
27 20A Intelligent access module
28 15A Not used (spare)
29 20A Radio, Global positioning system
module
30 15A Front park lamps, Trailer tow
relay for park lamps, Front side
markers
31 5A Trailer tow brake controller
32 15A Power window switches and
motors, Power lock switches,
Moonroof, 110V AC power point,
Driver window/mirror switch, Rear
seat switch (livery)
33 10A Suspension module
34 10A Blind spot monitor, 2nd row
heated seats, Reverse sensing
system, Rearview camera, Interior
mirror, Auto high beam/Lane
departure warning/Lane keep
assist module
35 5A Heads-up display, Climate control
humidity sensor, Overdrive cancel
switch (limousine/livery)
36 10A Heated steering wheel
37 10A Refrigerator
38 10A Not used (spare)
Fuses287
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

Fuse or relay
numberFuse amp
ratingProtected components
39 15A High beam headlamps
40 10A Rear park lamps, License plate
lamps, Rear light bar applique
41 7.5A Occupant classification system,
Restraints control module
42 5A Not used (spare)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate control module
47 15A Fog lamps, Fog lamp indicator
48 30A Circuit
BreakerNot used (spare)
49 Delayed
accessory relayBody control module
288Fuses
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

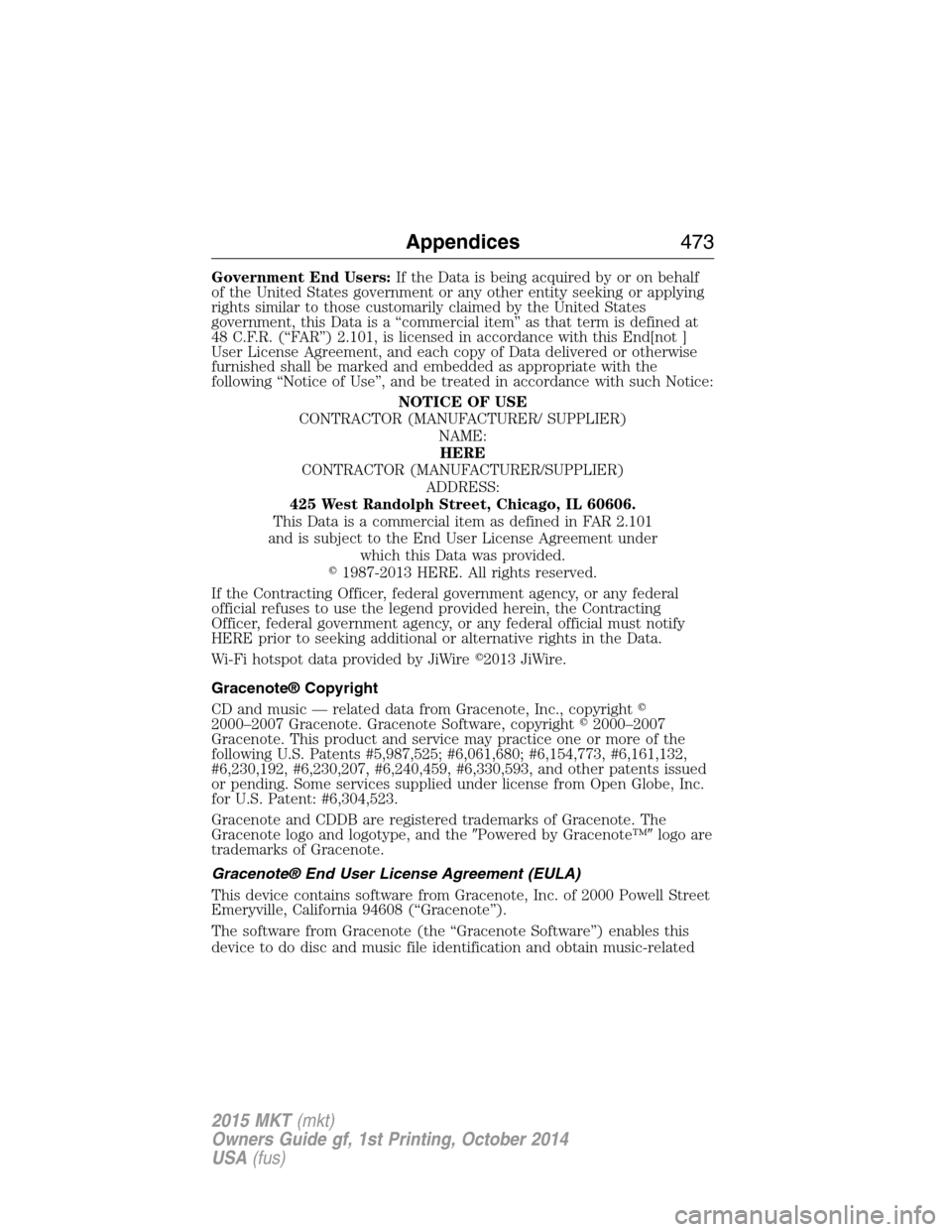

Government End Users:If the Data is being acquired by or on behalf
of the United States government or any other entity seeking or applying
rights similar to those customarily claimed by the United States
government, this Data is a “commercial item” as that term is defined at
48 C.F.R. (“FAR”) 2.101, is licensed in accordance with this End[not ]
User License Agreement, and each copy of Data delivered or otherwise
furnished shall be marked and embedded as appropriate with the
following “Notice of Use”, and be treated in accordance with such Notice:
NOTICE OF USE
CONTRACTOR (MANUFACTURER/ SUPPLIER)
NAME:
HERE
CONTRACTOR (MANUFACTURER/SUPPLIER)
ADDRESS:
425 West Randolph Street, Chicago, IL 60606.
This Data is a commercial item as defined in FAR 2.101
and is subject to the End User License Agreement under
which this Data was provided.
1987-2013 HERE. All rights reserved.
If the Contracting Officer, federal government agency, or any federal
official refuses to use the legend provided herein, the Contracting
Officer, federal government agency, or any federal official must notify
HERE prior to seeking additional or alternative rights in the Data.
Wi-Fi hotspot data provided by JiWire2013 JiWire.
Gracenote® Copyright
CD and music — related data from Gracenote, Inc., copyright
2000–2007 Gracenote. Gracenote Software, copyright2000–2007
Gracenote. This product and service may practice one or more of the
following U.S. Patents #5,987,525; #6,061,680; #6,154,773, #6,161,132,
#6,230,192, #6,230,207, #6,240,459, #6,330,593, and other patents issued
or pending. Some services supplied under license from Open Globe, Inc.
for U.S. Patent: #6,304,523.
Gracenote and CDDB are registered trademarks of Gracenote. The
Gracenote logo and logotype, and thePowered by Gracenote™logo are
trademarks of Gracenote.
Gracenote® End User License Agreement (EULA)
This device contains software from Gracenote, Inc. of 2000 Powell Street
Emeryville, California 94608 (“Gracenote”).
The software from Gracenote (the “Gracenote Software”) enables this
device to do disc and music file identification and obtain music-related
Appendices473
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

Emergency brake
(see Parking brake) ..................200
Emission control system ..........183
End user license agreement ....458
Engine ................................359–360
cleaning ...................................319
coolant .....................................296
fail-safe cooling .......................300
idle speed control ...................307
lubrication specifications .......361
refill capacities ........................361
service points ..................292, 294
Engine block heater .................175
Engine oil
checking and adding ..............295
dipstick ....................................295
filter, specifications ................365
refill capacities ........................361
specifications ..........................361
Event data recording ..................12
Exhaust fumes ..........................175
F
Fail safe cooling ........................300
Fleet MyKey programming ........69
Floor mats .................................263
Fluid capacities .........................361
Four-Wheel Drive vehicles
driving off road .......................193
Freezer ......................................169
Fuel
cap ...........................................181
capacity ...................................361
choosing the right fuel ...........178
filler funnel .............................179
filling your vehicle with fuel ..181
filter, specifications ........306, 365fuel pump shut-off ..................267
octane rating ...........179, 359–360
quality ......................................178
running out of fuel .................179
safety information relating to
automotive fuels .....................177
Fuses ..................................279–280
G
Garage door opener ..................160
Gas cap (see Fuel cap) ............181
Gauges .......................................110
H
Hazard flashers .........................267
HD Radio™ ...............................393
Headlamps
aiming ......................................312
bulb specifications ..................315
flash to pass ..............................93
high beam ...........................93, 96
replacing bulbs .......................314
Head restraints .........................139
Heated steering wheel ..............443
Heating ......................................132
Help ............................................442
Homelink wireless control
system ........................................160
Hood ..........................................290
How to use voice commands ...387
I
Ignition ...............................359–360
Illuminated visor mirror ...........107
Information displays .................116
Index495
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

P
Pairing other phones ................413
Pairing your phone ...................412
Pairing your phone for the
first time ....................................412
Parental MyKey programming ...69
Park Assist ................................206
Parking brake ............................200
Parts
(see Motorcraft® parts) ..........365
Passenger Occupant
Classification Sensor ...................54
Phone settings ..................416, 439
Phone voice commands ............417
POI categories ...........................448
Point of Interest (POI) .............448
Power distribution box
(see Fuses) ...............................280
Power door locks ........................73
Power liftgate ..............................77
Power mirrors ...........................104
Powerpoint ................................165
Power steering ..........................241
fluid, checking and adding ....306
fluid, refill capacity ................361
fluid, specifications .................361
Power Windows .........................102
Privacy information ..................384
Push button start system .........171
Q
Quick touch buttons .................455R
Radio ..........................................375
AM/FM .....................................392
Single CD ................................375
Radio reception .........................373
Radio voice commands .............397
Rear heated/cooled seats .........146
Rear seat controls
(if equipped) .............................376
Rear view camera
display ................................210, 434
Rear window defroster .............132
Receiving a text message .........416
Recommendations for
attaching safety restraints for
children ........................................19
Refrigerator ...............................169
Relays ................................279–280
Remote entry system
illuminated entry ......................76
locking/unlocking doors ...........73
replacing the batteries .............64
Remote start climate
operation ...................................137
Reverse sensing system ...........205
Roadside assistance ..................265
Route preferences ....................450
S
Safety Belt Maintenance ............48
Safety belts
(see Safety restraints) .........39, 43
Safety defects, reporting ..........278
Safety information ....................382
Index497
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
