2015 LEXUS RX450h steering wheel

5433-4. Using the audio system
3
Interior features Using the steering wh eel audio switches
Turning the power on
Press when the audio system is turned off. The audio system can be turned off by holding the switch down until you hear
a beep.Some audio features can be controlled using the switches on the steering
wheel.
Turns the power on, selects
an audio source
Increases/decreases volume
Radio mode: Selects a radio
station
CD mode: Selects a track, file
(MP3 and WMA) and disc
Bluetooth ®
audio mode:
Selects a track and album
iPod mode: Selects a song
USB memory mode: Selects
a file and folder

5463-4. Using the audio system
CAUTION■
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

5533-4. Using the audio system
3
Interior features ■ Steering wheel switches
Vo l u m e
During an incoming call:
Adjusts the ring tone volume
During an ongoing call:
Adjusts the receiver volume The voice guidance volume can-
not be adjusted using this but-
ton.
Off-hook switch
Turns the hands-free system
on/starts a call
On-hook switch
Turns the hands-free system
off/ends a call/refuses a call
Talk switch
Turns the voice command
system on (press)/turns the
voice command system off
(press and hold)
■ Microphone

6043-7. Other interior features
Heated steering wheel 
■
The heated steering wheel can be used when
The “POWER” switch is in ON mode.■
To prevent 12-volt battery discharge
The heated steering wheel will automatically turn off after about 30 minutes.■
If the indicator light does not come on
If the indicator light does not come on wh en the switch is pressed, a malfunction
may have occurred in the system. Have the vehicle inspected by your Lexus dealer.
CAUTION■
Burns
Care should be taken to prevent injury if anyone in the following categories comes
in contact with the steering wheel when the heated steering wheel is on:
●
Babies, small children, the elderly, the sick and the physically challenged
●
Persons with sensitive skin
●
Pe r s o n s w h o a r e f a t i g u e d
●
Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
 : If equippedThe heated steering wheel heats the le ather portions on the left and right
of the steering wheel.
Turns the heater on/off The indicator light comes on
when the heater is operating.

6454-2. Maintenance
4

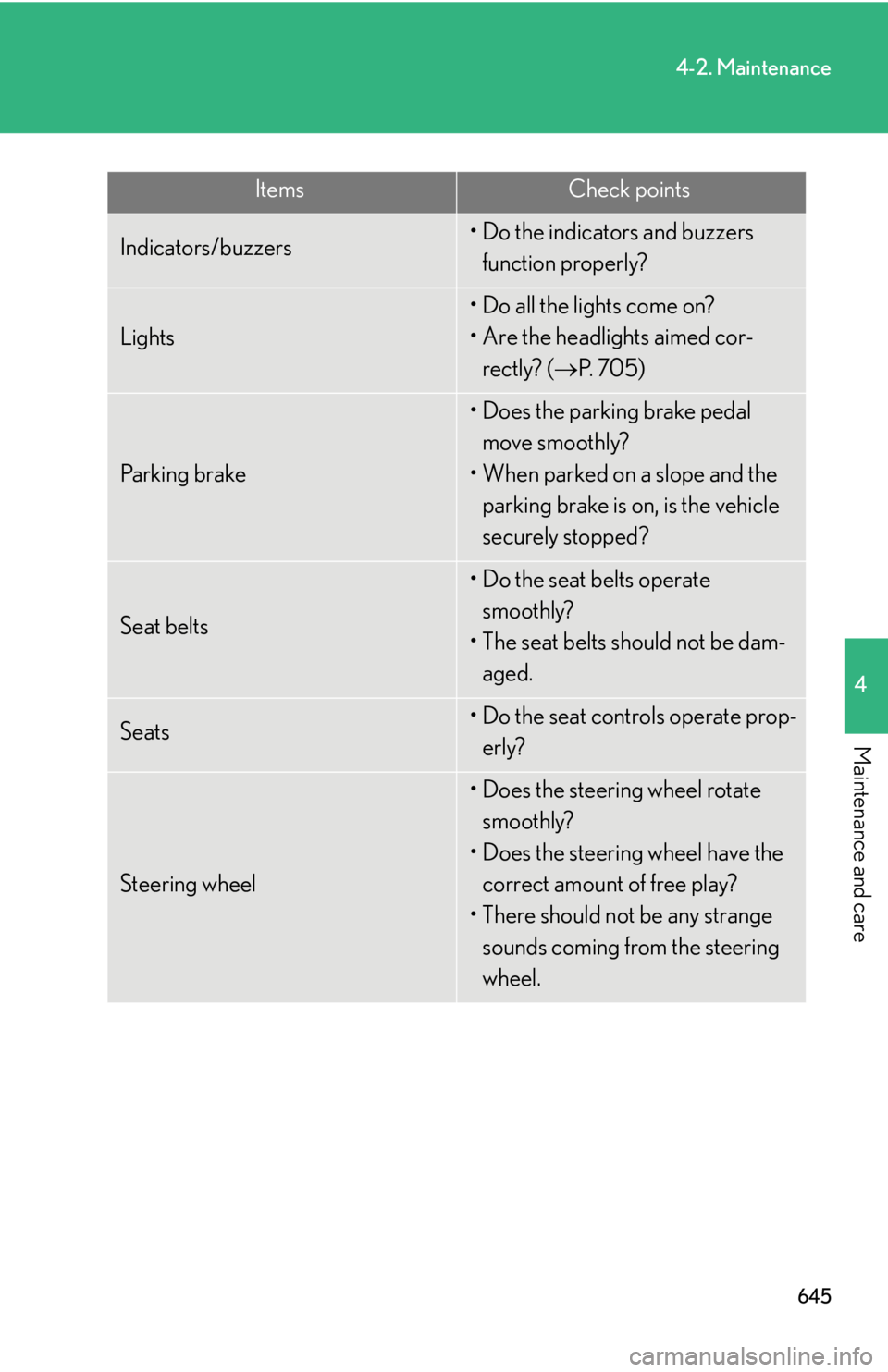

Maintenance and care Items Check points
Indicators/buzzers • Do the indicators and buzzers
function properly?
Lights • Do all the lights come on?
• Are the headlights aimed cor-
rectly? (  P. 7 0 5 )
Pa r k i n g b r a ke • Does the parking brake pedal
move smoothly?
• When parked on a slope and the
parking brake is on, is the vehicle
securely stopped?
Seat belts • Do the seat belts operate
smoothly?
• The seat belts should not be dam-
aged.
Seats • Do the seat controls operate prop-
erly?
Steering wheel • Does the steering wheel rotate
smoothly?
• Does the steering wheel have the
correct amount of free play?
• There should not be any strange
sounds coming from the steering
wheel.

7285-1. Essential information
Emergency towing
If a tow truck is not available in an emergency, your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet. This should only be attempted on hard surfaced roads for short
distance at under 18 mph (30 km/h).
A driver must be in the vehicle to s teer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
Emergency towing procedure
Take out the towing eyelet. (  P. 764)
Type A
Insert the mechanical key (  P.
52) into the groove and release
the claws. With the mechanical key
inserted, remove the eyelet cover
by pulling it towards you. STEP 1
STEP 2

7305-1. Essential information
■
While towing
If the hybrid system is off, the power assist for the brakes and steering will not func-
tion, making steering and braking more difficult.■
Wheel nut wrench
Wheel nut wrench is installed in the luggage compartment. (  P. 76 4 )
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury. ■
When towing the vehicle
2WD models
AW D m o d e l s Be sure to transport the vehicle with the front
wheels raised or with all four wheels raised off
the ground. If the vehicle is towed with the
front wheels contacting the ground, the driv-
etrain and related parts may be damaged or
electricity generated by the operation of the
motor may cause a fire to occur depending
on the nature of the damage or malfunction.
Be sure to transport the vehicle with all four
wheels raised off the ground. If the vehicle is
towed with the tires contacting the ground,
the drivetrain or related parts may be dam-
aged, the vehicle may fly off the truck, or
electricity generated by the operation of the
motor may cause a fire to occur depending
on the nature of the damage or malfunction.

5
When trouble arises
7315-1. Essential information
CAUTION■
While towing ●
When towing using a rope, avoid sudden starts, etc. which place excessive stress
on the towing hook and rope.
The towing hook or rope may become damaged, broken debris may hit people
and cause serious damage.●
Do not turn the “POWER” switch off.
There is a possibility that the steering wheel is locked and can not be operated.■
Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing.
NOTICE■
To prevent damage to the vehicle when towing using a wheel-lift type truck
When raising the vehicle, ensure adequa te ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle could
be damaged while being towed.■
To prevent body damage when to wing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.■
Recreational towing (behind motor home, etc.)
Never dinghy tow your vehicle to prevent
causing serious damage to the AWD system
(AWD models) and transmission. (  P. 3 2 4 )
