2015 LEXUS RX450h brake fluid

7325-1. Essential information
If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■ Visible symptoms
● Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temper ature gauge needle continually points
higher than normal.
■ Audible symptoms
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
■ Operational symptoms
● Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking.
● Vehicle pulls heavily to one side when driving on a level road.
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor

5
When trouble arises
7335-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds...Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning in dicates a possible problem in the brake system.
Immediately stop the vehi cle in a safe place and contact your Lexus
dealer.
* : Parking brake engaged warning buzzer
 P. 74 8
Stop the vehicle immediately.
The following warning indicates the po ssibility of damage to the vehicle
that may lead to an ac cident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer. Warning light Warning light/Details
(U.S.A.)

(Canada) Brake system warning light (warning buzzer)
*•Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.
Warning light Warning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging systemCalmly perform the following actions if any of the warning lights comes on
or flashes. If a light comes on or flashes, but then goes off, this does not nec-
essarily indicate a malfunction in the system.

5
When trouble arises
7435-2. Steps to take in an emergency
If a warning message is displayed
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning in dicates a possible problem in the brake system.
Immediately stop the vehi cle in a safe place and contact your Lexus
dealer.
Wa r n i n g m e s s a g e Details
(U.S.A.)

(Canada) Indicates the following:
• The brake fluid level is low; or,
• The brake system is malfunctioning.
A buzzer also sounds.
Indicates a malfunction in:
• The regenerative brake system; or,
• The electronically controlled brake system
A buzzer also sounds.If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Master warning light The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning lights comes on again after the following actions
have been performed, contact your Lexus dealer.

5
When trouble arises

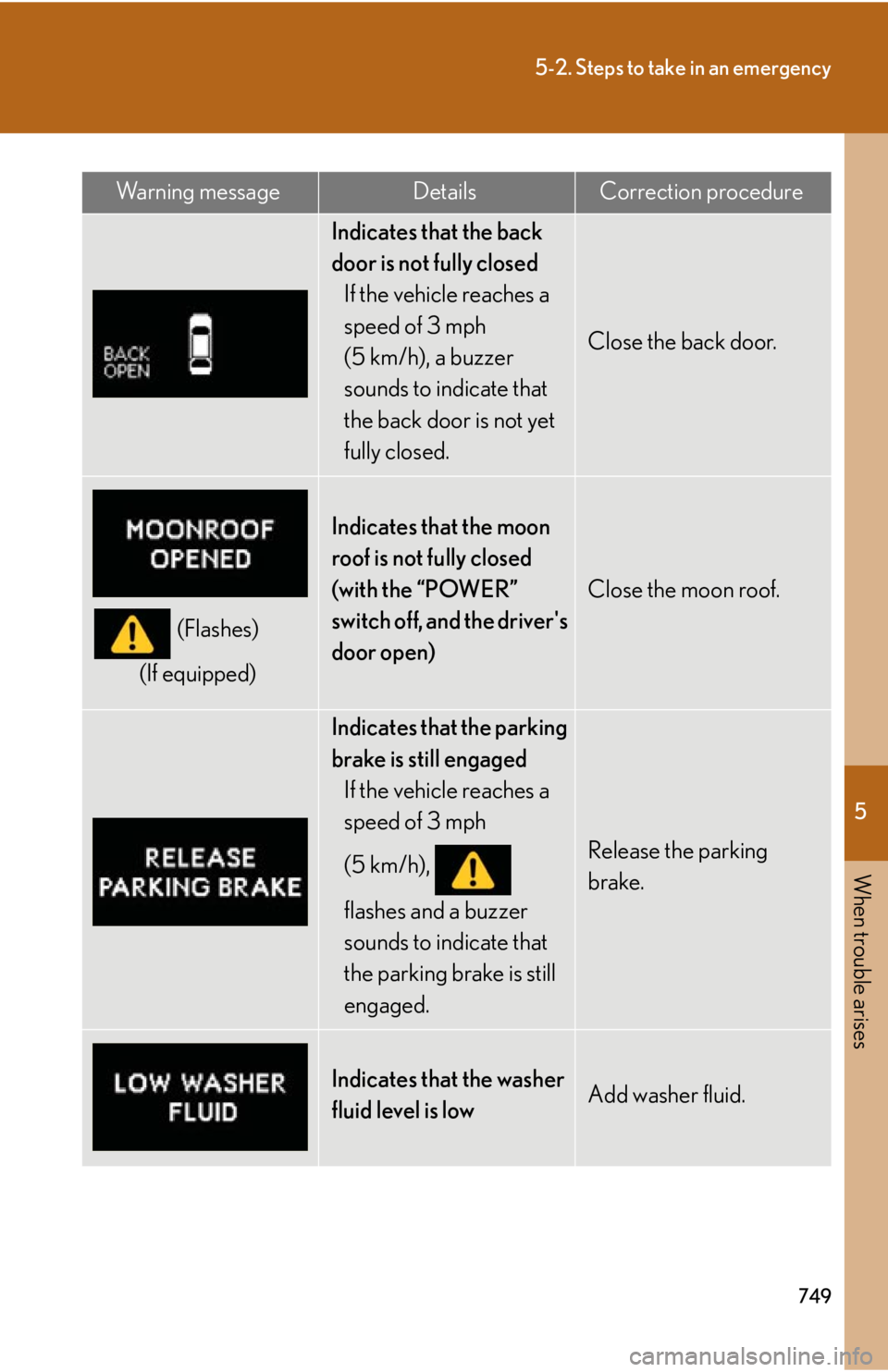

7495-2. Steps to take in an emergency
Indicates that the back
door is not fully closed
If the vehicle reaches a
speed of 3 mph
(5 km/h), a buzzer
sounds to indicate that
the back door is not yet
fully closed. Close the back door.
(Flashes)
(If equipped) Indicates that the moon
roof is not fully closed
(with the “POWER”
switch off, and the driver's
door open) Close the moon roof.
Indicates that the parking
brake is still engaged
If the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to indicate that
the parking brake is still
engaged. Release the parking
brake.
Indicates that the washer
fluid level is low Add washer fluid.Wa r n i n g m e s s a g e Details Correction procedure

8066-1. Specifications
Brakes
* 1
: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51
kgf) while the hybrid system is operating
* 2
: Parking brake pedal travel when depressed with a force of 67.5 lbf (300 N, 31
kgf)
SteeringPe d a l c l e a r a n c e
* 1
4.1 in. (104 mm) Min.
Pedal free play 0.04 
0.08 in. (1 
2 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake pedal travel
* 2
7 
10 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Free play Less than 1.2 in. (30 mm)
