2015 LEXUS RC F ECO mode

5308-2. Steps to take in an emergency
RC350/RCF_U (OM24636U)
WA R N I N G
■While towing
●When towing using a cables or chains, avoid sudden starts, etc. which place excessive
stress on the towing eyelets, cables or chains. The towing eyelets, cables or chains
may become damaged, broken debris ma y hit people and cause serious damage.
●Do not turn the engine switch off.
There is a possibility that the steering wheel is locked and cannot be operated.
■Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing ey elet may come loose during towing.
NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type truck (2WD
models)
●Do not tow the vehicle from the rear when the engine switch is off. The steering lock
mechanism is not strong enough to hold the front wheels straight.
●When raising the vehicle from the rear, en sure adequate ground clearance for towing
at the opposite end of the raised vehicle. Without adequate clearance, the vehicle
could be damaged while being towed from the rear.
■To prevent damage to the vehicle when towing using a wheel-lift type truck (AWD
models)
When raising the vehicle, ensure adequate ground clearance for towing at the oppo-
site end of the raised vehicle. Without adequate clearance, the vehicle could be dam-
aged while being towed.
■To prevent body damage when to wing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent damage to the drivetrain, susp ension and related parts when performing
emergency towing
When securing a cable or chai n to the vehicle, do not wrap the cable or chain around
drivetrain or suspension co mponents and related parts.

5358-2. Steps to take in an emergency
8
When trouble arises
RC350/RCF_U (OM24636U)
*1: Parking brake engaged warning buzzer (RC350): P. 5 4 3
*2: Open door warning buzzer:
 P. 5 4 1
*3: Driver’s seat belt buzzer:
The driver’s seat belt buzzer sounds to alert the driver that his or her seat belt is not
fastened. Once the engine switch is turned to IGNITION ON mode, the buzzer
sounds for 6 seconds. If the vehicle reaches a speed of 12 mph (20 km/h), the buzzer
sounds once. If the seat belt is still unfast ened after 24 seconds, the buzzer will sound
intermittently for 10 seconds. Then, if the seat belt is still unfastened, the buzzer will
sound in a different tone for 20 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the front passenger that his or
her seat belt is not fastened. The buzzer sounds once if the vehicle reaches a speed of
12 mph (20 km/h). If the seat belt is still unfastened after 24 seconds, the buzzer will
sound intermittently for 10 seconds. Then, if the seat belt is still unfastened, the buzzer
will sound in a different tone for 20 more seconds.
Tire pressure warning light When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 5 3 6 )
•Flat tire ( P. 5 6 0 , 5 74 )
 Adjust the tire inflation pressure to the specified level.
The light will turn off after a fe w minutes. In case the light does
not turn off even if the tire inflation pressure is adjusted, have the
system checked by your Lexus dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
 Have the system checked by your Lexus dealer.
Warning lightWarning light/Details/Actions

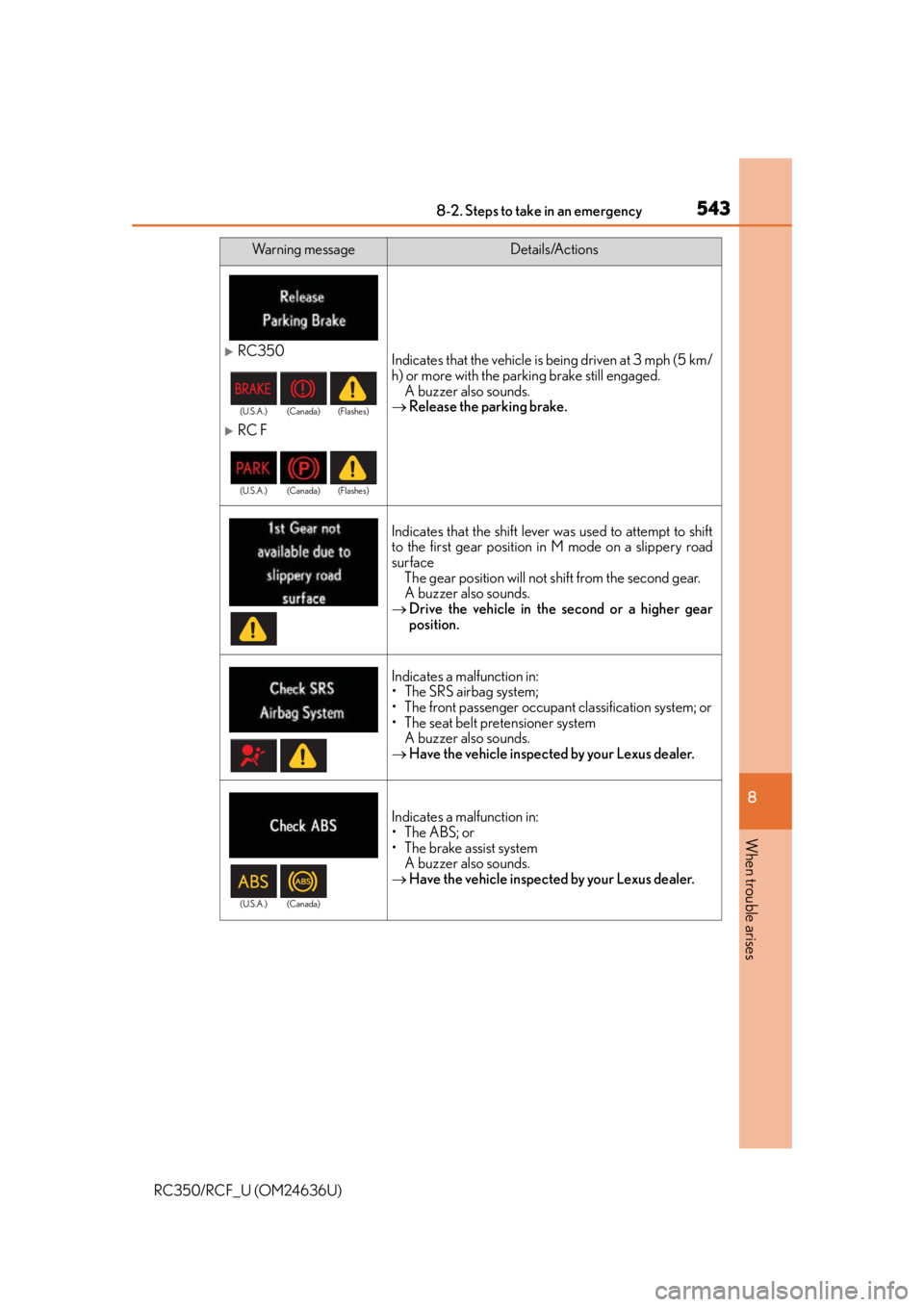

5438-2. Steps to take in an emergency
8
When trouble arises
RC350/RCF_U (OM24636U)
RC350
RC F
Indicates that the vehicle is being driven at 3 mph (5 km/
h) or more with the parking brake still engaged.
A buzzer also sounds.
 Release the parking brake.
Indicates that the shift lever was used to attempt to shift
to the first gear position in M mode on a slippery road
surface
The gear position will not sh ift from the second gear.
A buzzer also sounds.
 Drive the vehicle in the second or a higher gear
position.
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates a malfunction in:
• The ABS; or
• The brake assist system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Wa r n i n g m e s s a g eDetails/Actions
(U.S.A.) (Canada) (Flashes)
(U.S.A.) (Canada) (Flashes)
(U.S.A.) (Canada)

5548-2. Steps to take in an emergency
RC350/RCF_U (OM24636U)
■Wa r n i n g m e s s a g e s
The warning message illustrations used are intended as examples, and may differ from
the image that is actua lly displayed on the multi-information display.
■Warning message in radar cruise mode (if equipped)
In the following situations, the warning messag e may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the vehicle
ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■The LDA (Lane Departure Alert) lane departure warning function
In the following situations, the warning messag e will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LDA system func-
tions
●When the lane lines cannot be recognized
■Reset the maintenance data (U.S.A. only)
Make sure to reset the oil change system. ( P. 4 6 7 )
■Conditions that the tire pressure warning system may not function properly
 P. 4 9 6
■Warning buzzer
P. 5 3 6

5588-2. Steps to take in an emergency
RC350/RCF_U (OM24636U)
Once
• When the doors were unlockedwith the mechanical key and then
the engine switch was pressed,
the electronic key could not be
detected in the vehicle.
• The electronic key could not be detected in the vehicle even after
the engine switch was pressed
two consecutive times.
 Touch the electronic key to the
engine switch while depressing
the brake pedal.
Once
During an engine starting proce-
dure in the event that the electronic
key was not functioning properly
( P. 592), the engine switch was
touched with the electronic key.
 Press the engine switch within
10 seconds of the buzzer sound-
ing.

Indicates that:
• With the engine switch off, the
doors were unlocked and then the
driver's door was opened and
closed
• The engine switch was turned to ACCESSORY mode without
starting the engine
• The shift lever was shifted to P or N from another shift position with
the engine switch in IGNITION
ON mode.
 Press the engine switch while
depressing the brake pedal.
Once
The engine switch has been turned
off with the shift lever in a position
other than P or N.
Shift the shift lever to P.
Interior
buzzerExteriorbuzzerWa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)

5888-2. Steps to take in an emergency
RC350/RCF_U (OM24636U)
One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. (P. 5 9 3 )
●There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if repair procedures
are unknown.
When the engine does not start, the following steps can be used as an interim
measure to start the engine if the engine switch is functioning normally:
Set the parking brake.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while depressing the
brake pedal firmly.
Even if the engine can be started using the above steps, the system may be mal-
functioning. Have the vehicle inspected by your Lexus dealer.
The starter motor does not turn over, the interior lights and headlights
do not turn on, or the horn does not sound.
Emergency start function
1
2
3
4

5928-2. Steps to take in an emergency
RC350/RCF_U (OM24636U)
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION ON mode.
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the engine switch will
turn to ACCESSORY mode.
Firmly depress the brake pedal and check that is shown on the multi-
information display.
Press the engine switch.
In the event that the engine still cannot be started, contact your Lexus dealer.
■Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when stopping
the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic
key battery be replaced immediatel y when the battery is depleted. (P. 5 0 7 )
■Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is pressed.
( P. 1 9 4 )
■When the electronic key does not work properly
●Make sure that the smart access system wi th push-button start has not been deacti-
vated in the custom ization setting. If it is off, turn the function on.
(Customizable features P. 6 3 5 )
●Check if battery-saving mo de is set. If it is set, cancel the function. ( P. 1 4 8 )
Starting the engine
1
2
WA R N I N G
■When using the mechanical key and operating the power windows or moon roof
Operate the power window or moon roof afte r checking to make sure that there is no
possibility of any passenger having any of their body parts caught in the window or
moon roof.
Also, do not allow children to operate the mech anical key. It is possible for children and
other passengers to get caught in power window or moon roof.
3
4
3

5948-2. Steps to take in an emergency
RC350/RCF_U (OM24636U)
Connect the jumper cables according to the following procedure:
RC350
RC F
Connect a positive jumper cable clamp to the positive (+) battery terminal
on your vehicle.
Connect the clamp on the other end of the positive cable to the positive (+)
battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery terminal on the
second vehicle.
Connect the clamp at the other end of the negative cable to a solid, station-
ary, unpainted metallic point away from the battery and any moving parts,
as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the battery of
your vehicle.
Open and close any of the door of your vehicle with the engine switch off.
Maintain the engine speed of the second vehicle and start the engine of your
vehicle by turning the engine switch to IGNITION ON mode.
3
1
2
3
4
4
5
6
