2015 LEXUS RC F remote control

5958-2. Steps to take in an emergency
8
When trouble arises
RC350/RCF_U (OM24636U)
Once the vehicle’s engine has started, remove the jumper cables in the exact
reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at your Lexus dealer as soon
as possible.
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle is not
in use, due to natural discharg e and the draining effects of certain electrical appliances. If
the vehicle is left for a long time, the battery may discharge, and the engine may be
unable to start. (The battery recharges automatically during driving.)
■When recharging or replacing the battery
●Make sure that the key is not inside the vehicle when recharging or replacing the bat-
tery. The key may be locked in the vehicle if the alarm is activated. ( P. 7 9 )
●In some cases, it may not be possible to unlock the doors using the smart access system
with push-button start when the battery is discharged. Use the wireless remote control
or the mechanical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but will
start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was discharged.
Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery discharged, be
especially careful when reconnecting the battery.
7

635
RC350/RCF_U (OM24636U)
9
Vehicle specifications
9-2. Customization
■Changing by using the Remote Touch or Lexus Display Audio controller
Vehicles with a Remote Touch
Press the “MENU” button on the Remote Touch.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
For details on the Remote Touch, refer to the “NAVIGATION SYSTEM
OWNER'S MANUAL”.
Vehicles with a Lexus Display Audio controller
Press the “MENU” button on the Lexus Display Audio controller.
( P. 3 2 4 )
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter control switches
 P. 105, 111
Customizable features
Your vehicle includes a variety of electronic features that can be personalized
to your preferences. The settings of these features can be changed by using
the meter control switches, the Remote Touch or Lexus Display Audio con-
troller or at your Lexus dealer.
Customizing vehicle features
1
2
1
2

6369-2. Customization
RC350/RCF_U (OM24636U)
Some function settings are changed simultaneously with other functions being
customized. Contact your Lexus dealer for further details. Settings that can be changed using the Remote Touch or Lexus Display Audio
controller
Settings that can be changed using the meter control switches
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, — = Not available
■Gauges, meters and multi-information display ( P. 82, 90, 96, 103, 110)
RC350
Customizable features
1
2
3
Function*1Default settingCustomized setting
LanguageEnglishFrenchOO—Spanish
Units*2miles (MPG US)
km (km/L)
OO—km (L/100 km)
miles (MPG Impe-
rial)
Eco Driving Indicator LightON (Self-lighting)OFF—O—
switch settings *3Drive information 1Desired status screen
*4—O—
Drive information 1
Current fuel econ- omy
*5—O—Average fuel econ-
omy (after reset)
Drive information 2
Distance (driving range)
*5—O—Average vehicle
speed (after reset)
Po p - u p d i s p l a yONOFF—O—
Accent color*3Color 1Color 2OO—
Needle*6BlueRed—O—White
123

6399-2. Customization
9
Vehicle specifications
RC350/RCF_U (OM24636U)
■Door lock (P. 135, 141, 590)
■Smart access system with push-button start and wireless remote control
( P. 135, 141)
FunctionDefault settingCustomized setting
Unlocking using a mechani-
cal key
Driver’s door
unlocked in one
step, both side
doors unlocked in two stepsBoth side doors
unlocked in one step
——O
Automatic door lockShifting the shift
lever to position
other than P
Off
O—OVehicle speed is
approximately 12
mph (20 km/h) or higher
Automatic door unlockShifting the shift
lever to POff
O—ODriver’s door is opened
Locking/unlocking of the
trunk when both side doors
are locked/unlocked
OnOff——O
123
FunctionDefault settingCustomized setting
Operation buzzer volume5OffO—O1 to 7
Operation signal (Emer-
gency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
Off
O—O30 seconds
120 seconds
Open door warning buzzerOnOff——O
Welcome light illumination
controlOnOff——O
123

6409-2. Customization
RC350/RCF_U (OM24636U)

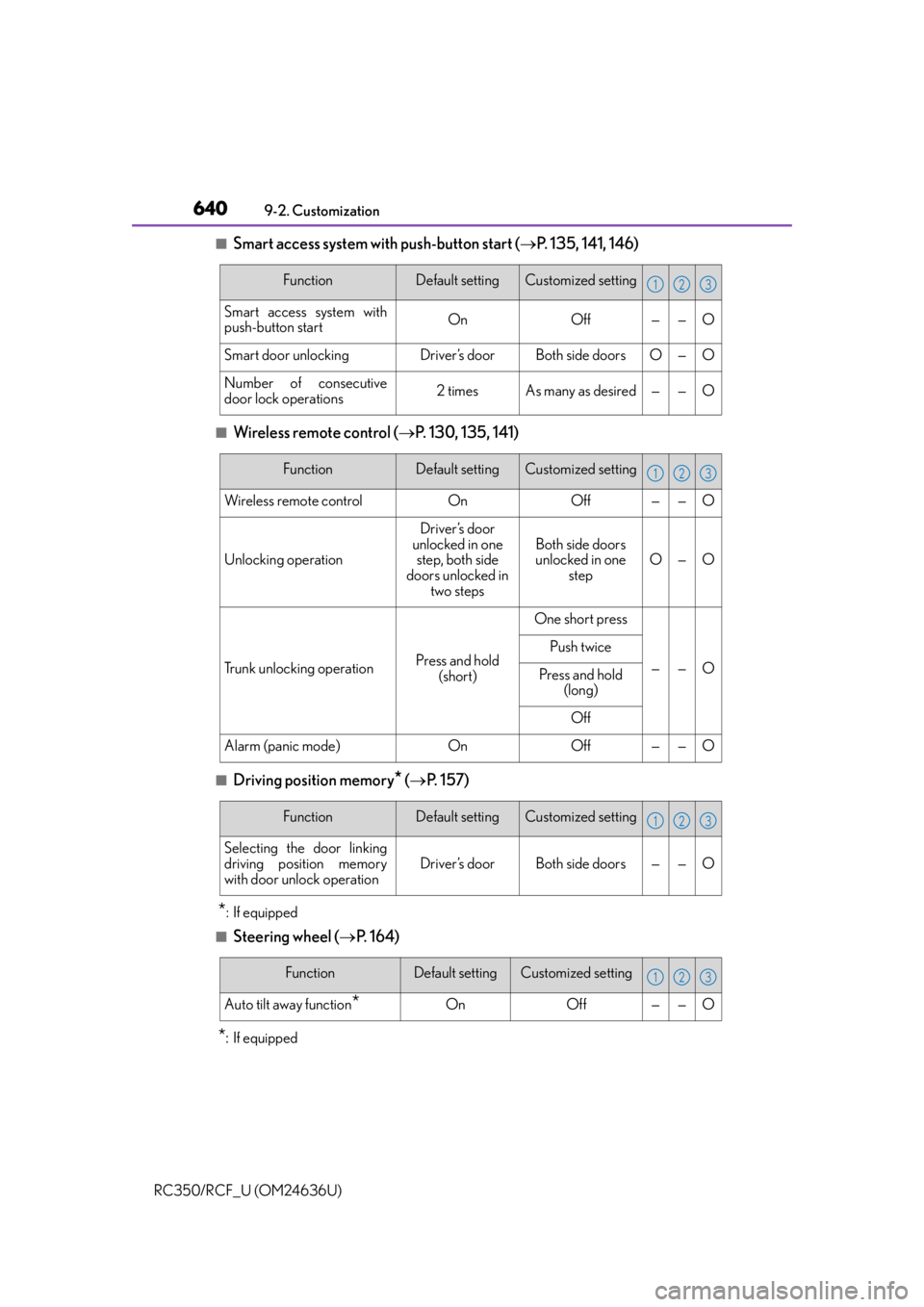

■Smart access system with push-button start ( P. 135, 141, 146)
■Wireless remote control ( P. 130, 135, 141)
■Driving position memory* ( P. 1 5 7 )
*: If equipped
■Steering wheel ( P. 1 6 4 )
*:If equipped
FunctionDefault settingCustomized setting
Smart access system with
push-button startOnOff——O
Smart door unlockingDriver’s doorBoth side doorsO—O
Number of consecutive
door lock operations2 timesAs many as desired——O
123
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
Driver’s door
unlocked in one step, both side
doors unlocked in two steps
Both side doors
unlocked in one
stepO—O
Trunk unlocking operationPress and hold (short)
One short press
——O
Push twice
Press and hold (long)
Off
Alarm (panic mode)OnOff——O
123
FunctionDefault settingCustomized setting
Selecting the door linking
driving position memory
with door unlock operation
Driver’s doorBoth side doors——O
123
FunctionDefault settingCustomized setting
Auto tilt away function*OnOff——O
123

6419-2. Customization
9
Vehicle specifications
RC350/RCF_U (OM24636U)
■Powe r w i n d ow s (P. 1 7 1 )
■Moon roof* ( P. 1 7 5 )
*: If equipped
■Tu r n s i g n a l l e v e r ( P. 2 0 4 )
*1: After flashing the turn signal lights when turn ing left or right while this function is off
and the turn signal lever is moved to the fi rst position in the direction of the flashing
light, the turn signal lights can be selected to be flashing or off.
*2: The turn signal lights keep flashing if the tu rn signal lever is moved to the first position
in the direction of flashing light.
*3: The turn signal lights will be off if the turn signal lever is moved to the first position in
the direction of flashing light.
FunctionDefault settingCustomized setting
Mechanical key linked oper-
ationOffOn——O
Wireless remote control
linked operationOffOn (Open only)——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
123
FunctionDefault settingCustomized setting
Mechanical key linked oper-
ationOffOn——O
Wireless remote control
linked operationOffOn (Open only)——O
Wireless remote control
linked operation signal
(buzzer)OnOff——O
123
FunctionDefault settingCustomized setting
The number of times the
turn signal lights flash auto-
matically when the turn sig-
nal lever is moved to the first
position during a lane
change
*1
3
5
——O7
Off*2
Off*3
123

6459-2. Customization
9
Vehicle specifications
RC350/RCF_U (OM24636U)
■Vehicle customization
●When the smart access system with push-button start is off, the entry unlock function
cannot be customized.
●When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signals will be generated in accordance with the
operation buzzer volume and operational si gnal (Emergency flashers) function set-
tings.
●Some settings can be changed using a switch or the audio system screen. If a setting is
changed using a switch, the changed setting will not be reflected on the audio system
screen until the engine switch is turn ed off and then to IGNITION ON mode.
■When customizing using the Remote Touch or Lexus Display Audio controller
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engi ne running while customizing the features.
WA R N I N G
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.

668Alphabetical index
RC350/RCF_U (OM24636U)
Daytime running light system .......... 209
DefoggerOutside rear view mirrors .............420
Rear window ........................................420
Windshield ............................................420
Differential Front differential ..................................... 611
Rear differential .................................... 612
Dimension ............................................... 604
Dinghy towing..........................................192
Display Drive information ....................... 106, 112
Dynamic radar cruise control...... 233
LDA (Lane Departure Alert) .......249
Multi-information display ....... 103, 110
Warning message ............................ 539
Distance .......................................... 106, 107
Do-it-yourself maintenance ............. 473
Door courtesy lights Location ..................................................428
Wattage ................................................... 619
Door lock Doors ........................................................ 135
Smart access system with push-button start ............................. 146
Wireless remote control ................. 130 Doors .......................................................... 135
Automatic door locking and unlocking system ................... 138
Door lock................................................. 137
Open door warning buzzer ..........136
Open door warning light .............. 534
Outside rear view mirrors ............. 168
Side windows ..........................................171
Drive info 1/Drive info 2 ............. 107, 119
Drive information .......................... 106, 112 Resetting ......................................... 106, 112
Driver’s seat position memory.......... 157
Driving ....................................................... 180 Break-in tips ............................................ 181
Correct driving posture .....................32
Driving mode select switch .......... 278
Procedures ............................................ 180
Winter drive tips ..................................315
DRS (Dynamic Rear Steering) ....... 282 Warning message.............................539
Dynamic radar cruise control ......... 233
Dynamic Rear Steering (DRS) ....... 282 Warning message.............................539
D
