2015 LEXUS RC F ESP

5958-2. Steps to take in an emergency
8
When trouble arises
RC350/RCF_U (OM24636U)
Once the vehicle’s engine has started, remove the jumper cables in the exact
reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at your Lexus dealer as soon
as possible.
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle is not
in use, due to natural discharg e and the draining effects of certain electrical appliances. If
the vehicle is left for a long time, the battery may discharge, and the engine may be
unable to start. (The battery recharges automatically during driving.)
■When recharging or replacing the battery
●Make sure that the key is not inside the vehicle when recharging or replacing the bat-
tery. The key may be locked in the vehicle if the alarm is activated. ( P. 7 9 )
●In some cases, it may not be possible to unlock the doors using the smart access system
with push-button start when the battery is discharged. Use the wireless remote control
or the mechanical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but will
start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was discharged.
Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery discharged, be
especially careful when reconnecting the battery.
7

5998-2. Steps to take in an emergency
8
When trouble arises
RC350/RCF_U (OM24636U)
WA R N I N G
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.
●RC350: While the engine and radiator are
hot, do not loosen or remove the coolant res-
ervoir cap or radiator cap. (The radiator cap
is located under the engine cover.)
High temperature steam or coolant could
spray out.
●RC F: While the engine and radiator are hot,
do not loosen or remove the coolant reser-
voir cap.
High temperature steam or coolant could
spray out.

6299-1. Specifications
9
Vehicle specifications
RC350/RCF_U (OM24636U)
■Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing the tire’s
resistance to the generation of heat and its ability to dissipate heat when
tested under controlled conditions on a specified indoor laboratory test
wheel.
Sustained high temperature can cause the material of the tire to degenerate and
reduce tire life, and excessive temperature can lead to sudden tire failure.
Grade C corresponds to a level of perfor mance which all passenger car tires must
meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory test
wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly inflated and
not overloaded.
Excessive speed, underinflation, or excessiv e loading, either separately or in com-
bination, can cause heat buildup and possible tire failure.

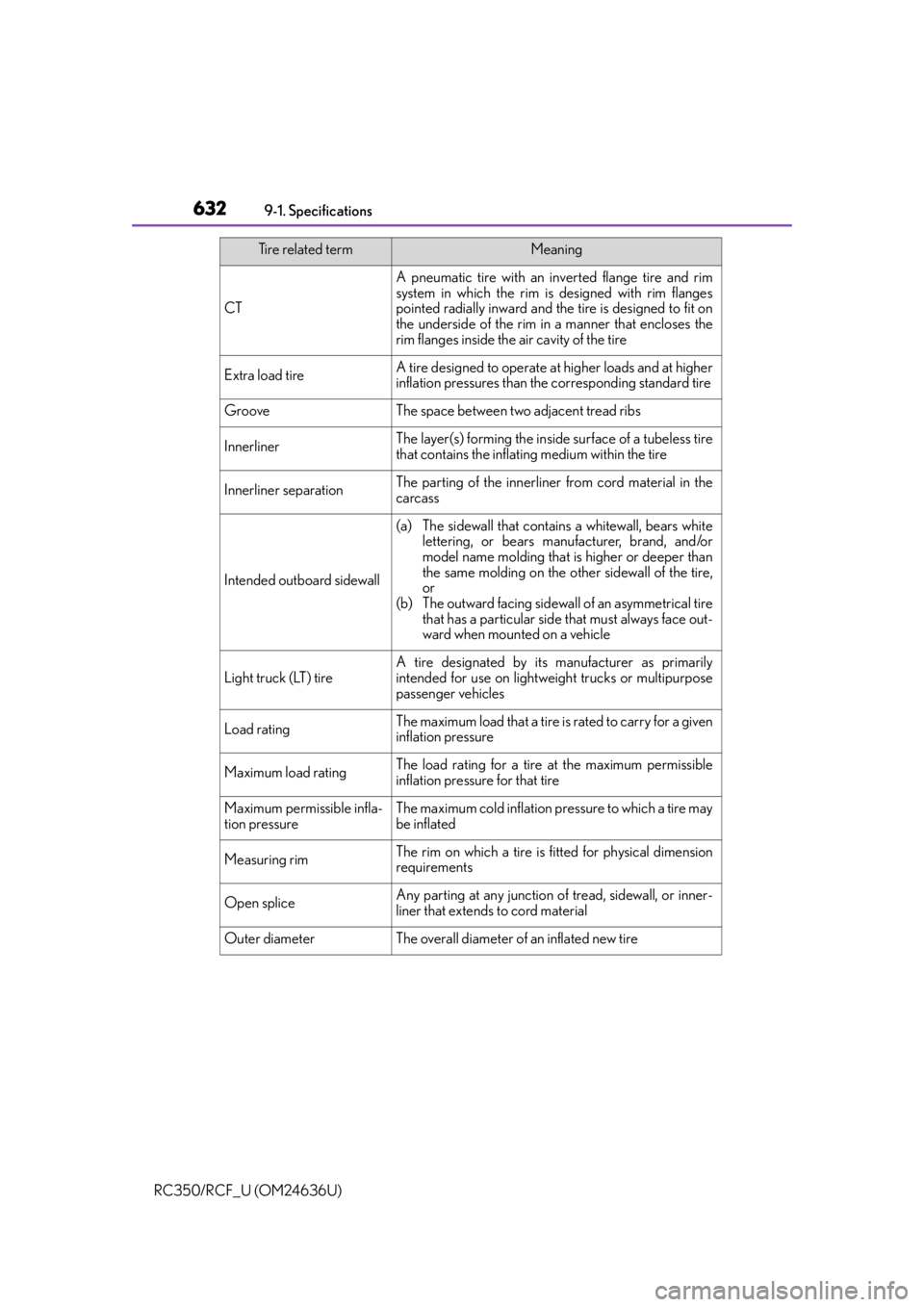

6329-1. Specifications
RC350/RCF_U (OM24636U)
CT
A pneumatic tire with an inverted flange tire and rim
system in which the rim is designed with rim flanges
pointed radially inward and the tire is designed to fit on
the underside of the rim in a manner that encloses the
rim flanges inside the air cavity of the tire
Extra load tireA tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
GrooveThe space between two adjacent tread ribs
InnerlinerThe layer(s) forming the inside surface of a tubeless tire
that contains the inflating medium within the tire
Innerliner separationThe parting of the i nnerliner from cord material in the
carcass
Intended outboard sidewall
(a) The sidewall that contains a whitewall, bears white
lettering, or bears manufacturer, brand, and/or
model name molding that is higher or deeper than
the same molding on the ot her sidewall of the tire,
or
(b) The outward facing sidewall of an asymmetrical tire that has a particular side that must always face out-
ward when mounted on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as primarily
intended for use on lightweight trucks or multipurpose
passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for a given
inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permissible
inflation pressure for that tire
Maximum permissible infla-
tion pressureThe maximum cold inflation pressure to which a tire may
be inflated
Measuring rimThe rim on which a tire is fitted for physical dimension
requirements
Open spliceAny parting at any junction of tread, sidewall, or inner-
liner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Tire related termMeaning

6339-1. Specifications
9
Vehicle specifications
RC350/RCF_U (OM24636U)
Overall widthThe linear distance between the exteriors of the side-
walls of an inflated tire, including elevations due to label-
ing, decorations, or pr otective bands or ribs
Passenger car tire
A tire intended for use on passenger cars, multipurpose
passenger vehicles, and trucks, that have a gross vehicle
weight rating (GVWR) of 10,000 lb. or less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adjacent plies
Pneumatic tire
A mechanical device made of rubber, chemicals, fabric
and steel or other materials, that, when mounted on an
automotive wheel, provides the traction and contains
the gas or fluid that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that extend to
the beads are laid at substantially 90 degrees to the
centerline of the tread
Reinforced tire A tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
Section width
The linear distance between the exteriors of the side-
walls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord
material in the sidewall
Snow tire
A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard Ref-
erence Test Tire, when using the snow traction test as
described in ASTM F-1805-00, Standard Test Method
for Single Wheel Driving Tract ion in a Straight Line on
Snow-and Ice-Covered Surfaces, and which is marked
with an Alpine Symbol ( ) on at least one sidewall
Te s t r i mThe rim on which a tire is fitted for testing, and may be
any rim listed as appropriate for use with that tire
Tire related termMeaning

653
For owners
RC350/RCF_U (OM24636U)
Votre véhicule est équipé de COUSSINS GONFLABLES INTELLIGENTS
conçus selon les normes de sécurité américaines applicables aux véhicules à
moteur (FMVSS208). L'ensemble de capteurs de coussins gonflables (ECU)
régule le déploiement des coussins gonfla bles sur la base des informations qu'il
reçoit des capteurs, etc., indiqués ci-des sus dans le schéma illustrant les compo-
sants du système. Parmi ces informations fi gurent la gravité du choc et l'occupa-
tion du véhicule par les passagers. Le déploiement rapide des coussins
gonflables est obtenu au moyen d'une réaction chimique dans les dispositifs
pyrotechniques, qui produit un gaz inof fensif permettant d'amortir le mouve-
ment des occupants.
AVERTISSEMENT
■Précautions relatives aux coussins gonflables SRS
Respectez les précautions suivantes conc ernant les coussins gonflables SRS.
Le non-respect de ces précautions peut oc casionner des blessures graves, voire mor-
telles.
●Le conducteur et tous les passagers du véhicule doivent porter correctement leur
ceinture de sécurité.
Les coussins gonflables SRS sont des disp ositifs supplémentaires à utiliser avec les
ceintures de sécurité.
●Le coussin gonflable conducteur SRS se déploie avec une force considérable, pou-
vant occasionner des blessures graves, voir e mortelles, si le conducteur se trouve
très près du coussin gonflable. L'autorité fé dérale chargée de la sécurité routière aux
États-Unis (NHTSA) conseille:
La zone à risque du coussin gonflable cond ucteur se situant dans les premiers 2 à 3
in. (50 à 75 mm) de déploiement, vous placer à 10 in. (250 mm) de votre coussin
gonflable conducteur vous garantit une ma rge de sécurité suffisante. Cette distance
est à mesurer entre le centre du volant et le sternum. Si vous êtes assis à moins de 10
in. (250 mm), vous pouvez changer votre position de conduite de plusieurs façons:
• Reculez votre siège le plus possible, de manière à pouvoir encore atteindre con- fortablement les pédales.
• Inclinez légèrement le dossier du siège. Bien que les véhicules aient une conception différente, un grand nombre de con-
ducteurs peuvent s'asseoir à une distance de 10 in. (250 mm), même avec le siège
conducteur complèteme nt avancé, simplement en in clinant un peu le dossier de
siège. Si vous avez des difficultés à voir la route après avoir incliné le dossier de
votre siège, utilisez un coussin ferme et antidérapant pour vous rehausser ou
remontez le siège si votre véhicule est équipé de cette fonction.
• Si votre volant est réglable, inclinez-le vers le bas. Cela a pour effet d'orienter le
coussin gonflable en direction de votre poitrine plutôt que de votre tête et de votre
cou.
Réglez votre siège selon les recommandation s de la NHTSA ci-dessus, tout en con-
servant le contrôle des pédales, du vola nt et la vue des commandes du tableau de
bord.

656
RC350/RCF_U (OM24636U)
AVERTISSEMENT
■Précautions relatives aux coussins gonflables SRS
●Ne suspendez aucun cintre ou objet dur aux crochets à vêtements. Tous ces objets
pourraient se transformer en projectiles et causer des blessures graves, voire mortel-
les en cas de déploiement des coussins gonflables rideaux SRS.
●Si un cache en vinyle est placé sur la zone où le coussin gonflable de genoux SRS se
déploie, assurez-vous de le retirer.
●N'utilisez aucun accessoire de siège recouvrant les zones de déploiement des cous-
sins gonflables latéraux SRS, car il risque de gêner le déploiement des coussins gon-
flables. De tels accessoires peuvent empêcher les coussins gonflables latéraux de
fonctionner correctement, désactiver le système ou entraîner le déploiement acci-
dentel des coussins gonflables latéraux , occasionnant des blessures graves, voire
mortelles.
●Évitez de faire subir des choc s ou des pressions excessives aux parties renfermant les
composants de coussins gonflables SRS.
En effet, cela pourrait entraîner un dysf onctionnement des coussins gonflables SRS.
●Ne touchez aucun composant immédiatement après le déploiement (gonflage) des
coussins gonflables SRS, car ils peuvent être chauds.
●Si vous avez des difficultés à respirer après le déploiement des coussins gonflables
SRS, ouvrez une porte ou une vitre pour fair e entrer de l'air frais, ou bien descendez
du véhicule si cela ne présente pas de danger. Essuyez tout résidu dès que possible
afin d'éviter d'éventuelle s irritations de la peau.
●Si les parties renfermant les coussins gonf lables SRS, comme les garnitures du volant
et des montants avant et arrière, sont endommagées ou craquelées, faites-les rem-
placer par votre concessionnaire Lexus.
●Ne placez rien sur le siège du passager avant, comme un coussin par exemple. Cela
a pour conséquence de répartir le poids du passager sur toute la surface du siège, ce
qui empêche le capteur de détecter correctement le poids du passager. En consé-
quence, les coussins gonflables frontaux SR S du passager avant risquent de ne pas se
déployer en cas de collision.
