2015 LEXUS LX570 ECO mode

2302-3. Operating the lights and wipers
LX570_OM_OM60L96U_(U) ■
The rear window wiper and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode. ■
Dripping prevention wiper sweep
After washing and wiping operation seve ral times, the wipers operate one more
time after a short delay to prevent dripping. ■
Effect of vehicle and shift position on wiper operation
Type A ●
With selected, wiper operation will be switched from low speed to inter-
mittent wiper operation only the vehicle is stationary. ●
With or selected, the rear window wiper sweeps once when you
shift the shift lever to “R” while windshie ld wipers operating or with 17 seconds
from their deactivation.
Type B ●
With selected, wiper operation will be switched from low speed to inter-
mittent wiper operation only the vehicle is stationary. ●
With or selected, the rear window wiper sweeps once when you
shift the shift lever to “R” while windshie ld wipers operating or with 17 seconds
from their deactivation.■
Customization
Settings (e.g. drip prevention function) can be changed.
(Customizable features  P. 912)
NOTICE■
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.

2372-4. Using other driving systems
2
When driving

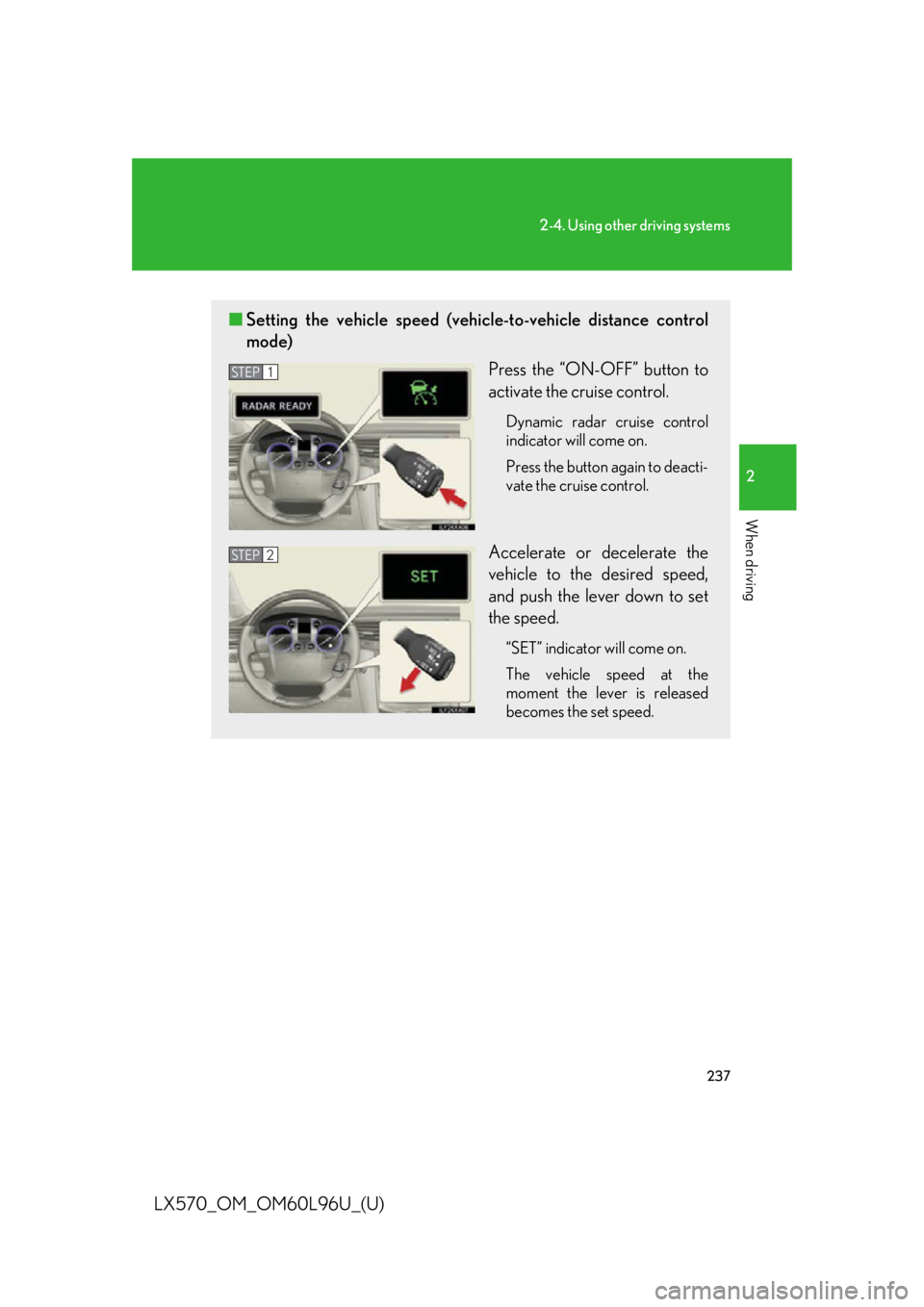

LX570_OM_OM60L96U_(U) ■ Setting the vehicle speed (vehicle- to-vehicle distance control
mode)
Press the “ON-OFF” button to
activate the cruise control. Dynamic radar cruise control
indicator will come on.
Press the button again to deacti-
vate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed. “SET” indicator will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.STEP 1
STEP 2

2382-4. Using other driving systems
LX570_OM_OM60L96U_(U) ■ Adjusting the set speed
To change the set speed, operate the lever until the desired set
speed is displayed.
Increases the speed
Decreases the speed Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the
lever in the desired direction.
In the vehicle-to-vehicle distance control mode, the set speed will be
increased or decreased as follows:
• When the set speed is shown in “MPH”
Fine adjustment: By approximately 5 mph (8 km/h) each time the
lever is operated
Large adjustment: By approximately 5 mph (8 km/h) for each 0.75
seconds the lever is held
• When the set speed is shown in “km/h”
Fine adjustment: By approximately 3.1 mph (5 km/h) each time the
lever is operated
Large adjustment: By approximatel y 3.1 mph (5 km/h) for each 0.75
seconds the lever is held
In the constant speed control mode ( 
P. 243), the set speed will be
increased or decreased as follows:
Fine adjustment: By approximately 1 mp h (1.6 km/h) each time the lever
is operated
Large adjustment: The set speed can be increased or decreased contin-
ually until the lever is released

2432-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) Selecting conventional const ant speed control mode
Constant speed control mode differs from vehicle-to-vehicle distance
control mode. When constant speed con trol mode is selected, your vehi-
cle will maintain a set speed regardle ss of whether or not there are other
vehicles in the lane ahead.
Press the “ON-OFF” button to activate the cruise control. Press the button again to de activate the cruise control.
Switch to constant sp eed control mode. (Push the lever forward and
hold for approximately one second.) Cruise control indicator will come on.
When in constant speed control mode, to return to vehicle-to-vehicle dis-
tance control mode, push the lever forw ard again and hold for approximately
1 second.
After the desired speed has been set, it is not possible to return to vehicle-to-
vehicle distance control mode.
If the “ENGINE START STOP” switch is turned off and then turned to
IGNITION ON mode again, the vehicle will automatically return to vehicle-
to-vehicle distance control mode.
Adjusting the sp eed setting: 
P. 238
Canceling and resuming the speed setting: 
P. 240

2442-4. Using other driving systems
LX570_OM_OM60L96U_(U) ■
Dynamic radar cruise control can be set when ●
The shift lever is in “D” or range “4” or higher of “S” has been selected.●
Range “4” or higher has been selected by using the paddle shift. (vehicles with
paddle shift switches) ●
Vehicle speed is above approximately 30 mph (50 km/h).■
Accelerating after s etting the vehicle speed
The vehicle can accelerate normally. After acceleration, the set speed resumes.
However, during vehicle-to-vehicle distance control mode, the vehicle speed may
decrease below the set speed in order to maintain the distan ce to the vehicle
ahead. ■
Automatic cancelation of vehicle-to-vehicle distance control
Vehicle-to-vehicle distance control driving is automatically canceled in the follow-
ing situations: ●
Actual vehicle speed falls below approximately 25 mph (40 km/h). ●
VSC is activated. ●
The sensor cannot operate correctly because it is covered in some way. ●
The windshield wipers are operating at high speed (when the wiper switch is set
to the “AUTO” mode or high speed wiper operation position).●
When second star t mode is set.●
The switching operation continues for 5 seconds or more after the center dif-
ferential lock switch has been operated.
If vehicle-to-vehicle distance control driv ing is automatically canceled for any other
reason, there may be a malfunction in the system. Contact your Lexus dealer.

3002-4. Using other driving systems
LX570_OM_OM60L96U_(U) CAUTION ●
In low temperatures, the screen may darken or the image may become faint. The
image could distort when the vehicle is moving, or you may become unable to
see the image on the screen. Be sure to check direct visually and with the mirrors
all around the vehicl e before proceeding.●
If the tire sizes are changed, the position of the guide lines displayed on the
screen may change. ●
The camera uses a special lens. The di stances between objects and pedestrians
that appear in the image displayed on the screen will differ from the actual dis-
tances. (  P. 292)■
When using the perpendicu lar parking assist screen
Estimated course line display mode: If the steering wheel is straight and the vehicle
width extension guide lines and the estima ted course lines are not in alignment,
have the vehicle inspecte d by your Lexus dealer.

3232-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) Conditions for changing the vehicle height mode
Some modes may not be selectable depending on the vehicle speed
when the four-wheel drive control sw itch is in the “H4” position. Refer to
the following table.
Easy access mode
You can select this mode for easy
access and easy loading of the
vehicle.
If the “ENGINE START STOP” switch is turned to OFF within 30 seconds after
the vehicle stops while this mode is on, the vehicle height is lowered automati-
cally.
When the vehicle begins to lower a beep will sound twice, and while the vehicle
is lowering the indicator light will flash to alert the driver and surrounding peo-
ple that the vehicle is lowering. Low mode Normal mode High mode
Under 7 mph (12 km/h) Yes Yes Yes
7 mph (12 km/h) to
18 mph (30 km/h) No Yes Yes
18 mph (30 km/h) or over No Yes No

3252-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ■
Operating conditions ●
The engine must be running. ●
Vehicle height control must be turned off. ●
All side doors and the back door must be closed.■
Switching vehicle height mode while the engine is stopped●
If the engine is stopped while the vehicle height is being lowered, lowering will
continue. ●
If any luggage is removed from the vehicl e or if any occupants leave the vehicle
within approximately 30 seconds of the “ENGINE START STOP” switch being
turned OFF, the vehicle height may be lo wered by the auto leveling function.●
Operating the height select switch will have no effect while the engine is
stopped.■
Automatic change in vehicle height when the four-wheel drive control switch is
in the “L4” position
If the vehicle speed exceeds 2 mph (3 km/h) while driving on an uneven road with
the four-wheel drive control switch in the “L4” position, high mode is automatically
selected. (On even roads, the height mode will not change.) ■
Automatic change in vehicle height when in the high mode ●
If the vehicle speed exceeds 18 mph (30 km/h) with the four-wheel drive con-
trol switch in the “H4” position, normal mode is automatically selected. ●
If the vehicle speed exceeds 25 mph (40 km/h) with the four-wheel drive con-
trol switch in the “L4” position, the ve hicle height is lowered to 1.0 in. (25 mm)
higher than the normal mode height. If the vehicle speed drops to 12 mph (20
km/h) or less, high mode is automatically resumed.
