2015 LEXUS LX570 CD player

5413-3. Using the audio system
3
Interior features
LX570_OM_OM60L96U_(U) Listening to Bluetooth ®
audioThe Bluetooth ®
audio system enables users to enjoy music played on a
portable player from the vehicle speaker via wireless communication.
This audio system supports Bluetooth ®
, a wireless data system capable of
playing portable audio music without ca bles. If your portable player does
not support Bluetooth ®
, the Bluetooth ®
audio system will not function.
Press the “AUDIO” button if a Bluetooth ®
audio player has already been
connected.
Touch the “BT Audio” tab or press th e “AUDIO” button repeatedly until
the “BT Audio” tab is selected.
Random
playbackRepeat play
Audio control
screen display
button
Track selection/fast forward/rewindVolumePower Connection status
Play/pause Setting the sound
(  P. 572)Connecting Bluetooth ®
audio player
Track selection Play/pauseDisplays
folder/
album listDisplays
track listFolder/
album selec-

5433-3. Using the audio system
3
Interior features
LX570_OM_OM60L96U_(U) Connecting Bluetooth ®
audio player
To use the Bluetooth ®
audio system, you need to enter your portable
player into the system. Once registered, you can enjoy your music on the
vehicle’s audio system. (  P. 674)
For the operation procedure for the portable player, consult your
player’s accompanying instruction manual.
■ When “Bluetooth* Power” is turned on
When the portable player is on stan dby for the connection, it will be
automatically connected when ever the “ENGINE START STOP”
switch is in either ACCESSORY or IGNITION ON mode.
■ When “Bluetooth* Power” is turned off
Manually connect the portable player in accorda nce with the following
procedure.
Touch “Connect”.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc. STEP 1

5443-3. Using the audio system

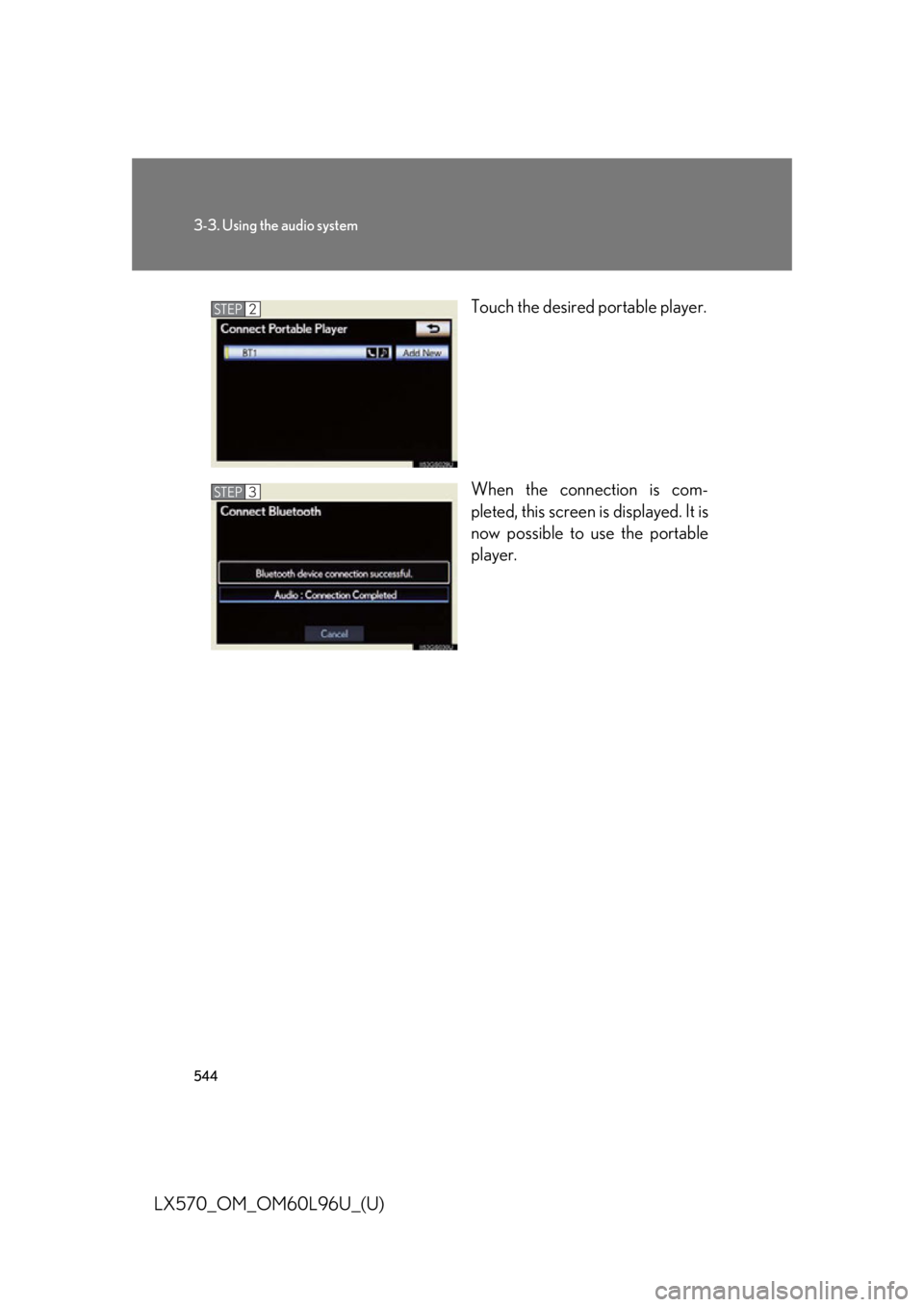

LX570_OM_OM60L96U_(U) Touch the desired portable player.
When the connection is com-
pleted, this screen is displayed. It is
now possible to use the portable
player.STEP 2
STEP 3

5453-3. Using the audio system
3
Interior features
LX570_OM_OM60L96U_(U) Playing Bluetooth ®
audio
Touch to play, touch to
pause or press to play/
pause. Some titles may not be displayed
depending on the type of portable
player.
Selecting a track/folder/album
■ On the audio top screen
Touch “>” or “<” on the screen to select the next/previous folder/
album.
■ On the playlist screen
Touch the album name on the
screen to display the playlist
screen.
Touch the desired screen button. If the folder name on the screen is touched, the track list screen is dis-
played. STEP 1
STEP 2

5493-3. Using the audio system
3
Interior features
LX570_OM_OM60L96U_(U) ■
If you touch
The display returns to the previous screen. ■
Connecting Bluetooth ®
audio player●
Touching “Connect Portable Player” on the “Bluetooth*” screen also connects
a Bluetooth ®
audio player. (  P. 681)●
When none of the selectable portable players have been registered, a screen
confirming registration is displayed. The registrati on method is the same as
phone registration. (  P. 674)●
When the currently connected portable pl ayer is selected, a screen confirming
the selected player’s disconnection is displayed. (  P. 676)●
If connection fails once, a changing conn ection method confirmation screen is
displayed. If connection fails 2 or more times, a message will be displayed.
When this message is displayed, try again.
*: Bluetooth is a re gistered trademark of Bluetooth SIG, Inc.■
When using the Bluetooth ®
audio system●
In the following conditions, the system may not function.
• The portable player is turned off
• The portable player is not connected
• The portable player battery is low ●
There may be a delay if phone connection is carried out during Bluetooth ®
audio play. ●
Depending on the type of portable player that is connected to the system, oper-
ation may differ slightly and certain functions may not be available.■
Bluetooth ®
antenna
The antenna is built into the audio unit. If th e portable player is behind the seat or in
the glove box or console box, or is touching or covered by metal objects, connec-
tion status may deteriorate. ■
Battery charge/signal status
This display may not correspond exactly wi th the portable play er, and this system
does not have a charging function.

5503-3. Using the audio system
LX570_OM_OM60L96U_(U) ■
About Bluetooth ®
■
Compatible models
Portable players must correspond to the following specifications: ●
Bluetooth ®
specification
Ver. 1.1 or higher
(Recommended: Ver. 2.1+EDR or higher) ●
Profile
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher
(Recommended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher
(Recommended: Ver. 1.4 or higher)
However, please note that some functions may be li mited depending on the type of
portable player. Also, the different screen is displayed depending on which porta-
ble player is connecting.
Please go to the website at http://www.lexus.com/MobileLink to find approved
portable players for this system. ■
Certification
 P. 622 Bluetooth is a register ed trademark of Blue-
tooth SIG, Inc.

5513-3. Using the audio system
3
Interior features
LX570_OM_OM60L96U_(U) ■
Reconnecting the portable player
If the portable player is disconnected with a poor reception when the “ENGINE
START STOP” switch is in ACCESSORY or IGNITION ON mode, the system
automatically reconnects the portable player.
If you have switched off the portable player yourself, follow the instructions below to
reconnect: ●
Select the portable player again ●
Enter the portable player■
When transferring owne rship of your vehicle
Be sure to remove the registered portable player from the system. (  P. 676)
CAUTION■
While driving
Do not use the portable player or connect the Bluetooth ®
system.■
Caution regarding interference with electronic devices ●
Your audio unit is fitted with Bluetooth ®
antennas. People with implantable car-
diac pacemakers, cardiac resynchronization therapy-pacemakers or implant-
able cardioverter defibrillators should maintain a reasonable distance between
themselves and the Bluetooth ®
antennas. The radio waves may affect the opera-
tion of such devices. ●
Before using Bluetooth ®
devices, users of any electrical medical device other
than implantable cardiac pacemakers, cardiac resynchronization therapy-pace-
makers or implantable cardioverter defi brillators should consult the manufac-
turer of the device for information about its operation under the influence of radio
waves. Radio waves could have unexpected effects on the operation of such
medical devices.
NOTICE■
When leaving the vehicle
Do not leave your portable player in the vehicle. The inside of the vehicle may
become hot, causing damage to the portable player.

5753-3. Using the audio system
3
Interior features
LX570_OM_OM60L96U_(U) ■
Operating portable audio device s connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other adjust-
ments must be made on the po rtable audio device itself.■
When using a portable audio devi ce connected to the power outlet
Noise may occur during playback. Use the power source of the portable audio
device. ■
When using the AUX port
You may be unable to use th e instrument panel power outlet if a device is con-
nected to the AUX port at the same time.
CAUTION■
While driving
Do not connect portable audio device or operate the controls.
NOTICE■
To prevent damage to portable audio device ●
Do not leave portable audio device in the vehicle. The temperature inside the
vehicle may become high, result ing in damage to the player. ●
Do not push down on or apply unnecessary pressure to the portable audio
device while it is connected as this may damage the portable audio device or its
terminal. ●
Do not insert foreign objects into the port as this may damage the portable audio
device or its terminal.
