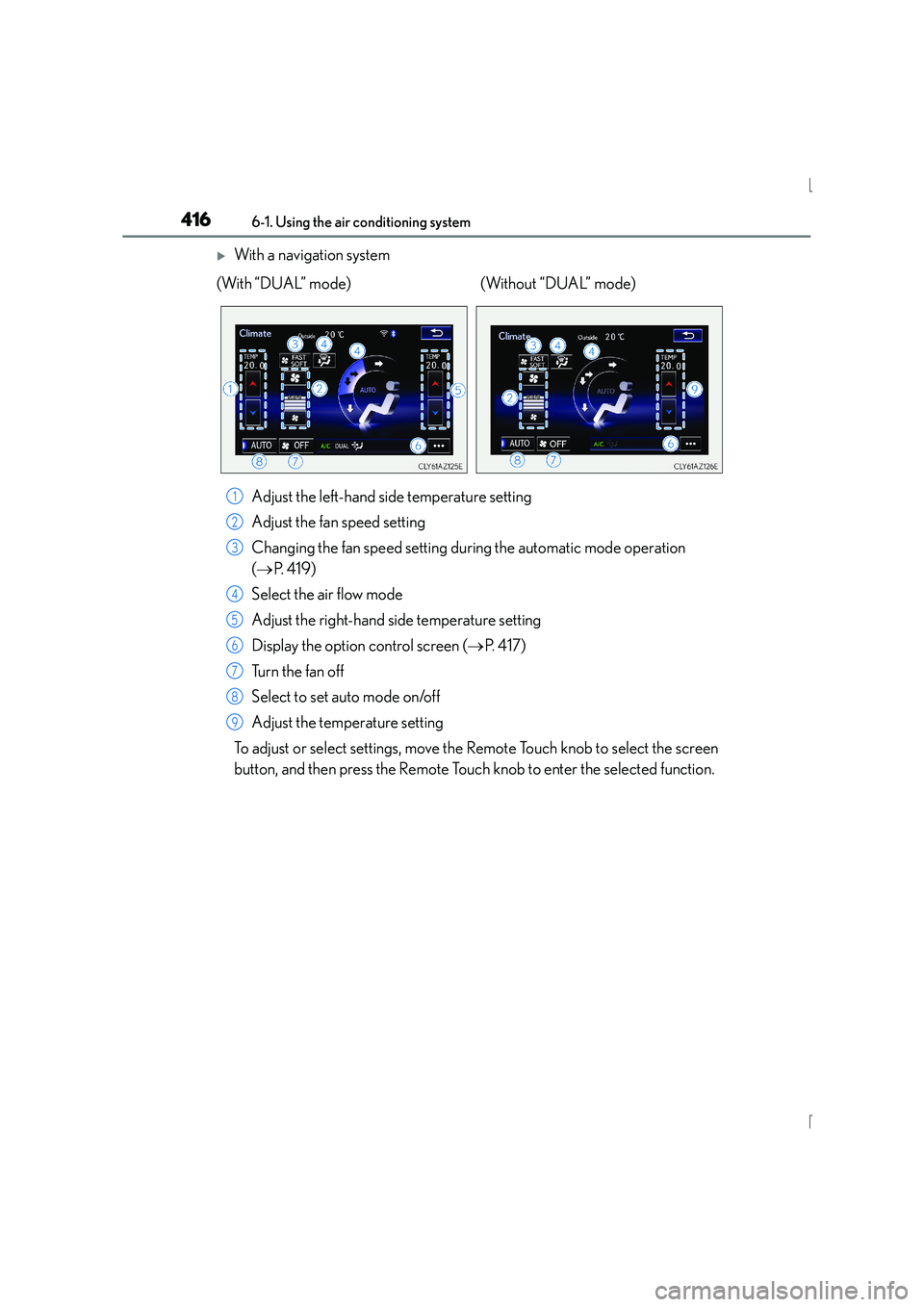

4166-1. Using the air conditioning system
IS300h_EE(OM53D56E)
XWith a navigation systemAdjust the left-hand side temperature setting
Adjust the fan speed setting
Changing the fan speed setting during the automatic mode operation
(→ P. 4 1 9 )
Select the air flow mode
Adjust the right-hand side temperature setting
Display the option control screen ( →P. 4 1 7 )
Tu r n t h e f a n o f f
Select to set auto mode on/off
Adjust the temperature setting
To adjust or select settings, move the Remote Touch knob to select the screen
button, and then press the Remote Touch knob to enter the selected function.
(With “DUAL” mode) (Without “DUAL” mode)
1
2
3
4
5
6
7
8
9

4647-3. Do-it-yourself maintenance
IS300h_EE(OM53D56E)
The meanings of each caution symbol on the top of the 12-volt battery are as fol-
lows:
■Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following precautions before recharging:
●If recharging with the 12-volt battery installed on the vehicle, be sure to disconnect the
ground cable.
●Make sure the power switch on the charger is off when connecting and disconnecting
the charger cables to the 12-volt battery.
■After recharging/reconnecting the 12-volt battery
●The hybrid system may not start. Follow the procedure below to initialize the system.Shift the shift lever to P.
Open and close any of the doors.
Restart the hybrid system.
●Unlocking the doors using the smart entry & start system may not be possible immedi-
ately after reconnecting the 12-volt battery. If this happens, use the wireless remote
control or the mechanical key to lock/unlock the doors.
●Start the hybrid system with the power switch in ACCESSORY mode. The hybrid sys-
tem may not start with the power switch turned off. However, the hybrid system will
operate normally from the second attempt.
●The power switch mode is recorded by the vehicle. If the 12-volt battery is reconnected,
the vehicle will return the power switch mode to the status it was in before the 12-volt
battery was disconnected. Make sure to turn off the power switch before disconnecting
the 12-volt battery. Take extra care when connecting the 12-volt battery if the power
switch mode prior to the 12-volt battery being disconnected is unknown.
If the system will not start even after multip le attempts at all the methods above, contact
any authorized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
Caution symbols
No smoking, no naked
flames, no sparks12-volt battery acid
Shield eyesNote operatin g instructions
Keep away from childrenExplosive gas
1
2
3

4897-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53D56E)
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
■Use a CR2032 lithium battery
●Batteries can be purchased at any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional, local electrical appliance shops or camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer can
replace the battery for you.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart entry & start system and wireless remote control will not function properly.
●The operational range will be reduced.
■Certification for the key battery
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to the local laws.
4

4907-3. Do-it-yourself maintenance
IS300h_EE(OM53D56E)
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away
from children. Failure to do so could result in death or serious injury.
■Lithium battery precautions
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

5638-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D56E)
■Doors
Use the mechanical key (→P. 131) in
order to perform the following oper-
ations:
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks all the doors
Opens the windows and moon roof (turn and hold)
*
*
: This setting must be customized at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
■Tr u n k
Turn the mechanical key clockwise
to open.
If the electronic key does not operate properly
If communication between the electronic key and vehicle is interrupted ( →P.
151) or the electronic key cannot be us ed because the battery is depleted, the
smart entry & start system and wireless remote control cannot be used. In
such cases, the doors and trunk can be opened and the hybrid system can be
started by following the procedure below.
Locking and unlocking the doors, unlocking the trunk and key linked
functions
1
2
3
4

5688-2. Steps to take in an emergency
IS300h_EE(OM53D56E)
Maintain the engine speed of the second vehicle and start the hybrid system
of your vehicle by turning the power switch to ON mode.
Make sure the “READY” indicator comes on. If the indicator does not come
on, contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Once the hybrid system has started, remove the jumper cables in the exact
reverse order from which they were connected.
Once the hybrid system starts, have the vehicle inspected at any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional as
soon as possible.
■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■To prevent 12-volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even when the vehicle
is not in use, due to natural discharge and the draining effects of certain electrical appli-
ances. If the vehicle is left for a long time, the 12-volt battery may discharge, and the
hybrid system may be unable to start. (The 12-volt battery recharges automatically while
the hybrid system is operating.)
■When recharging or replacing the 12-volt battery
●In some cases, it may not be possible to un lock the doors using the smart entry & start
system when the 12-volt battery is discharged. Use the wireless remote control or the
mechanical key to lock or unlock the doors.
●The hybrid system may not start on the first attempt after the 12-volt battery has
recharged but will start normally after the second attempt. This is not a malfunction.
●The power switch mode is memorized by the vehicle. When the 12-volt battery is
reconnected, the system will return to the mo de it was in before the 12-volt battery was
discharged. Before disconnecting the 12-volt battery, turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt battery dis-
charged, be especially careful when reconnecting the 12-volt battery.
7
8
9

591
IS300h_EE(OM53D56E)
9
Vehicle specifications
9-2. Customization
■Changing by using the Remote Touch or Lexus Display Audio controller (if
equipped)
XVe h i c l e s w i t h a R e m o t e To u c h
Press the “MENU” button on the Remote Touch.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
For details on the Remote Touch, refer to the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MANUAL”.
XVehicles with a Lexus Display Audio controller
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter control switches
→ P. 116
Customizable features
Your vehicle includes a variety of electr onic features that can be personalized
to your preferences. The settings of these features can be changed by using
the meter control switches, the Remote Touch or Lexus Display Audio con-
troller or at any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Customizing vehicle features
1
2
1
2

5929-2. Customization
IS300h_EE(OM53D56E)
Some function settings are changed simultaneously with other functions being
customized. Contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional. Vehicles with a Remote Touch or Lexus Display Audio controller: Settings that
can be changed using the Remote Touch or Lexus Display Audio controller
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional
Definition of symbols: O = Available, — = Not available
■Gauges, meters and multi-information display ( →P. 104, 109, 115)
Customizable features
1
2
3
Function*1Default settingCustomized setting
Language*2English
French
—O—
German
Spanish
Italian
Russian
Units*2km (L/100 km)km (km/L)—O—miles (MPG)
EV indicatorON
(Self-lighting)OFF—O—
switch settings*3Drive
information 1Desired status
screen
*4—O—
Drive information 1
Current fuel economy
*5—O—Average fuel
economy (after
reset)
Drive information 2
Distance (range)
*5—O—Average speed (after reset)
Pop-up displayONOFF—O—
