4107-3. Do-it-yourself maintenance
IS350/250_U (OM53C50U)
CAUTION
The engine compartment contains many mechan isms and fluids that may move suddenly,
become hot, or become electrically energize d. To avoid death or serious injury, observe
the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driving
as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel and
battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and corro-
sive sulfuric acid.
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fans may auto-
matically start to run if the air conditioning is on and/or the coolant temperature is high.
( → P. 4 1 8 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting in
your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt
in the air.

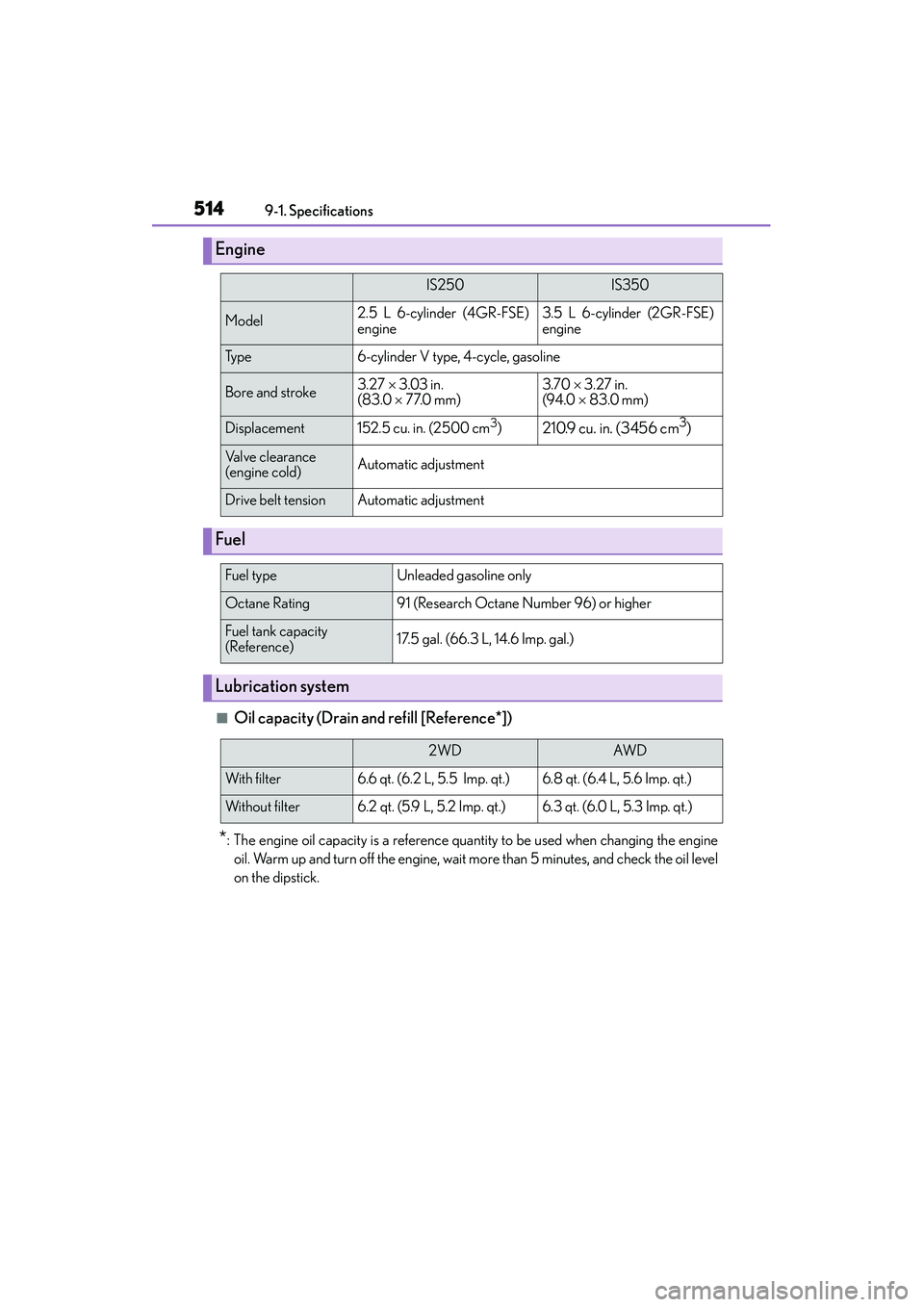

5149-1. Specifications
IS350/250_U (OM53C50U)
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
Engine
IS250IS350
Model2.5 L 6-cylinder (4GR-FSE)
engine3.5 L 6-cylinder (2GR-FSE)
engine
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.27 × 3.03 in.
(83.0 × 77.0 mm)3.70 × 3.27 in.
(94.0 × 83.0 mm)
Displacement152.5 cu. in. (2500 cm3)210.9 cu. in. (3456 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.3 L, 14.6 Imp. gal.)
Lubrication system
2WDAW D
With f ilt er6.6 qt. (6.2 L, 5.5 Imp. qt.)6.8 qt. (6.4 L, 5.6 Imp. qt.)
Without filter6.2 qt. (5.9 L, 5.2 Imp. qt.)6.3 qt. (6.0 L, 5.3 Imp. qt.)

584
IS350/250_U (OM53C50U)GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 411 P. 109 P. 190
Hood lock release leverTi r e i n f l a t i o n p r e s s u r e
P. 4 1 1
P. 5 1 9
Fuel tank capacity
(Reference) 17.5 gal. (66.3 L, 14.6 Imp. gal.)
Fuel type
Unleaded gasoline only P. 188, 514
Cold tire inflation
pressure P. 5 1 9
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp. qt.)
2WD AWD
With filter 6.6 (6.2, 5.5) 6.8 (6.4, 5.6)
Without filter 6.2 (5.9, 5.2) 6.3 (6.0, 5.3)
Engine oil type “Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
P. 5 1 4
