2015 Lexus IS200t odometer

16Pictorial index
IS200t_EE(OM53D19E)
■Switches (Left-hand drive vehicles)
Automatic high beam switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 213
Windshield wiper de-icer switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Odometer/trip meter and trip meter reset button . . . . . . . . . . . . . . . . . . . P. 97
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 98
Rear sunshade switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 423
Lexus parking assist-sensor switch
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 266
BSM (Blind Spot Monitor) main switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 299
1
2
3
4
5
6
7

24Pictorial index
IS200t_EE(OM53D19E)
■Switches (Right-hand drive vehicles)
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 98
Odometer/trip meter and trip meter reset button . . . . . . . . . . . . . . . . . . . P. 97
Automatic high beam switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 213
BSM (Blind Spot Monitor) main switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 299
Lexus parking assist-sensor switch
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 266
Rear sunshade switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 423
1
2
3
4
5
6

962. Instrument cluster
IS200t_EE(OM53D19E)
XF SPORT models (when the main meter is in the right-side position)
The units used on the meters may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient temperature
is 3°C (37°F) or lower.
Shift position and gear position (→ P. 2 0 1 )
Speedometer
Fuel gauge
Multi-information display
Presents the driver with a variety of vehicle data ( →P. 1 0 0 )
Displays warning messages in case of a malfunction ( →P. 5 0 6 )
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances indepen-
dently.
1
2
3
4
5
6
7
8

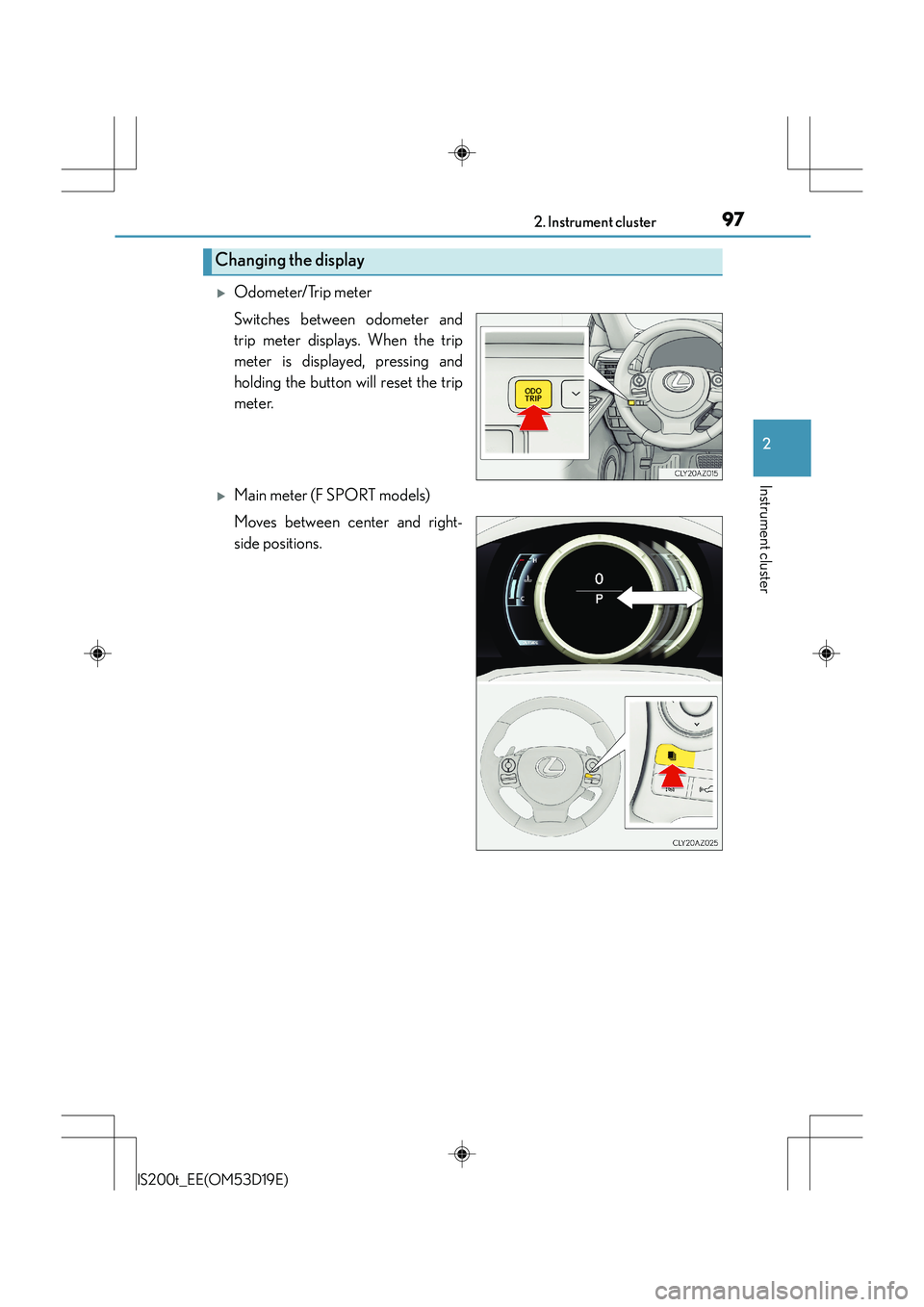

972. Instrument cluster
2
Instrument cluster
IS200t_EE(OM53D19E)
XOdometer/Trip meter
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
XMain meter (F SPORT models)
Moves between center and right-
side positions.
Changing the display

982. Instrument cluster
IS200t_EE(OM53D19E)
The brightness of the instrument panel lights can be adjusted.Darker
Brighter
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually. However, when the surroundings ar e bright (daytime, etc.), turning on the tail
lights will not change the in strument panel brightness.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
●When stopped, or driving at low sp eeds (less than 20 km/h [12 mph])
●When the outside temperature has changed su ddenly (at the entrance/exit of a garage,
tunnel, etc.)
■Po p - u p d i s p l a y
In some situations, a pop-up display will be temporarily displayed on the multi-informa-
tion display or the odometer/trip me ter screen (F SPORT models only).
The pop-up display function can be set on/off. ( →P. 1 0 4 )
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
The meter display can be customized on the multi-information display. ( →P. 100)
Instrument panel light control
1
2

602Alphabetical index
IS200t_EE(OM53D19E)
Navigation system*
Needle ....................................................... 104
Odometer................................................... 95
OilDifferential oil .........................................571
Engine oil ............................................... 567
Opener
Hood ........................................................439
Trunk ..........................................................129
Outer foot lights Location..................................................... 411
Replacing light bulbs......................... 481
Wattage.................................................. 573
Outside rear view mirrors ................. 165 Adjusting and folding........................ 165
BSM (Blind Sport Monitor)..........299
Linked mirror function
when reversing..................................167
Mirror position memory.................. 153
Outside rear view mirror defoggers ..........................................404
Outside temperature .............................95
Overheating ........................................... 557 Paddle shift switches ........................... 203
Parking assist sensors......................... 266
Parking brake......................................... 209
PCS
(Pre-Crash Safety system)..............291
Function.................................................... 291
PCS OFF switch.................................292
Warning light.........................................501
Personal lights..........................................412
Wattage ................................................. 573
Pollen removal mode.......................... 404
Pop-up display........................................ 104
Pop Up Hood............................................ 54
Power easy access system .................153
Power outlet ........................................... 422
Power steering (Electric power steering system)................................. 285
Warning light.........................................501
Power windows .......................................169
Door lock linked window operation................................................ 171
Jam protection function ................... 170
Operation ...............................................169
Window lock switch ..........................169
Pre-Crash Safety system (PCS) ......291
Function.................................................... 291
PCS OFF switch.................................292
Warning light.........................................501
N
O
P
