1042. Instrument cluster
IS200t_EE(OM53D19E)
■Language
Select to change the language on the display.
■Units
Select to change the unit of measure for fuel consumption.
■Maintenance system
Select to reset the maintenance data after the required maintenance is per-
formed. (
→P. 444)
■Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light.
■ switch settings (except F SPORT models)
Displays a procedure to register a desired screen to .
You can register 1 screen as a shortcut, which can be displayed by pressing .
(→ P. 1 0 1 )
■Drive information 1 /Drive information 2
Select to select up to 2 items that will be displayed on the “Drive Info 1” screen
and “Drive Info 2” screen respectively.
(→ P. 1 0 2 )
■Pop-up display
Select to set the following pop-up displays, which may appear in some situa-
tions, on/off.
• Route guidance display of the navigation system-linked system (if equipped)
• Incoming call display of the hands-free phone system
• Dynamic radar cruise control operation display (if equipped)
• Instrument panel brightne ss adjustment display
• Main meter switch operation display (F SPORT models)
• Stop & Start system duration (if equipped)
• Stop & Start system status (if equipped)
■Accent color (except F SPORT models)
Select to change the accent colors on the screen, such as the cursor color.
■Needle (F SPORT models)
Select to change the needle color for the tachometer.
Settings display

4447-3. Do-it-yourself maintenance
IS200t_EE(OM53D19E)
■After changing the engine oil
The engine oil maintenance data should be reset. Perform the following procedures:While the vehicle is stopped, press the meter control switch on the steering wheel.
Press the < or > meter control switch on the steering wheel, select, and then
press the meter control switch.
Press ∧ or ∨ meter control switch on the steering wheel to select “Oil Maintenance”
and then press .
Select “Yes” and then press .
A message will be displayed on the multi-information display.
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin dis-
orders such as inflammation and skin cancer, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of
used oil and filters in household trash, in sewers or onto the ground.
Call any authorized Lexus dealer or repairer, or another duly qualified and equipped
professional, service station or auto parts store for information concerning recycling
or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
1
2
3
4

4537-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D19E)
◆Initializing the tire pressure warning system
■The tire pressure warning system must be initialized in the following circum-
stances:
●When rotating the tires.
●When the tire inflation pressure is changed such as when changing travel-
ing speed or load weight.
●When changing the tire size.
When the tire pressure warning system is initialized, the current tire inflation
pressure is set as the benchmark pressure.
■How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the engine switch off.
Initialization cannot be performe d while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation pressure
level. (→P. 5 7 2 )
Make sure to adjust the tire pressure to the specified cold tire inflation pressure
level. The tire pressure warning system will operate based on this pressure level.
Turn the engine switch to IGNITION ON mode.
Press and hold the tire pressure
warning reset switch until the tire
pressure warning light blinks
slowly 3 times.
Wait for a few minutes with the engine switch in IGNITION ON mode and
then turn the engine switch off.
◆Registering ID codes
The tire pressure warning valve and transmitter is equipped with a unique ID
code. When replacing a tire pressure wa rning valve and transmitter, it is nec-
essary to register the ID code. Have the ID code registered by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
1
2
3
4
5

4557-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D19E)
■Situations in which the tire pressure warning system may not operate properly (vehi-
cles with a tire pressure warning system)
●In the following cases, the tire pressure warning system may not operate properly.
• If non-genuine Lexus wheels are used.
• A tire has been replaced with a tire that is not an OE (Original Equipment) tire.
• A tire has been replaced with a tire that is not of the specified size.
• Tire chains etc. are equipped.
• An auxiliary-supported run-flat tire is equipped.
• If a window tint that affects the radio wave signals is installed.
• If there is a lot of snow or ice on the vehicle, particularly around the wheels or wheelhousings.
• If the tire inflation pressure is extremely higher than the specified level.
• If tires not equipped with tire pressure warning valves and transmitters are used.
• If the ID code on the tire pressure warning valves and transmitters is not registered in the tire pressure warning computer.
●Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large display, air-
port or other facility that generates strong radio waves or electrical noise
• When carrying a portable radio, cellular phone, cordless phone or other wireless communication device
●When the vehicle is parked, the time taken for the warning to start or go off could be
extended.
●When tire inflation pressure declines rapidly for example when a tire has burst, the
warning may not function.
■The initialization operation (vehicles with a tire pressure warning system)
●Make sure to carry out initialization afte r adjusting the tire inflation pressure.
Also, make sure the tires are cold before carry ing out initialization or tire inflation pres-
sure adjustment.
●If you have accidentally turned the engine swit ch off during initialization, it is not neces-
sary to press the reset switch again as init ialization will restart automatically when the
engine switch has been turned to IGNITION ON mode for the next time.
●If you accidentally press the reset switch wh en initialization is not necessary, adjust the
tire inflation pressure to the specified leve l when the tires are cold, and conduct initial-
ization again.
■Warning performance of the tire pressure warning system (if equipped)
The warning of the tire pressu re warning system will change in accordance with the con-
ditions under which it was initialized. For this reason, the system may give a warning even
if the tire pressure does not reach a low enough level, or if the pressure is higher than the
pressure that was adjusted to when the system was initialized.

4567-3. Do-it-yourself maintenance
IS200t_EE(OM53D19E)
■When initialization of the tire pressure warning system has failed (vehicles with a tire
pressure warning system)
Initialization can be completed in a few minutes. However, in the following cases, the set-
tings have not been recorded and the syst em will not operate properly. If repeated
attempts to record tire inflation pressure settings are unsuccessful, have the vehicle
inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●When operating the tire pressure warning reset switch, the tire pressure warning light
does not blink 3 times.
●After carrying out the initializat ion procedure, the tire pressure warning light blinks for 1
minute then stays on after driving for 20 minutes.
■Registering ID codes (vehicles with a tire pressure warning system)
The ID codes of the tire pressure warning valve and transmitters for two sets of wheels
can be registered.
It is not necessary to register the ID codes when replacing normal tires with snow tires, if
the ID codes for the wheels of both normal tires and snow tires are registered before-
hand.
For information about changing ID codes, ask any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.

4587-3. Do-it-yourself maintenance
IS200t_EE(OM53D19E)
XFor vehicles sold in Serbia, the following also applies.
CAUTION
■When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drivetrain as well as dangerous han-
dling characteristics, which may lead to an accident resulting in death or serious injury.
●Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
●Do not use tire sizes other than those recommended by Lexus.
●Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
●Do not mix summer, all season and snow tires.
●Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
●Vehicles with a compact spare tire: Do not tow if your vehicle has a compact spare
tire installed.
●Vehicles with an emergency tire puncture repair kit: Do not tow anything if a tire that
has been repaired using the emergency tire puncture repair kit is installed. The load
on the tire may cause unexpected damage to the tire.
■When initializing the tire pressure warning system (vehicles with a tire pressure
warning system)
Do not operate the tire pressure warning reset switch without first adjusting the tire
inflation pressure to the specified level. Otherwise, the tire pressure warning light may
not come on even if the tire inflation pressu re is low, or it may come on when the tire
inflation pressure is actually normal.

5148-2. Steps to take in an emergency
IS200t_EE(OM53D19E)
Indicates that the TRC (Traction Control) system has
been deactivated
→ Tu r n t h e T R C o n . ( →P. 2 8 7 )
Indicates that the engine oil is scheduled to be changed.
(The indicator will not work properly unless the message
has been reset.)
→ Check the engine oil, and change if necessary.
After changing the engine oil, the message should
be reset.
(If equipped)
Indicates that the fuel in jectors require maintenance
soon
→ Have any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional
add injector cleaner to the fuel tank and reset the
message as necessary.
Indicates that the engine oil should be changed. (After
the engine oil is changed and the message has been
reset.)
→Check and change the engine oil, and oil filter by
any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional. After
changing the engine oil, the message should be
reset.
(If equipped)
Indicates that the fuel injectors require maintenance
→ Have any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional
add injector cleaner to the fuel tank and reset the
message.
(If equipped)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
→Turn the high beam on and press the Automatic
High Beam switch again.
(If equipped)
Indicates that, since the VSC (Vehicle Stability Control)
system was turned off, the pre-crash brake system oper-
ation is stopped
→Tu r n t h e V S C o n . ( →P. 2 8 8 )
Wa r n i n g m e s s a g eDetails/Actions

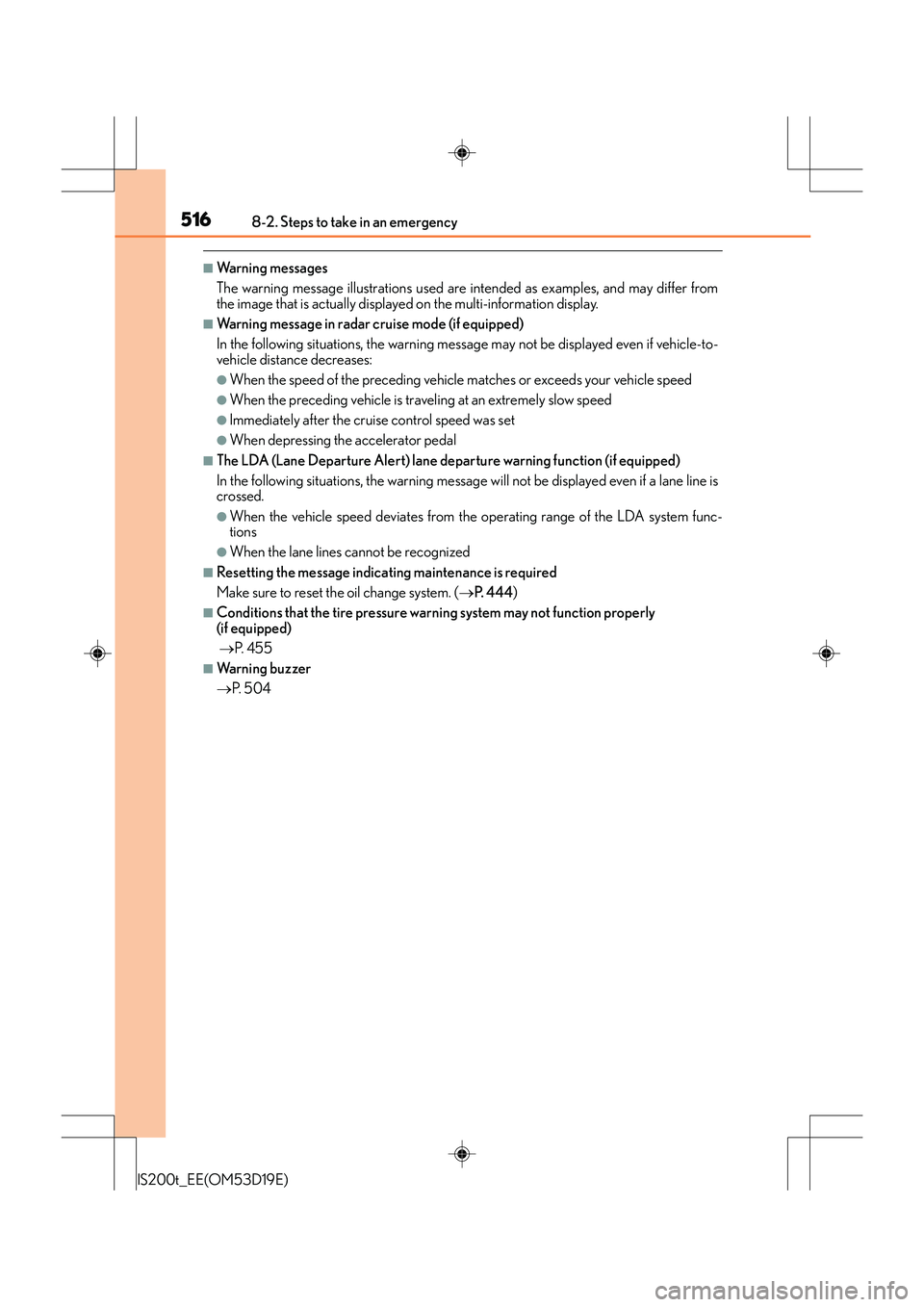

5168-2. Steps to take in an emergency
IS200t_EE(OM53D19E)
■Warning messages
The warning message illustrations used are intended as examples, and may differ from
the image that is actually displayed on the multi-information display.
■Warning message in radar cruise mode (if equipped)
In the following situations, the warning messag e may not be displayed even if vehicle-to-
vehicle distance decreases:
●When the speed of the preceding vehicle matches or exceeds your vehicle speed
●When the preceding vehicle is traveling at an extremely slow speed
●Immediately after the cruise control speed was set
●When depressing the accelerator pedal
■The LDA (Lane Departure Alert) lane departure warning function (if equipped)
In the following situations, the warning messag e will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LDA system func-
tions
●When the lane lines cannot be recognized
■Resetting the message indicating maintenance is required
Make sure to reset the oil change system. ( →P. 444 )
■Conditions that the tire pressure warning system may not function properly
(if equipped)
→ P. 4 5 5
■Warning buzzer
→P. 5 0 4
