2015 Lexus IS200t remote control

4677-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D19E)
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
■Use a CR2032 lithium battery
●Batteries can be purchased at any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional, local electrical appliance shops or camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer can
replace the battery for you.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart entry & start system and wireless remote control will not function properly.
●The operational range will be reduced.
■Certification for the key battery
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to the local laws.
4

4687-3. Do-it-yourself maintenance
IS200t_EE(OM53D19E)

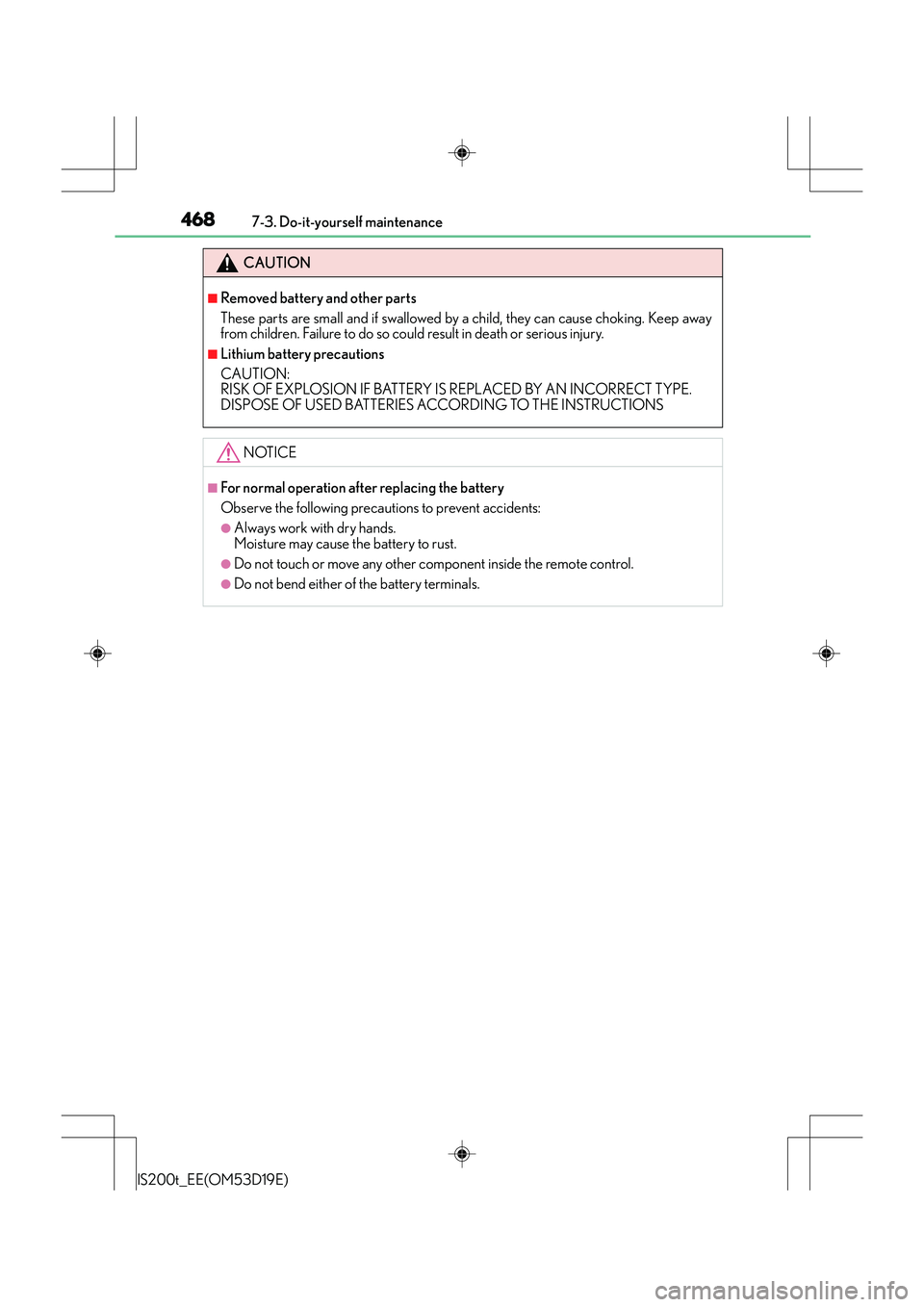

CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away
from children. Failure to do so could result in death or serious injury.
■Lithium battery precautions
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

5508-2. Steps to take in an emergency
IS200t_EE(OM53D19E)
■Doors
Use the mechanical key (→P. 117) in
order to perform the following oper-
ations:
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks all the doors
Opens the windows and moon
roof (turn and hold)
*
*
: This setting must be customized at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
■Tr u n k
Turn the mechanical key clockwise
to open.
If the electronic key does not operate properly
If communication between the electronic key and vehicle is interrupted ( →P.
136) or the electronic key cannot be used because the battery is depleted, the
smart entry & start system and wireless remote control cannot be used. In
such cases, the doors and trunk can be opened and the engine can be started
by following the procedure below.
Locking and unlocking the doors, unlocking the trunk and key linked
functions
1
2
3
4

5558-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D19E)
Once the engine starts, have the vehicle inspected at any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional as soon
as possible.
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is stopped. (Vehicles with
a Stop & Start system: except when the engine is stopped by the Stop & Start system.)
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will disc harge gradually even when the vehicle is not
in use, due to natural discharge and the draining effects of certain electrical appliances. If
the vehicle is left for a long time, the battery may discharge, and the engine may be
unable to start. (The battery recharges automatically during driving.)
■When recharging or replacing the battery
●In some cases, it may not be possible to un lock the doors using the smart entry & start
system when the battery is discharged. Use the wireless remote control or the mechan-
ical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but will
start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was discharged.
Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery discharged, be
especially careful when reconnecting the battery.
●Vehicles with Stop & Start system:
After charging the battery or reconnecting the battery terminals, the Stop & Start sys-
tem may not automatically stop the engine for approximately 30 to 60 minutes.
■When exchanging the battery (vehicles with Stop & Start system)
Use a battery specified for use with the Stop & Start system and equivalent to a genuine
battery. If an unsupported battery is used, Stop & Start system functions may be
restricted to protect the battery.
Also, battery performance may decrease and the engine may not be able to restart.
Contact any authorized Lexus dealer or Lexus authorized repairers, or any reliable
repairers for details.

576
IS200t_EE(OM53D19E)9-2. Customization
■Changing by using the Remote Touch or Lexus Display Audio controller
(if equipped)
XVe h i c l e s w i t h a R e m o t e To u c h
Press the “MENU” button on the Remote Touch.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
For details on the Remote Touch, refer to the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MANUAL”.
XVehicles with a Lexus Display Audio controller
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter control switches
→ P. 1 0 1
Customizable features
Your vehicle includes a variety of electr onic features that can be personalized
to your preferences. The settings of these features can be changed by using
the meter control switches, the Remote Touch or Lexus Display Audio con-
troller or at any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Customizing vehicle features
1
2
1
2

577
9
9-2. Customization
Vehicle specifications
IS200t_EE(OM53D19E)
Some function settings are changed simultaneously with other functions being
customized. Contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
Vehicles with a Remote Touch or Lexus Display Audio controller: Settings that
can be changed using the Remote Touch or Lexus Display Audio controller
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional
Definition of symbols: O = Available, — = Not available
■Gauges, meters and multi-information display ( →P. 9 0 , 9 5 , 1 0 0 )
Customizable features
1
2
3
Function*1Default settingCustomized setting
Language*2English
French
—O—
German
Spanish
Italian
Russian
Units*2km (L/100 km)km (km/L)—O—miles (MPG)
Eco Driving Indicator LightON
(Self-lighting)OFF—O—
switch settings*3Drive
information 1Desired status screen
*4—O—
Drive information 1
Current fuel economy
*5—O—Average fuel economy
(after reset)
Drive information 2
Distance (range)
*5—O—Average speed (after reset)
Pop-up displayONOFF—O—
123

579
9
9-2. Customization
Vehicle specifications
IS200t_EE(OM53D19E)
■Door lock (
→P. 122, 129, 550)
■Smart entry & start system and wireless remote control ( →P. 1 2 2 , 1 2 9 )
FunctionDefault settingCustomized setting
Unlocking using a mechanical
keyAll doors
unlocked in
one stepDriver’s door
unlocked in one step, all doors
unlocked in two steps
——O
Speed-detecting automatic door
lock functionOnOffO—O
Shifting gears to position other
than P locks all doorsOffOnO—O
Shifting gears to P unlocks all
doorsOffOnO—O
Opening driver's door unlocks
all doorsOnOffO—O
Locking/unlocking of the trunk
when all doors are locked/
unlocked
OnOff——O
123
FunctionDefault settingCustomized setting
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzerOnOff——O
Welcome light illumination con-
trolOnOff——O
123

5809-2. Customization
IS200t_EE(OM53D19E)
■Smart entry & start system ( →P. 122, 129, 134)
*: If equipped
■Wireless remote control ( →P. 122, 129)
■Driving position memory* (→ P. 1 5 3 )
*: If equipped
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Smart door unlocking*All the doorsDriver's doorO—O
Number of consecutive door
lock operations*As many as
desired2 times——O
123
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
All doors
unlocked in one stepDriver's door
unlocked in one
step, all doors
unlocked in two steps
O—O
Trunk unlocking operationPress and hold
(short)
One short press
——O
Push twice
Press and hold
(long)
Off
123
FunctionDefault settingCustomized setting
Driver's seat movement when
exiting the vehicleStandardOffO—OPa r t i a l
Doors linked to the driving posi-
tion memory recall functionDriver's doorAll doors——O
123
