2015 Lexus IS200t engine

5749-1. Specifications
IS200t_EE(OM53D19E)
■Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content is up to 10%.
Make sure that the ethanol blended gasoline to be used has a Research Octane Number
that follows the above.
■If your engine knocks
●Consult any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●You may occasionally notice light knocking fo r a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.
Fuel information
EU area:
You must only use unleaded gasoline conforming to European standard
EN228.
Select unleaded gasoline with a Research Octane Number of 95 or higher
for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95 or higher
for optimum engine performance.

575
9
9-1. Specifications
Vehicle specifications
IS200t_EE(OM53D19E)
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its effectiveness
and the emission control system to function improperly.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel contain-
ing a large amount of ethanol should not be used. The use of these fuels will damage
the vehicle’s fuel system. In case of any doubt, ask any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
●Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel
containing a large amount of ethanol should not be used. Your vehicle can use gaso-
line mixed with 10% max ethanol. The use of fuel with more than 10% ethanol content
(E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried
out only from a source where fuel specification and quality can be guaranteed. In case
of any doubt, ask any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
●Do not use the methanol blended gasoline such as M15, M85, M100. The use of gas-
oline containing methanol may cause engine damage or failure.

581
9
9-2. Customization
Vehicle specifications
IS200t_EE(OM53D19E)
■Outside rear view mirrors (
→P. 1 6 5 )
*: If equipped
■Powe r w i n d ows ( →P. 1 6 9 )
■Moon roof* (→ P. 1 7 3 )
*: If equipped
FunctionDefault settingCustomized setting
Automatic mirror folding and
extending operation*
Linked to the
locking/
unlocking of
the doorsOff
——OLinked to operation
of the engine switch
123
FunctionDefault settingCustomized setting
Mechanical key linked operationOffOn——O
Wireless remote control linked
operationOffOn——O
Wireless remote control linked
operation signal (buzzer)OnOff——O
123
FunctionDefault settingCustomized setting
Mechanical key linked operationOffOn——O
Linked operation of components
when mechanical key is used
(open only)
Slide onlyTilt only——O
Wireless remote control linked
operationOffOn——O
Linked operation of components
when wireless remote control is
used (open only)
Slide onlyTilt only——O
Wireless remote control linked
operation signal (buzzer)OnOff——O
123

5849-2. Customization
IS200t_EE(OM53D19E)

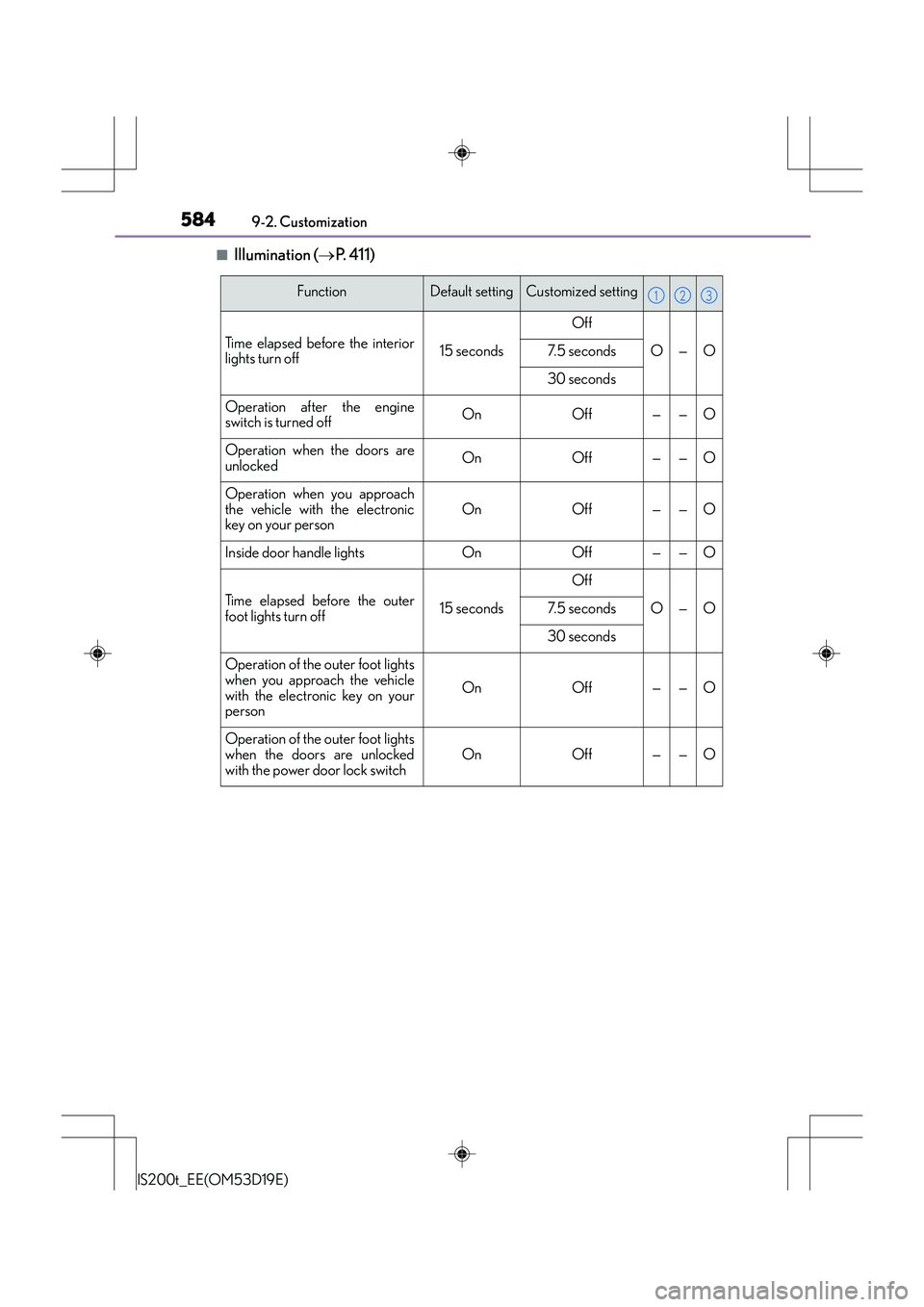

■Illumination ( →P. 4 1 1 )
FunctionDefault settingCustomized setting
Time elapsed before the interior
lights turn off15 seconds
Off
O—O7. 5 s e c o n d s
30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors are
unlockedOnOff——O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff——O
Inside door handle lightsOnOff——O
Time elapsed before the outer
foot lights turn off15 seconds
Off
O—O7. 5 s e c o n d s
30 seconds
Operation of the outer foot lights
when you approach the vehicle
with the electronic key on your
person
OnOff——O
Operation of the outer foot lights
when the doors are unlocked
with the power door lock switchOnOff——O
123

585
9
9-2. Customization
Vehicle specifications
IS200t_EE(OM53D19E)
■Vehicle customization
●When the speed-detecting automatic door lock and shift-linked automatic door lock
are both on, the door lock operates as follows.
• When shifting the shift lever to any position
other than P, all the doors will be locked.
• If the vehicle is started with all doors locked, the speed-detecting automatic door lock will not operate.
• If the vehicle is started with any door unlocked, the speed-detecting automatic door
lock will operate.
●When the smart entry & start system is off, the entry unlock function cannot be custom-
ized.
●When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signal s will be generated in accordance with the
operation buzzer volume and operational signal (Emergency flashers) function set-
tings.
●Some settings can be changed using a switch or the audio system screen. If a setting is
changed using a switch, the ch anged setting will not be reflected on the audio system
screen until the engine switch is turn ed off and then to IGNITION ON mode.
■When customizing using the Remote Touch or Lexus Display Audio controller (if
equipped)
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engine running while customizing the features.
CAUTION
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.

586
IS200t_EE(OM53D19E)9-3. Initialization
*: If equipped
Items to initialize
The following item must be initialized for normal system operation after such
cases as the battery being reconnected, or maintenance being performed on
the vehicle:
ItemWhen to initializeReference
Engine oil maintenance dataAfter changing the engine oilP. 444
Tire pressure warning system*
• When rotating the tires
• When changing the tire inflation
pressure by changing traveling
speed or load weight, etc.
P. 4 5 3

588
IS200t_EE(OM53D19E)What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be made
by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional. (
→P. 118)
●If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional immediately. ( →P. 1 2 1 )
●Is the electronic key battery weak or depleted? ( →P. 466)
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( →P. 1 9 7 )
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your
person.
●The function may not operate properly due to the condition of the radio wave.
(→ P. 136)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is set.
Open the rear door from outside and then unlock the child-protector lock.
( → P. 1 2 6 )
If you have a problem, check the foll owing before contacting any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

589What to do if... (Troubleshooting)
IS200t_EE(OM53D19E)
●The function to prevent the electronic key from being left inside the trunk will
operate and you can open the trunk as usual. Take the key out from the trunk.
(→ P. 131)
●Did you press the engine switch while firmly depressing the brake pedal?
(→ P. 1 9 6 )
●Is the shift lever in P? ( →P. 1 9 8 )
●Is the electronic key anywhere detectable inside the vehicle? ( →P. 1 3 4 )
●Is the steering wheel unlocked? ( →P. 1 9 8 )
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( →P. 5 5 1 )
●Is the battery discharged? ( →P. 5 5 3 )
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode. ( →P. 549)
●It is locked automatically to prevent theft of the vehicle. ( →P. 1 9 8 )
The trunk lid is closed with the electronic key left inside
If you think som
ething is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress the brake
pedal
The steering wheel cannot be turned after the engine is stopped
