361-1. For safe use
IS200t_EE(OM53D19E)
●Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
●Position the lap belt as low as possi-
ble over the hips.
●Adjust the position of the seatback.
Sit up straight and well back in the
seat.
●Do not twist the seat belt.
To fasten the seat belt, push the plate
into the buckle until a click sound is
heard.
To release the seat belt, press the
release button.

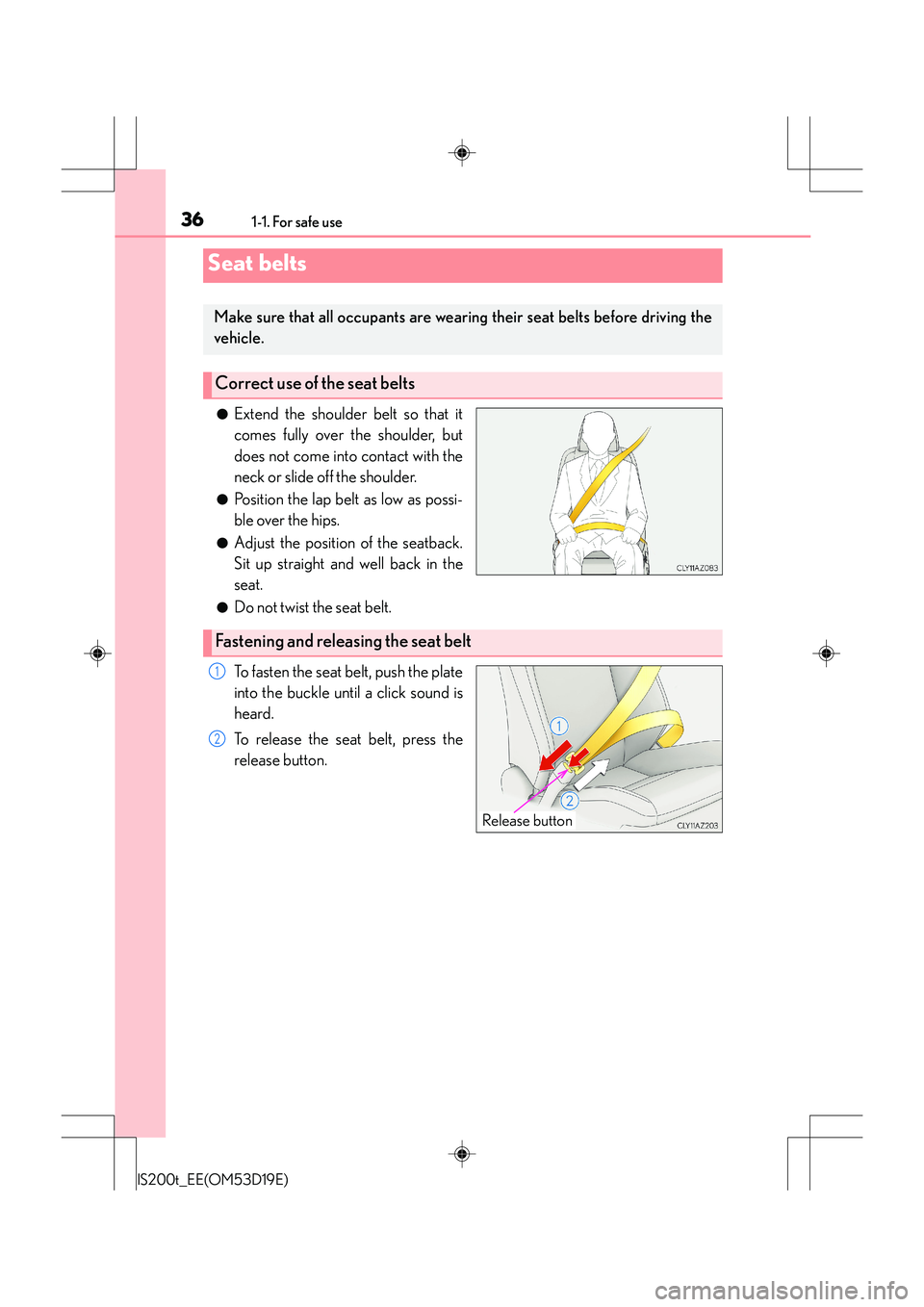

Seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2

371-1. For safe use
1
For safety and security
IS200t_EE(OM53D19E)
Push the seat belt shoulder anchor
down while pressing the release but-
ton.
Push the seat belt shoulder anchor
up.
Move the height adjuster up and down
as needed until you hear a click.
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehi-
cle is subjected to certain types of
severe frontal collision.
The seat belt pretensioners also activate
when the vehicle is subjected to certain
types of severe side collision.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact, a rear impact or a vehicle
rollover.
Adjusting the seat belt shoulder anchor height (front seats)
1
2
Seat belt pretensioners (front seats)

381-1. For safe use
IS200t_EE(OM53D19E)
■After the rear center seat belt has been used
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can
move around fully.
■Child seat belt usage
The seat belts of your vehicle were princi pally designed for persons of adult size.
●Use a child restraint system appropriate fo r the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. ( →P. 5 8 )
●When the child becomes large enough to prop erly wear the vehicle’s seat belt, follow
the instructions regarding seat belt usage. ( →P. 3 6 )
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretension er will activate for the first
collision, but will not activate for the second or subsequent collisions.
■Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped professional for
seat belt replacement or installation. Stow the buckle as shown.

391-1. For safe use
1
For safety and security
IS200t_EE(OM53D19E)
CAUTION
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system.
●To achieve a proper seating position, do not recline the seat more than necessary. The
seat belt is most effective when the occupants are sitting up straight and well back in
the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. ( →P. 3 6 )
Women who are pregnant should position the
lap belt as low as possible over the hips in the
same manner as other occupants, extending
the shoulder belt completely over the shoulder
and avoiding belt contact with the rounding of
the abdominal area.
If the seat belt is not worn properly, not only the
pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden
braking or a collision.

401-1. For safe use
IS200t_EE(OM53D19E)
CAUTION
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (→P. 3 6 )
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around
a child’s neck, it may lead to choking or othe r serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
■Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that case, the
seat belt cannot be used again and must be replaced at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoulder.
The belt should be kept away from your ne ck, but not falling off your shoulder. Failure to
do so could reduce the amount of protection in an accident and cause death or serious
injuries in the event of a sudden stop, sudden swerve or accident. ( →P. 3 7 )
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed in
the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do
not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an
occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
●Replace the seat assembly, including the belts, if your vehicle has been involved in a
serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by any authorized Lexus dealer or repairer,
or another duly qualified and equipped pr ofessional. Inappropriate handling may lead
to incorrect operation.

411-1. For safe use
1
For safety and security
IS200t_EE(OM53D19E)
◆SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from
impact with interior components
SRS knee airbags
Can help provide driver and front passenger protection
◆SRS side and curtain shield airbags
SRS side airbags
Can help protect the torso of the front seat occupants
SRS curtain shield airbags
Can help protect primarily the head of occupants in the outer seats
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types of
severe impacts that may cause significant injury to the occupants. They work
together with the seat belts to help reduce the risk of death or serious injury.
1
2
3
4

421-1. For safe use
IS200t_EE(OM53D19E)
The main SRS airbag system and Pop Up Hood components are shown above.
The SRS airbag system and Pop Up Hood are controlled by the airbag sensor
assembly. As the airbags deploy, a chemical reaction in the inflators quickly fills
the airbags with non-toxic gas to help restrain the motion of the occupants.
When the Pop Up Hood is activated, a non-toxic gas is released due to a chemi-
cal reaction in the lifters, which causes the pistons to eject quickly and raise the
rear portion of the hood. (Pop Up Hood: →P. 5 4 )
SRS airbag system components
Pop up hood lifters
Airbag manual on-off switch
Front passenger airbag
Curtain shield airbags
Knee airbags
“PASSENGER AIR BAG” indica-
tor lights
Seat belt pretensioners and force
limiters
Side impact sensors (front) Front side airbags
SRS warning light
Driver airbag
Side impact sensors (rear)
Driver’s seat position sensor
Driver’s seat belt buckle switch
Airbag sensor assembly
Front impact sensors
Po p u p h o o d s e n s o r s1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

431-1. For safe use
1
For safety and security
IS200t_EE(OM53D19E)
CAUTION
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or seri-
ous injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of inflation,
placing yourself 250 mm (10 in.) from your driver airbag provides you with a clear
margin of safety. This distance is measured from the center of the steering wheel to
your breastbone. If you sit less than 250 mm (10 in.) away now, you can change your
driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals com-
fortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 250 mm (10 in.) dis-
tance, even with the driver seat all the wa y forward, simply by reclining the back of
the seat somewhat. If reclining the back of your seat makes it hard to see the road,
raise yourself by using a firm, non-slippery cushion, or raise the seat if your vehicle
has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag toward
your chest instead of your head and neck.
The seat should be adjusted as recommend ed above, while still maintaining control
of the foot pedals, steering wheel, and yo ur view of the instrument panel controls.
