5268-2. Steps to take in an emergency
IS200t_EE(OM53D19E)
Loosen the center fastener that
secures the spare tire.
If the center fastener cannot be turned
by hand, use the wheel nut wrench that
is stored in the trunk. (To secure the tire,
tighten the center fastener by hand. Do
not use the wrench or other tools.)
Chock the tires.
3
CAUTION
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the body
of the vehicle.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire

5328-2. Steps to take in an emergency
IS200t_EE(OM53D19E)
CAUTION
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed for use with
your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steeri ng, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accid ent causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.
NOTICE
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.
■When replacing the tires (vehicles with a tire pressure warning system)
When removing or fitting the wheels, tires or the tire pressure warning valve and trans-
mitter, contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional as the tire pressure warning valve and transmitter may be dam-
aged if not handled correctly.
• ABS & Brake assist
•VSC
•TRC
• Cruise control (if equipped)
• Dynamic radar cruise control (if equipped)
•PCS (if equipped)
•EPS • LDA (Lane departure alert)
(if equipped)
• Rear view monitor system (if equipped)
• Lexus parking assist monitor (if equipped)
• Lexus parking assist-sensor
(if equipped)
• Navigation system (if equipped)

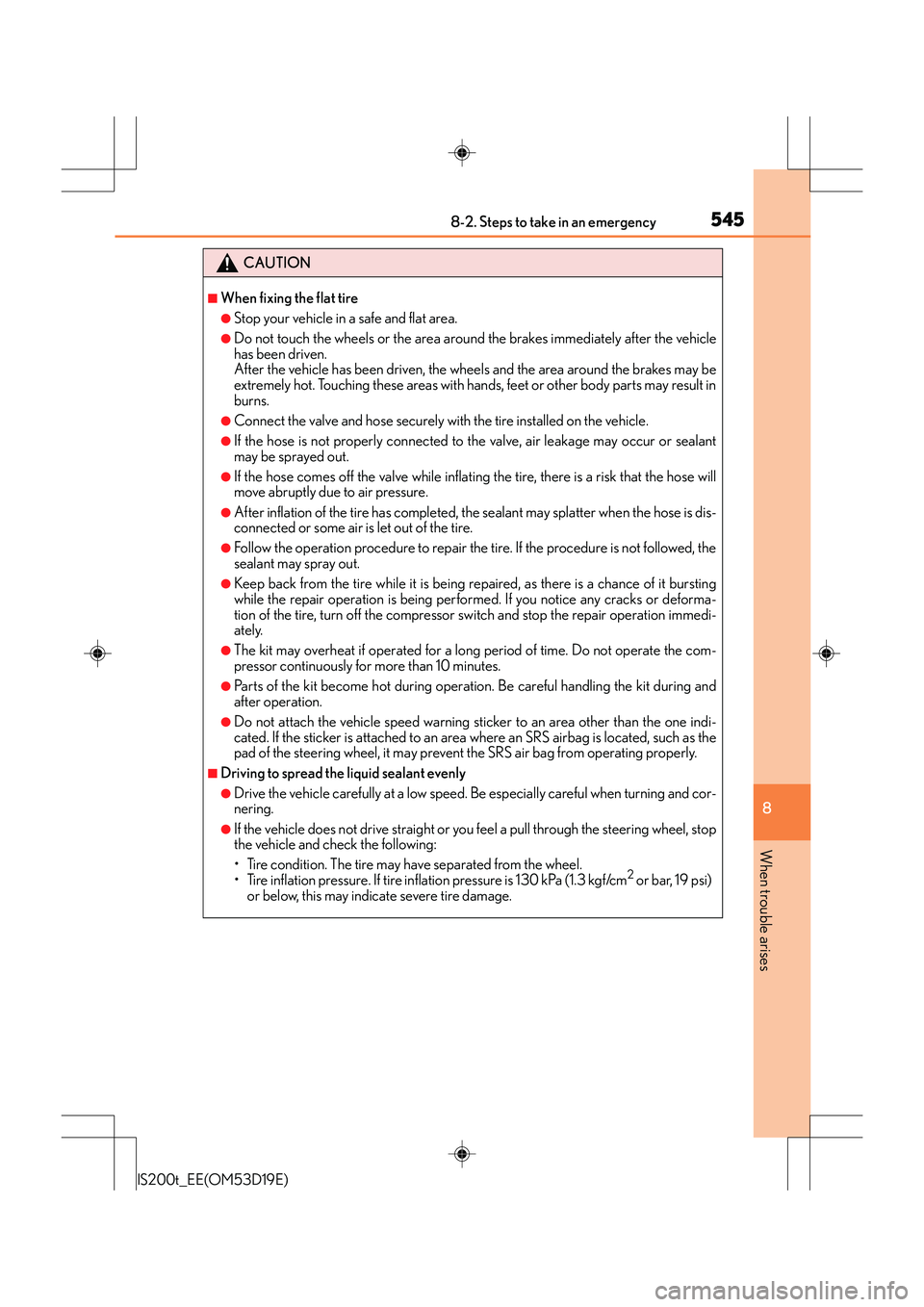

5458-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D19E)
CAUTION
■When fixing the flat tire
●Stop your vehicle in a safe and flat area.
●Do not touch the wheels or the area around the brakes immediately after the vehicle
has been driven.
After the vehicle has been driven, the wheels and the area around the brakes may be
extremely hot. Touching these areas with hands, feet or other body parts may result in
burns.
●Connect the valve and hose securely with the tire installed on the vehicle.
●If the hose is not properly connected to the valve, air leakage may occur or sealant
may be sprayed out.
●If the hose comes off the valve while inflating the tire, there is a risk that the hose will
move abruptly due to air pressure.
●After inflation of the tire has completed, the sealant may splatter when the hose is dis-
connected or some air is let out of the tire.
●Follow the operation procedure to repair the tire. If the procedure is not followed, the
sealant may spray out.
●Keep back from the tire while it is being re paired, as there is a chance of it bursting
while the repair operation is being performe d. If you notice any cracks or deforma-
tion of the tire, turn off the compressor sw itch and stop the repair operation immedi-
ately.
●The kit may overheat if operated for a long period of time. Do not operate the com-
pressor continuously for more than 10 minutes.
●Parts of the kit become hot during operation. Be careful handling the kit during and
after operation.
●Do not attach the vehicle speed warning sticker to an area other than the one indi-
cated. If the sticker is attached to an area where an SRS airbag is located, such as the
pad of the steering wheel, it may prevent the SRS air bag from operating properly.
■Driving to spread the liquid sealant evenly
●Drive the vehicle carefully at a low speed. Be especially careful when turning and cor-
nering.
●If the vehicle does not drive straight or you feel a pull through the steering wheel, stop
the vehicle and check the following:
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If tire infl ation pressure is 130 kPa (1.3 kgf/cm
2 or bar, 19 psi)
or below, this may indicate severe tire damage.

5809-2. Customization
IS200t_EE(OM53D19E)
■Smart entry & start system ( →P. 122, 129, 134)
*: If equipped
■Wireless remote control ( →P. 122, 129)
■Driving position memory* (→ P. 1 5 3 )
*: If equipped
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Smart door unlocking*All the doorsDriver's doorO—O
Number of consecutive door
lock operations*As many as
desired2 times——O
123
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
All doors
unlocked in one stepDriver's door
unlocked in one
step, all doors
unlocked in two steps
O—O
Trunk unlocking operationPress and hold
(short)
One short press
——O
Push twice
Press and hold
(long)
Off
123
FunctionDefault settingCustomized setting
Driver's seat movement when
exiting the vehicleStandardOffO—OPa r t i a l
Doors linked to the driving posi-
tion memory recall functionDriver's doorAll doors——O
123

600Alphabetical index
IS200t_EE(OM53D19E)
Lane Departure Alert (LDA)...........260
Language (multi-information display) ............. 104
LDA (Lane Departure Alert)...........260
Lever Auxiliary catch lever ......................... 439
Hood lock release lever.................439
Shift lever................................................. 201
Tilt and telescopic steering lock release lever .............................. 161
Turn signal lever ................................. 207
Wiper lever.............................................219
Lexus Display Audio controller ....... 316
Lexus Display Audio system ............. 314
Lexus parking assist-sensor ............. 266
License plate lights ................................ 210 Light switch ............................................ 210
Replacing light bulbs....................... 485
Light bulbs
Replacing ............................................... 475
Wattage.................................................. 573 Lights
Automatic High Beam
system.................................................... 213
Fog light switch..................................... 217
Follow me home system.................... 211
Headlight switch .................................. 210
Illuminated entry system .................. 412
Interior lights .......................................... 412
Interior lights list ..................................... 411
Personal lights....................................... 412
Replacing light bulbs ....................... 475
Trunk light .................................................131
Turn signal lever................................. 207
Vanity lights............................................ 421
Wattage ................................................. 573
Lock steering column .......................... 198
Low profile tire ...................................... 454
Luggage security system ................... 130
Luggage under tray ............................. 420
L

603Alphabetical index
IS200t_EE(OM53D19E)
Radar cruise control (dynamic radar cruise control) ........................ 244
Radiator .................................................... 446
Radio ......................................................... 338
Rear Crossing Traffic Alert .............. 299
Rear fog light ............................................217 Replacing light bulb......................... 485
Switch ........................................................ 217
Rear passengers’ seat belt
reminder lights....................................502
Rear seat......................................................151
Fold down the seatback .................... 151
Luggage security system................ 130
Rear personal lights .............................. 412 Wattage.................................................. 573
Rear sunshade ....................................... 423 Operation.............................................. 423
Reverse operation feature ............ 423
Rear turn signal lights.......................... 207
Replacing light bulbs........................ 478
Turn signal lever ................................. 207
Wattage.................................................. 573
Rear view mirror
Inside rear view mirror......................163
Outside rear view mirrors.............. 165 Rear view monitor system ................ 273
Rear window defogger ..................... 404
Refueling ...................................................227
Capacity................................................. 566
Fuel types .............................................. 566
If the fuel filler door cannot
be opened ..........................................229
Opening the fuel tank cap.............229
Remote Touch
*
Replacing Electronic key battery ..................... 466
Fuses ........................................................ 469
Light bulbs .............................................473
Tires...........................................................522
Rev indicator ........................................... 104
Rev peak ................................................... 104
R
*: For vehicles with a navigation or multimedia system, refer to
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

604Alphabetical index
IS200t_EE(OM53D19E)
Seat belt reminder light ......................502
Seat belts ..................................................... 36Adjusting the seat belt........................ 37
Child restraint system installation..............................................68
Cleaning and maintaining the seat belt ....................................... 433
Emergency Locking Retractor (ELR)..................................38
How to wear your seat belt ............. 36
How your child should wear the seat belt .......................................... 38
Pregnant women, proper
seat belt use ......................................... 39
Reminder light and buzzer ...........502
Seat belt pretensioners ...................... 37
SRS warning light.............................. 500
Seat heaters ............................................. 410
Seat position memory .......................... 153
Seat ventilators ....................................... 410 Seats, Front ...............................................149
Adjustment ............................................. 149
Adjustment precautions...................150
Child seats/child restraint
system installation ..............................67
Cleaning .................................................432
Driving position memory ................ 153
Head restraints .....................................158
Power easy access system............. 153
Properly sitting in the seat.................34
Seat heaters............................................410
Seat position memory ....................... 153
Seat ventilators ..................................... 410
Seats, Rear ................................................. 151
Fold down the seatback ....................151
Luggage security system ................ 130
S

609Alphabetical index
IS200t_EE(OM53D19E)
Trunk ........................................................... 129Luggage security system................ 130
Smart entry & start system ..............129
Trunk features....................................... 418
Trunk grip ............................................... 130
Trunk light ................................................. 131
Trunk opener main switch ............. 130
Trunk opener switch ..........................129
Wireless remote control ................. 130
Trunk light ................................................... 131
Wattage.................................................. 573
Turn signal lights.................................... 207
Replacing light bulbs .................475, 477, 478, 485
Turn signal lever ................................. 207
Wattage.................................................. 573 Units ............................................................ 104
USB device ................................. 350, 392
Connecting ............................................ 321
USB audio ............................................ 350
USB photo............................................ 392
USB video............................................. 350
USB port .................................................... 321
Vanity lights .............................................. 421 Vanity lights............................................ 421
Wattage ................................................. 573
Vanity mirrors ..........................................421
VDIM (Vehicle Dynamics Integrated Management) .............. 286
Vehicle identification number......... 565
Vehicle Stability Control (VSC) .................................................... 285
Ventilators (seat ventilators) ............ 410
VSC (Vehicle Stability Control) ................................................ 285U
V
