GX460_Navi_OM60L77U_(U)14.06.02 10:48
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
1When the engine switch is in
ACCESSORY or IGNITION ON
mode, the initial screen will be displayed
and the system will begin operating.
zAfter a few seconds, the “Caution” screen
will be displayed.
z After about 5 seconds, the “Caution”
screen automatically switches to the map
screen. (Select
“Continue” to display the
map screen.)
z Images shown on the initial screen can be
changed to suit individual preferences.
(→ P. 5 8 )
CAUTION
●When the vehicle is stopped with the
engine running, always apply the parking
brake for safety.
MAINTENANCE
INFORMATION
This system reminds users when to re-
place certain parts or components and
shows dealer information (if registered)
on the screen.
When the vehicle reaches a previously
set driving distance or date specified for
a scheduled maintenance check, the
“Maintenance Reminder” screen will be
displayed when the navigation system is
turned on.
z This screen goes off if the screen is not
operated for several seconds.
z To prevent this screen from being dis-
played again, select “Do Not Display
This Message Again”.
z To register maintenance information:
→ P. 6 5
z If is selected, the registered phone
number can be called.
GX_Navi_OM60L77U_(U).book Page 28 Monday, June 2, 2014 10:49 AM

50
2. Bluetooth® SETTINGS
GX460_Navi_OM60L77U_(U)14.06.02 10:48
■RECONNECTING THE Bluetooth®
PHONE
zIf a Bluetooth® phone is disconnected on
purpose, such as turning it off, this does not
happen. Reconnect the Bluetooth
® phone
manually.
1Display the “Bluetooth* Setup” screen.
( → P.45)
2Select the desired device to be edited.
3Select “Device Info” .
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
If a Bluetooth® phone is disconnected
due to poor reception from the
Bluetooth
® network when the engine
switch is in ACCESSORY or IGNI-
TION ON mode, the system automati-
cally reconnects the Bluetooth
® phone.
EDITING THE Bluetooth®
DEVICE INFORMATION
The Bluetooth® device’s information
can be displayed on the screen. The dis-
played information can be edited.
GX_Navi_OM60L77U_(U).book Page 50 Monday, June 2, 2014 10:49 AM

174
2. RADIO OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
AUTOMATIC PLAYBACK OF
THE CACHE
If the radio broadcast is interrupted by
another audio output, such as an
incoming phone call, the system will
automatically cache the interrupted
portion and perform time-shift playback
when the interruption ends. To manually
operate the cache operation: ( →P.173)
INFORMATION
●
The system can store up to 15 minutes.
Cached data will be erased when the
radio mode or station is changed or when
the audio system is turned off.
●If noise or silence occurs during the cach-
ing process, cache writing will continue,
with the noise or silence recorded as is. In
this case, the cached broadcast will con-
tain the noise or silence when played
back.
RADIO BROADCAST DATA
SYSTEM
This audio system is equipped with Ra-
dio Broadcast Data Systems (RBDS).
RBDS mode allows text messages to be
received from radio stations that utilize
RBDS transmitters.
When RBDS is on, the radio can
— only select stations of a particular pro-
gram type,
— display messages from radio stations,
— search for a stronger signal station.
RBDS features are available only when
listening to an FM station that
broadcasts RBDS information and the
“FM Info” indicator is on.
GX_Navi_OM60L77U_(U).book Page 174 Monday, June 2, 2014 10:49 AM

179
2. RADIO OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
TROUBLESHOOTING GUIDE
ExperienceCauseAction
Mismatch of time align-
ment- a user may hear a
short period of program-
ming replayed or an echo,
stutter or skip.The radio stations analog
and digital volume is not
properly aligned or the sta-
tion is in ballgame mode.
None, radio broadcast issue. A
user can contact the radio station.
Sound fades, blending in
and out.Radio is shifting between
analog and digital audio.
Reception issue, may clear-up as
the vehicle continues to be driven.
Turning the indicator of the “HD
radio” button off can force radio in
an analog audio.
Audio mute condition
when an HD2/HD3 multi-
cast channel had been play-
ing.The radio does not have ac-
cess to digital signals at the
moment.This is normal behavior, wait until
the digital signal returns. If out of
the coverage area, seek a new sta-
tion.
Audio mute delay when se-
lecting an HD2/HD3 mul-
ticast channel preset.
The digital multicast con-
tent is not available until HD
Radio™ broadcast can be
decoded and make the au-
dio available. This takes up
to 7 seconds.
This is normal behavior, wait for the
audio to become available.
Text information does not
match the present song au-
dio.Data service issue by the
radio broadcaster.Broadcaster should be notified.
Complete the form;
www.ibiquity.com/automotive/
report_radio_station_experiences.
No text information shown
for the present selected fre-
quency.Data service issue by the
radio broadcaster.Broadcaster should be notified.
Complete the form;
www.ibiquity.com/automotive/
report_radio_station_experiences.
GX_Navi_OM60L77U_(U).book Page 179 Monday, June 2, 2014 10:49 AM

211
3. MEDIA OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
INFORMATION
●
The system can only output the sound while driving.
●When an iPod is connected using a genuine iPod cable, the iPod starts charging its battery.
●Depending on the iPod, the video sound may not be able to be heard.
●Depending on the iPod and the songs in the iPod, iPod cover art may be displayed. This
function can be changed to “On” or “Off ” . (→ P.260) It may take time to display iPod cover
art, and the iPod may not be operated wh ile the cover art display is in process.
●When an iPod is connected and the audio source is changed to iPod mode, the iPod will
resume playing from the same point it was last used.
●Depending on the iPod that is connected to the system, certain functions may not be avail-
able.
●For viewing videos from an iPod, it is necessary to set “Video Sound Input” to “A/V”.
(→ P. 2 5 9 )
●If an iPhone is connected via Bluetooth® and USB at the same time, system operation may
become unstable. For known phone compatibility information, refer to
http://www.lexus.com/enform/
.
GX_Navi_OM60L77U_(U).book Page 211 Monday, June 2, 2014 10:49 AM

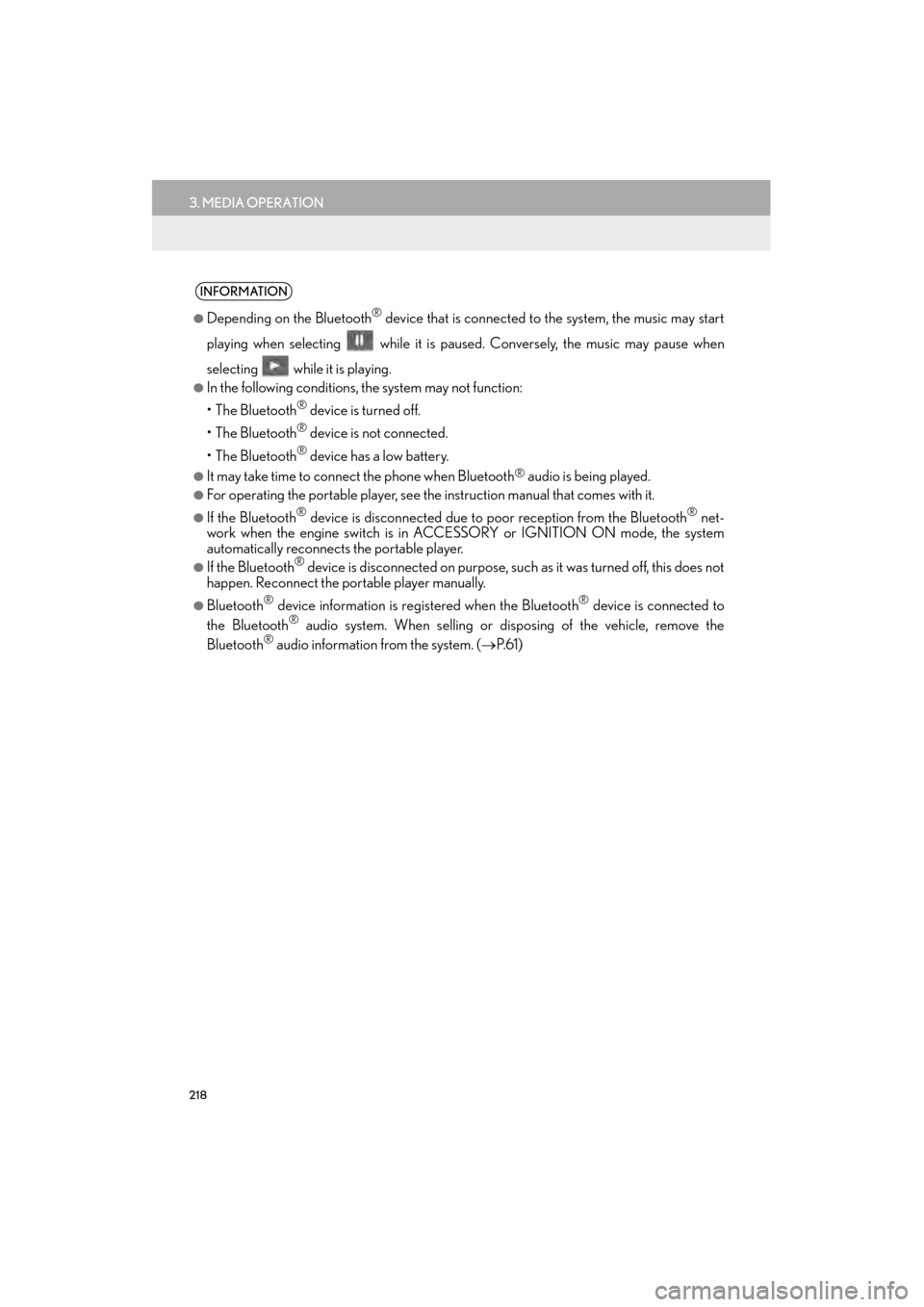

218
3. MEDIA OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
INFORMATION
●
Depending on the Bluetooth® device that is connected to the system, the music may start
playing when selecting while it is pa used. Conversely, the music may pause when
selecting while it is playing.
●In the following conditions, the system may not function:
•The Bluetooth
® device is turned off.
•The Bluetooth
® device is not connected.
•The Bluetooth
® device has a low battery.
●It may take time to connect the phone when Bluetooth® audio is being played.
●For operating the portable player, see the instruction manual that comes with it.
●If the Bluetooth® device is disconnected due to poor reception from the Bluetooth® net-
work when the engine switch is in ACCESSORY or IGNITION ON mode, the system
automatically reconnects the portable player.
●If the Bluetooth® device is disconnected on purpose, such as it was turned off, this does not
happen. Reconnect the portable player manually.
●Bluetooth® device information is registered when the Bluetooth® device is connected to
the Bluetooth® audio system. When selling or disp osing of the vehicle, remove the
Bluetooth® audio information from the system. ( →P. 6 1 )
GX_Navi_OM60L77U_(U).book Page 218 Monday, June 2, 2014 10:49 AM

230
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
zWith some headphones generally avail-
able in the market, it may be difficult to
catch signals properly. Lexus recommends
the use of Lexus genuine wireless head-
phones.
z Contact your Lexus dealer for further
details.
z This screen appears for a few seconds
when the engine switch is in ACCESSORY
or IGNITION ON mode.
1Press the button.
When the switch is moved to “R”, opera-
tions can be performed on the right screen.
When switch is moved to “L”, operations
can be performed on the left screen.
HEADPHONES
To listen to the rear audio, use head-
phones.
CAUTION SCREEN
TURNING THE REAR DISPLAY
ON/OFF
CHANGING THE DISPLAY TO
BE OPERATED
GX_Navi_OM60L77U_(U).book Page 230 Monday, June 2, 2014 10:49 AM

285
1. VOICE COMMAND SYSTEM OPERATION
5
VOICE COMMAND SYSTEM
GX460_Navi_OM60L77U_(U)14.06.02 10:48
1Press the talk switch.
2Say “Play song ” .
zA confirmation screen will be displayed
showing the recognition results. If multiple
matching items are found, a selection
screen will be displayed. Say “”
or select the number.
z The system starts pl aying music and the
song lists are displayed.
VOICE COMMAND
EXAMPLE: SEARCH FOR A
SONG
z When “Play Artist ” is used to
play music, the first track is selected ran-
domly. For operations beyond playing
music: →P.1 5 5
INFORMATION
●
The Gracenote database is only compati-
ble with the USB or iPod mode.
●The list screens can be operated by
selecting a screen button as well as by
recognizing the voice commands.
●A USB memory or iPod must be con-
nected to enable track searching and
playback. ( →P.202, 207)
●When a USB memory or iPod is con-
nected, recognition data is created so
tracks can be searched using voice com-
mands.
●Recognition data is updated under the
following conditions:
• When the USB memory or iPod data
has changed.
• When the voice recognition language is changed. ( →P. 5 5 )
●While the recognition data is being cre-
ated or being updated, a track search
cannot be performed using a voice com-
mand.
●When the “Music” tab is disappeared on
the shortcut menu screen, it is not possi-
ble to search for a track using a voice
command.
GX_Navi_OM60L77U_(U).book Page 285 Monday, June 2, 2014 10:49 AM
