5157-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
7
When trouble arises
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer.
Have the vehicle inspected immediately.
Warning messageDetails
Indicates a malfunction in the pre-collision system
Indicates a malfunction in the intuitive parking assist All assist-sensors flash.
Indicates a malfunction in the dynamic radar cruise
control system (if equipped) or the cruise control sys-
temPress the “ON/OFF” button once to deactivate the
system, and then press the button again to reacti-
vate the system.
(Flashes)
(If equipped)
(If equipped)
GS450h_OM_OM30F70U_(U).book Page 515 Monday, January 19, 2015 9:34 AM

5207-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec
ified steps to correct the suspected
problem, check that the warning message goes off.
Follow the correction procedures.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
door(s) are not yet
fully closed.
Make sure that all the
doors are closed.
Indicates that the hood is
not fully closedIf the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
hood is not yet fully
closed.
Close the hood.
GS450h_OM_OM30F70U_(U).book Page 520 Monday, January 19, 2015 9:34 AM

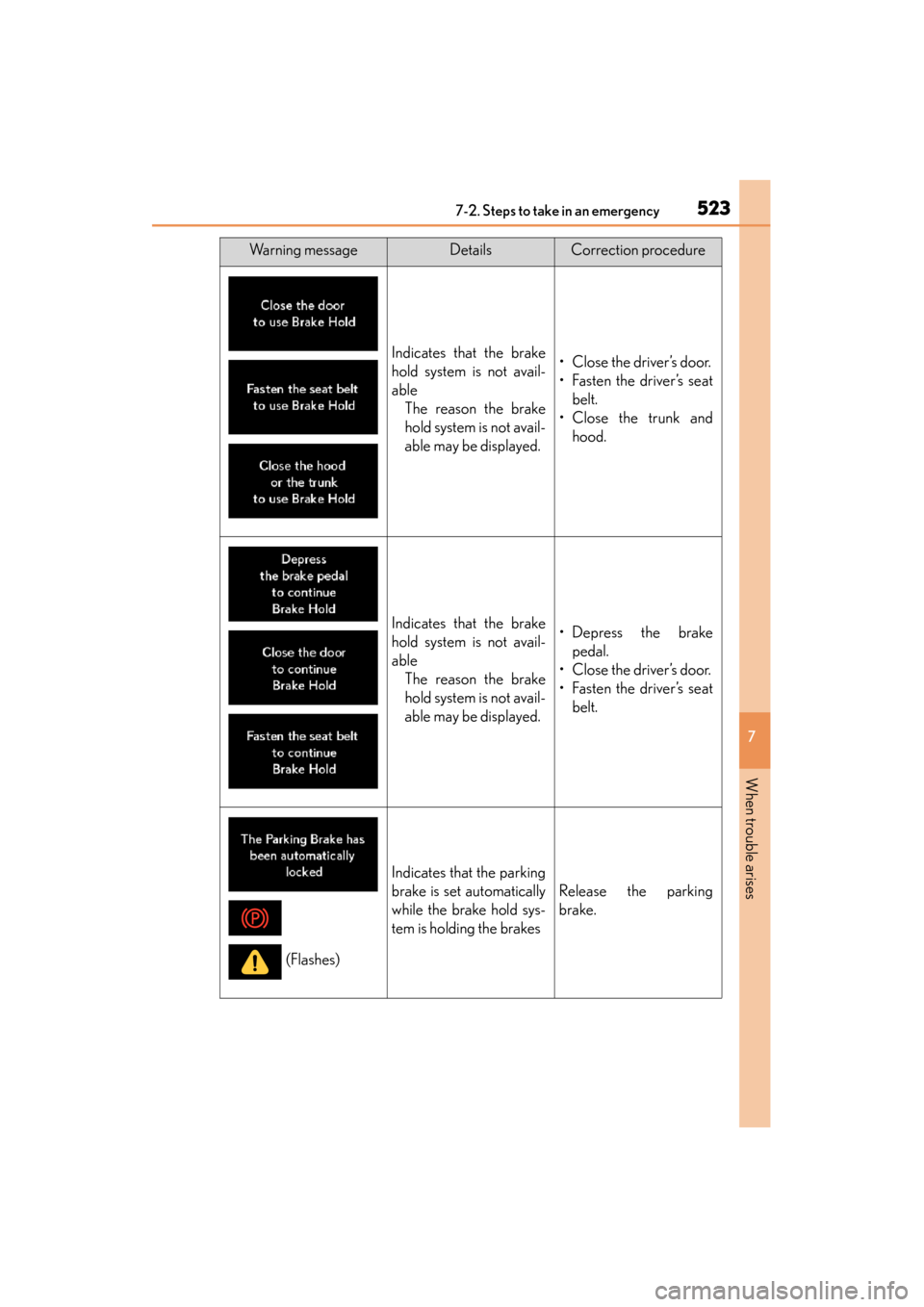

5237-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
7
When trouble arises
Indicates that the brake
hold system is not avail-
ableThe reason the brake
hold system is not avail-
able may be displayed.• Close the driver’s door.
• Fasten the driver’s seatbelt.
• Close the trunk and hood.
Indicates that the brake
hold system is not avail-
ableThe reason the brake
hold system is not avail-
able may be displayed.• Depress the brakepedal.
• Close the driver’s door.
• Fasten the driver’s seat belt.
Indicates that the parking
brake is set automatically
while the brake hold sys-
tem is holding the brakes
Release the parking
brake.
Warning messageDetailsCorrection procedure
(Flashes)
GS450h_OM_OM30F70U_(U).book Page 523 Monday, January 19, 2015 9:34 AM

5267-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in vehicle-to-vehi-
cle distance mode)At the same time,
will appear on
the head-up display
(the image flashes).
Slow the vehicle by
applying the brakes.
Indicates that there is a
high possibility of a frontal
collision, or that the pre-
collision braking function
is operating At the same time,
will appear
on the head-up dis-
play.
Slow the vehicle by
applying the brakes.
Indicates that the LKA
(Lane-Keeping Assist) is
suspended
•The camera sensor temperature is higher
than the operation tem-
perature range.
•The power steering system operation is
restricted.
Restart the LKA after
driving for a while.
Warning messageDetailsCorrection procedure
(If equipped)
(Flashes
rapidly)
(If equipped)
(If equipped)
GS450h_OM_OM30F70U_(U).book Page 526 Monday, January 19, 2015 9:34 AM

5277-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
7
When trouble arises
Alerts the driver that the
vehicle is out of the lanes
(while the LKA [Lane-
Keeping Assist] system is
operating)The warning buzzer
sounds continuously.
The lane markings and/
or the steering wheel
marking flash.
At the same time,
will appear
on the head-up dis-
play (part of the image
flashes).
Check around the vehi-
cle and back to inside of
the lane markings.
Indicates that the LKA
(Lane-Keeping Assist)
system detects no-
handed driving (while the
lane keeping assist func-
tion is operating) The warning buzzer
sounds twice.
Grip the steering wheel
firmly.
Indicates that the Blind
Spot Monitor sensors or
the surrounding area on
the bumper is dirty or
covered with ice
Clean the sensor and its
surrounding area on the
bumper.
Indicates that the hybrid
system has overheatedThis message may be
displayed when driving
under severe operating
conditions. (For exam-
ple, when driving up a
long steep hill.)
Stop and check.
(→ P. 566)
Warning messageDetailsCorrection procedure
(If equipped)
(If equipped)
(If equipped)
GS450h_OM_OM30F70U_(U).book Page 527 Monday, January 19, 2015 9:34 AM

5297-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
7
When trouble arises
■Warning message in radar cruise mode (if equipped)
In the following cases, the warning message may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■The LKA (Lane-Keeping Assist) lane departure warning function (if equipped)
In the following cases, the warning message will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LKA system
functions
●When the lane lines cannot be recognized
●When the steering wheel is turned as far as necessary to cause the vehicle to
change lanes
■Open door warning message
The open door warning message continues to display until a door or the trunk is fully
closed, even if the power switch is turned off. However, approximately 20 minutes
after a door or the trunk is not fully closed, the 12-volt battery-saving function oper-
ates and the display turns off even though a door or the trunk is not fully closed.
GS450h_OM_OM30F70U_(U).book Page 529 Monday, January 19, 2015 9:34 AM

5307-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)A warning message is shown on the multi-information display. After taking
the specified steps to correct the suspected problem, check that the
warning message goes off.
Follow the correction procedures.
Warning messageDetailsCorrection procedure
Indicates that the brake
hold system is not hold
the vehicle when the
vehicle is on a slippery
road
Use the brake hold sys-
tem when it becomes
available.
Indicates that the washer
fluid level is lowAdd washer fluid.
Indicates that all mainte-
nance according to the
driven distance on the
maintenance schedule
*
should be performed
soon.If necessary, perform
maintenance.
Comes on approxi-
mately 4500 miles
(7200 km) after the mes-
sage has been reset.
(U.S.A. only)
GS450h_OM_OM30F70U_(U).book Page 530 Monday, January 19, 2015 9:34 AM

5327-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supple-ment” for the maintenance interval applicable to your vehicle.
Warning messageDetailsCorrection procedure
Indicates that the tire
position information can-
not be recognized
Drive for a short while
and check if the display
updates. If the radio wave condi-
tions improve, the dis-
play may return to
normal. If the tire pres-
sure is still not dis-
played after driving for
several minutes, stop
the vehicle in a safe
place, turn the power
switch off then on
again, and start driving.
If the tire pressure is still
not displayed even
after repeating this sev-
eral times, have the
vehicle inspected at
your Lexus dealer.
Indicates that the pre-col-
lision system is not cur-
rently functional because
the grille cover or the
sensor is dirtyThis message also
appears when the pre-
collision system is not
functional due to over-
heating.
• Check the grille coverand the sensor and
clean them if they are
dirty.
• In case of overheating, the system will become
functional once the sys-
tem cools down.
(If equipped)
(Flashes)
(If equipped)
