GS450h_OM_OM30F70U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Light bulbs
Check the wattage of the light bulb to be replaced. ( P. 583)
 P. 4 3 0
■Front
Vehicles with discharge headlights
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replace-
ment seems difficult to perform, contact your Lexus dealer.
For more information about replacin g other light bulbs, contact your
Lexus dealer.
Preparing for light bulb replacement
Removing the engine compartment covers
Bulb locations
Front turn signal light
Halogen fog light (if equipped)1
2

5257-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
7
When trouble arises

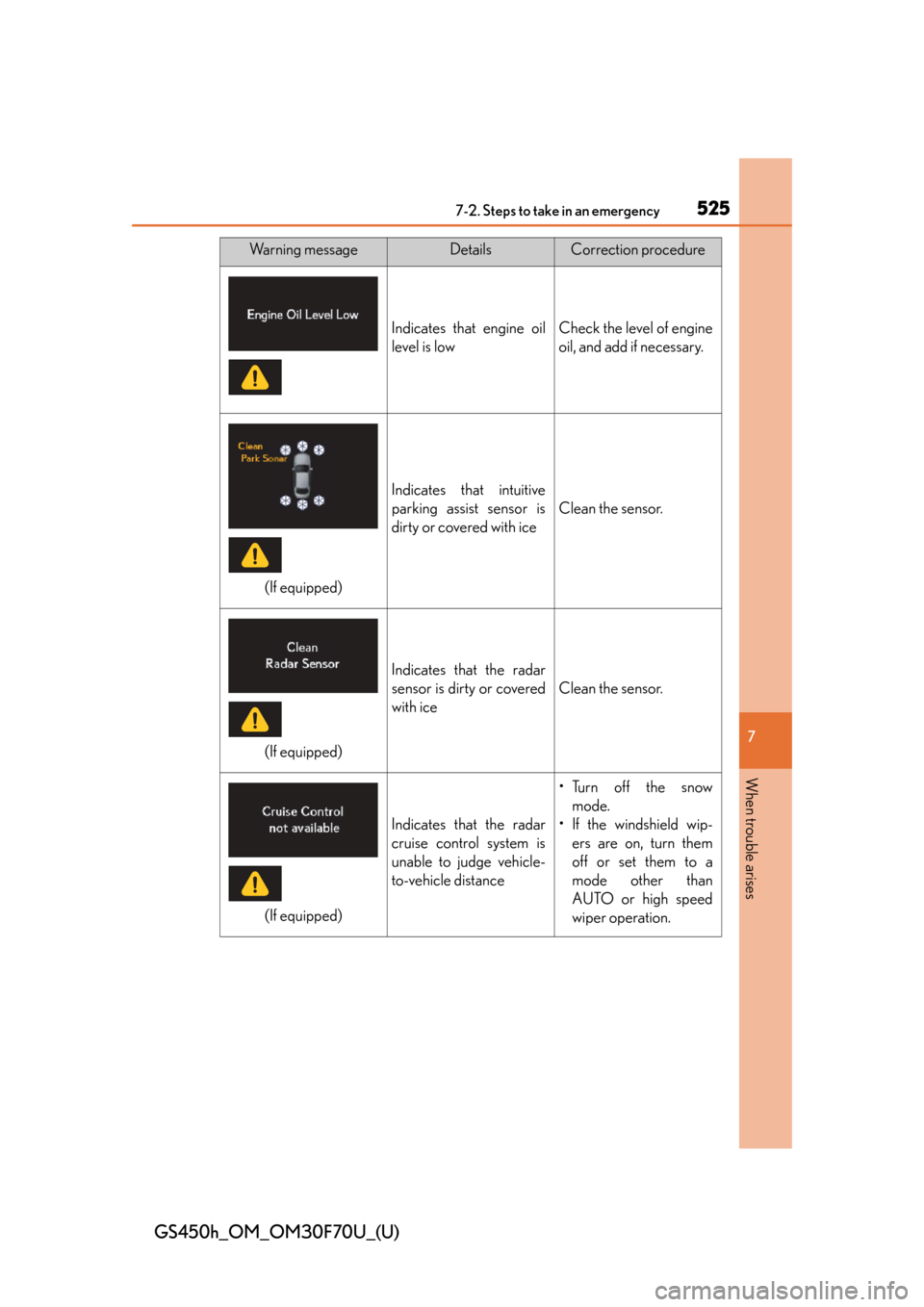

Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that engine oil
level is lowCheck the level of engine
oil, and add if necessary.
Indicates that intuitive
parking assist sensor is
dirty or covered with ice
Clean the sensor.
Indicates that the radar
sensor is dirty or covered
with ice
Clean the sensor.
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance
•Turn off the snowmode.
• If the windshield wip- ers are on, turn them
off or set them to a
mode other than
AUTO or high speed
wiper operation.
(If equipped)
(If equipped)
(If equipped)

5677-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
7
When trouble arises
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL”
“LOW”
Coolant inlet cap
Add coolant if necessary.
( P. 569)
Water can be used in an emer-
gency if engine coolant is unavail-
able.
Start the hybrid system and turn the air conditioning system on to
check that the radiator cooling fa ns operate and to check for coolant
leaks from the radiator or hoses.
The fans operate when the air conditioning system is turned on immediately
after a cold start. Confirm that the fans are operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning sys-
tem on and off repeatedly. (The fans may not operate in freezing tempera-
tures.)
If the fans are not operating:
Stop the hybrid system immediately and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
4
1
2
3
4
5
6
7

5707-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automatically
start, or the cooling fan may suddenly oper ate even if the gasoline engine stops.
Do not touch or approach rotating parts such as the fan, which may lead to fin-
gers or clothing (especially a tie, a scarf or a muffler) getting caught, resulting in
serious injury.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid syst em has cooled down sufficiently. Adding
cool coolant to a hot hybrid system too quickly can cause da mage to the hybrid
system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.
●Do not loosen the cool ant inlet cap or the
coolant reservoir cap while the hybrid sys-
tem and radiator are hot.
High temperature steam or coolant could
spray out.

GS450h_OM_OM30F70U_(U)
5778-1. Specifications
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter
Without filter
6.6 qt. (6.2 L, 5.5 Imp.qt.)
6.2 qt. (5.9 L, 5.2 Imp.qt.)

636Alphabetical index
GS450h_OM_OM30F70U_(U)
Child restraint system............................ 57Booster seats, definition .................... 57
Booster seats, installation.................. 67
Convertible seats, definition ............ 57
Convertible seats, installation ......... 64
Front passenger occupant classification system ......................... 49
Infant seats, definition .......................... 57
Infant seats, installation ....................... 64
Installing CRS with LATCH anchors ..................... 62
Installing CRS with seat belts .......... 64
Installing CRS with top tether strap .........................68
Child safety ................................................ 56 12-volt battery precautions ............................. 441, 565
Airbag precautions ................................41
Child restraint system ......................... 57
How your child should wear the seat belt ................................. 33, 35
Installing child restraints.......................61
Moon roof precautions.....................174
Power window lock switch .............167
Power window precautions .......... 170
Rear door child-protectors ........... 140
Removed electronic key battery precautions................ 461
Seat belt comfort guide ..................... 33
Seat belt extender precautions ...... 37
Seat belt precautions ..........................60
Seat heater precautions................. 384
Trunk precautions............................... 146 Child-protectors .................................... 140
Cleaning ........................................ 408, 412
Aluminum wheels ..............................409
Exterior .................................................. 408
Interior ....................................................... 412
Seat belts.................................................. 413
Clock..........................................................376
Coat hooks ............................................. 390
Condenser.............................................. 436
Console box ........................................... 369
Console box light ................................. 369
Consumption screen ..............................114
Coolant .....................................................434 Capacity................................................. 579
Checking ............................................... 434
Preparing and checking before winter..................................................... 318
Cooling system ......................................434 Engine overheating ..........................566
Hybrid system overheating ..........566
Cruise control Cruise control ..................................... 235
Dynamic radar cruise control ..... 239
Dynamic radar cruise control with full-speed range ................... 254
Cup holders............................................ 370
Curtain shield airbags ............................39
Customizable features ...................... 599

638Alphabetical index
GS450h_OM_OM30F70U_(U)
Electronic key ......................................... 120Battery-saving function .................... 129
If the electronic key does not operate properly............................ 559
Replacing the battery ...................... 460
Emergency, in case of If a warning buzzer sounds.......... 503
If a warning light turns on.............. 503
If a warning message is displayed ......................................... 513
If the 12-volt battery is discharged .........................................562
If the electronic key does not operate properly ....... 559
If the hybrid system will not start....................................... 554
If the parking brake cannot be released ........................557
If the shift lever cannot be shifted from P ........... 556
If you have a flat tire ........................... 541
If you think something is wrong.............................................. 502
If your vehicle becomes stuck ...... 571
If your vehicle has to be stopped in an emergency ............................ 495
If your vehicle needs to be towed ...................................... 496
If your vehicle overheats ............... 566
Emergency flashers ............................. 494
Energy monitor ........................................ 112 Engine
Accessory mode .................................194
Compartment ..................................... 429
Engine switch ........................................193
Hood........................................................ 426
How to start the hy brid system ....193
Identification number....................... 575
Ignition switch (power switch) ..................................193
Overheating.........................................566
Power switch .........................................193
Engine compartment cover............. 430
Engine coolant .......................................434 Capacity................................................. 579
Checking ............................................... 434
Preparing and checking before winter ..................................... 318
Engine coolant temperature gauge .......................................................... 91
Engine oil ................................................... 431 Capacity................................................. 577
Checking ................................................. 431
Oil level warning message ........... 525
Oil pressure warning message.............................514
Preparing and checking before winter ..................................... 318
Engine oil maintenance data ............. 416
Engine switch ........................................... 193
EPS (Electric Power Steering) ....... 284 Function .................................................. 284
Warning light .......................................504
Warning message.............................. 518
EV drive mode ...................................... 200
Event data recorder (EDR).....................11
