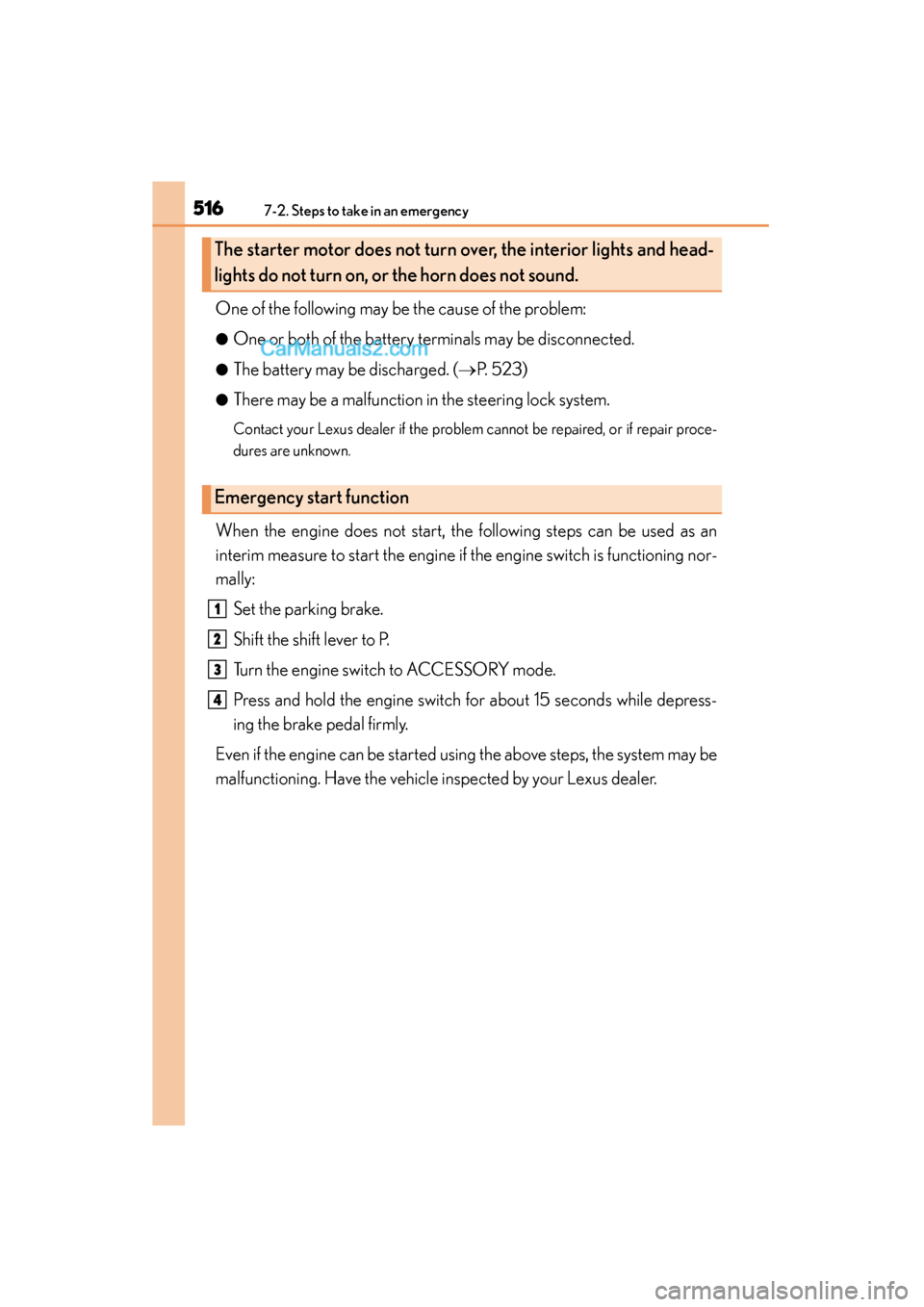

5167-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. (
→P. 5 2 3 )
●There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if repair proce-
dures are unknown.
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning nor-
mally:
Set the parking brake.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while depress-
ing the brake pedal firmly.
Even if the engine can be started using the above steps, the system may be
malfunctioning. Have the vehicle inspected by your Lexus dealer.
The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
Emergency start function
1
2
3
4
GS350_OM_OM30F69U_(U).book Page 516 Monday, January 19, 2015 2:53 PM

5257-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises
■When recharging or replacing the battery
●Make sure that the key is not inside the vehicle when recharging or replacing the
battery. The key may be locked in the vehicle if the alarm is activated. (→P. 7 3 )
●In some cases, it may not be possible to unlock the doors using the smart access
system with push-button start when the battery is discharged. Use the wireless
remote control or the mechanical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but
will start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was dis-
charged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery:
●Make sure each jumper cable is connected to the correct terminal and that it is
not unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” terminal to
come into contact with any other parts or metal surfaces in the area, such as
brackets or unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact with
each other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the bat-
tery.
GS350_OM_OM30F69U_(U).book Page 525 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
5398-1. Specifications
8
Vehicle specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Lexus dealer.
Electrical system
Battery
Open voltage at
68 °F (20 °C):12.6 − 12.8 V Fully charged
12.2
− 12.4 V Half charged
11.8 − 12.0 V Discharged
(Voltage is checked 20 minutes after the engine and
all lights are turned off.)
Charging rates5 A max.
Automatic transmission
Fluid capacity*2WD10.0 qt. (9.5 L, 8.4 Imp.qt.)
AW D10.6 qt. (10.0 L, 8.8 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of your transmission accompanied by vibration,
and ultimately damage the transmission of your vehicle.
GS350_OM_OM30F69U_(U).book Page 539 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
5678-2. Customization
8
Vehicle specifications
Illumination
(→ P. 3 2 7 )
Interior lights illumination
controlOnOff——O
Ti m e e l a p s e d b e f o r e t h e
interior lights turn off15 seconds
7. 5
seconds
O—O30
seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Footwell lightingOnOff——O
Outer foot lightsOnOff——O
Ti m e e l a p s e d b e f o r e t h e
outer foot lights turn off15 seconds
Off
O—O
7. 5
seconds
30
seconds
ItemFunctionDefault settingCustom-
ized setting123
GS350_OM_OM30F69U_(U).book Page 567 Monday, January 19, 2015 2:53 PM

568
GS350_OM_OM30F69U_(U)
8-2. Customization
*1: The default setting varies according to countries.
*2: U.S.A. only
*3: If equipped
*4: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’SMANUAL”.
Illumination
(→ P. 3 2 7 )
Enable/disable operation
of the outer foot lights
when you approach the
vehicle with the electronic
key on your person
OnOff——O
Enable/disable operation
of the outer foot lights
when the doors are
unlocked with the power
door lock switch
OnOff——O
Rear
sunshade
*2
(→ P. 3 5 2 )
Reverse operationOnOff——O
Ti m e e l a p s e d b e f o r e t h e
reverse operation feature
activates0.7
seconds
0 second
——O
0.9
seconds
1.2
seconds
Seat belt
reminder
buzzer
( → P. 4 7 1 )
Speed-linked seat belt
reminder functionOnOff——O
ItemFunctionDefault
settingCustom-
ized setting123
GS350_OM_OM30F69U_(U).book Page 568 Monday, January 19, 2015 2:53 PM

591What to do if... (Troubleshooting)
GS350_OM_OM30F69U_(U)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat can-
not be operated if the window lock switch is pressed. (→P. 151)
●The auto power off function will be operated if the vehicle is left
in ACCESSORY or IGNITION ON mode (the engine is not
running) for a period of time. ( →P. 1 8 0 )
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(→ P. 4 7 1 )
●The parking brake indicator is on
Is the parking brake released? (→ P. 1 9 2 )
Depending on the situation, othe r types of warning buzzer may
also sound. ( →P. 4 6 8 , 4 7 8 )
The windows do not open or close by operating the power win-
dow switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
GS350_OM_OM30F69U_(U).book Page 591 Monday, January 19, 2015 2:53 PM

594Alphabetical index
GS350_OM_OM30F69U_(U)
Alphabetical index
A/C ............................................................ 299Air conditioning filter ........................ 423
Changing the rear seat settings .................................................... 311
Front automatic air conditioning
system ..................................................299
Humidity sensor .................................. 315
Micro dust and pollen filter ............ 313
Rear air conditioning system......... 319
S-FLOW mode ................................... 313
ABS (Anti-lock Brake System)....... 248
Function ..................................................248
Warning light ...................................... 469
Warning message .............................482
Adaptive Front-lighting system
(AFS) ....................................................... 198
Adaptive Variable
Suspension system (AVS) ............. 249
AFS (Adaptive Front-lighting
System) ................................................... 198
Air conditioning filter .......................... 423
Air conditioning system ..................... 299 Air conditioning filter ........................ 423
Changing the rear seat settings .................................................... 311
Front automatic air conditioning system ..................................................299
Humidity sensor .................................. 315
Micro dust and pollen filter ............ 313
Rear air conditioning system......... 319
S-FLOW mode ................................... 313 Airbags .........................................................36
Airbag operating conditions .......... 44
Airbag precautions for your child ....................................... 39
Airbag warning light ........................ 469
Correct driving posture .................... 28
Curtain shield airbag operating conditions ....................... 44
Curtain shield airbag precautions ............................................ 41
Front passenger occupant classification system..........................47
General airbag precautions ........... 39
Locations of airbags............................ 36
Modification and disposal of airbags............................................... 43
Side airbag operating conditions ............................................. 44
Side airbag precautions .................... 39
Side and curtain shield airbags operating conditions ....................... 44
Side and curtain shield
airbags precautions ......................... 39
SRS airbags ............................................. 36
Alarm ............................................................ 72 Alarm ...........................................................72
Warning buzzer .................... 468, 478
Anchor brackets...................................... 59
Antennas (smart access system with push-button start) .....................109
Anti-lock Brake System (ABS) ...... 248 Function .................................................. 248
Warning light ....................................... 469
Warning message............................. 482
Approach warning (dynamic radar cruise control).........................224
Armrest ......................................................351
A
GS350_OM_OM30F69U_(U).book Page 594 Monday, January 19, 2015 2:53 PM

596Alphabetical index
GS350_OM_OM30F69U_(U)
Care ................................................ 374, 378Aluminum wheels ..............................375
Exterior.................................................... 374
Interior .....................................................378
Seat belts ................................................379
Cargo capacity........................................ 174
Cargo hooks .......................................... 337
CD player
*
Chains ....................................................... 285
Child restraint system............................ 55 Booster seats, definition ....................55
Booster seats, installation..................65
Convertible seats, definition ............55
Convertible seats, installation ......... 62
Front passenger occupant
classification system ......................... 47
Infant seats, definition ..........................55
Infant seats, installation ....................... 62
Installing CRS
with LATCH anchors .....................60
Installing CRS with seat belts .......... 62
Installing CRS with top tether strap .........................66
Child safety ................................................ 54 Airbag precautions .............................. 39
Battery precautions ............. 405, 526
Child restraint system .........................55
How your child should wear the seat belt ................................... 31, 32
Installing child restraints.....................59
Moon roof precautions.................... 158
Power window lock switch .............. 151 Power window precautions ...........154
Rear door child-protectors ............ 124
Removed electronic
key battery precautions .............. 426
Seat belt comfort guide ....................... 31
Seat belt extender precautions .......................................... 35
Seat belt precautions ..........................58
Seat heater precautions ................. 349
Trunk precautions .............................. 130
Child-protectors .................................... 124
Cleaning ....................................... 374, 378 Aluminum wheels .............................. 375
Exterior ................................................... 374
Interior ..................................................... 378
Seat belts................................................ 379
Clock........................................................... 341
Coat hooks ............................................. 356
Condenser.............................................. 402
Console box........................................... 333
Console box light ................................. 333
Cooling system Engine overheating .......................... 527
Cruise control
Cruise control ....................................... 214
Dynamic radar crui se control .......218
Cup holders............................................ 334
Curtain shield airbags ............................ 37
Customizable features ...................... 559
C
GS350_OM_OM30F69U_(U).book Page 596 Monday, January 19, 2015 2:53 PM
