2015 Lexus GS350 engine coolant

400
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL” line.
(→ P. 5 2 7 )
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized
water. (Minimum temperature: -31 °F [-35 °C])
Canada:
“Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized
water. (Minimum temperature: -44 °F [-42 °C])
For more details about engine coolant, contact your Lexus dealer.
■If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock and
water pump.
If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in
the cooling system.
Engine coolant
1
2
3
GS350_OM_OM30F69U_(U).book Page 400 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
4016-3. Do-it-yourself maintenance
6
Maintenance and care

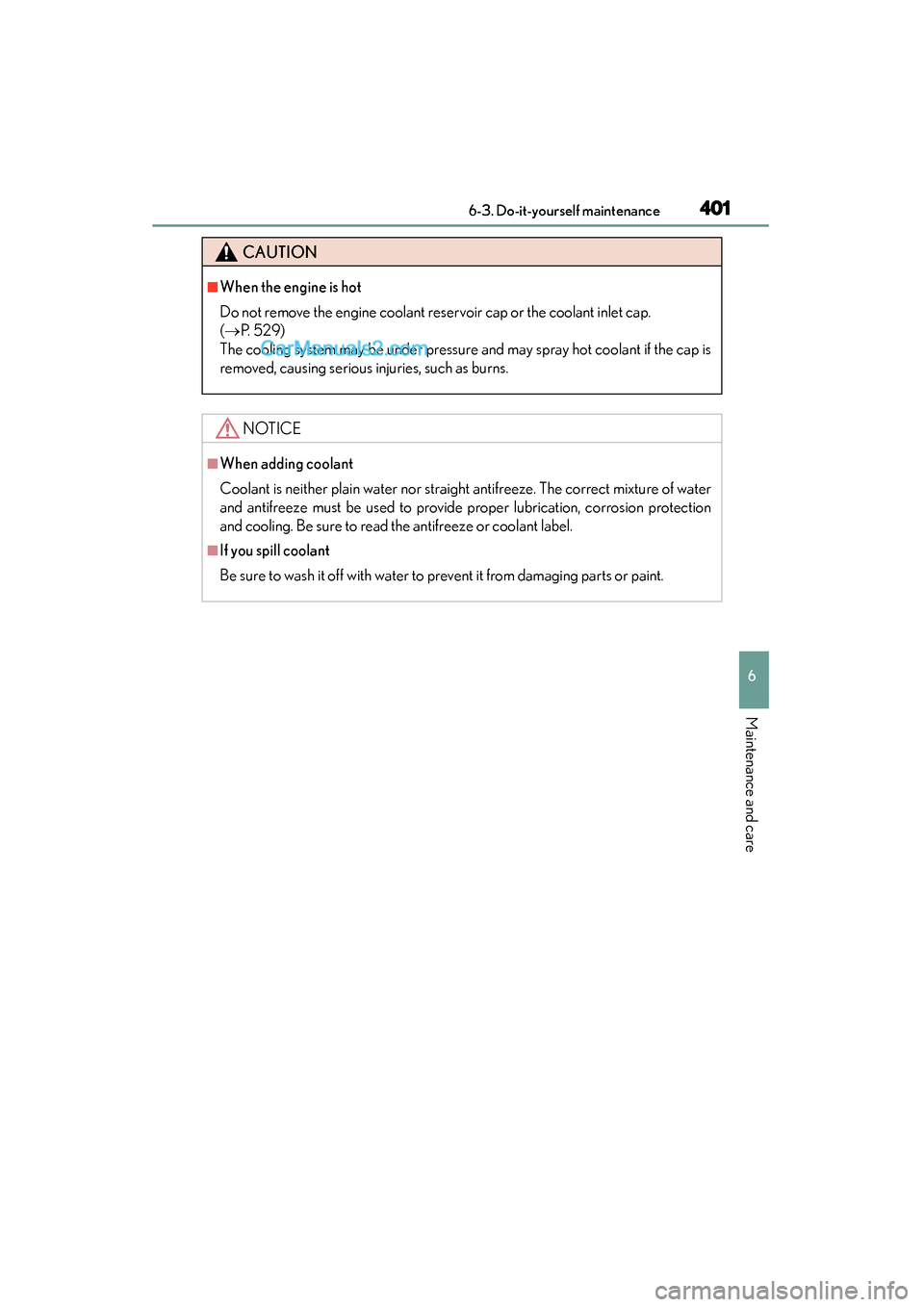

CAUTION
■When the engine is hot
Do not remove the engine coolant reservoir cap or the coolant inlet cap.
(→ P. 5 2 9 )
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water
and antifreeze must be used to provide proper lubrication, corrosion protection
and cooling. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
GS350_OM_OM30F69U_(U).book Page 401 Monday, January 19, 2015 2:53 PM

466
GS350_OM_OM30F69U_(U)
7-2. Steps to take in an emergency
If you think something is wrong
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher
than normal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the
floor
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Lexus dealer as soon as pos-
sible.
Visible symptoms
Audible symptoms
Operational symptoms
GS350_OM_OM30F69U_(U).book Page 466 Monday, January 19, 2015 2:53 PM

527
GS350_OM_OM30F69U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If your vehicle overheats
Stop the vehicle in a safe place and turn off the air conditioning system,
and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and
radiator core (radiator) for any leaks. Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The following may indicate that your vehicle is overheating.
●The needle of the engine coolant temperature gauge ( →P. 81) enters
the red zone or a loss of engine power is experienced. (For example,
the vehicle speed does not increase.)
●Steam is coming from under the hood.
Correction procedures
1
2
3
1
2
GS350_OM_OM30F69U_(U).book Page 527 Monday, January 19, 2015 2:53 PM

5287-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir.
Reservoir
“FULL”
“LOW”
Coolant inlet cap
Add coolant if necessary.
Water can be used in an emergency if
coolant is unavailable.
Start the engine and turn the air conditioning system on to check that
the radiator cooling fans operate and to check for coolant leaks from
the radiator or hoses.
The fans operate when the air conditioning system is turned on immediately after
a cold start. Confirm that the fans are operating by checking the fan sound and air
flow. If it is difficult to check these, turn the air conditioning system on and off
repeatedly. (The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately an d contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
4
1
2
3
4
5
6
7
GS350_OM_OM30F69U_(U).book Page 528 Monday, January 19, 2015 2:53 PM

5297-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans
and belts. Failure to do so may cause the hands or clothing to be caught, resulting
in serious injury.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool
coolant to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.
●Do not loosen the coolant inlet cap or the
coolant reservoir cap while the engine and
radiator are hot.
High temperature steam or coolant could
spray out.
GS350_OM_OM30F69U_(U).book Page 529 Monday, January 19, 2015 2:53 PM

554
GS350_OM_OM30F69U_(U)
8-1. Specifications
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
GS350_OM_OM30F69U_(U).book Page 554 Monday, January 19, 2015 2:53 PM

598Alphabetical index
GS350_OM_OM30F69U_(U)
Emergency, in case ofIf a warning buzzer
sounds................................................. 468
If a warning light turns on.............. 468
If a warning message is displayed ........................................478
If the electronic key does not operate properly ....... 520
If the engine will not start................. 515
If the parking brake cannot be released......................... 518
If the shift lever
cannot be shifted from P ............. 517
If the vehicle battery is
discharged .........................................523
If you have a flat tire ......................... 502
If you think something is wrong.............................................. 466
If your vehicle becomes stuck ..................................................... 530
If your vehicle has to be stopped in an emergency ......... 459
If your vehicle needs to be towed ...................................... 460
If your vehicle overheats ................ 527
Emergency flashers ............................. 458
Engine Accessory mode................................. 178
Compartment ..................................... 395
Engine switch ......................................... 177
Hood ........................................................392
How to start the engine .................... 177
Identification number ...................... 535
If the engine will not start................. 515
Ignition switch (engine switch) .................................. 177
Overheating ......................................... 527 Engine compartment cover............. 396
Engine coolant ...................................... 400
Capacity .................................................538
Checking .............................................. 400
Preparing and checking before winter .................................... 283
Engine coolant temperature gauge .......................................................... 81
Engine immobilizer system ..................70
Engine oil ..................................................397 Capacity .................................................536
Checking ............................................... 397
Oil level warning message ........... 487
Oil pressure warning message........................... 479
Preparing and checking
before winter .................................... 283
Engine oil maintenance data ........... 382
Engine switch........................................... 177
Enhanced VSC ..................................... 248
EPS (Electric Power Steering) ..............249
Function .................................................. 249
Warning light ....................................... 469
Warning message............................. 483
Event data recorder (EDR)................... 10
GS350_OM_OM30F69U_(U).book Page 598 Monday, January 19, 2015 2:53 PM
