2015 Lexus GS300h ECO mode

5127-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
InteriorbuzzerExteriorbuzzerWarning messageDetails/Actions
Once
The electronic key is not detected
when an attempt is made to start the
hybrid system.
→ Start the hybrid system with the
electronic key present.
Once3 times
The electronic key was carried out-
side the vehicle and a door other
than the driver’s door was opened
and closed while the power switch
was in a mode other than off.
→Bring the electronic key back
into the vehicle.
The driver’s door was opened and
closed while the electronic key was
not in the vehicle, the shift lever was
in P and the power switch was not
turned off.
→Turn the power switch off or
bring the electronic key back
into the vehicle.
OnceCon-
tinuous
An attempt was made to exit the
vehicle with the electronic key and
lock the doors without first turning
the power switch off when the shift
lever was in P.
→Turn the power switch off and
lock the doors again.
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)

5147-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
Con-
tinuous
(Vehicles with the entry function)
An attempt was made to lock the
doors using the smart entry & start
system while the electronic key was
still inside the vehicle.
→Retrieve the electronic key
from the vehicle and lock the
doors again.
OnceCon-
tinuous
An attempt was made to lock either
front door by opening a door and
putting the inside lock button into
the lock position, then closing the
door by pulling on the outside door
handle with the electronic key still
inside the vehicle.
For some models only: An attempt
was made to lock the doors other
than using the smart entry & start
system while the electronic key was
still inside the vehicle.
→Retrieve the electronic key
from the vehicle and lock the
doors again.
Once
• When the doors were unlocked
with the mechanical key and then
the power switch was pressed, the
electronic key could not be
detected in the vehicle.
• The electronic key could not be
detected in the vehicle even after
the power switch was pressed two
consecutive times.
→ Touch the electronic key to the
power switch while depressing
the brake pedal.
Once
An attempt was made to start the
hybrid system with the shift lever in
an incorrect position.
→Shift the shift lever to P and start
the hybrid system.
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)

5157-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)

Power was turned off due to the
automatic power off function.
→Next time when starting the
hybrid system, operate the
hybrid system for approximately
5 minutes to recharge the 12-
volt battery.
OnceThe electronic key has a low battery.
→Replace the electronic key bat-
tery. ( →P. 4 5 1 )
Once
The driver’s door was opened and
closed with the power switch turned
off and then the power switch was
put in ACCESSORY mode twice
without the hybrid system being
started.
→ Press the power switch while
depressing the brake pedal.
During an hybrid system starting
procedure in the event that the elec-
tronic key was not functioning prop-
erly ( →P. 5 4 9 ) , t h e p o w e r s w i t c h
was touched with the electronic key.
→ Press the power switch within 10
seconds of the buzzer sounding.
Once
The steering lock could not be
released within 3 seconds of the
power switch being pressed.
→Press the power switch while
depressing the brake pedal and
moving the steering wheel left
and right.
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)

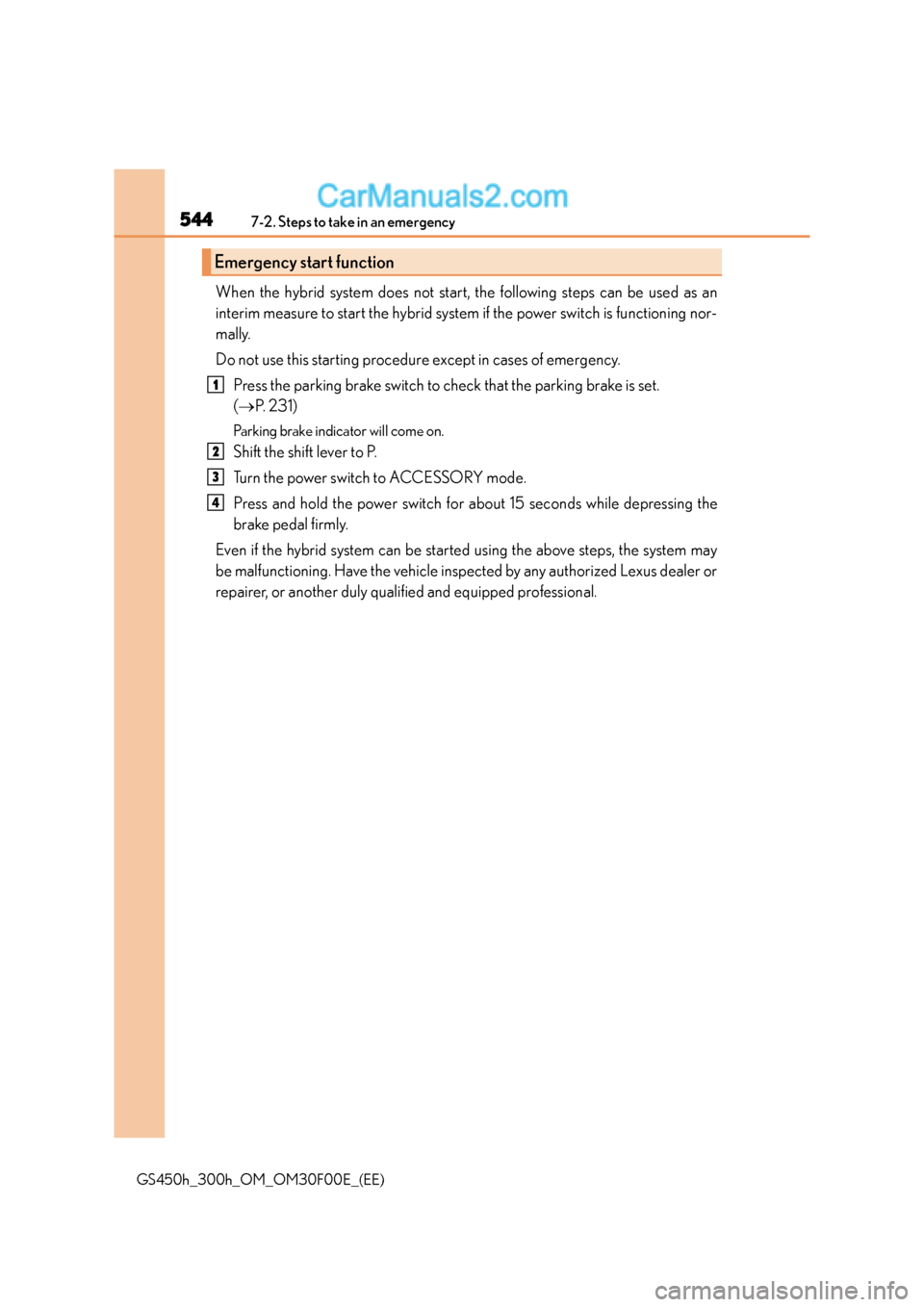

5447-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
When the hybrid system does not start, the following steps can be used as an
interim measure to start the hybrid system if the power switch is functioning nor-
mally.
Do not use this starting procedure except in cases of emergency.Press the parking brake switch to check that the parking brake is set.
(→ P. 2 3 1 )
Parking brake indicator will come on.
Shift the shift lever to P.
Turn the power switch to ACCESSORY mode.
Press and hold the power switch for about 15 seconds while depressing the
brake pedal firmly.
Even if the hybrid system can be started using the above steps, the system may
be malfunctioning. Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Emergency start function
1
2
3
4

5497-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the power switch.
When the electronic key is detected, a
buzzer sounds and the power switch will
turn to ON mode.
When the smart entry & start system is
deactivated in customization setting, the
power switch will turn to ACCESSORY
mode.
Firmly depress the brake pedal and check that is shown on the multi-
information display.
Press the power switch.
In the event that the hybrid system still cannot be started, contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
■Stopping the hybrid system
Shift the shift lever to P and press the power sw itch as you normally do when stopping the
hybrid system.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic
key battery be replaced immediately when the battery is depleted. ( →P. 4 5 1 )
■Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set, the alarm
may be triggered.
■Changing power switch modes
Release the brake pedal and press the power switch in step above.
The hybrid system does not start and modes will be changed each time the switch is
pressed.( →P. 2 1 8 )
■When the electronic key does not work properly
●Make sure that the smart entry & start syst em has not been deactivated in the customi-
zation setting. If it is off, turn the function on.
(Customizable features: →P. 5 8 1 )
●Check if battery-saving mode is set. If it is set, cancel the function. (→P. 1 5 4 )
Starting the hybrid system
1
2
3
4
3

5537-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)
Connect a positive jumper cable clamp to the exclusive jump starting ter-
minal on your vehicle.
Connect the clamp on the other end of the positive cable to the positive (+)
battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery terminal on the
second vehicle.
Connect the clamp at the other end of the negative cable to a solid, station-
ary, unpainted metallic point away from the exclusive jump starting terminal
and any moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the 12-volt bat-
tery of your vehicle.
Open and close any of the doors of your vehicle with the power switch off.
Maintain the engine speed of the second vehicle and start the hybrid system
of your vehicle by turning the power switch to ON mode.
Make sure the “READY” indicator come s on. If the indicator does not come
on, contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Once the hybrid system has started, remove the jumper cables in the exact
reverse order from which they were connected.
Once the hybrid system starts, have the vehicle inspected at any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional as
soon as possible.1
2
3
4
6
7
8
9
10

5547-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■To prevent 12-volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even when the vehicle
is not in use, due to natural discharge and the draining effects of certain electrical appli-
ances. If the vehicle is left for a long time, the 12-volt battery may discharge, and the
hybrid system may be unable to start. (The 12-volt battery recharges automatically while
the hybrid system is operating.)
■When recharging or replacing the 12-volt battery
●In some cases, it may not be possible to un lock the doors using the smart entry & start
system when the 12-volt battery is discharged. Use the wireless remote control or the
mechanical key to lock or unlock the doors.
●The hybrid system may not start on the first attempt after the 12-volt battery has
recharged but will start normally after the second attempt. This is not a malfunction.
●The power switch mode is memorized by the vehicle. When the 12-volt battery is
reconnected, the system will return to the mo de it was in before the 12-volt battery was
discharged. Before disconnecting the 12-volt battery, turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt battery dis-
charged, be especially careful when reconnecting the 12-volt battery.
WA R N I N G
■Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable gas
that may be emitted from the 12-volt battery:
●Make sure each jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” terminal to come
into contact with any other parts or metal surfaces in the area, such as brackets or
unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact with each
other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the 12-volt
battery.

583
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
*1: The default setting varies according to countries.
*2: Some status screens cannot be
registered (indicated on the multi-information display)
*3: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle speed (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank
*4:Except F SPORT models
*5:F SPORT models
Drive information screen dis-
played on the third screen of (Drive information 3)
Average fuel economy
(after refuel)
*3—O—
Elapsed time (after start)
Pop-up displayOnOff—O—
Accent color*4Color 1Color 2OO—
Changeover to tachometer
when sport mode is selected Auto
Hybrid system
indicator (always)
—O—Tachometer
(always)
Clock 24-hour display 12-hour display
—O—
Needle
*5Blue Red
—O—
White
Rev indicator
*54000 r/min. 2000 to
6000 r/min. —O—
OFF
Rev peak
*5ON OFF—O—
FunctionDefault settingCustomized setting123
