2015 Lexus GS300h trunk

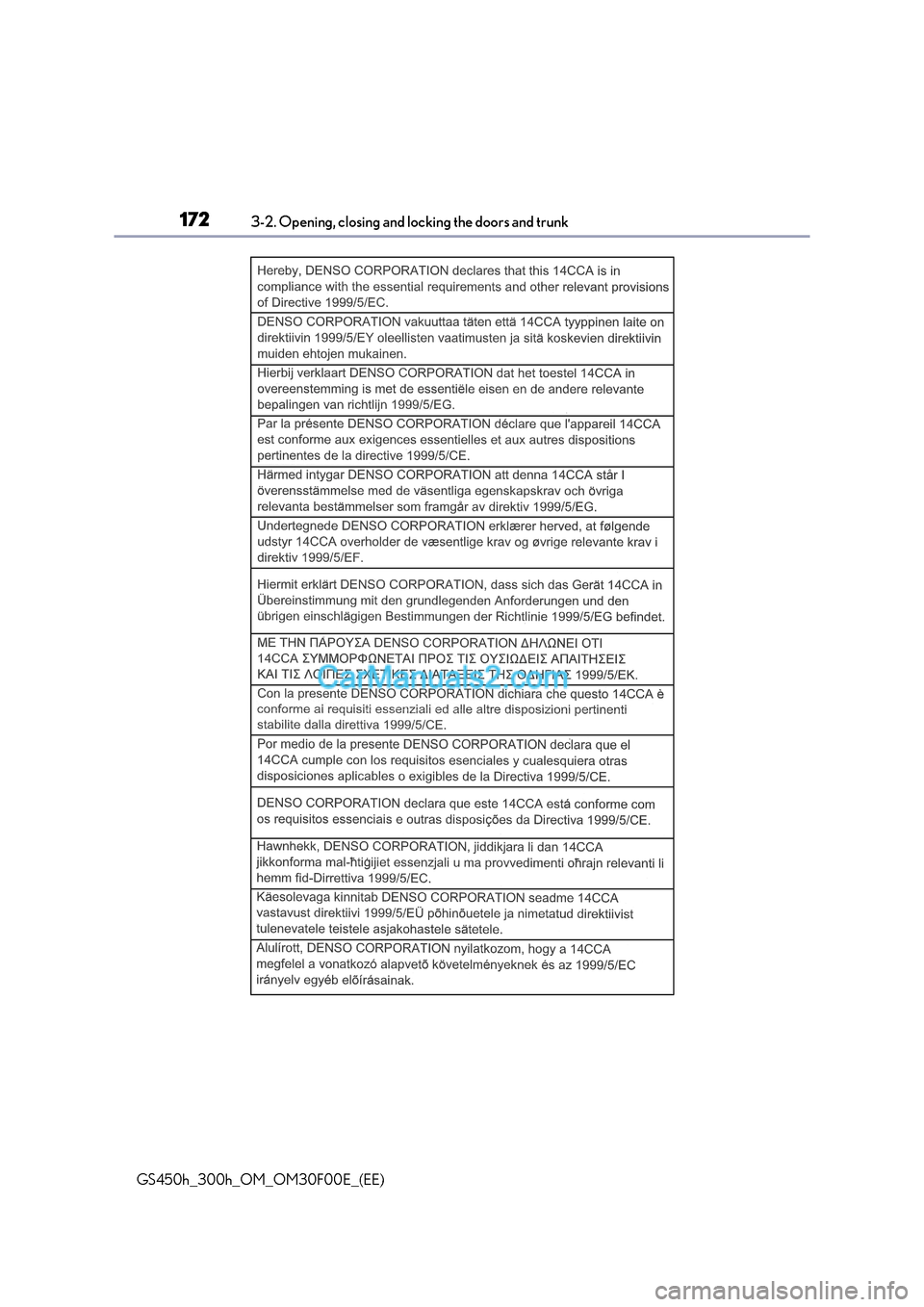

1723-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30F00E_(EE)

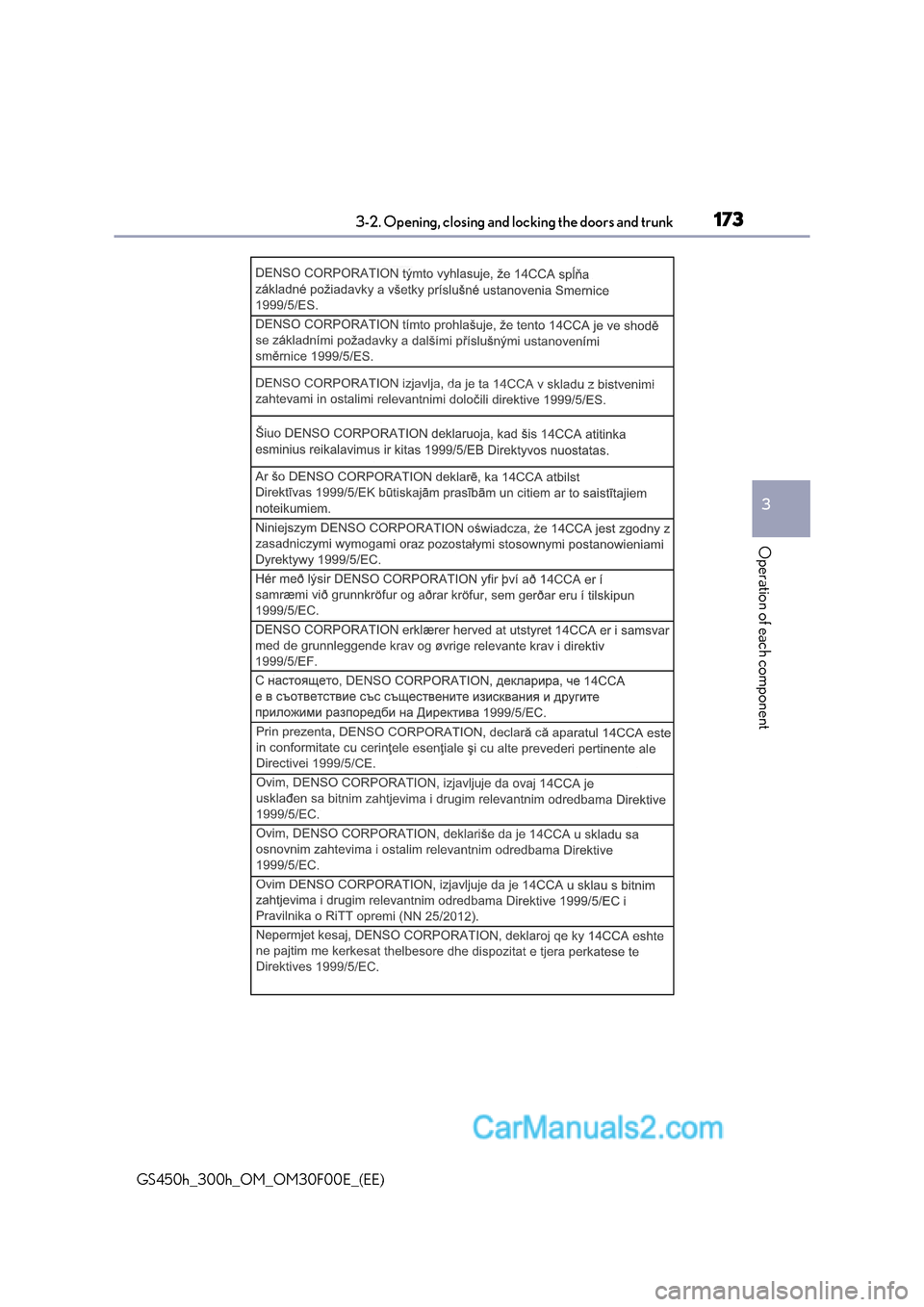

1733-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS450h_300h_OM_OM30F00E_(EE)

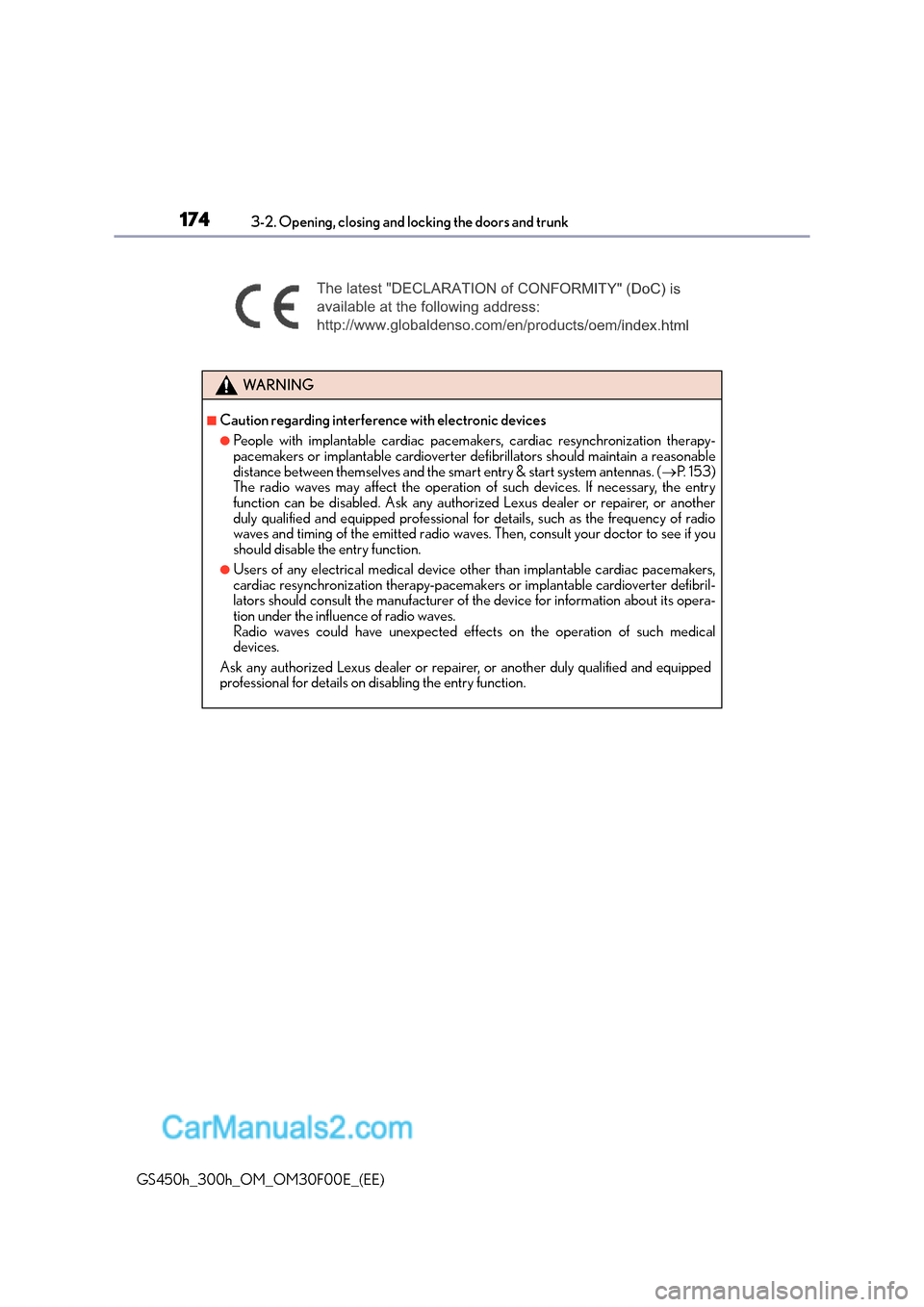

1743-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30F00E_(EE)
WA R N I N G
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization therapy-
pacemakers or implantable cardioverter defibrillators should maintain a reasonable
distance between themselves and the smart entry & start system antennas. ( →P. 1 5 3 )
The radio waves may affect the operation of such devices. If necessary, the entry
function can be disabled. Ask any authoriz ed Lexus dealer or repairer, or another
duly qualified and equipped professional fo r details, such as the frequency of radio
waves and timing of the emitted radio waves. Then, consult your doctor to see if you
should disable the entry function.
●Users of any electrical medical device other than implantable cardiac pacemakers,
cardiac resynchronization therapy-pacemakers or implantable cardioverter defibril-
lators should consult the manufacturer of the device for information about its opera-
tion under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.
Ask any authorized Lexus dealer or repair er, or another duly qualified and equipped
professional for details on disabling the entry function.

2084-1. Before driving
GS450h_300h_OM_OM30F00E_(EE)
Cargo and luggage
Take notice of the following information about storage precautions, cargo
capacity and load:
WA R N I N G
■Things that must not be carried in the trunk
The following things may cause a fire if loaded in the trunk:
●Receptacles containing gasoline
●Aerosol cans
■Storage precautions
Observe the following precautions.
Failure to do so may prevent the pedals from being depressed properly, may block the
driver’s vision, or may result in items hitt ing the driver or passengers, possibly causing
an accident.
●Stow cargo and luggage in the trunk whenever possible.
●Do not place cargo or luggage in or on the following locations.
• At the feet of the driver
• On the front passenger or rear seats (when stacking items)
• On the package tray
• On the instrument panel
• On the dashboard
• In front of the Remote Touch screen
●Secure all items in the occupant compartment.
■Load and distribution
●Do not overload your vehicle.
●Do not apply loads unevenly.
Improper loading may cause deterioration of steering or braking control which may
cause death or serious injury.

2584-4. Refueling
GS450h_300h_OM_OM30F00E_(EE)
With the doors unlocked, press the
center of the rear edge of the fuel
filler door.
Push until you hear a click and take your
hand away to slightly open the fuel filler
door. Then open the door fully by hand.
Turn the fuel tank cap slowly to
remove it and put it into the holder
on the fuel filler door.
■When the fuel filler door cannot be opened by pressing the rearward of the fuel filler
door
Opening the fuel tank cap
1
2
Remove the cover inside the trunk and pull the
lever.

359
5Interior features
GS450h_300h_OM_OM30F00E_(EE)
5-1. Remote Touch screenRemote Touch/12.3-inch display ......................................... 360
5-2. Using the air conditioning system and defogger
Front automatic air conditioning system .........366
Rear air conditioning system .......................................... 378
Heated steering wheel/ seat heaters/
seat ventilators .......................... 381 5-3. Using the interior lights
Interior lights list .........................386• Interior lights .......................... 387
• Personal lights ....................... 387
5-4. Using the storage features List of storage features ............389• Glove box ...............................390
• Console box...........................390
• Cup holders ............................ 391
• Auxiliary boxes ..................... 393
Trunk features .............................. 394
5-5. Using the other interior features Other interior features ............ 397• Sun visors ................................ 397
• Vanity mirrors ........................ 397
• Clock ........................................398
• Ashtrays ...................................398
• Power outlets ......................... 399
• Armrest....................................400
• Rear sunshade/
rear door sunshades...........400
• Coat hooks ............................. 402
• Assist grips.............................. 403

3905-4. Using the storage features
GS450h_300h_OM_OM30F00E_(EE)
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
●The glove box light turns on when the tail lights are on.
●The trunk opener main switch is located in the glove box. (→P. 1 4 8 )
●The insert inside the glove box can be removed.
●An SRS knee airbag for the front passenger’s seat is built into the glove box door.
(→ P. 4 3 )
Using with half-open
Grip the knob to release the lock,
and slide the armrest as far back.
Using with fully open
Grip the knob to release the lock,
and lift the armrest to open.
Glove box
1
2
3
Console box
1
2

3945-4. Using the storage features
GS450h_300h_OM_OM30F00E_(EE)
Trunk features
Raise the hooks when needed.
The cargo hooks are provided for
securing loose items.
Pull the strap when using the hook.
Cargo hooks
WA R N I N G
To avoid injury, always return the cargo hooks to their stowed positions when not in use.
Luggage hook
NOTICE
Do not hang any object heavier than 5 kg (11 lb.) on the luggage hook.
