4626-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30E87E_(EE)
■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and explosive.
Therefore, observe the following before recharging:
●If recharging with the battery installed on the vehicle, be sure to disconnect the ground
cable.
●Make sure the power switch on the charger is off when connecting and disconnecting
the charger cables to the battery.
■After recharging/reconnecting the battery
The engine may not start. Follow the procedure below to initialize the system.Shift the shift lever to P.
Open and close an y of the doors.
Restart the engine.
●Unlocking the doors using the smart entry & start system may not be possible immedi-
ately after reconnecting the battery. If this happens, use the wireless remote control or
the mechanical key to lock/unlock the doors.
●Start the engine with the engine switch in ACCESSORY mode. The engine may not
start with the engine switch turned off. Ho wever, the engine will operate normally from
the second attempt.
●The engine switch mode is recorded by the vehicle. If the battery is reconnected, the
vehicle will return the engine switch mode to the status it was in before the battery was
disconnected. Make sure to turn off the engine before disconnect the battery. Take
extra care when connecting the battery if the engine switch mode prior to discharge is
unknown.
If the engine will not start even after multip le attempts at both methods, contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
1
2
3

4866-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30E87E_(EE)
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
■Use a CR2032 lithium battery
●Batteries can be purchased at any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional, local electrical appliance shops or camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to the local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer can
replace the battery for you.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart entry & start system and wireless remote control will not function properly.
●The operational range will be reduced.
4
WA R N I N G
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away
from children. Failure to do so could result in death or serious injury.
■Lithium battery precautions
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

5887-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)
If the electronic key does not operate properly
■Doors
Use the mechanical key (→P. 1 5 5 )
in order to perform the following
operations:
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks all the doors
Opens the windows and moon
roof (turn and hold)
*
*
: This setting must be customized at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
■Tr u n k
Turn the mechanical key clockwise
to open.
If communication between the electron ic key and vehicle is interrupted (→P. 1 7 5 )
or the electronic key cannot be used because the battery is depleted, the smart
entry & start system and wireless remote control cannot be used. In such cases,
the doors and trunk can be opened and the engine can be started by following the
procedure below.
Locking and unlocking the doors, unlocking the trunk and key linked
functions
1
2
3
4

5947-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle is not
in use, due to natural discharge and the draining effects of certain electrical appliances. If
the vehicle is left for a long time, the battery may discharge, and the engine may be
unable to start. (The battery recharges automatically during driving.)
■When recharging or replacing the battery
●In some cases, it may not be possible to un lock the doors using the smart entry & start
system when the battery is discharged. Use the wireless remote control or the mechan-
ical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but will
start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was discharged.
Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery discharged, be
especially careful when reconnecting the battery.

635
8
8-2. Customization
Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
■Entry function* and wireless remote control (
→P. 154, 173)
*: If equipped
■Entry function* (→ P. 1 7 3 )
*: If equipped
■Wireless remote control ( →P. 1 5 4 )
FunctionDefault
settingCustomized setting
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before automatic
door lock function is activated if
a door is not opened after
being unlocked
30 seconds
60 seconds
——O
120 seconds
Open door reminder buzzer
(When locking the vehicle)OnOff——O
123
FunctionDefaultsettingCustomized setting
Smart entry & start systemOnOffO—O
Unlocking operationAll the doorsDriver’s doorO—O
Number of consecutive door lock
operationsAs many as desired2 times——O
123
FunctionDefault
settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
Off
(All doors
unlocked in one step)On (Driver’s door unlocked in one step, all doors
unlocked in two steps)
O—O
Trunk unlocking operationPress and hold (short)
One short press
——O
Push twice
Press and hold (long)
Off
123

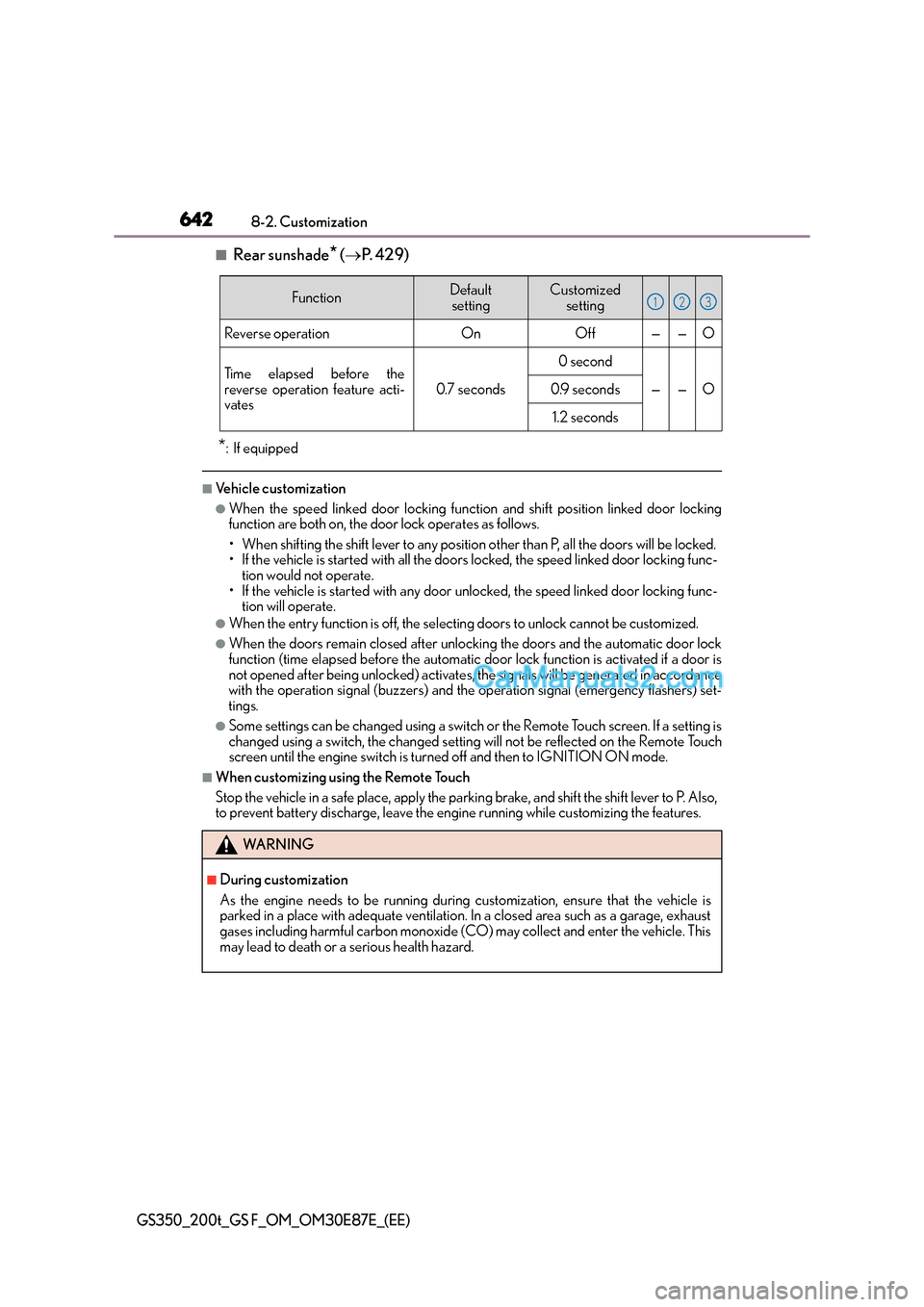

6428-2. Customization
GS350_200t_GS F_OM_OM30E87E_(EE)
■Rear sunshade* (→ P. 4 2 9 )
*: If equipped
■Vehicle customization
●When the speed linked door locking function and shift position linked door locking
function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will be locked.
• If the vehicle is started with all the door s locked, the speed linked door locking func-
tion would not operate.
• If the vehicle is started with any door unlocked, the speed linked door locking func- tion will operate.
●When the entry function is off, the select ing doors to unlock cannot be customized.
●When the doors remain closed after unlocking the doors and the automatic door lock
function (time elapsed before the automatic d oor lock function is activated if a door is
not opened after being unlock ed) activates, the signals will be generated in accordance
with the operation signal (buzzers) and the operation signal (emergency flashers) set-
tings.
●Some settings can be changed using a switch or the Remote Touch screen. If a setting is
changed using a switch , the changed setting will not be reflected on the Remote Touch
screen until the engine switch is turn ed off and then to IGNITION ON mode.
■When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engine running while customizing the features.
FunctionDefault
settingCustomized setting
Reverse operationOnOff——O
Time elapsed before the
reverse operation feature acti-
vates
0.7 seconds
0 second
——O0.9 seconds
1.2 seconds
WA R N I N G
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
123

653Alphabetical index
GS350_200t_GS F_OM_OM30E87E_(EE)
Clock ............................................... 109, 427
Coat hooks .............................................. 432
Condenser .............................................460
Console box ............................................ 418
Console box light................................... 419
Coolant .....................................................458Capacity .................................................. 619
Checking .............................................. 458
Preparing and checking before winter ....................................382
Cooling system......................................458 Engine overheating ......................... 596
Cruise control Cruise control .....................................353
Dynamic radar cruise control with full-speed range.................... 329
Dynamic radar cruise control .......341
Cup holders ............................................. 419
Curtain shield airbags ............................ 51
Customizable features .......................628
DAB (Digital Audio Broadcast)
*
Daytime running light system ......... 262
Defogger Front windshield ................................ 400
Outside rear view mirrors............ 400
Rear window ....................................... 400
Differential Front differential....................................621
Rear differential .....................................621 Digital Audio Broadcast (DAB)
*
Dimensions ............................................. 606
Display
12.3-inch display ................................ 392
Drive information.......................122, 130
Dynamic radar cruise control
with full-speed range ................... 329
Dynamic radar cruise control ....... 341
LDA (Lane Departure Alert with steering control)..................... 319
LKA (Lane-Keeping Assist) ..........310
Multi-information display.........121, 129
Trip information ...........................108, 113
Warning message ..............................518
Do-it-yourself maintenance ............. 443
Door courtesy lights Location ................................................... 414
Wattage ................................................. 625
Door lock Doors......................................................... 159
Smart entry & start system ............. 173
Wireless remote control ................. 154
Doors ............................................................... 159
Automatic door locking and
unlocking system ............................. 163
Door glasses.......................................... 213
Door lock ................................................ 162
Open door warning buzzer .......... 174
Open door warning light ................ 514
Outside rear view mirrors .............. 210
Rear door child-protector ............. 163
D
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

658Alphabetical index
GS350_200t_GS F_OM_OM30E87E_(EE)
JackPositioning the jack ........................... 446
Vehicle-equipped jack ...... 552, 568
Jack handle.................................. 552, 568
Jam protection function Moon roof ............................................... 217
Power trunk lid..................................... 169
Power window ...................................... 213
Keyless entry ............................................173 Smart entry & start system .............. 173
Wireless remote control ..................154
Keys ............................................................. 154 Battery-saving function.....................175
Electronic key ........................................154
Engine switch....................................... 239
If the electronic key does not operate properly ........................... 588
If you lose your keys ................ 156, 157
Key number plate ................................154
Keyless entry ............................... 154, 173
Mechanical key.................................... 155
Replacing the battery...................... 485
Warning buzzer ................................... 174
Wireless remote control key .........154
Knee airbags............................................... 51 Language (multi-information
display) ........................................ 629, 631
Lever
Auxiliary catch lever......................... 445
Hood lock release lever ................ 445
Shift lever ............................................... 245
Turn signal lever................................. 253
Wiper lever ...........................................274
Lexus parking assist monitor
*
Lexus parking assist-sensor*
Function*
Warning message ..............................518
Lexus Safety System+......................... 284
AHS (Adaptive High-beam System) ............................................... 263
Automatic High Beam ................... 268
Dynamic radar cruise control ....... 341
Dynamic radar cruise control with full-speed range ................... 329
LDA (Lane Departure Alert with steering control).....................315
LKA (Lane-Keeping Assist) ........ 305
PCS (Pre-Crash Safety system) ................................................ 293
RSA (Road Sign Assist) ..................324
License plate lights .............................. 260 Light switch........................................... 260
Replacing light bulbs ....................... 498
Welcome light illumination
control ...................................................160
Light bulbs
Replacing............................................... 492
Wattage ................................................. 625
J
K
L
