2015 Lexus GS200t engine

6088-1. Specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel and in the
engine compartment.
Vehicle identification
XGS350XGS200t
XGS F

609
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
This number is also on the manufac-
turer’s label.
■Engine number
The engine number is stamped on the engine block as shown.
XGS350XGS200t
XGS F

6108-1. Specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
XGS350
XGS200t
Engine
Model2GR-FKS
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0 × 83.0 mm (3.70 × 3.27 in.)
Displacement3456 cm3 (210.9 cu.in.)
Va l v e c l e a r a n c eAutomatic adjustmentDrive belt tension
Model8AR-FTS
Ty p e4-cylinder in line, 4-cycle, gasoline
(with turbocharger)
Bore and stroke86.0 × 86.0 mm (3.39 × 3.39 in.)
Displacement1998 cm3 (121.9 cu.in.)
Va l v e c l e a r a n c eAutomatic adjustmentDrive belt tension

611
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
XGS F
*: If unleaded gasoline with an octane rating
of 98 RON is not available, unleaded gaso-
line with an octane rating of 95 RON may be used with no detriment to engine dura-
bility or driveability.
Model2UR-GSE
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0 × 89.5 mm (3.70 × 3.52 in.)
Displacement4969 cm3 (303.2 cu. in.)
Valve clearance (engine cold)Intake: 0.15 mm (0.006 in.)
Exhaust: 0.22 mm (0.009 in.)
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to
European standard EN228 only
Except EU area:
Unleaded gasoline only
Research
Octane
NumberGS350/GS200t95 or higher
GS F98 or higher*
Fuel tank capacity (Reference)66 L (17.4 gal., 14.5 Imp.gal.)

6128-1. Specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
XGS350
*: The engine oil capacity is a reference quantity to be used when changing the engineoil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Ge nuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter
Without filter6.4 L (6.8 qt., 5.6 Imp.qt.)
6.0 L (6.3 qt., 5.3 Imp.qt.)

613
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)

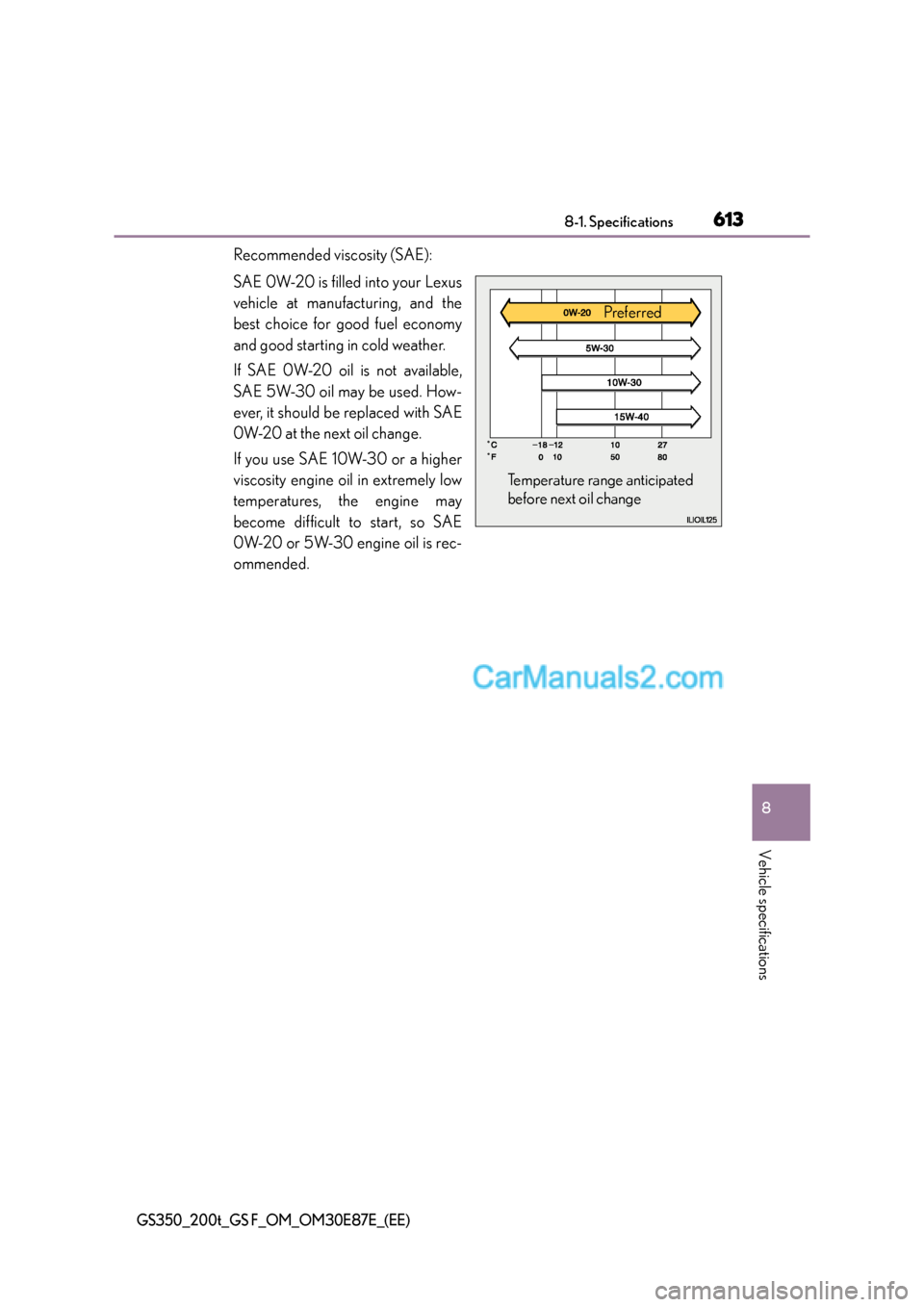

Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0W-20 or 5W-30 engine oil is rec-
ommended.
Temperature range anticipated
before next oil change
Preferred

6148-1. Specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosit y characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Conserv-
ing” means that the oil has fuel-saving
and environmental protection capa-
bilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the container.
1
2

615
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
XGS200t
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gasoline
Engines” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine
Motor Oil SAE 0W-20 for Downsized Turbo Gasoline Engines” or equiva-
lent to satisfy the following grade and viscosity.
Oil grade:
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gasoline
Engines” or API grade SL “Energy-Co nserving”, SM “Energy-Conserving” or
SN “Resource-Conserving”; or ILSAC multigrade engine oil
Viscosity grade:
SAE 0W-20 and 5W-30
Recommended viscosity (SAE):
“Toyota Genuine Motor Oil SAE
0W-20 for Downsized Turbo Gaso-
line Engines” is filled into your Lexus
vehicle at manufacturing, and SAE
0W-20 is the best choice for good
fuel economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
Oil capacity
(Drain and refill  reference
*)
With filter
Without filter4.6 L (4.9 qt., 4.0 Imp.qt.)
4.3 L (4.5 qt., 3.8 Imp.qt.)
Temperature range anticipated
before next oil change Preferred
