5Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)
5-1. Remote Touch screenRemote Touch/12.3-inch display ......................................... 388
5-2. Using the air conditioning system and defogger
Front automatic air conditioning system ......... 394
Rear air conditioning system .........406
Heated steering wheel/ seat heaters/
seat ventilators ........................ 409 5-3. Using the interior lights
Interior lights list ...........................414• Interior lights ........................... 415
• Personal lights ........................ 415
5-4. Using the storage features List of storage features .............. 417• Glove box ................................ 418
• Console box............................ 418
• Cup holders ............................ 419
• Auxiliary boxes .......................421
Trunk features .............................. 422
5-5. Using the other interior features
Other interior features ............ 426 • Sun visors ................................ 426
• Vanity mirrors ........................ 426
• Clock .........................................427
• Ashtrays ....................................427
• Power outlets ......................... 428
• Armrest.................................... 428
• Rear sunshade/ rear door sunshades........... 429
• Trunk storage extension ..... 431
• Coat hooks ............................. 432
• Assist grips.............................. 432

3885-1. Remote Touch screen
GS350_200t_GS F_OM_OM30E87E_(EE)
Remote Touch/12.3-inch display∗∗
: If equipped
The Remote Touch can be used to operate the Remote Touch screens.
Owners of models equipped with a navi gation system should refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
The illustration below is for left-hand drive vehicles.
The button positions may differ slight ly for right-hand drive vehicles.
Remote Touch operation

3895-1. Remote Touch screen
5
Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)
“∧ •∨ ” button
Press this button to change map scale and scroll through lists.
Back button
Press this button to display the previous screen.
“MENU” button
Press this button to display the “Menu” screen.
Remote Touch knob
Move in the desired direction to select a function, letter and screen button.
Press the knob to enter the selected function, letter or screen button.
“ENTER” buttons
Press this button to enter the selected function, letter or screen button.
“HOME” button (vehicles with 8-inch display)
Press this button to display the home screen.
“MAP” button (vehicles with 12.3-inch display)
Press this button to display the vehicle’s current position.
■Using the Remote Touch knob
Select: Move the knob in the
desired direction.
Enter: Press the knob or “ENTER”
button.
1
2
3
4
5
6
7
1
2

3905-1. Remote Touch screen
GS350_200t_GS F_OM_OM30E87E_(EE)

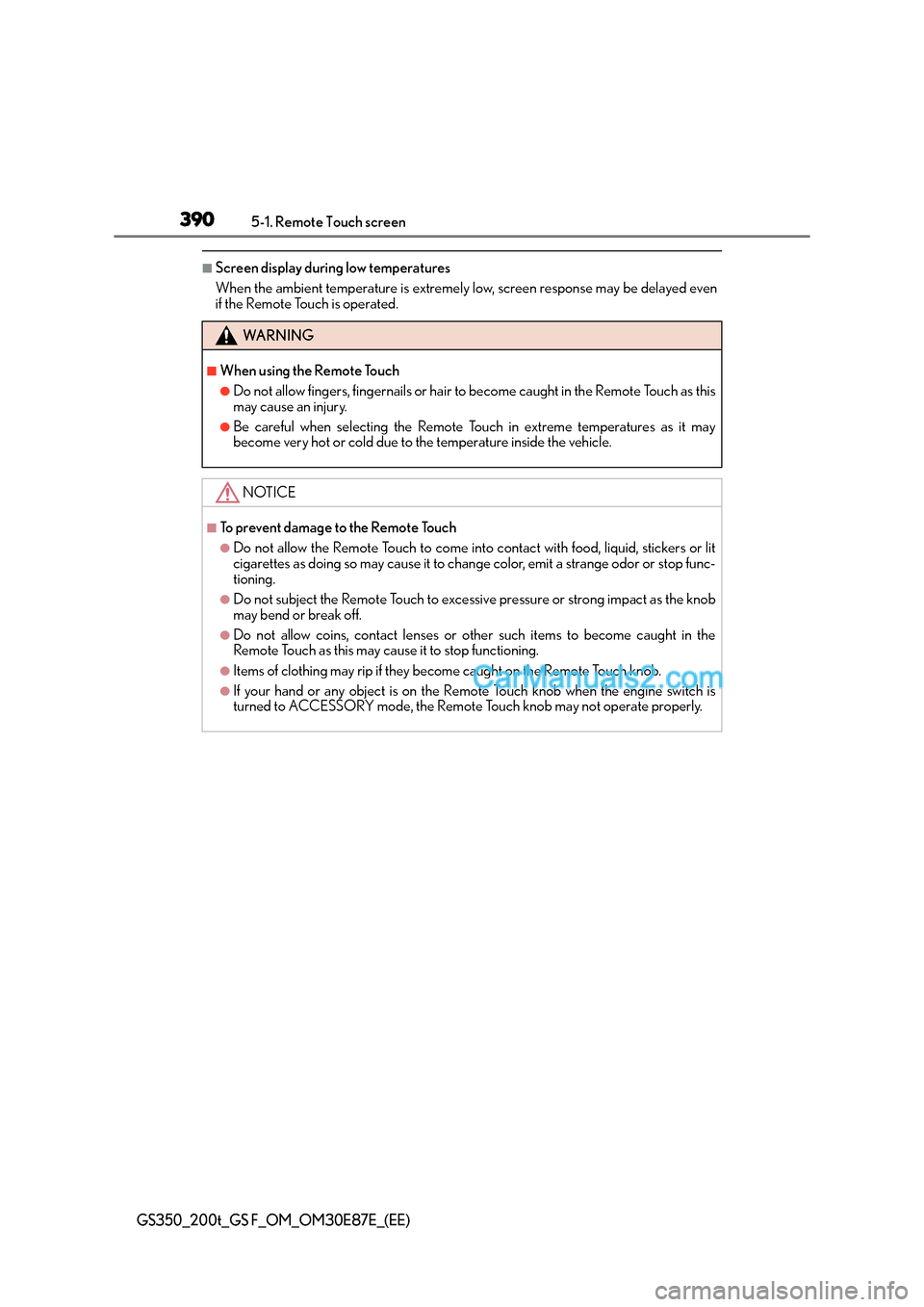

■Screen display during low temperatures
When the ambient temperature is extremely low, screen response may be delayed even
if the Remote Touch is operated.
WA R N I N G
■When using the Remote Touch
●Do not allow fingers, fingernails or hair to become caught in the Remote Touch as this
may cause an injury.
●Be careful when selecting the Remote Touch in extreme temperatures as it may
become very hot or cold due to the temperature inside the vehicle.
NOTICE
■To prevent damage to the Remote Touch
●Do not allow the Remote Touch to come into contact with food, liquid, stickers or lit
cigarettes as doing so may cause it to change color, emit a strange odor or stop func-
tioning.
●Do not subject the Remote Touch to excessive pressure or strong impact as the knob
may bend or break off.
●Do not allow coins, contact lenses or other such items to become caught in the
Remote Touch as this may cause it to stop functioning.
●Items of clothing may rip if they become caught on the Remote Touch knob.
●If your hand or any object is on the Re mote Touch knob when the engine switch is
turned to ACCESSORY mode, the Remote Touch knob may not operate properly.

3915-1. Remote Touch screen
5
Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)

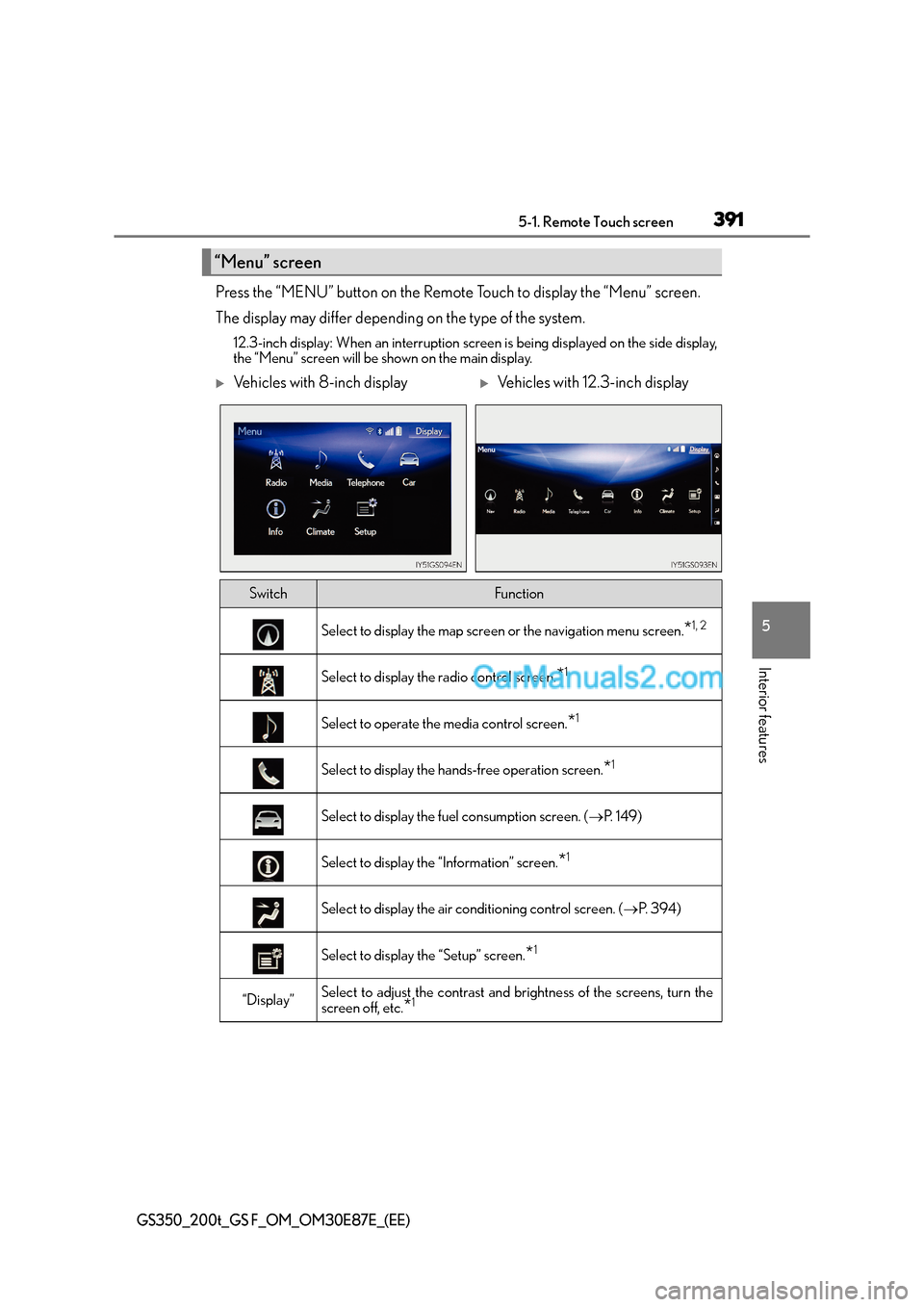

Press the “MENU” button on the Remote Touch to display the “Menu” screen.
The display may differ depending on the type of the system.
12.3-inch display: When an interruption screen is being displayed on the side display,
the “Menu” screen will be shown on the main display.
“Menu” screen
XVehicles with 8-inch displayXVehicles with 12.3-inch display
SwitchFunction
Select to display the map screen or the navigation menu screen.*1, 2
Select to display the radio control screen.*1
Select to operate the media control screen.*1
Select to display the hands-free operation screen.*1
Select to display the fuel consumption screen. (→P. 1 4 9 )
Select to display the “Information” screen.*1
Select to display the air conditioning control screen. ( →P. 3 9 4 )
Select to display the “Setup” screen.*1
“Display”Select to adjust the contrast and brightness of the screens, turn the
screen off, etc.*1

3925-1. Remote Touch screen
GS350_200t_GS F_OM_OM30E87E_(EE)
*1: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: If equipped
■Full screen display
The following functions can be displayed full screen:
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’SMANUAL”.
■Split-screen display
Different information can be displayed on the left and right of the screen. For
example, air conditioning system screen can be displayed and operated while
the fuel consumption information screen is being displayed. The large screen
on the left of the display is called the main display, and the small screen to the
right is called the side display.
12.3-inch display operation
●Initial screen*
●“Menu” screen ( →P. 3 9 1 )
●Map screen*
●Audio screen*
●Fuel consumption screen
(→ P. 1 4 8 )
●Air conditioning control screen
(→ P. 3 9 4 )

3935-1. Remote Touch screen
5
Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)
For details of the functions and operation of the main display, refer to the respec-
tive section.
■Display the side display
XBasic screens
The following functions can be displayed and operated on the side display.
Select the desired button.
Navigation system
*
Audio*
Phone*
Vehicle information ( →P. 151)
Air conditioning system
( → P. 3 9 8 )
Hide the side display.
*
If the item displayed on the main disp lay is full screen display compatible (→P. 3 9 2 ) ,
it will be displayed full screen.
XInterruption screens
Each of the following screens is disp layed automatically in accordance with
conditions. • Lexus parking assist-sensor
* (if equipped)
•Phone
*
•Driving mode ( →P. 3 5 6 )
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.
12.3-inch display function
1
2
3
4
5
6

3945-2. Using the air conditioning system and defogger
GS350_200t_GS F_OM_OM30E87E_(EE)
Front automatic air conditioning system
Air outlets and fan speed are automatically adjusted according to the temper-
ature setting.
Press the “MENU” button on the Remote Touch, then select to display
the air conditioning operation screen.
Vehicles with 12.3-inch display: The air conditioning system can be displayed
and operated on the side display. ( →P. 3 9 2 )
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will di ffer for right-hand drive vehicles.
Also, the display and button positions will differ depending on the type of the
system.
Control panel
