6168-1. Specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosit y characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Conserv-
ing” means that the oil has fuel-saving
and environmental protection capa-
bilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the container.
1
2

617
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
XGS F
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Ge nuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 5W-30 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
5W-30 engine oil is recommended.
Oil capacity
(Drain and refill  reference
*)
With filter
Without filter8.8 L (9.3 qt., 7.7 Imp.qt.)
7.9 L (8.3 qt., 7.0 Imp.qt.)
Temperature range anticipated
before next oil change Preferred

6188-1. Specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
Oil viscosity (5W-30 is explained here as an example):• The 5W in 5W-30 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 5W-30”
means the SAE viscosity grade.
Lower portion: “Resource-Conserv-
ing” means that the oil has fuel-saving
and environmental protection capa-
bilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the container.
1
2

619
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
Cooling system
Capacity
GS3509.4 L (9.9 qt., 8.3 Imp.qt.)
GS200t
XEngine coolant
9.2 L (9.7 qt., 8.1 Imp.qt.)
XIntercooler
2.2 L (2.3 qt., 1.9 Imp.qt.)
GS F11.3 L (11.9 qt., 9.9 Imp.qt.)
Coolant typeUse either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Ignition system
GS350GS200tGS F
Spark plug
Make
GapDENSO
FK20HBR8
0.8 m m (0.031 in.)NGK
DILFR7K9G
0.9 mm (0.04 in.)DENSO
FK20HBR-J8
0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

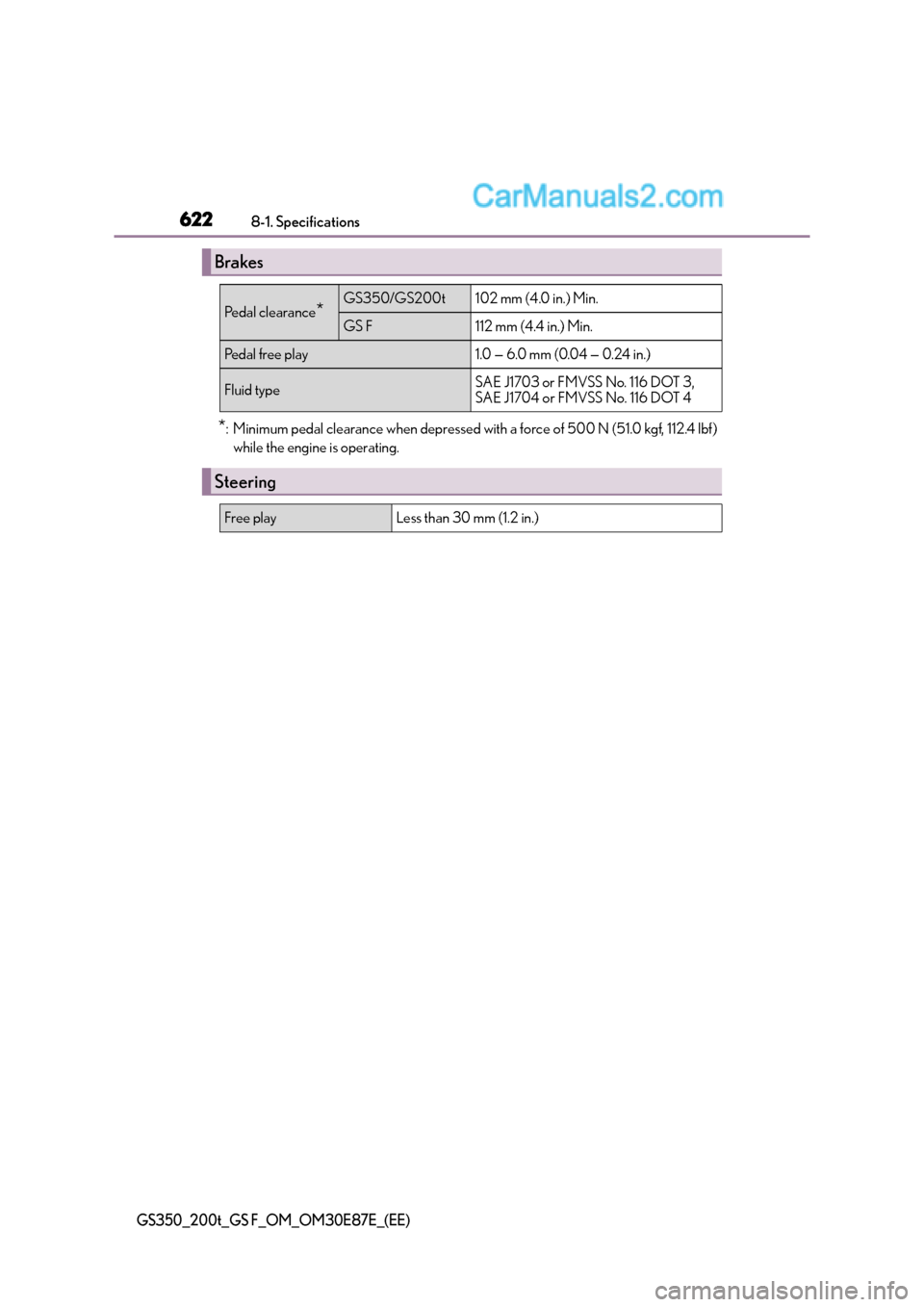

6228-1. Specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
*: Minimum pedal clearance when depressed with a force of 500 N (51.0 kgf, 112.4 lbf)while the engine is operating.
Brakes
Pe d a l c l e a r a n c e*GS350/GS200t 102 mm (4.0 in.) Min.
GS F112 mm (4.4 in.) Min.
Pedal free play1.0 — 6.0 mm (0.04 — 0.24 in.)
Fluid type SAE J1703 or FMVSS No. 116 DOT 3,
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

6268-1. Specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
Fuel information
■Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content is up to 10%.
Make sure that the ethanol blended gasoline to be used has a Research Octane Number
that follows the above.
■If your engine knocks
●Consult any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●You may occasionally notice light knocking for a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.
XGS350 GS200t
EU area:
You must only use unleaded gasoline conforming to European standard
EN228.
Select unleaded gasoline with a Research Octane Number of 95 or higher
for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95 or higher
for optimum engine performance.
XGS F
EU area:
You must only use unleaded gasoline conforming to European standard
EN228.
Select unleaded gasoline with a Research Octane Number of 98 or higher
for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 98 or higher
for optimum engine performance.

627
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its effectiveness
and the emission control system to function improperly.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel contain-
ing a large amount of ethanol should not be used. The use of these fuels will damage
the vehicle’s fuel system. In case of any doubt, ask any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
●Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel
containing a large amount of ethanol should not be used. Your vehicle can use gaso-
line mixed with 10% max ethanol. The use of fuel with more than 10% ethanol content
(E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried
out only from a source where fuel specification and quality can be guaranteed. In case
of any doubt, ask any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
●Do not use the methanol blended gasoline such as M15, M85, M100. The use of gas-
oline containing methanol may cause engine damage or failure.

6368-2. Customization
GS350_200t_GS F_OM_OM30E87E_(EE)
■Front seats (→P. 1 9 5 )
■Outside rear view mirrors ( →P. 2 1 0 )
■Power windows and moon roof* (→ P. 2 1 3 , 2 1 6 )
*: If equipped
FunctionDefault
settingCustomized setting
Driver’s seat movement when
exiting the vehicleStandardOffO—OPar t i a l
Selecting the door linking driv-
ing position memory with door
unlock operationDriver’s doorAll doors——O
123
FunctionDefaultsettingCustomized setting
Automatic mirror folding and
extending operation
Linked to the
locking/
unlocking of the doorsOff
——OLinked to opera-
tion of the engine
switch
Linked mirror function when
reversingOnOff——O
123
FunctionDefaultsettingCustomized setting
Mechanical key linked opera-
tionOffOn——O
Wireless remote control linked
operationOffOn——O
Buzzer sounds if operated
using wireless remote controlOnOff——O
123
