2015 Lexus ES350 stop start

841-3. Theft deterrent system
ES350_300h_OM_OM33B99U_(U)
Engine immobilizer system (gasoline vehicles)
The indicator light flashes after the
“START STOP ENGINE” switch
has been turned off to indicate that
the system is operating.
The indicator light stops flashing
after the “START STOP ENGINE”
switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key with a
built-in transponder chip) of another vehicle
The vehicle’s keys have built-in tr ansponder chips that prevent the
engine from starting if a key has not been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help pr event vehicle theft but does not guar-
antee absolute security against all vehicle thefts.

861-3. Theft deterrent system
ES350_300h_OM_OM33B99U_(U)
Immobilizer system (hybrid vehicles)
The indicator light flashes after the
“POWER” switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the “POWER” switch has been
turned to ACCESSORY or ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key with a
built-in transponder chip) of another vehicle
The vehicle’s keys have built-in tr ansponder chips that prevent the
hybrid system from starting if a key has not been previously registered
in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help pr event vehicle theft but does not guar-
antee absolute security against all vehicle thefts.

881-3. Theft deterrent system
ES350_300h_OM_OM33B99U_(U)
Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or trunk is unlocked or opened in any way other than
using the entry function, wireless remote control or mechanical key.
(The doors will lock again automatically.)
●The hood is opened.
Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.
The indicator light changes from
being on to flashing when the system
is set.
Do one of the following to deactivate or stop the alarms:
●Unlock the doors or open the trunk.
●Turn the “START STOP ENGINE” <“POWER”> switch to ACCES-
SORY or IGNITION ON mode, or start the engine tem>. (The alarm will be deactivated or stopped after a few seconds.)
The alarm
Setting the alarm system
Deactivating or stopping the alarm

94
ES350_300h_OM_OM33B99U_(U)
2. Instrument cluster
*1: These lights turn on when the “START STOP ENGINE” <“POWER”> switch isturned to IGNITION ON mode to indicate that a system check is being
performed. They will turn off after the engi ne is on, or after a few
seconds. There may be a malfunction in a system if the lights do not turn on, or
turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
*1
(U.S.A.)
ABS warning light
(  P. 6 2 7 )Seat belt reminder light
( P. 6 2 9 )
*1
(Canada)
ABS warning light
( P. 6 2 7 )*1Master warning light
( P. 6 2 9 )
*1, 2
(if equipped)
“PCS” warning light
( P. 6 2 8 )*1
Tire pressure warning light
( P. 6 3 0 )

96
ES350_300h_OM_OM33B99U_(U)
2. Instrument cluster
*1: These lights turn on when the “START STOP ENGINE” <“POWER”> switch isturned to IGNITION ON mode to indicate that a system check is being
performed. They will turn off after the engi ne is on, or after a few
seconds. There may be a malfunction in a system if the lights do not turn on, or
turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turn ed off. The light flashes quickly to indi-
cate that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illumi-
nate in the following situations:
• When the “START STOP ENGINE” <“POWER”> switch is turned to IGNI- TION ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the “START STOP ENGINE”
<“POWER”> switch is in IGNITION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicato rs do not illuminate or do not turn off,
there may be a malfunction with the system. If this occurs, have the vehicle
inspected by your Lexus dealer.
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine , this could mean that these systems are
not available to help protect you in an accident, which could result in death or seri-
ous injury. Have the vehicle inspected by your Lexus dealer immediately if this
occurs.

ES350_300h_OM_OM33B99U_(U)
992. Instrument cluster
2
Instrument cluster
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels wh en the tail lights are on and off can be
adjusted individually. However, when the surroundings are bright (daytime, etc.),
turning on the tail lights will not change th e instrument panel brightness. At this time,
any adjustments made to the instrument panel brightness levels will be applied to
both settings at once.
■Limitation of brightness adjustment
The brightness of the instrument panel ligh ts is automatically adjusted based on the
light sensor detecting how bright the surroundings are. However, if the instrument
panel brightness has been manually set to ei ther the brightest or darkest setting, the
automatic adjustment will not be performed.
Instrument panel light control
1
2

100
ES350_300h_OM_OM33B99U_(U)
2. Instrument cluster

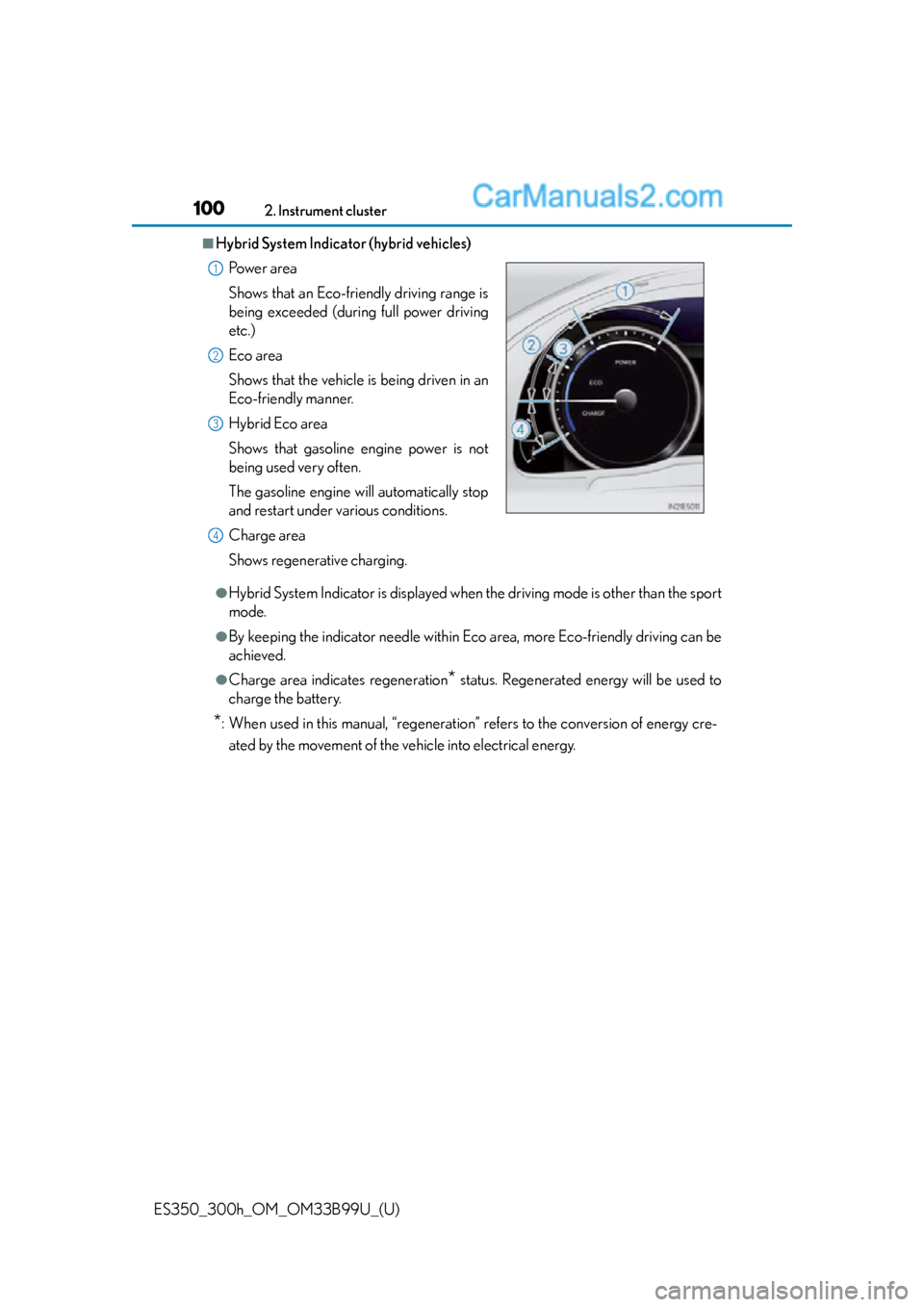

■Hybrid System Indicator (hybrid vehicles)
●Hybrid System Indicator is displayed when the driving mode is other than the sport
mode.
●By keeping the indicator needle within Ec o area, more Eco-friendly driving can be
achieved.
●Charge area indicates regeneration* status. Regenerated energy will be used to
charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the vehicle into electrical energy. Po w e r a r e a
Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)
Eco area
Shows that the vehicle is being driven in an
Eco-friendly manner.
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.
Charge area
Shows regenerative charging.
1
2
3
4

ES350_300h_OM_OM33B99U_(U)
1052. Instrument cluster
2
Instrument cluster
■Driving range
■Elapsed time
■Tire inflation pressureDisplays the estimated
maximum distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may diff er from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the “START STOP ENGINE”
<“POWER”> switch off. If the vehicle is refueled
without turning the “START STOP ENGINE”
<“POWER”> switch off, the display may not be
updated.
Displays the elapsed time since the engine
was started
Displays inflation pres sure of each tire
For the vehicles with a full-size spare tire: The inflation
pressure of the spare tire will be displayed.
