2015 Lexus ES350 seat memory

TABLE OF CONTENTS2
ES350_300h_OM_OM33B99U_(U)For your information ................................... 8
Reading this manual...................................14
How to search ..............................................15
Pictorial index ...............................................16
1-1. For safe use
Before driving................................. 28
For safety drive............................... 30
Seat belts .......................................... 32
SRS airbags ..................................... 38
Front passenger occupant classification system.................. 50
Safety information for children ....................................57
Child restraint systems ............... 58
Installing child restraints..............62
Exhaust gas precautions.............72
1-2. Hybrid system Hybrid system features (hybrid vehicles) ..........................73
Hybrid system precautions (hybrid vehicles) ..........................77
1-3. Theft deterrent system Engine immobilizer system (gasoline vehicles)..................... 84
Immobilizer system (hybrid vehicles) ......................... 86
Alarm .................................................88 2. Instrument cluster
Warning lights and indicators .............................. 92
Gauges and meters ......................97
Multi-information display ........ 102
Energy monitor/ consumption screen ................. 112
3-1. Key information Keys ................................................... 124
3-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start ............. 127
Wireless remote control ............ 141
Doors ................................................144
Trunk..................................................149
3-3. Adjusting the seats Front seats....................................... 157
Driving position memory..........159
Head restraints .............................165
3-4. Adjusting the steering wheel and mirrors
Steering wheel ..............................169
Inside rear view mirror ............... 171
Outside rear view mirrors.........174
3-5. Opening, closing the windows and moon roof
Power windows ............................. 177
Moon roof ........................................ 181
1For safety and security
2Instrument cluster
3Operation of each
component

123
ES350_300h_OM_OM33B99U_(U)
3
Operation of
each component
3-1. Key information
Keys ...................................................124
3-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start ............. 127
Wireless remote control ............ 141
Doors ................................................144
Trunk ..................................................149
3-3. Adjusting the seats Front seats.......................................157
Driving position memory ......... 159
Head restraints ............................ 165
3-4. Adjusting the steering wheel and mirrors
Steering wheel ..............................169
Inside rear view mirror................ 171
Outside rear view mirrors ........ 174
3-5. Opening, closing the windows and moon roof
Power windows ............................. 177
Moon roof ........................................181

159
ES350_300h_OM_OM33B99U_(U)
3-3. Adjusting the seats
3
Operation of each component
Driving position memory∗
The seat and steering wheel are automatically adjusted to allow the driver
to enter and exit the vehicle easily.
When all of the following have been
performed, the driver’s seat and
steering wheel are automatically
adjusted to a position that allows
driver to enter and exit the vehicle
easily.• The shift lever has been shifted to P.
•The “START STOP ENGINE” <“POWER”> switch has been
turned off.
• The driver’s seat belt has been unfastened.
When any of the following has been performed, the driver’s seat and
steering wheel automatically return to their original positions. • The “START STOP ENGINE” <“POWER”> switch has been turned to ACCESSORY mode or IGNI TION ON mode.
• The driver’s seat belt has been fastened.
∗
: If equipped
This feature automatically adjusts the front seats, steering wheel
(power adjustment type) and outside rear view mirrors to make enter-
ing and exiting the vehicle easier or to suit your preferences.
Power easy access system

160
ES350_300h_OM_OM33B99U_(U)
3-3. Adjusting the seats
■Operation of the power easy access system
When exiting the vehicle, the power easy access system may not operate if the seat
is already close to the rearmost position, etc.
■Customization
The seat movement amount settings of the power easy access system can be cus-
tomized. (Customizable features: →P. 7 3 0 )

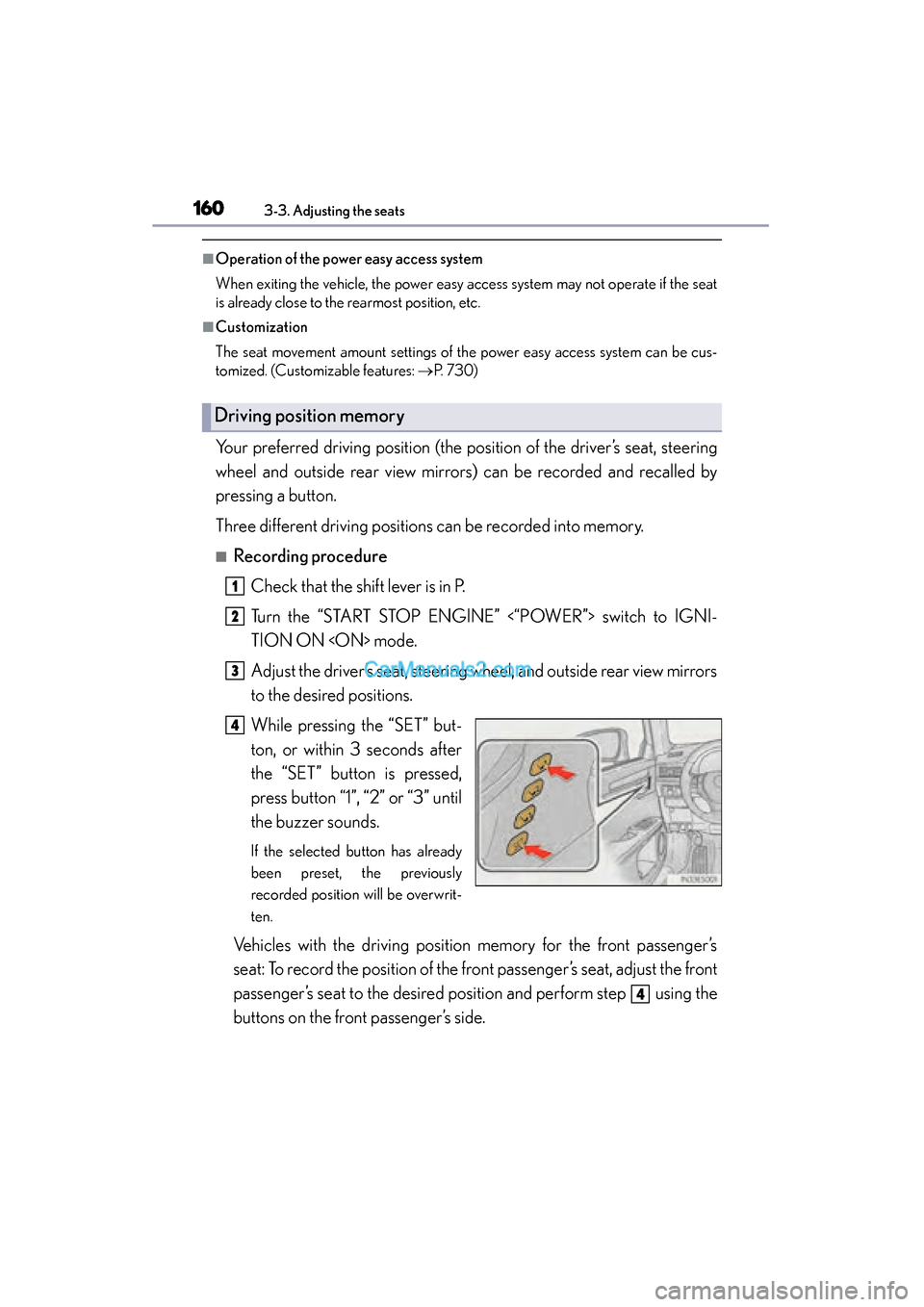

Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be recorded and recalled by
pressing a button.
Three different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the “START STOP ENGINE” <“POWER”> switch to IGNI-
TION ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view mirrors
to the desired positions.
While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press button “1”, “2” or “3” until
the buzzer sounds.
If the selected button has already
been preset, the previously
recorded position will be overwrit-
ten.
Vehicles with the driving position memory for the front passenger’s
seat: To record the position of the front passenger’s seat, adjust the front
passenger’s seat to the desired position and perform step using the
buttons on the front passenger’s side.
Driving position memory
1
2
3
4
4

162
ES350_300h_OM_OM33B99U_(U)
3-3. Adjusting the seats
■Operating the driving position memory after turning the “START STOP ENGINE”
<“POWER”> switch off
Driver’s seat:
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
Front passenger’s seat:
Recorded seat positions can be activated up to 180 seconds after the front passen-
ger’s door is opened.
■In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is operated in
the same direction, the recorded position may be slightly different when it is recalled.
Each electronic key can be registered to recall your preferred driving
position.
■Registering procedure
Record your driving position to button “1”, “2” or “3” before performing
the following:
Carry only the key you want to register, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be
recorded properly.
Check that the shift lever is in P.
Turn the “START STOP ENGINE” <“POWER”> switch to IGNI-
TION ON mode.
Recall the driving position that you want to record.
Memory recall function (driver’s side only)
1
2
3

164
ES350_300h_OM_OM33B99U_(U)
3-3. Adjusting the seats
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be can-
celed properly.Turn the “START STOP ENGINE” <“POWER”> switch to
IGNITION ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for
approximately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being car-
ried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the
driving position button which has been set.
■Customization
The unlock door settings of the memory recall function can be customized. (Cus-
tomizable features: →P. 7 3 0 )
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
1
2

1703-4. Adjusting the steering wheel and mirrors
ES350_300h_OM_OM33B99U_(U)
■The power adjustment type steering wheel can be adjusted when
The “START STOP ENGINE” <“POWER”> switch is in ACCESSORY or
IGNITION ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of“START STOP ENGINE” <“POWER”> switch mode.
■Automatic adjustment of the steering position (power adjustment type)
A desired steering position can be entered to memory and recalled automatically by
the driving position memory system. ( →P. 1 5 9 )
■Power easy access system (power adjustment type)
The steering wheel and driver’s seat move in accordance with “START STOP
ENGINE” <“POWER”> switch mode and the driver’s seat belt condition. ( →P. 1 5 9 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.
■After adjusting the steering wheel (manual adjustment type)
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident,
and resulting in death or serious injury.

736
ES350_300h_OM_OM33B99U_(U)
9-2. Customization
■Driving position memory* (→ P. 1 5 9 )
*: If equipped
“Remote 2-Press Unlock”
(Allows all doors to be
unlocked by pressing
on the electronic key twice)On (Driver’s
door unlocked in one step, all
doors unlocked in two steps)
Off (All doors
unlocked in one step)
O—O
Trunk unlocking operationPress and hold (short)
One short press
——OPush twice
Press and hold (long)
Off
Alarm (panic mode)OnOff——O
FunctionDefault settingCustomized setting123
FunctionDefault settingCustomized setting
“Driver’s Seat Easy Exit”
(Driver’s seat movement
when exiting the vehicle)
Full
Off
O—OPa r t i a l
Selecting the door linking
driving position memory
with door unlock operation
Driver’s doorAll doors——O
123
