6-4. Other interior features
Important! Read this information before using Safety Connect.
■Exposure to radio frequency signals
The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio fre-
quency (RF) signals.
In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guidelines with safety levels for mobile wireless
phones. Those guidelines are consistent with the safety standards previ-
ously set by the following U.S. and international standards bodies.
●ANSI (American National Standards Institute) C95.1 [1992]
●NCRP (National Council on Radiation Protection and Measure-
ment) Report 86 [1986]
●ICNIRP (International Commission on Non-Ionizing Radiation Pro-
tection) [1996]
Those standards were based on comprehensive and periodic evalua-
tions of the relevant scientific literature. Over 120 scientists, engineers,
and physicians from universities, and government health agencies and
industries reviewed the available body of research to develop the ANSI
Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.
Safety information for Safety Connect

521
ES350_300h_OM_OM33B36U_(U)
7Maintenance and care
7-1. Maintenance and careCleaning and protecting the vehicle exterior................. 522
Cleaning and protecting the vehicle interior .................. 526
7-2. Maintenance Maintenance requirements............................. 529
General maintenance .............. 532
Emission inspection and maintenance (I/M)
programs .................................... 536
7-3. Do-it-yourself maintenance Do-it-yourself service precautions................................ 537
Hood ................................................ 541
Positioning a floor jack ............. 542
Engine compartment ............... 545
12-volt battery (hybrid vehicles) ...................... 562
Tires.................................................. 566
Tire inflation pressure ................577
Wheels .......................................... 580
Air conditioning filter ...............582
Electronic key battery ..............584
Checking and replacing fuses..............................................586
Light bulbs.....................................598

524
ES350_300h_OM_OM33B36U_(U)
7-1. Maintenance and care
CAUTION
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause
the electrical components etc. to catch fire.
■When cleaning the windshield (vehicles with rain-sensing windshield wipers)
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the
raindrop sensor
■Precautions regarding exhaust pipes
Exhaust gases cause exhaust pipes to become quite hot.
When washing the vehicle, be careful not to touch any pipes until they have cooled
sufficiently, as touching hot exhaust pipes can cause burns.
■Precaution regarding the Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunc-
tion. If this occurs, consult your Lexus dealer.
Turn off the wiper switch.
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught
or other serious injuries and cause damage
to the wiper blades.
Off

530
ES350_300h_OM_OM33B36U_(U)
7-2. Maintenance
■Repair and replacement
It is recommended that genuine Lexus parts be used for repairs to ensure perfor-
mance of each system. If non-Lexus parts are used in replacement or if a repair shop
other than a Lexus dealer performs repairs, confirm the warranty coverage.
■Resetting the message indicating maintenance is required (U.S.A. only)
After the required maintenance is performed according to the maintenance sched-
ule, please reset the maintenance data.
To reset the data, follow the procedure described below:Switch the display to the trip meter “A” ( →P. 98) when the engine
is running .
Turn the “START STOP ENGINE” <“POWER”> switch off.
While pressing the “ODO TRIP” button ( →P. 98), turn the “START STOP
ENGINE” <“POWER”> switch to the IGNITION ON mode (do not start
the engine because otherwise the reset mode will be canceled).
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained specialists and are kept up to date with the latest
service information. They are well informed about the operations of all systems on
your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been per-
formed is under warranty coverage. If any problem should arise while your vehicle
is under warranty, your Lexus dealer will promptly take care of it. The message shown in the illustration will
appear on the display.
Continue to press and hold the button until
the trip meter displays “000000”.
1
2
3

ES350_300h_OM_OM33B36U_(U)
5317-2. Maintenance
7
Maintenance and care

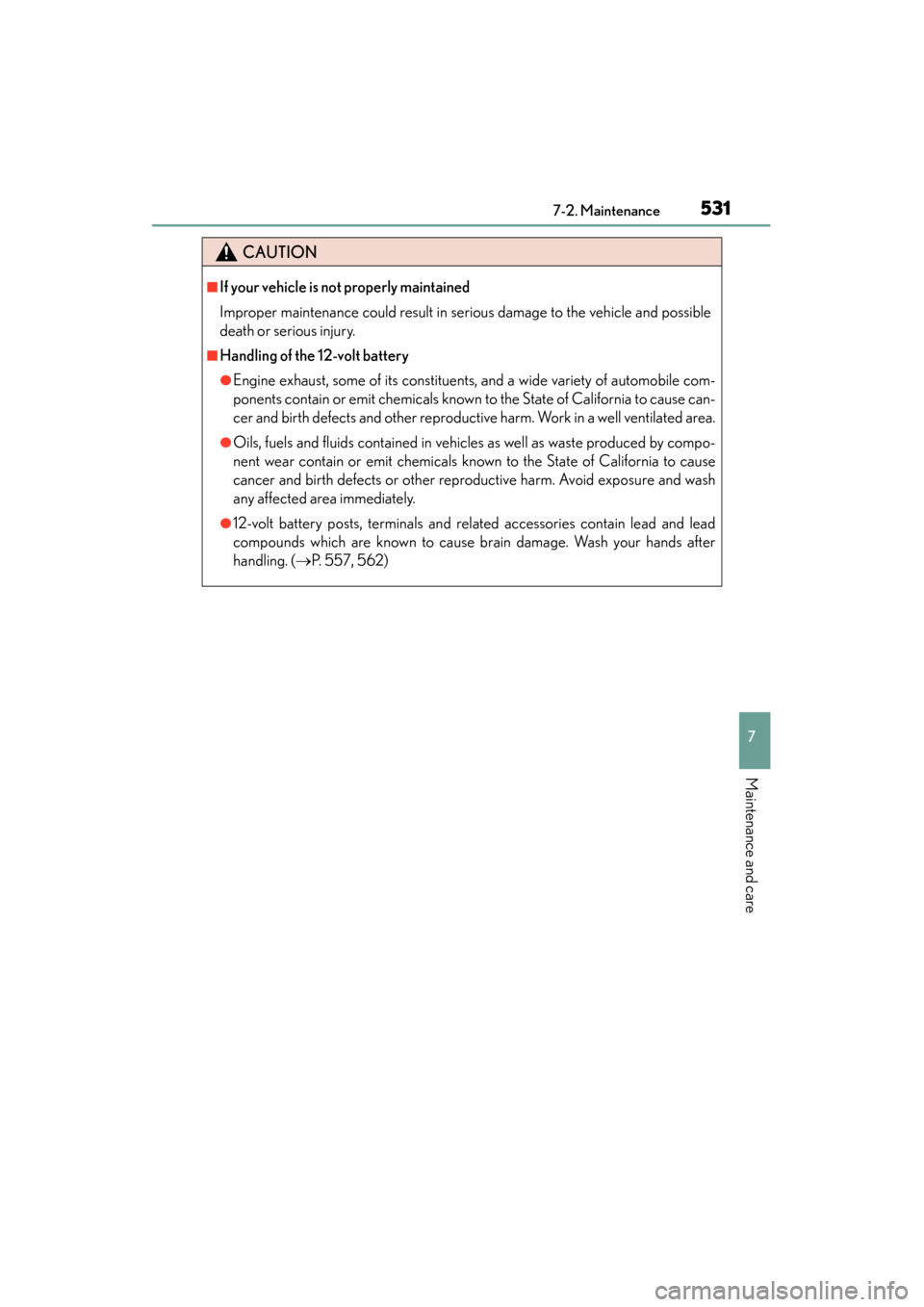

CAUTION
■If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and possible
death or serious injury.
■Handling of the 12-volt battery
●Engine exhaust, some of its constituents, and a wide variety of automobile com-
ponents contain or emit chemicals known to the State of California to cause can-
cer and birth defects and other reproductive harm. Work in a well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by compo-
nent wear contain or emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm. Avoid exposure and wash
any affected area immediately.
●12-volt battery posts, terminals and related accessories contain lead and lead
compounds which are known to cause brain damage. Wash your hands after
handling. (→P. 557, 562)

532
ES350_300h_OM_OM33B36U_(U)
7-2. Maintenance
General maintenance
Listed below are the general maintenance items that should be per-
formed at the intervals specified in the “Warranty and Service Guide”
or “Owner’s Manual Supplement”. It is recommended that any prob-
lem you notice should be brought to the attention of your Lexus dealer
or qualified service shop for advice.
Engine compartment
ItemsCheck points
12-volt battery (gasoline vehicles)Check the battery fluid level and
connections. ( →P. 5 5 7 )
Brake fluidIs the brake fluid at the correct level?
(→ P. 5 5 6 )
Engine coolant (gasoline vehicles)Is the engine coolant at the correct
level? ( →P. 553)
Engine/power control unit coolant
(hybrid vehicles)Is the engine/power control unit coolant
at the correct level? ( →P. 553)
Engine oilIs the engine oil at the correct level?
(→ P. 5 4 8 )
Exhaust systemThere should not be any fumes or
strange sounds.
Radiator/condenserThe radiator and condenser should be
free from foreign objects. ( →P. 555)
Wa s h e r f l u i dIs there sufficient washer fluid?
(→ P. 5 6 1 )
Luggage compartment
ItemsCheck points
12-volt battery (hybrid vehicles)Check the connections. ( →P. 5 6 2 )

ES350_300h_OM_OM33B36U_(U)
5357-2. Maintenance
7
Maintenance and care
Ve h i c l e e x t e r i o r
ItemsCheck points
Doors/trunk• Do the doors/trunk operatesmoothly?
Engine hood• Does the engine hood lock systemwork properly?
Fluid leaks
• There should not be any signs of fluidleakage after the vehicle has been
parked.
Ti r e s
• Is the tire inflation pressure correct?
• The tires should not be damaged orexcessively worn.
• Have the tires been rotated accord- ing to the maintenance schedule?
• The wheel nuts should not be loose.
Windshield wipers
• The wiper blades should not show any signs of cracking, splitting, wear,
contamination or deformation.
• The wiper blades should clear the windshield without streaking or skip-
ping.
CAUTION
■If the engine is running
Turn the engine off and ensure that there is adequate ventilation
before performing maintenance checks.

537
ES350_300h_OM_OM33B36U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsPa r t s a n d t o o l s
12-volt battery condition
(gasoline vehicles) (→P. 5 5 7 )
•Warm water
•Baking soda
•Grease
• Conventional wrench
(for terminal clamp bolts)
• Distilled water
12-volt battery condition
(hybrid vehicles) ( →P. 5 6 2 )•Grease
• Conventional wrench (for terminal
clamp bolts)
Brake fluid level ( →P. 5 5 6 )
•FMVSS No.116 DOT 3 or SAE J1703
brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level
(gasoline vehicles) ( →P. 553)
• “Toyota Super Long Life Coolant” or
a similar high quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite and non-borate coolant with
long-life hybrid organic acid technol-
ogy
For the U.S.A.:
“Toyota Super Long Life Coolant” is
pre-mixed with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is
pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding coolant)
Engine/power control unit coolant level
(hybrid vehicles) ( →P. 553)
