230
ES350_300h_OM_OM33B99U_(U)
4-2. Driving procedures
Turn signal lever
Right turn
Lane change to the right (move
the lever partway and then
release it)
The right hand signals will flash 3
times.
Lane change to the left (move the
lever partway and then release it)
The left hand signals will flash 3 times.
Left turn
■Turn signals can be operated when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or re ar turn signal lights has not burned out.
■If the turn signals stop flashing before a lane change has been performed
Operate the lever again.
■To discontinue flashing of the tu rn signals during a lane change
Operate the lever in the opposite direction.
■Customization
The number of times the turn signals flash during a lane change can be changed.
(  P. 7 3 0 )
Operating instructions
1
2
3
4

598
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 714)
■Front
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replace-
ment seems difficult to perform, contact your Lexus dealer.
For more information about replacin g other light bulbs, contact your
Lexus dealer.
Preparing for light bulb replacement
Bulb locations
Front side marker light
Front turn signal light
Headlight low beam (halogen
bulb) Headlight high beam
Halogen fog light (if
equipped)1
2
3
4
5

604
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance
■Front turn signal lightsTo allow enough working
space, turn the steering wheel
to the opposite side of the bulb
to be replaced.
Remove the 3 fender liner
clips and 1 screw.
Turn the steering wheel to the
left when replacing the right
side light bulb, and turn the
steering wheel to the right
when replacing the left side
light bulb.
To take out the clips, turn the
head of the clip to unlock, then
remove by pulling.
While holding the clamp open,
pull and remove the tabs and
open the fender liner.
Turn the bulb base counter-
clockwise.
1
2
3

606
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance
■Front side marker lightsPartly remove the fender liner.
Perform the procedure for “Front turn signal lights” from step 1 to 2.
( P. 6 0 4 )
Turn the bulb base counter-
clockwise.
Remove the code from clip.
Remove the light bulb.
1
2
3
4

608
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance

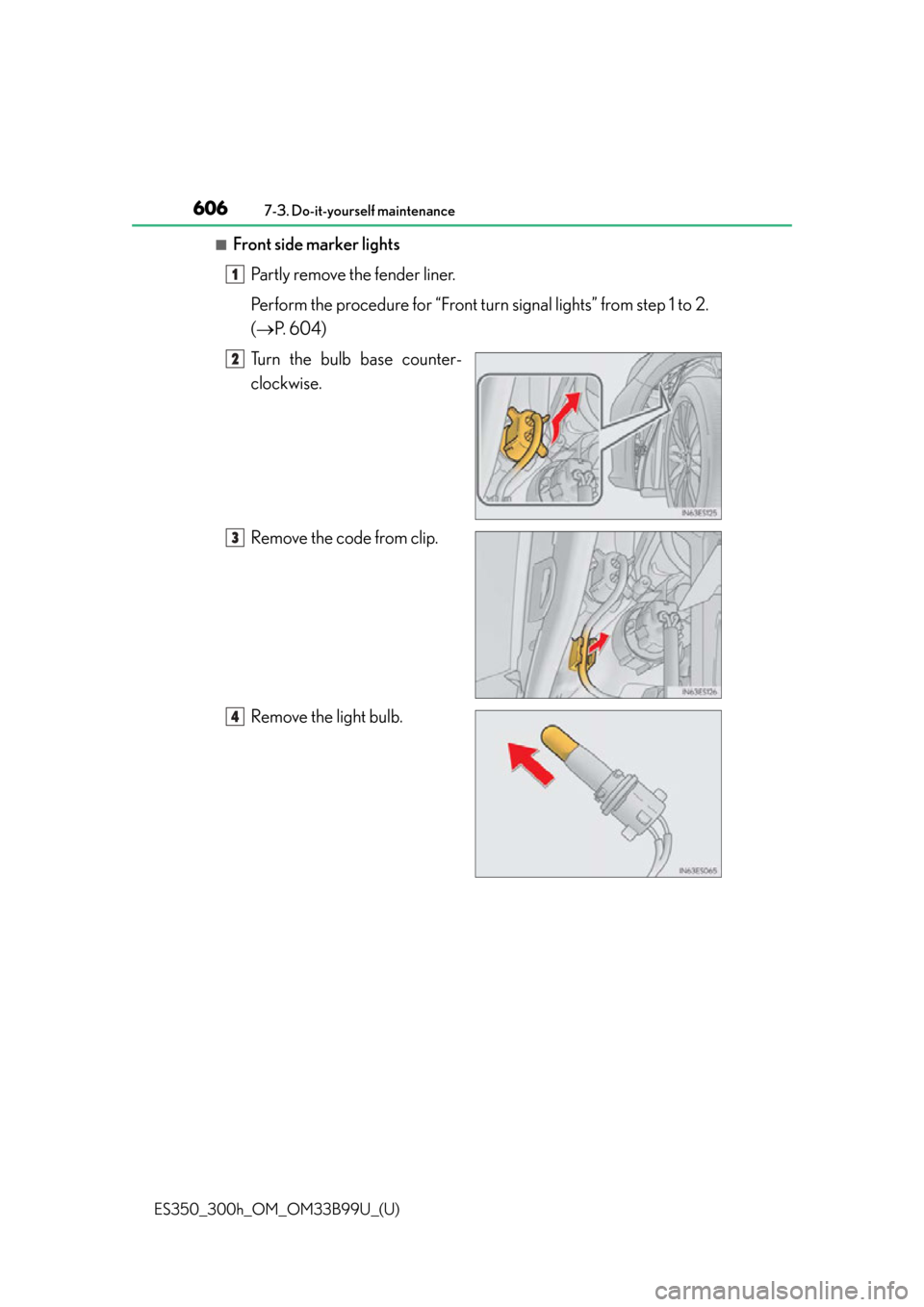

■Rear turn signal lightsOpen the trunk lid and remove
the cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

610
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your
Lexus dealer.
●Headlight low beams (discharge bulbs)
●Parking lights/daytime running lights
●Side turn signal lights
●LED fog lights (if equipped)
●Stop/tail lights
●Tail lights
●Rear side marker lights
●High mounted stoplight
●License plate lights
●Outer foot lights
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may go
out temporarily. The discharge bulbs will come on when normal power is restored.
■LED lights
The parking lights/daytime runni ng lights, side turn signal lights, LED fog lights (if
equipped), stop/tail lights, tail lights, rear side marker lights, high mounted stoplight,
license plate lights and outer foot lights co nsist of a number of LEDs. If any of the
LEDs burn out, take your vehicle to your Lexus dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the insi de of the headlight lens does not indi-
cate a malfunction. Contact your Lexus dealer for more information in the following
situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
 P. 5 9 7

714
ES350_300h_OM_OM33B99U_(U)
9-1. Specifications
A: HB3 halogen bulbsB: H11 halogen bulbs
C: D4S discharge bulbs D: H16 halogen bulbs E: Wedge base bulbs (amber)F: Wedge base bulbs (clear)
*:If equipped
Light bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights High beam
Low beam (halogen bulbs)
Low beam (discharge bulbs)
9005
605535A B
C
Fog lights*19D
Front turn signal lights7444NA28 /8E
Front side marker lightsW5W5F
Rear turn signal lightsWY21W21E
Back-up lightsW16W16F
Outer foot lightsW5W5F
Interior
Door courtesy lights5F
Vanity lights5F
Interior light8F
Pe r s o n a l l i g h t s8F
Tr u n k l i g h t5F
