2015 Lexus ES300h stop start

6538-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
OnceCon-
tinuous
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors with-
out first turning the
“START STOP
ENGINE”
<“POWER”> switch
off when the shift
lever was in P.
Tu r n t h e
“START
STOP
ENGINE”
<“POWER”>
switch off
and lock the
doors again.
9
times
An attempt was
made to drive when
the regular key was
not inside the vehi-
cle.Confirm
that the
electronic
key is inside
the vehicle.
Con-
tinuous
The driver’s door
was opened when
the shift lever was
not in P and the
“START STOP
ENGINE”
<“POWER”> switch
was not turned off.
Shift the
shift lever to
P.
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)

6548-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Con-
tinuousCon-
tinuous
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in P and the
“START STOP
ENGINE”
<“POWER”> switch
was not turned off.
• Shift the shift lever
to P.
•Bring the elec-
tronic key
back into
the vehi-
cle.
Con-
tinuous
An attempt was
made to lock the
doors using the
smart access sys-
tem with push-but-
ton start while the
electronic key was
still inside the vehi-
cle.
Retrieve the
electronic
key from the
vehicle and
lock the
doors again.
OnceCon-
tinuous
An attempt was
made to lock either
front door by open-
ing a door and put-
ting the inside lock
button into the lock
position, then clos-
ing the door with
the electronic key
still inside the vehi-
cle.
Retrieve the
electronic
key from the
vehicle and
lock the
doors again.
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)

6558-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
Gasoline vehicles
Hybrid vehicles
•When the doors were unlocked
with the mechan-
ical key and then
the “START
STOP ENGINE”
<“POWER”>
switch was
pressed, the
electronic key
could not be
detected in the
vehicle.
• The electronic key could not be
detected in the
vehicle even after
the “START
STOP ENGINE”
<“POWER”>
switch was
pressed two con-
secutive times.
To u c h t h e
electronic
key to the
“START
STOP
ENGINE”
<“POWER”>
switch while
depressing
the brake
pedal.
Once
Gasoline vehicles
Hybrid vehicles
An attempt was
made to start the
engine tem> with the shift
lever in an incorrect
position.Shift the
shift lever to
P and start
the engine
tem>.
(Flashes)
(Flashes)
(Flashes)
(Flashes)

6578-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
Gasoline vehicles
Hybrid vehicles
The driver’s door
was opened and
closed with the
“START STOP
ENGINE”
<“POWER”> switch
turned off and then
the “START STOP
ENGINE”
<“POWER”> switch
was put in ACCES-
SORY mode twice
without the engine

being started.
Press the
“START
STOP
ENGINE”
<“POWER”>
switch while
depressing
the brake
pedal.
During an engine

starting procedure
in the event that the
electronic key was
not functioning
properly ( P. 6 7 8 ) ,
the “START STOP
ENGINE”
<“POWER”> switch
was touched with
the electronic key.
Press the
“START
STOP
ENGINE”
<“POWER”>
switch within
10 seconds
of the buzzer
sounding.
Once
The steering lock
could not be
released within 3
seconds of the
“START STOP
ENGINE”
<“POWER”> switch
being pressed.
Press the
“START
STOP
ENGINE”
<“POWER”>
switch while
depressing
the brake
pedal and
moving the
steering
wheel left
and right.
(Flashes)
(Flashes)
(Flashes)

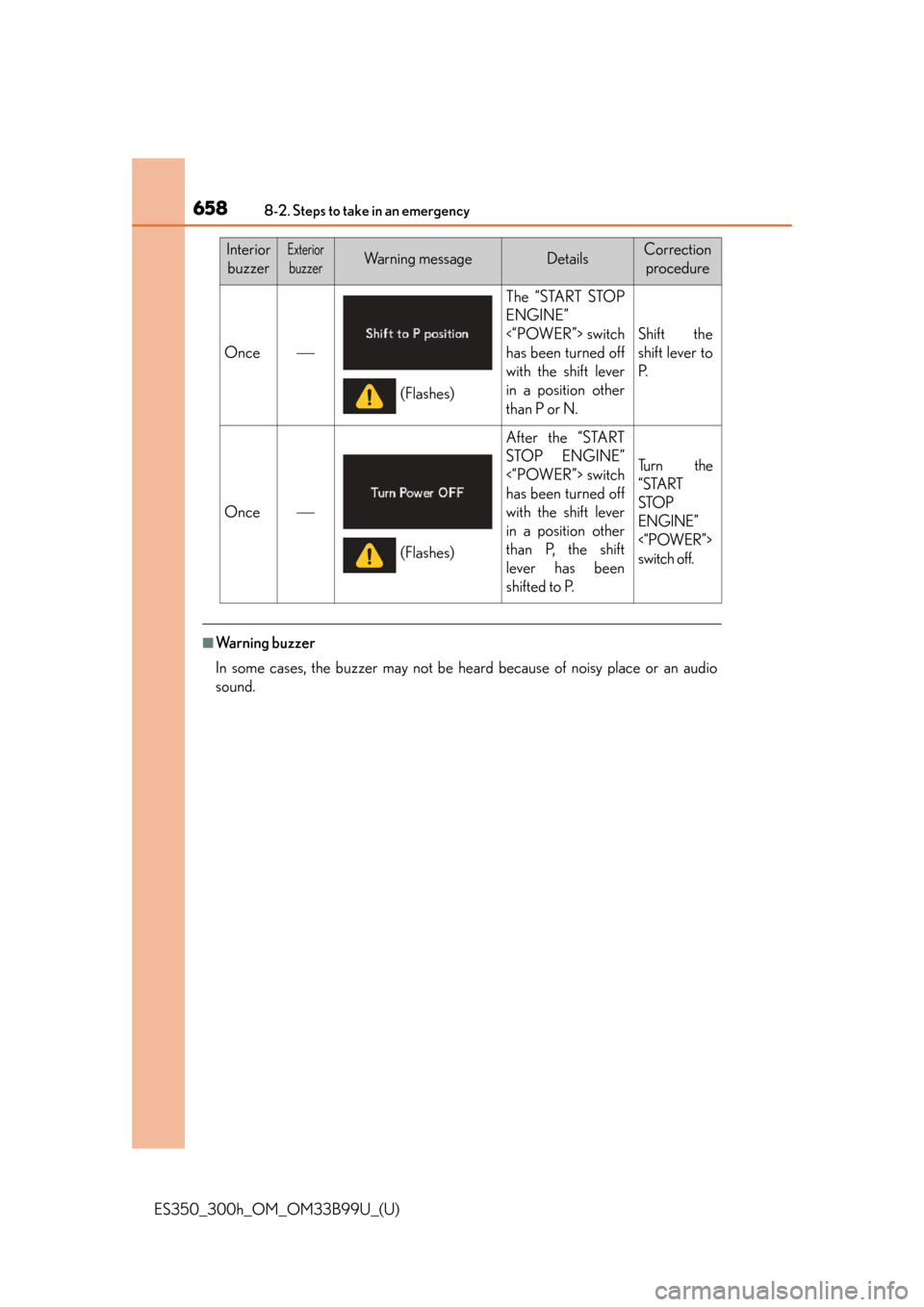

6588-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio
sound.
Once
The “START STOP
ENGINE”
<“POWER”> switch
has been turned off
with the shift lever
in a position other
than P or N.
Shift the
shift lever to
P.
Once
After the “START
STOP ENGINE”
<“POWER”> switch
has been turned off
with the shift lever
in a position other
than P, the shift
lever has been
shifted to P.
Tu r n t h e
“START
STOP
ENGINE”
<“POWER”>
switch off.
Interior buzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
(Flashes)
(Flashes)

6738-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
One of the following may be the cause of the problem:
●One or both of the 12-volt battery terminals may be disconnected.
●The 12-volt battery may be discharged. ( P. 680)
●There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if repair proce-
dures are unknown.
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the “START STOP ENGINE” switch
is functioning normally:
Set the parking brake.
Shift the shift lever to P.
Turn the “START STOP ENGINE” switch to ACCESSORY mode.
Press and hold the “START STOP ENGINE” switch for about 15 sec-
onds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system may be
malfunctioning. Have the vehicle inspected by your Lexus dealer.
The starter motor does not turn ov er, the interior lights and head-
lights do not turn on, or the horn does not sound.
Emergency start function
1
2
3
4

676
ES350_300h_OM_OM33B99U_(U)
8-2. Steps to take in an emergency
If the shift lever cannot be shifted from P
Set the parking brake.
Turn the “START STOP ENGINE” <“POWER”> switch to ACCES-
SORY mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override but-
ton.
The shift lever can be shifted while the
button is pressed.
If the shift lever cannot be shifted with your foot on the brake pedal,
there may be a problem with the shift lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
your Lexus dealer immediately.
The following steps may be used as an emergency measure to ensure
that the shift lever can be shifted:
1
2
3
4
5

6788-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
■Trunk
Turn the mechanical key clock-
wise to open.
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of
the electronic key to the “START
STOP ENGINE” <“POWER”>
switch.
The “START STOP ENGINE”
<“POWER”> switch will turn to IGNI-
TION ON mode.
When the smart access system with
push-button start is deactivated in
customization setting, the “START
STOP ENGINE” <“POWER”> switch
will turn to ACCESSORY mode.
Firmly depress the brake pedal and check that is shown on the
multi-information display.
Press the “START STOP ENGINE” <“POWER”> switch.
In the event that the engine still cannot be started, contact
your Lexus dealer.
Starting the engine
1
2
3
4
