2015 Lexus CT200h sensor

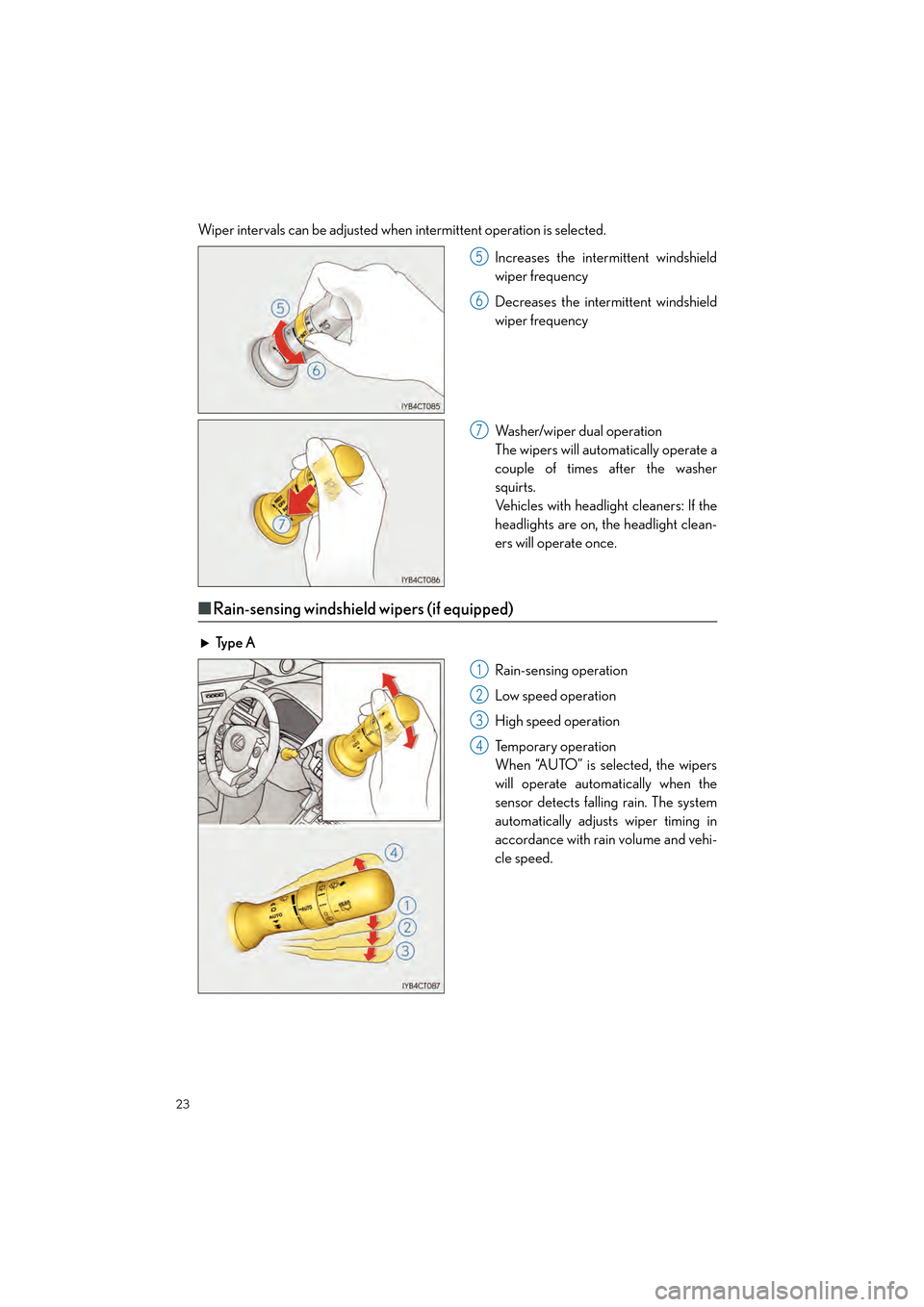

23
CT200h_QG_OM76185U_(U)
Wiper intervals can be adjusted when intermittent operation is selected.
Increases the interm ittent windshield
wiper frequency
Decreases the intermittent windshield
wiper frequency
Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer
squirts.
Vehicles with headlight cleaners: If the
headlights are on, the headlight clean-
ers will operate once.
■ Rain-sensing windshield wipers (if equipped)
Ty p e A
Rain-sensing operation
Low speed operation
High speed operation
Temporary operation
When “AUTO” is selected, the wipers
will operate automatically when the
sensor detects falling rain. The system
automatically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.
5
6
7
1
2
3
4

24
CT200h_QG_OM76185U_(U)
The sensor sensitivity can be adjusted when “AUTO” is selected.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer
squirts.
Vehicles with headlight cleaners: If the
headlights are on, the headlight clean-
ers will operate once.
Ty p e B Rain-sensing operation
Low speed operation
High speed operation
Temporary operation
When “AUTO” is selected, the wipers
will operate automatically when the
sensor detects falling rain. The system
automatically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.
5
6
7
1
2
3
4

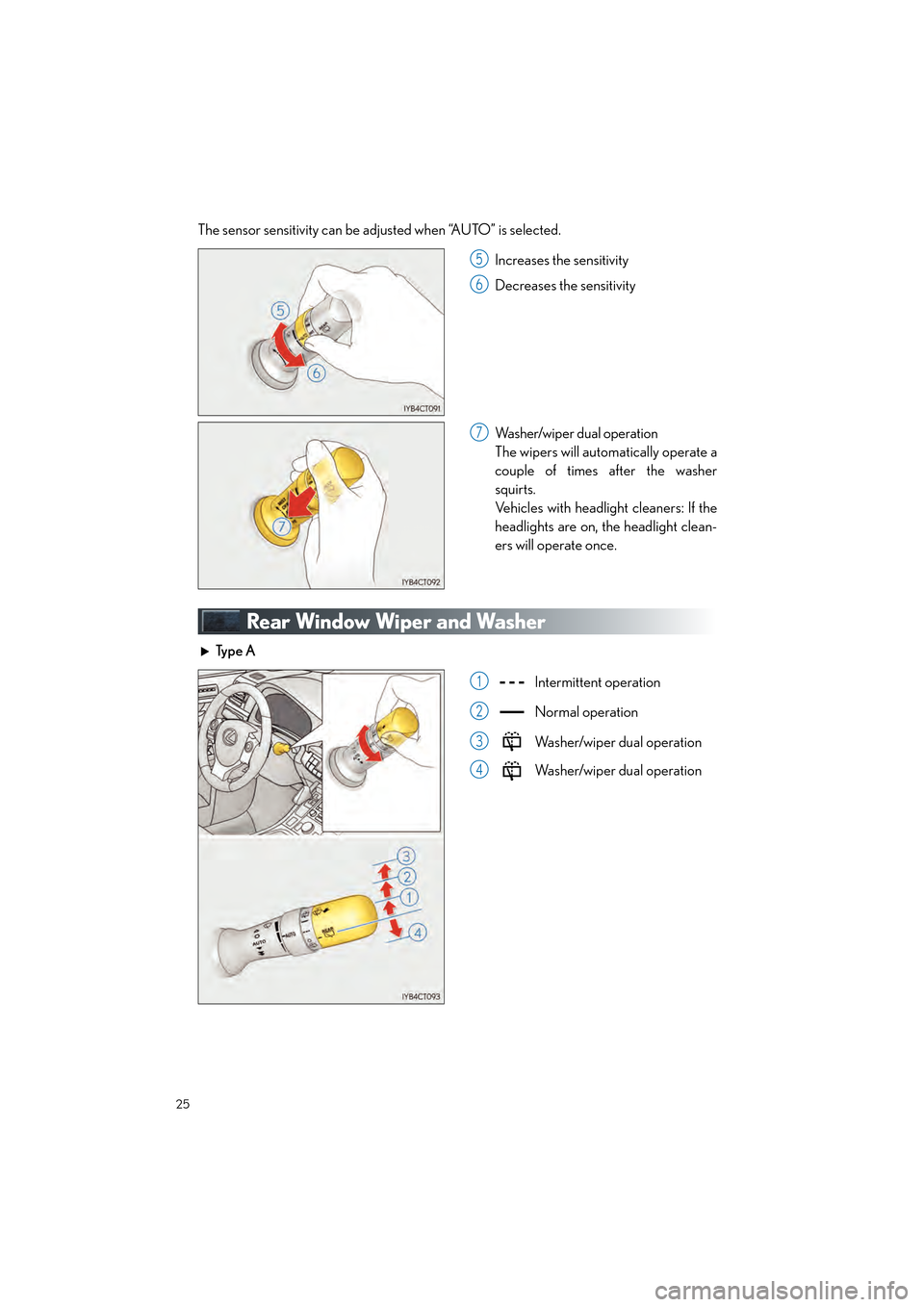

25
CT200h_QG_OM76185U_(U)
The sensor sensitivity can be adjusted when “AUTO” is selected.Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer
squirts.
Vehicles with headlight cleaners: If the
headlights are on, the headlight clean-
ers will operate once.
Rear Window Wiper and Washer
Ty p e A
Intermittent operation
Normal operation
Washer/wiper dual operation
Washer/wiper dual operation
5
6
7
1
2
3
4
