CT200h_OM_OM76174U_(U)9-2. Customization
9
Vehicle specifications
Customizable features
Some function settings are changed simu
ltaneously with other functions being
customized. Contact your Lexus dealer for further details.
When customizing vehicle features, ensure that the vehicle is parked in a safe
place with the shift position in P and the parking brake set.
■Changing using the Remote Touch
Press the “MENU” button on the Remote Touch.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing using the Lexus Display Audio controller
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing using the “DISP” switch
Press the “DISP” switch to display the “SETTINGS” screen while the vehi-
cle is stopped, and then press and hold the “DISP” switch to display the cus-
tomize mode screen.
Press the “DISP” switch and select the item, and then press and hold the
“DISP” switch.
Press the “DISP” switch and select the desired setting, and then press and
hold the “DISP” switch.
To go back to the previous screen or exit the customize mode, press the
“DISP” switch to select the “EXIT”, and then press and hold the “DISP” switch.
Your vehicle includes a variety of electronic features that can be personalized
to suit your preferences. The settings of these features can be changed using
the “DISP” switch, the Remote Touch or Lexus Display Audio controller, or at
your Lexus dealer.
Customizing vehicle features
1
2
1
2
1
2
3

592
CT200h_OM_OM76174U_(U)9-2. Customization
Vehicles with a navigation system or Lexus Display Audio system: Settings
that can be changed using the screen of the Remote Touch or Lexus Display
Audio controller
Vehicles with a navigation system or Lexus Display Audio system: Settings
that can be changed using the “DISP” switch
Vehicles without a navigation system or Lexus Display Audio system: Settings
that can be changed using the “DISP” switch
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, – =Not available
■Door lock ( →P. 1 0 5 , 5 5 9 )
Customizable Features
1
2
3
4
FunctionDefault
settingCustomized setting
Unlocking on second key
turn
On
(Driver’s door
unlocked in first
step, all doors
unlocked in sec-
ond step)
Off
(All doors
unlocked in first
step)
–––O
Speed linked door locking
functionOffOnO–OO
Shift position linked door
locking functionOnOffO–OO
Shift position linked door
unlocking functionOnOffO–OO
Driver’s door linked door
unlocking functionOffOnO–OO
1234

596
CT200h_OM_OM76174U_(U)9-2. Customization
■Instrument cluster (
→P. 8 4 , 8 8 )
*: If equipped
■Automatic air conditioning system ( →P. 4 0 8 , 4 1 6 )
FunctionDefault
settingCustomized setting
Display of the tachometer
and Hybrid System Indicator AutoHybrid system
indicator (always) – OOO
Tachometer
(always)
Eco lampEco drive sup- portOn (always)–OOOOff
Sport lampOnOff–OOO
Brightness of Eco lamp and
sport lampStandardBright–OOO
EV indicatorAutoOff–OOO
LanguageEnglishFrench–OOOSpanish
Units
(except for Canada)miles (MPG)
km (km/L)
–OOOkm
(L/100km)
Units
(For Canada)km
(L/100km)km (km/L)–OOOmiles (MPG)
Sensitivity of the ambient
light sensor used for dim-
ming the meter light etc.
*
Standard-2 to 2–––O
Sensitivity of the ambient
light sensor used for bright-
ening the meter light etc.
*
Standard-2 to 2–––O
1234
FunctionDefault settingCustomized setting
A/C Auto switch operationOffOnO–OO
Heating/cooling operation
minimized in Eco drive
mode
OnOff–––O
1234

CT200h_OM_OM76174U_(U)
5979-2. Customization
9
Vehicle specifications
■Po w e r w i n d o w s (→P. 1 3 6 )
*: This function cannot be customized unless power window operation using the wire-
less remote control is enabled.
■Intuitive parking assist* (→ P. 1 9 9 )
*: If equipped
■Seat belt reminder ( →P. 529)
FunctionDefault
settingCustomized setting
Mechanical key linked oper-
ation (close) Off On – – – O
Mechanical key
linked operation (open)
Off On–––O
Wireless remote control
linked operation (open) OffOn
(Open only) –––O
Buzzer sounds if operated
using wireless remote con-
trol
*
OnOff–––O
1234
FunctionDefault
settingCustomized setting
Alert Volume
(Alert volume can be
adjusted)
31 to 5O––O
Display
(Automatic display off the
LEXUS Park Assist graphic
can be enabled/disabled)
OnOffO––O
Distance
(Distance mode can be
selected)LongShortO––O
1234
FunctionDefault settingCustomized setting
Vehicle speed linked seat
belt reminder buzzerOnOff–––O
1234

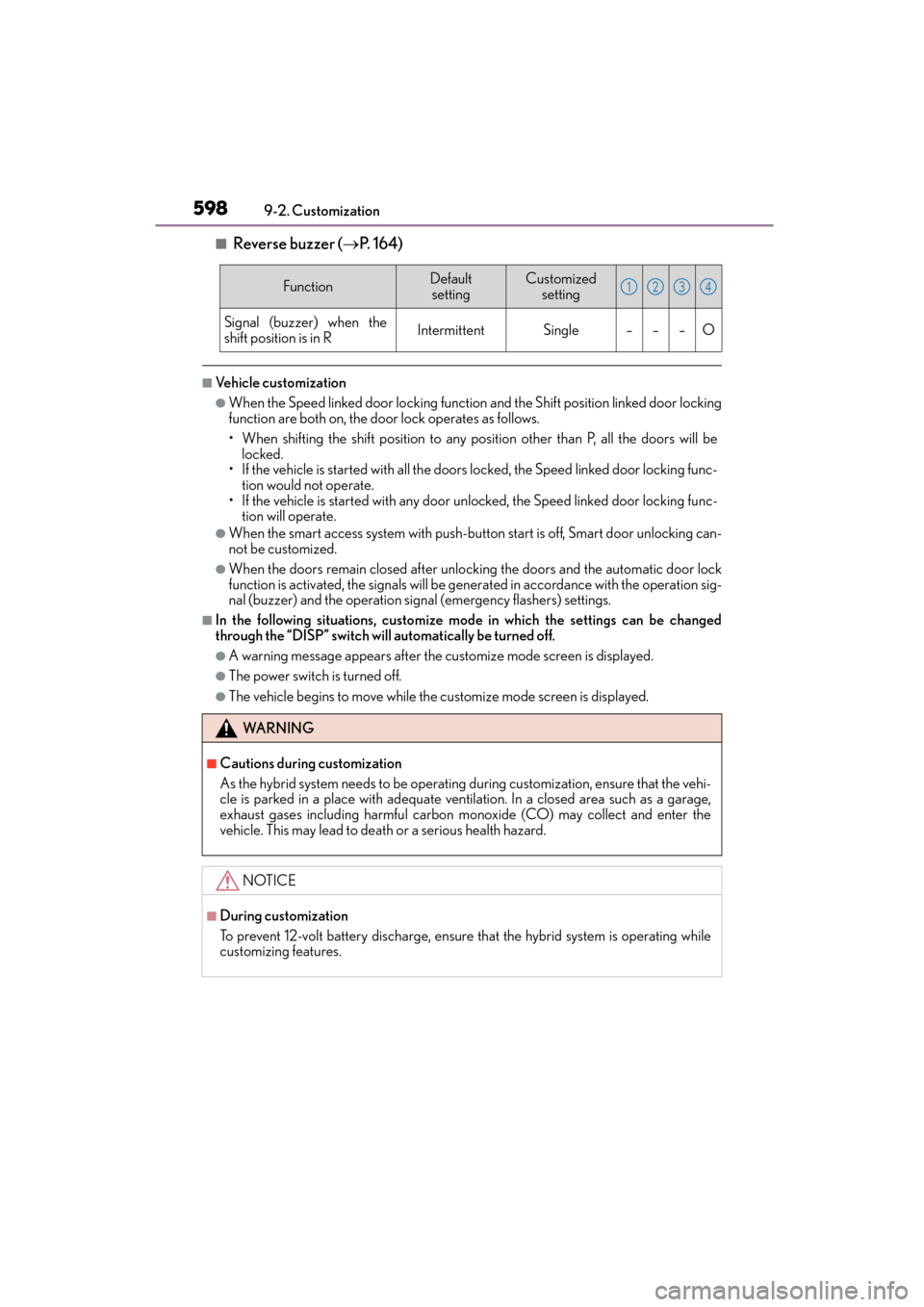

598
CT200h_OM_OM76174U_(U)9-2. Customization
■Reverse buzzer (
→P. 1 6 4 )
■Vehicle customization
●When the Speed linked door locking function and the Shift position linked door locking
function are both on, the door lock operates as follows.
• When shifting the shift position to any po sition other than P, all the doors will be
locked.
• If the vehicle is started with all the doors locked, the Speed linked door locking func- tion would not operate.
• If the vehicle is started with any door un locked, the Speed linked door locking func-
tion will operate.
●When the smart access system with push-butto n start is off, Smart door unlocking can-
not be customized.
●When the doors remain closed after unlock ing the doors and the automatic door lock
function is activated, the signals will be generated in accordance with the operation sig-
nal (buzzer) and the operation signal (emergency flashers) settings.
■In the following situations, customize mode in which the settings can be changed
through the “DISP” switch will automatically be turned off.
●A warning message appears after the cu stomize mode screen is displayed.
●The power switch is turned off.
●The vehicle begins to move while the customize mode screen is displayed.
FunctionDefault
settingCustomized setting
Signal (buzzer) when the
shift position is in RIntermittentSingle–––O
WA R N I N G
■Cautions during customization
As the hybrid system needs to be operating during customization, ensure that the vehi-
cle is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful carbon monoxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
customizing features.
1234

614What to do if... (Troubleshooting)
CT200h_OM_OM76174U_(U)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 5 2 9 )
●The parking brake indicator is on
Is the parking brake released? ( →P. 1 6 8 )
Depending on the situation, other type s of warning buzzer may also sound.
( → P. 5 2 7 , 5 3 4 )
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 7 5 )
To stop the alarm, turn the power switch to ON mode or start the hybrid system.
●Is the electronic key left inside th e vehicle or the moon roof opened?
Check the message on the multi-information display. ( →P. 5 3 4 )
●When a warning light turns on or a warning message is displayed, refer to
P. 5 2 7 , 5 3 4 . A warning buzzer sounds during driving
An alarm is activate
d and the horn sounds
A warning buzzer sounds wh en leaving the vehicle
A warning light turns on or a warning message is displayed

617Alphabetical index
CT200h_OM_OM76174U_(U)
Audio system (with navigation system)
*
Audio system (with Lexus Display Audio system) .................... 320
Antenna ..................................................344
Audio input............................................326
AUX port ...............................................326
Bluetooth
® audio ............................. 369
CD player .............................................. 347
iPod .......................................................... 353
MP3/WMA disc ............................... 347
Optimal use ......................................... 335
Portable music player ..................... 360
Radio ......................................................... 341
Setup menu .......................................... 328
Steering wheel audio switches ...............................................325
USB memory ...................................... 356 Audio system (without Lexus
Display Audio system).....................252
Antenna .................................................. 262
Audio input ........................................... 255
AUX port .............................................. 255
Bluetooth
® audio............................... 310
CD player/changer ......................... 265
iPod............................................................272
MP3/WMA disc ............................... 265
Optimal use.......................................... 257
Portable music player ..................... 255
Radio ........................................................ 259
Steering wheel audio switches .............................................. 254
USB memory....................................... 278
Automatic air conditioning system
Air conditioning filter ...................... 500
Automatic air conditioning system ....................................... 408, 416
Automatic headlight leveling
system ........................................................171
Automatic light control system ..........171
AUX port ..................................... 255, 326
Auxiliary boxes ..................................... 433
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

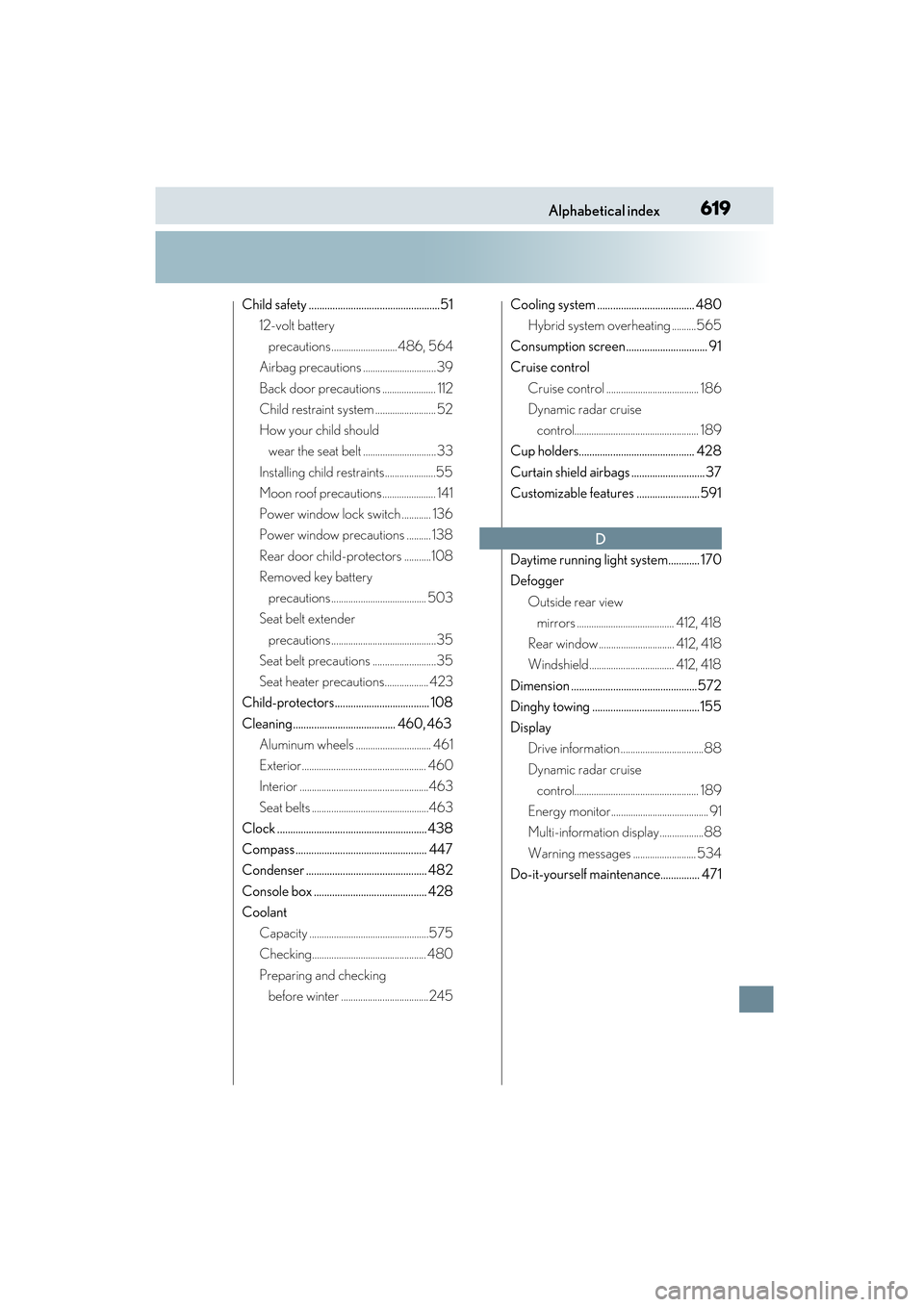

619Alphabetical index
CT200h_OM_OM76174U_(U)
Child safety ..................................................5112-volt battery
precautions...........................486, 564
Airbag precautions .............................. 39
Back door precautions ...................... 112
Child restraint system ......................... 52
How your child should wear the seat belt .............................. 33
Installing child restraints.....................55
Moon roof precautions...................... 141
Power window lock switch ............ 136
Power window precautions .......... 138
Rear door child-protectors ...........108
Removed key battery precautions....................................... 503
Seat belt extender
precautions...........................................35
Seat belt precautions ..........................35
Seat heater precautions.................. 423
Child-protectors.................................... 108
Cleaning....................................... 460, 463 Aluminum wheels ............................... 461
Exterior................................................... 460
Interior .....................................................463
Seat belts ................................................463
Clock ......................................................... 438
Compass .................................................. 447
Condenser .............................................. 482
Console box ........................................... 428
Coolant
Capacity .................................................575
Checking............................................... 480
Preparing and checking before winter ....................................245 Cooling system ..................................... 480
Hybrid system overheating ..........565
Consumption screen ............................... 91
Cruise control Cruise control ...................................... 186
Dynamic radar cruise control................................................... 189
Cup holders............................................ 428
Curtain shield airbags ............................ 37
Customizable features ........................591
Daytime running light system............ 170
Defogger
Outside rear view mirrors ........................................ 412, 418
Rear window ............................... 412, 418
Windshield................................... 412, 418
Dimension ................................................572
Dinghy towing ......................................... 155
Display Drive information ..................................88
Dynamic radar cruise control................................................... 189
Energy monitor........................................ 91
Multi-information display..................88
Warning messages .......................... 534
Do-it-yourself maintenance............... 471
D
