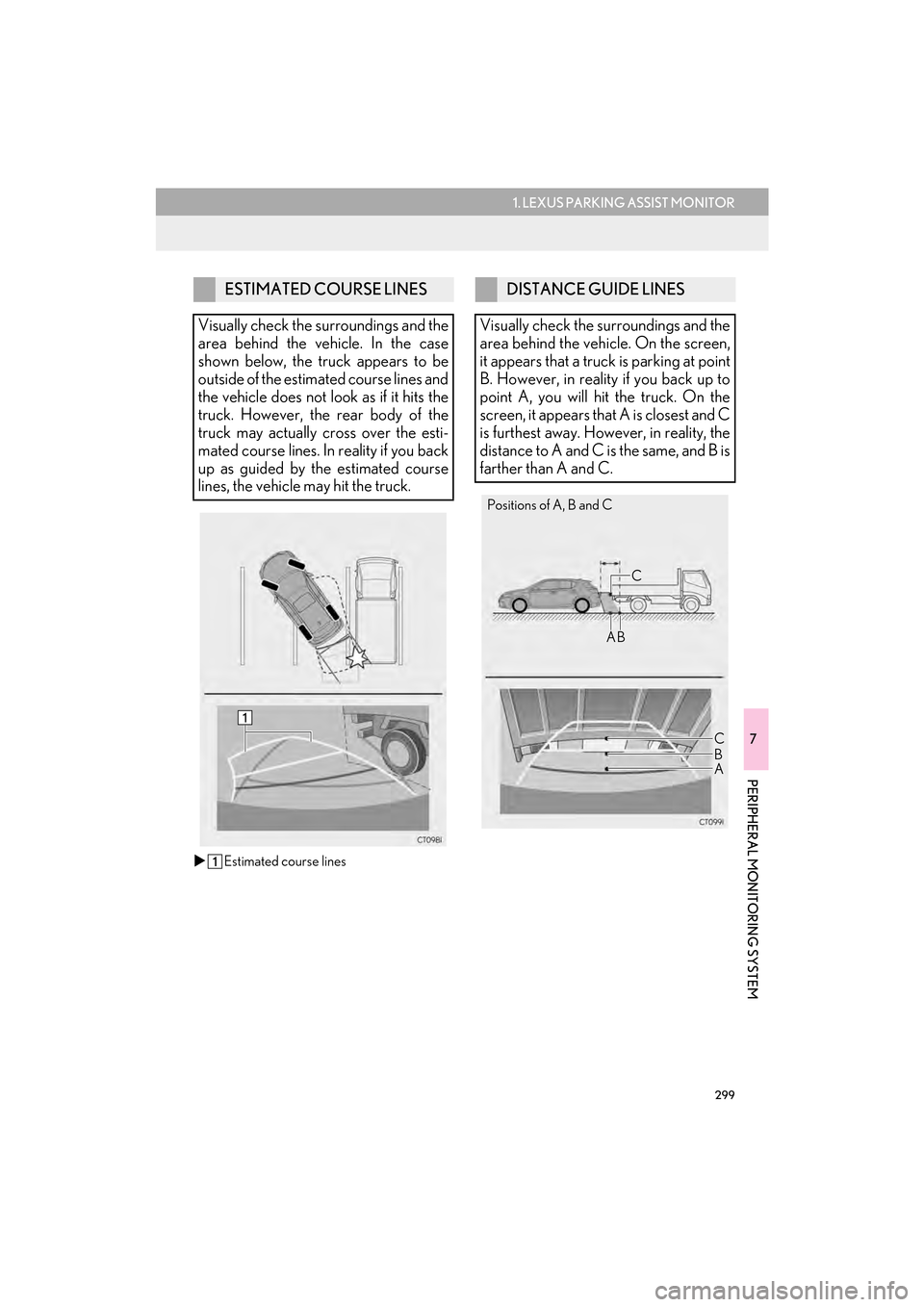

1. LEXUS PARKING ASSIST MONITOR
7
PERIPHERAL MONITORING SYSTEM
CT200h_Navi_OM76146U_(U)14.06.17 09:48
XEstimated course lines
ESTIMATED COURSE LINES
Visually check the surroundings and the
area behind the vehicle. In the case
shown below, the truck appears to be
outside of the estimated course lines and
the vehicle does not look as if it hits the
truck. However, the rear body of the
truck may actually cross over the esti-
mated course lines. In reality if you back
up as guided by the estimated course
lines, the vehicle may hit the truck.DISTANCE GUIDE LINES
Visually check the surroundings and the
area behind the vehicle. On the screen,
it appears that a truck is parking at point
B. However, in realit y if you back up to
point A, you will hit the truck. On the
screen, it appears that A is closest and C
is furthest away. However, in reality, the
distance to A and C is the same, and B is
farther than A and C.
Positions of A, B and C
C
A B
C
AB

300
1. LEXUS PARKING ASSIST MONITOR
CT200h_Navi_OM76146U_(U)14.06.17 09:48
5. THINGS YOU SHOULD KNOW
If you notice any of the following symptoms, refer to the likely cause and the solution,
and re-check.
If the symptom is not resolved by the solution, have the vehicle inspected by your Lexus
dealer.
IF YOU NOTICE ANY SYMPTOMS
SymptomLikely causeSolution
The image is difficult to see
•The vehicle is in a dark area
• The temperature around
the lens is either high or low
• The outside temperature is
low
• There are water droplets on
the camera
• It is raining or humid
• Foreign matter (mud etc.) is
adhering to the camera
• Sunlight or headlights are
shining directly into the
camera
• The vehicle is under fluo-
rescent lights, sodium lights,
mercury lights etc.
Back up while visually check-
ing the vehicle’s surroundings.
(Use the monitor again once
conditions have been im-
proved.)
The procedure for adjusting
the picture quality of the park-
ing assist monitor is the same
as the procedure for adjusting
the navigation screen.
(→ P.44)
The image is blurry
Dirt or foreign matter (such as
water droplets, snow, mud
etc.) is adhering to the cam-
era.Rinse the camera lens with
water and wipe it clean with a
soft cloth.
Wash with a mild soap if the
dirt is stubborn.
The image is out of alignmentThe camera or surrounding
area has received a strong im-
pact.Have the vehicle inspected by
your Lexus dealer.
The guide lines are very far
out of alignment
The camera position is out of
alignment.Have the vehicle inspected by
your Lexus dealer.
•The vehicle is tilted (there is
a heavy load on the vehicle,
tire pressure is low due to a
tire puncture, etc.)
• The vehicle is used on an
incline.If this happens due to these
causes, it does not indicate a
malfunction.
Back up while visually check-
ing the vehicle’s surroundings.
The estimated course lines
move even though the steer-
ing wheel is straightThere is a malfunction in the
signals being output by the
steering sensor.Have the vehicle inspected by
your Lexus dealer.

301
1. LEXUS PARKING ASSIST MONITOR
7
PERIPHERAL MONITORING SYSTEM
CT200h_Navi_OM76146U_(U)14.06.17 09:48
Guide lines are not displayedThe back door is open.
Close the back door.
If this does not resolve the
symptom, have the vehicle in-
spected by your Lexus dealer.
The estimated course lines
are not displayed
•The steering wheel has
been moved while the 12-
volt battery was being rein-
stalled.
• 12-volt battery power is low.
• The steering sensor has
been reinstalled.
• There is a malfunction in the
signals being output by the
steering sensor.
Stop the vehicle, and turn the
steering wheel as far as it will
go to the left and right.
If this does not resolve the
symptom, have the vehicle in-
spected by your Lexus dealer.
SymptomLikely causeSolution

302
