2015 Lancia Ypsilon buttons

SPEED VOLUME function
(speed-based volume change)
(excluding versions with 360° HI-FI MUSIC
system)
This function automatically adapts the volume
level to the speed of the car, increasing the volume
when the speed increases to maintain the ratio
with the noise level inside the passenger
compartment.
To turn the function on/off, press the
/
buttons. The words "Speed volume" appear on
the display, followed by the current status of the
function:
❒Off: function deactivated
❒Low: function activated (low setting)
❒High: function activated (high setting).
RADIO ON VOLUME function
(radio volume limit activation/deactivation)
This function makes it possible to
activate/deactivate the volume limits when the
radio is turned on.
The display shows the function status:
❒“Radio on vol – Limit on”: when the radio is
switched on the volume level will be: – if the
volume level is equal to or higher than the
maximum value or higher, the radio will come
on at the maximum volume;– if the volume level is between the minimum and
maximum values, the radio will come on at the
same volume as before it was switched off
❒"Radio on vol – Limit off": the radio will come
on at the volume level it was at before switching
off. The volume level can be between 0 and 40.
To change the setting of the selected function, use
the
/buttons.
NOTES
❒Using the Menu it is only possible to adjust the
activation/deactivation of the function and not
the minimum or maximum volume value.
❒If the "TA" or "TEL" functions or an outside
audio source are activated when the radio is
turned on, the radio will come on at the volume
set for these sources. The volume can be
adjusted between the minimum and the
maximum level, by deactivating the external
audio source.
❒If the battery charge is low, it will not be
possible to adjust the volume between the
minimum and maximum levels.
287
SOUND-SYSTEM

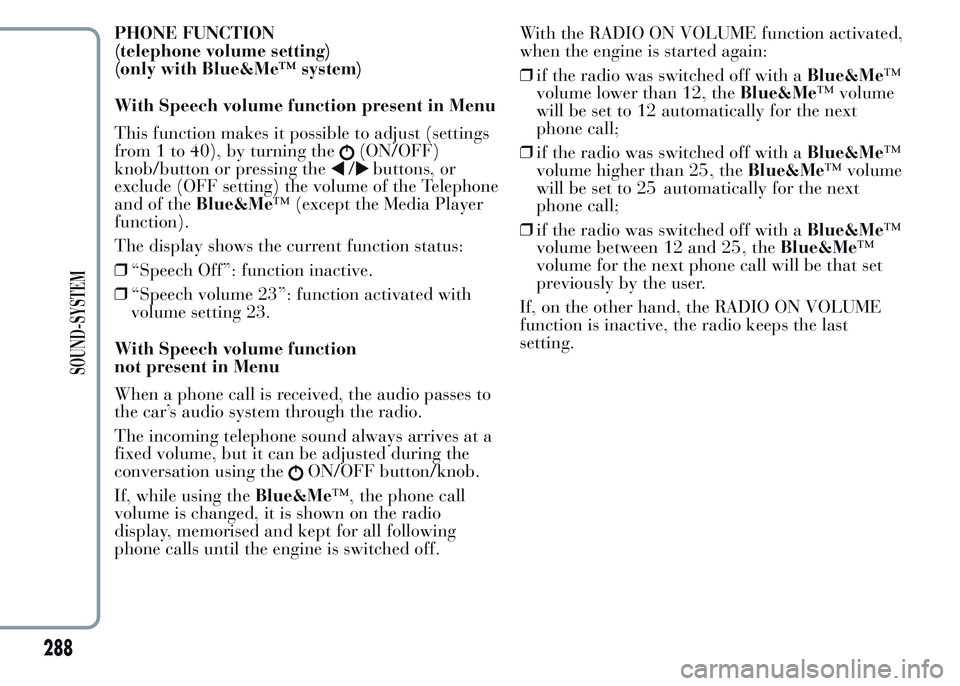

PHONE FUNCTION
(telephone volume setting)
(only with Blue&Me™ system)
With Speech volume function present in Menu
This function makes it possible to adjust (settings
from 1 to 40), by turning the
(ON/OFF)
knob/button or pressing the
/buttons, or
exclude (OFF setting) the volume of the Telephone
and of theBlue&Me™ (except the Media Player
function).
The display shows the current function status:
❒“Speech Off”: function inactive.
❒“Speech volume 23”: function activated with
volume setting 23.
With Speech volume function
not present in Menu
When a phone call is received, the audio passes to
the car’s audio system through the radio.
The incoming telephone sound always arrives at a
fixed volume, but it can be adjusted during the
conversation using the
ON/OFF button/knob.
If, while using theBlue&Me™, the phone call
volume is changed, it is shown on the radio
display, memorised and kept for all following
phone calls until the engine is switched off.With the RADIO ON VOLUME function activated,
when the engine is started again:
❒if the radio was switched off with aBlue&Me™
volume lower than 12, theBlue&Me™ volume
will be set to 12 automatically for the next
phone call;
❒if the radio was switched off with aBlue&Me™
volume higher than 2 , theBlue&Me™ volume
will be set to 2 automatically for the next
phone call;
❒if the radio was switched off with aBlue&Me™
volume between 12 and 2 , theBlue&Me™
volume for the next phone call will be that set
previously by the user.
If, on the other hand, the RADIO ON VOLUME
function is inactive, the radio keeps the last
setting.
288
SOUND-SYSTEM
5
5 5

AUX OFFSET function
(alignment of the portable device volume with
that of the other sources)
(for versions/markets, where provided)
This function enables the alignment of the volume
of the AUX source, depending on its own portable
player, with that of the other sources.
To activate the function, press the MENU button
and select “AUX offset”.
Press the buttons
orto decrease or increase
the volume value (set from–6to+6).RADIO OFF function
(on and off mode)
This function is used to set the radio turning off
mode to one of two different settings. To turn the
function on, use the
orbuttons.
The chosen mode appears on the display:
❒"00 MIN": the radio turns off automatically in
connection with the ignition key; the radio turns
off automatically as soon as the key is turned to
the STOP position;
❒"20 MIN": the radio turns off independently of
the ignition key; the radio remains switched on
for a maximum period of 20 minutes after the
key has been turned to the STOP position.
289
SOUND-SYSTEM

Car radio passport
This document certifies ownership of the radio.
The car radio passport shows the radio model,
serial number and secret code.
NoteKeep this car radio passport in a safe place
so that you can give the information to the
relevant authorities if the car radio is stolen.
In case of loss of the car radio passport, contact
the Lancia Dealership, taking an ID document and
the car ownership documents.RADIO (TUNER)
INTRODUCTION
When the radio is switched on, the last function
selected before it was switched off is activated:
Radio, CD, CD MP3 or Media Player (only with
Blue&Me™) or AUX (only withBlue&Me™, for
versions/markets, where provided).
To select the Radio function when another audio
source is being listened to, briefly press the FM AS
or AM buttons depending on the desired band.
Once the Radio mode has been activated, the
display will show the name (RDS stations only)
and the frequency of the selected radio station, the
frequency band selected (e.g. FM1) and the
preselect button number (e.g. P1).
292
SOUND-SYSTEM

FREQUENCY BAND SELECTION
With the Radio mode active, press the FM AS or
AM button briefly and repeatedly to select the
desired reception band.
Each time the button is pressed the following
bands are selected cyclically:
❒By pressing the FM AS button: “FM1”, “FM2”
or “FMA”;
❒By pressing the AM button: “MW1, MW2”.
Each band is highlighted by the name in the
display. The last station selected on the respective
frequency band will be tuned into.
The FM band is divided into sections: FM1, FM2
or "FMA"; the FMA reception band is reserved for
broadcasters stored automatically using the
Autostore function.PRESET BUTTONS
The buttons numbered from 1 to 6 are used to set
the following preset stations:
❒18 in the FM band (6 in FM1, 6 in FM2, 6 in
FMT or "FMA" (on some versions);
❒12 in the MW band (6 in MW1, 6 in MW2).
To listen to a preset station, select the desired
frequency band and then briefly press the
corresponding preset button (from 1 to 6).
By pressing the preset button for more than 2
seconds, the tuned station will be stored. The
storing phase is confirmed by a beep.
STORING THE LAST STATION LISTENED TO
The radio automatically stores the last station that
was selected for each reception band, which is
then tuned into when the radio is turned on or
when the reception band is changed.
293
SOUND-SYSTEM

AUTOMATIC TUNING
Briefly press the
orbutton to start the
automatic tuning search for the next station that
can be received in the selected direction.
If the
orbutton is pressed down longer, the
fast search starts. When the button is released, the
tuner will stop on the next station that can be
received.
If the TA function (traffic alerts) is on, the tuner
will only search for stations that broadcast traffic
news and alerts.
MANUAL TUNING
This is used to manually search for stations in the
preselected band.
Select the desired frequency band and then press
the or
button briefly and repeatedly to start to
the search in the desired direction.
If the or
buttons are pressed longer, the fast
search will start and then stop when the button is
released.AUTOSTORE FUNCTION
(station automatic store)
To activate the Autostore function, hold the FM AS
button pressed until a beep is heard. With this
function, the radio automatically stores the 6
stations with the strongest signal in a decreasing
order on the FMA frequency band.
During the automatic storing process, the text
“Autostore” flashes on the display.
Press the FM AS button again to stop the
Autostore function: the radio will again tune into
the station listened to before the activation of the
function.
When the Autostore function is over, the radio
automatically tunes into the first preselected
station on the FMA band on the preset side 1.
The stations that have a strong signal at that
moment are then automatically stored in the
preselected band in the buttons numbered 1 to 6.
294
SOUND-SYSTEM
When the Autostore function is activated within
the MW band, the FMA band is automatically
selected and the function is performed.
NoteSometimes the Autostore function is not able
to find 6 stations with a strong signal. In this case,
the strongest stations stored will be duplicated in
the free preset buttons.
NoteWhen the Autostore function is activated, the
stations that were previously stored in the FMA
band are deleted.
