2015 Lancia Delta display

SAFETY177
2

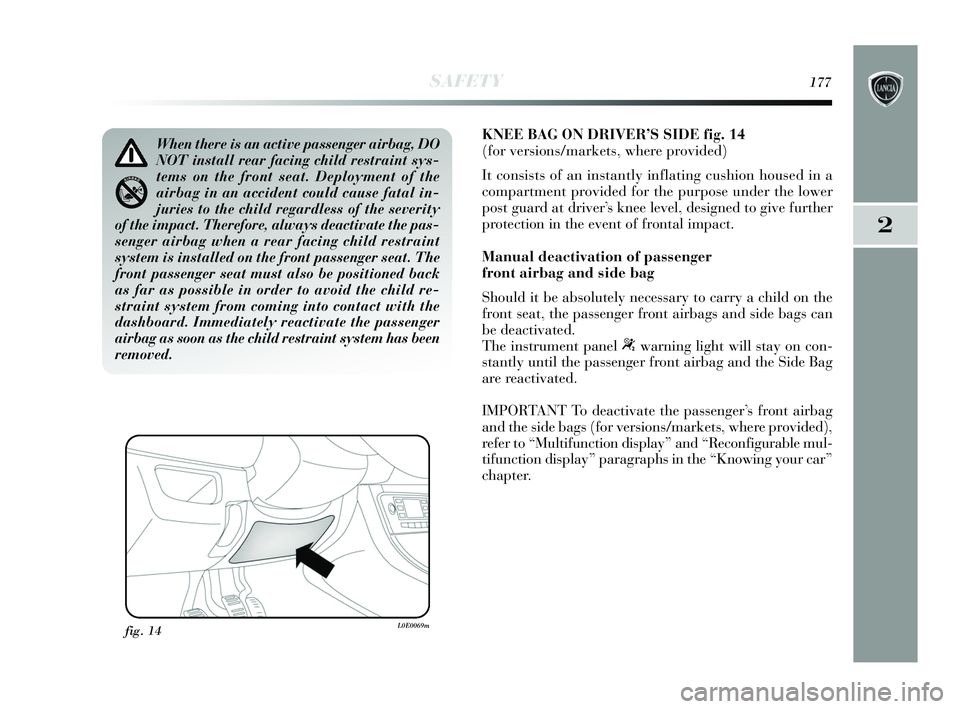

KNEE BAG ON DRIVER’S SIDE fig. 14
(for versions/markets, where provided)
It consists of an instantly inflating cushion housed in a
compartment provided for the purpose under the lower
post guard at driver’s knee level, designed to give further
protection in the event of frontal impact.
Manual deactivation of passenger
front airbag and side bag
Should it be absolutely necessary to carry a child on the
front seat, the passenger front airbags and side bags can
be deactivated.
The instrument panel
“warning light will stay on con-
stantly until the passenger front airbag and the Side Bag
are reactivated.
IMPORTANT To deactivate the passenger’s front airbag
and the side bags (for versions/markets, where provided),
refer to “Multifunction display” and “Reconfigurable mul-
tifunction display” paragraphs in the “Knowing your car”
chapter.
fig. 14L0E0069m
When there is an active passenger airbag, DO
NOT install rear facing child restraint sys-
tems on the front seat. Deployment of the
airbag in an accident could cause fatal in-
juries to the child regardless of the severity
of the impact. Therefore, always deactivate the pas-
senger airbag when a rear facing child restraint
system is installed on the front passenger seat. The
front passenger seat must also be positioned back
as far as possible in order to avoid the child re-
straint system from coming into contact with the
dashboard. Immediately reactivate the passenger
airbag as soon as the child restraint system has been
removed.
155-182 Delta GB 1ed 26/08/13 11.29 Pagina 177

REPLACING THE BATTERY
If required, replace the battery with a genuine spare part
with the same specifications.
If a battery with different specifications is fitted, the ser-
vice intervals given in the “Scheduled Servicing Plan” will
no longer be valid.
Follow the battery manufacturer’s instructions for main-
tenance.
Advanced ESP system
If the battery is disconnected, the áwarning light will
switch on (together with a message in the display) to in-
dicate that the system must be realigned. To switch the
warning light off, carry out the following initialisation pro-
cedure:
❍ turn the ignition key to MAR:
❍ turn the steering wheel fully both clockwise and anti-
clockwise (to move from the position with the wheels
straight);
❍ turn the ignition key to STOP and then to MAR.
If the á warning light does not go out after a few seconds,
go to a Lancia Dealership.
244
MAINTENANCE AND CARE
Battery fluid is poisonous and corrosive.
Avoid contact with skin and eyes. Keep naked
flames or possible sources of sparks away
from the battery: risk of explosion or fire.
Using the battery when the fluid is too low
can damage it irreparably and generate a
risk of explosion.
BATTERY
The car is fitted with a low-maintenance battery F - fig.
1: no electrolyte top-ups with distilled water are needed
in standard conditions of use.
It does need to be checked regularly at a Lancia Dealer-
ship or by specialised personnel to make sure that it is
working properly.
233-256 Delta GB 1ed 03/04/14 13:27 Pagina 244

284LIST OF CONTENTS
Engine codes/Bodywork versions ................ 260
Engine compartment (washing) ............................. 255
Engine.................................... 261
EOBD (system )....................... 124
External lights ........................ 67
Fitting the “Universal” child
restraint system .................... 163
Fix&Go Automatic (kit)..........198
Flashing ................................. 69
Fluids and lubr icants.............. 273
Fog lights......................... 68-79
- bulb replacement................ 217
Follow Me Home (device) ....... 70
Front headlights (cleaning) ..... 255
Front roof lights (bulb replacement) ............... 219
Front/rear armrest ........... 81-83 Fuel cap ................................. 151
Fuel consumpt
ion ................... 275
Fuel cut-off ............................ 80
Fuel supply system ................. 262
Fuses (replacement)................ 223
Gear Shift Indicator (GSI) ..... 28
Gearbox (use) ......................... 188
Glove compartment light (bulb replacem ent) ...............222
Glove compartment ................ 84
Handbrake............................. 187
Hazard warning lights ............ 78
Head restraints ....................... 55
Headlights .............................. 105
Hill Holder (syst em) ..............118
Identification data .................. 258
Ignition dev ice ........................ 51
Display .................................. 26
Door locking ........................... 89
Doors
..................................... 89
– child safety lock .................. 90
– passenger side front door and rear door emergency locking
device ................................... 91
Driving Advisor (syst em) ........ 110
Driving Advisor ..................... . 110
DRL (Daytime Running Lights) .... 67
DST (Dynamic Steering Torque) ... 107
Dualdrive (electric power steering system ) ............. 77-125Electric windows .................... 91
End of veh icle life................... 277
281-288 Delta GB 1ed 03/03/14 09.32 Pagina 284
