2015 Lancia Delta technical specifications

270TECHNICAL SPECIFICATIONS
PERFORMANCE
Max. allowed speeds during the initial period of usage of the car.
1.6 Multijet 105 HP: 186 km/h.
1.6 Multijet 120 HP: 194 km/h.
257-280 Delta GB 1ed 02/09/13 09.37 Pagina 270

TECHNICAL SPECIFICATIONS271
6
1410570
1090 950
1980
1300 500
80
60

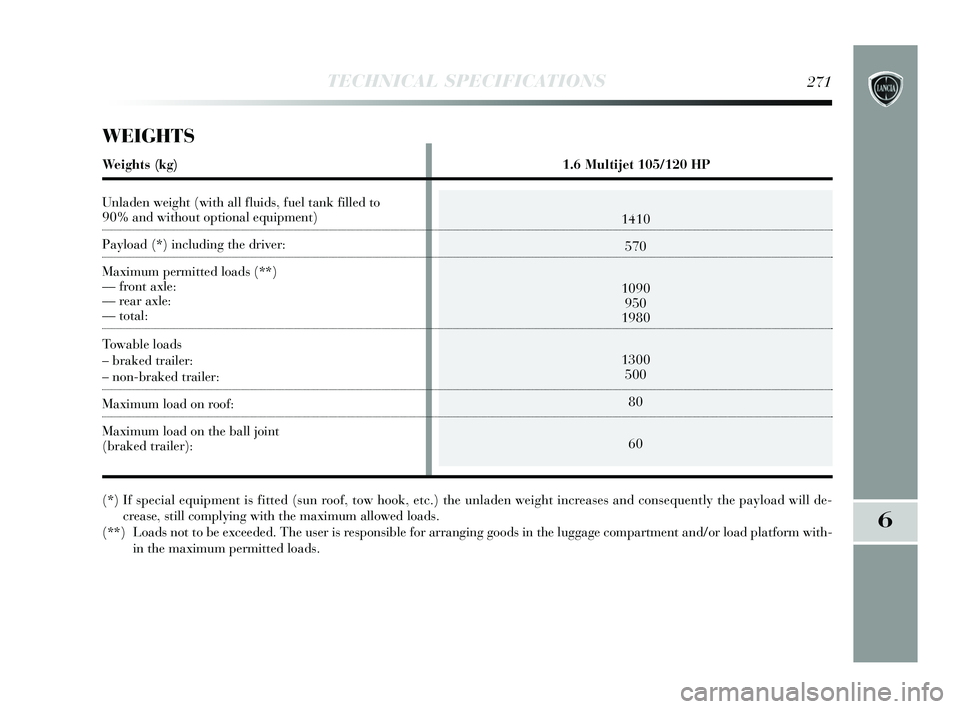

WEIGHTS
Weights (kg) 1.6 Multijet 105/120 HP
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)
Payload (*) including the driver:
Maximum permitted loads (**)
–– front axle:
–– rear axle:
–– total:
Towable loads
– braked trailer:
– non-braked trailer:
Maximum load on roof:
Maximum load on the ball joint
(braked trailer):
(*) If special equipment is fitted (sun roof, tow hook, etc.) the unladen weight increases and consequently the payload will de- crease, still complying with the maximum allowed loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load pl\
atform wit h-
in the maximum permitted loads.
257-280 Delta GB 1ed 02/09/13 09.37 Pagina 271

58–
8/10 –
7.1 –
4.3 3.6
4.9 4.1
1.87 1.7
–0 .8
6–
CAPACITIES
272TECHNICAL SPECIFICATIONS
(▲) When the vehicle is used in particularly harsh climate conditions, we recommend using a mixture of 60% PARAFLU UPand
40% distilled water.
Diesel fuel for motor vehicles
(EN590 specification)
Mixture of demineralised water
and PARAFLU
UPin 50-50 proportion ( ▲)
SELENIA WR FORWARD
TUTELA TRANSMISSION GEARFORCE
TUTELA TOP 4
Water and fluid mixture
TUTELA PROFESSIONAL SC 35
1.6 MultiJet 105/120 HP Prescribed fuels
and original lubricants
litres kg
Fuel tank:
including a reserve of:
Engine cooling system:
Engine sump:
Engine sump and filter:
Gearbox/differential
casing:
Hydraulic brake circuit
with ABS:
Windscreen/rear window
washer fluid reservoir:
257-280 Delta GB 1ed 02/09/13 09.37 Pagina 272

TECHNICAL SPECIFICATIONS273
6
In case of emergency, if lubricants with the prescribed specifications are not available, products with the minimum indicated ACEA
performance can be used for topping up; in this case optimal performance\
of the engine is not guaranteed.
FLUIDS AND LUBRICANTS
Your car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements
of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emis-
sion specifications. Lubricant quality is crucial for engine operation a\
nd duration.
PRODUCT SPECIFICATIONS
Usage Fluid and lubricant specifications Genuine fluids and Replacement
for a correct use of the car lubricantsinterval
Lubricant for
diesel engines
Synthetic based lubricant SAE 0W-30 grade.
FIAT 9.55535-DS1, ACEA C2 classification.SELENIA WR FORWARD
Contractual Technical
Reference No. F842.F13As per the
Scheduled
Servicing Plan
The use of products with specifications other than those indicated above\
could cause damage to the
engine not covered by the warranty.
257-280 Delta GB 1ed 02/09/13 09.37 Pagina 273

Gearboxes and
differentials
CV joints
differential side
CV joints
wheel side
Hydraulic brakes and
hydraulic clutch controls
windscreen/rear window
washer/wiper
Cooling circuits
Percentage of use:
50% water
50% PARAFLU
UP(❑)
To be mixed with diesel
(25 cc per 10 litres)
To be used undiluted or
diluted in windscreen/rear
window washer/wiper
systems
TUTELA TRANSMISSIONGEARFORCE
Contractual Technical
Reference No. F002.F10
TUTELA STAR 700
Contractual Technical
Reference No. F701.C07
TUTELA ALL STAR
Contractual Technical
Reference No. F702.G07
TUTELA TOP 4
Contractual Technical
Reference No. F001.A93
PARAFLU
UP(●)
Contractual Technical
Reference No. F101.M01
TUTELA DIESEL ARTContractual Technical
Reference No. F601.L06
TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02
SAE 75W grade synthetic base lubricant.
FIAT 9.55550-MZ6 classification
Grease for constant velocity joints with low friction
coefficient. NL.GI. 0-1 consistency.
FIAT 9.55580 classification
Molybdenum disulphide grease, for use at
high operating temperatures. NL.GI. 1-2 consistency
FIAT 9.55580 classification
Synthetic fluid for brake and clutch systems.
It exceeds the specifications: FMVSS no. 116 DOT 4,
ISO 4925, SAE J 1704. FIAT 9.55597 classification
Red protective agent with antifreeze action, based on
inhibited monoethylene glycol with organic formula.
Exceeds CUNA NC 956-16, ASTM D 3306 specifications.
Additive for diesel fuel, protecting Diesel engines.
Mixture of spirits and surfactants.
Exceeds CUNA NC 956-11 specifications. FIAT 9.55522 classification
274TECHNICAL SPECIFICATIONS
Brake fluid
Protective
agent
for radiators
Diesel
fuel additive
Windscreen
and rear
window
washer fluid
(●) IMPORTANT Do not top up or mix using fluids with different specifications.
(
❑) When the vehicle is used in particularly harsh climate conditions, we recommend using a mixture of 60% PARAFLUUPand
40% demineralised water.
Lubricants
and greases
for drive
transmission
Usage Fluid and lubricant specifications Fluids and lubricants Applicationsfor a correct use of the car genuine
257-280 Delta GB 1ed 02/09/13 09.37 Pagina 274

TECHNICAL SPECIFICATIONS275
6
FUEL CONSUMPTION
The fuel consumption values given in the table below are
determined on the basis of the type-approval tests laid
down by specific European Directives.
The procedures below are followed for measuring con-
sumption:
❍urban cycle: cold starting followed by driving that sim-
ulates urban use of the car;
❍ extra-urban cycle: frequent accelerating in all gears,
simulating extra-urban use of the car; speed varies be-
tween 0 and 120 km/h;
❍ combined consumption: the weighting is around 37%
urban cycle and 63% extra-urban cycle. IMPORTANT The type of route, traffic situations, weath-
er conditions, driving style, general conditions of the car,
trim level/equipment/accessories, climate control system
use, load, roof rack, other situations that affect air drag
may lead to different fuel consumption levels than those
measured.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres x 100 km)
1.6 Multijet 105 HP1.6 Multijet
120 HP
Urban5.55.6
Extra-urban3.73.8
Combined4.44.5
257-280 Delta GB 1ed 02/09/13 09.37 Pagina 275

276TECHNICAL SPECIFICATIONS
CO2EMISSIONS
The CO2emission refer to combined consumption.
CO
2EMISSIONS ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
1.6 Multijet 105 HP: 115 km/h
1.6 Multijet 120 HP: 117 km/h
257-280 Delta GB 1ed 02/09/13 09.37 Pagina 276

TECHNICAL SPECIFICATIONS277
6
PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END
OF ITS LIFE
Lancia has been committed for many years to safeguarding the environment through the constant improvement of its
production processes and manufacturing products that are increasingly compatible with the ecosystem. To assure cus-
tomers of the best possible service in terms of respecting environmental laws and in response to European Directive
2000/53/EC governing vehicles at the end of their life, Lancia is offeri\
ng their customers the opportunity of handing
over their vehicle* at the end of its life without incurring any additio\
nal costs.
The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value. In particular, in almost all European Union countries,
until 1 January 2007, vehicles registered after 1 July 2002 will be collected free of charge, whilst from 2007 collection
will be free of charge irrespective of the year of registration as long as the vehicle contains its basic components (in
particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, go t\
o one of our Lancia Dealerships or authorised
collection and scrapping centres. These centres have been carefully chosen to offer high quality service for the collec-
tion, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from a Lancia Dealership or by call-
ing the freephone number 00800 526242 00 or on the Lancia website.
* Vehicle for transporting passengers with a maximum of nine seats with a t\
otal permitted weight of 3.5 t
