Specifications, Consumer information and Reporting safety defects
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Gross vehicle weight/Luggage volume . . . . . . . . . . 8-5
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-5
Recommended lubricants and capacities . . . . . . . 8-6
• Recommended sae viscosity number . . . . . . . . . . . . . . 8-8
Vehicle identification number (VIN) . . . . . . . . . . . 8-9
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-9
Tire specification and pressure label . . . . . . . . . . 8-10
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Consumer assistance (U.S. Only) . . . . . . . . . . . . . 8-11
Electrical equipment (U.S. Only) . . . . . . . . . . . . . 8-14
Reporting safety defects (U.S. Only) . . . . . . . . . . 8-15
Online factory authorized manuals (U.S. Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
8
Specifications, Consumer information, Reporting safety defects
28

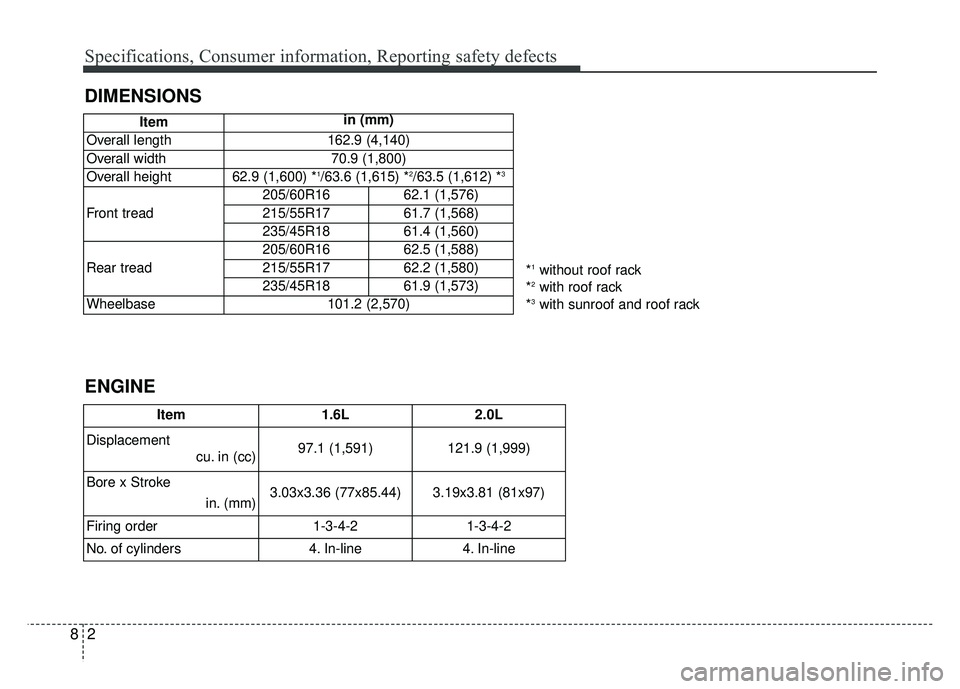

DIMENSIONS
Itemin (mm)
Overall length
162.9 (4,140)
Overall width
70.9 (1,800)
Overall height
62.9 (1,600) *1/63.6 (1,615) *2/63.5 (1,612) *3
Front tread
205/60R1662.1 (1,576)
215/55R1761.7 (1,568)
235/45R1861.4 (1,560)
Rear tread
205/60R1662.5 (1,588)
215/55R1762.2 (1,580)
235/45R1861.9 (1,573)
Wheelbase
101.2 (2,570)
*1without roof rack
*2with roof rack
*3with sunroof and roof rack
Item 1.6L 2.0L
Displacement cu. in (cc) 97.1 (1,591) 121.9 (1,999)
Bore x Stroke in. (mm)3.03x3.36 (77x85.44) 3.19x3.81 (81x97)
Firing order 1-3-4-2 1-3-4-2
No. of cylinders 4. In-line4. In-line
ENGINE
Index
4I
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 5-37Cruise control switch . . . . . . . . . . . . . . . . . . . . . . . . 5-38
To cancel cruise control, do one of the following . . 5-40
To decrease the cruising speed . . . . . . . . . . . . . . . . . 5-39
To increase cruise control set speed . . . . . . . . . . . . . 5-39
To resume cruising speed at more thanapproximately 20 mph (30 km/h) . . . . . . . . . . . . . 5-40
To set cruise control speed . . . . . . . . . . . . . . . . . . . 5-38
To temporarily accelerate with the cruise control on. . 5-39
To turn cruise control off, do one of the following. . 5-41
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-131
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-53
Dashboard illumination, see instrument panel illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
Dashboard, see instrument cluster . . . . . . . . . . . . . . . . 4-50
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-45
Daytime running light. . . . . . . . . . . . . . . . . . . . . . . . . . 4-85
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-98 Front wiper deicer . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
Outside rearview mirror defroster . . . . . . . . . . . . . . 4-99
Rear window defroster . . . . . . . . . . . . . . . . . . . . . . . 4-98
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12\
3
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
2
Display illumination, see instrument panel illumination . . 4-51 Displays, see instrument cluster . . . . . . . . . . . . . . . . . . 4-50
Do not install a child restraint on the front
passenger’s seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-40
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
17 Central door lock switch . . . . . . . . . . . . . . . . . . . . . 4-19
Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-21
Drinks holders, see cup holders . . . . . . . . . . . . . . . . . 4-131
Driver's and passenger's front air bag . . . . . . . . . . . . . . 3-49
Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-52
Driving in flooded areas . . . . . . . . . . . . . . . . . . . . . . . . 5-53
Driving in the rain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-53
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-54
Economical operation . . . . . . . . . . . . . . . . . . . . . . . . . . 5-48
Electric chromic mirror (ECM) . . . . . . . . . . . . . . . . . . 4-46
Electric power steering . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Electronic stability control (ESC) . . . . . . . . . . . . . . . . 5-29
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5 Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Emergency while driving . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Emission control system . . . . . . . . . . . . . . . . . . . . . . . . 7-93 Crankcase emission control system . . . . . . . . . . . . . 7-93
Evaporative emission control System . . . . . . . . . . . 7-93
Exhaust emission control system . . . . . . . . . . . . . . . 7-94
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 8-2
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
