2015 KIA SOUL USB

1
0037
Controls and Functions
2
On-Screen Touch Controls
6
Setup
8
Home Screen
9
FM/AM
12
HD Radio™ Technology
14
SiriusXM™
15
USB Music
18
USB Image
20
iPod
21
AUX
23
Bluetooth® Audio Mode
24
My Music
25
Using Bluetooth
27
Voice Recognition
32
FAQ
44
Navigation
46
Pandora Radio
70
Download Center
71
SiriusXM Data
73

2
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
Head Unit
NameDescription
00390032002F000E
00390032002F0010
Converts to FM/AM/SiriusXM™ mode

!Ÿ
Each time the key is pressed, the mode is changed in order of
FM →
AM →
SiriusXM™ →
FM
003000280027002C0024
Converts to MEDIA mode

!Ÿ
Press this key to move to the last mode that you accessed in
MEDIA Mode. Press it once again to display the screen where
you can select a MEDIA mode.
003800390032Displays the UVO mode

When key is pressed quickly. (under 0.8 seconds)

!Ÿ
FM/AM mode : plays previous/next frequency

!Ÿ
SiriusXM™ mode : plays the previous/next channel

!Ÿ
MEDIA (USB/iPod/My Music) mode : changes the file or title
(e xcept USB Image and A

UX)
When key is pressed and held. (over 0.8 seconds)
!Ÿ
FM/AM mode : continuously changes the frequency until the key
is released

!Ÿ
SiriusXM™ mode : continuously changes the channel until the key
is released and plays the current channel

!Ÿ
MEDIA (USB/iPod/My Music) mode : rewinds or fastforwards the
track or file (except USB Image, Bluetooth Audio and AUX)
003000240033
00390032002C00260028Displays the map for the current position
00310024Takes you to the menu screen where you can find your destination
and set the route.

3
NameDescription
0033002B003200310028Takes user to phone screen
002C003100290032Displays the information mode
00360028003700380033Displays the Setup mode
00330032003A0028003500120003
000300390032002F
!Ÿ
When power is off, press to turn power on

!Ÿ
When power is on, press and hold (over 0.8 seconds) to turn
power off

!Ÿ
When power is on, press shortly (under 0.8 seconds) to turn
Audio off

!Ÿ
Turn left/right to control volume
0037003800310028
!Ÿ
FM/AM mode : changes the frequency

!Ÿ
SiriusXM™ mode : changes the channel

!Ÿ
MEDIA (USB/iPod/My Music) mode : changes the file or title
(except USB Image, Bluetooth Audio and AUX)
00350028003600280037 Resets the system settings. (Preset radio channels and other
data will not be deleted.)
SD Card insert slot

4
Steering Wheel Control
NameDescription
00390032002F000E
00390032002F0010Controls the volume
0030003200270028

!Ÿ
Each time this key is pressed, mode is changed in order FM ª

AM ª
SiriusXM™ ª
USB Music or iPod ª
AUX ª
Bluetooth
Audio ª
My Music

!Ÿ
If the media is not connected, the corresponding modes will be
disabled

!Ÿ
Press and hold the key (over 0.8 seconds) to turn the Audio
system on/off

!Ÿ
When power is off, press the key to turn power back on
0003
0003
When keys are pressed quickly. (less 0.8 seconds)

!Ÿ
FM/AM mode : searches broadcast frequencies saved to
Presets

!Ÿ
SiriusXM™ mode : searches broadcast channels saved to
Presets

!Ÿ
MEDIA mode : changes the track, file or title (except USB
Image , Bluetooth A

udio and AUX)
When keys are pressed and held. (more 0.8 seconds)
!Ÿ
FM/AM Mode : Automatically searches broadcast frequencies

!Ÿ
SiriusXM™ mode : automatically searches broadcast channels

!Ÿ
MEDIA(USB/iPod/My Music) mode : quickly looks up songs
(excluding USB images, AUX, and Bluetooth audio files)
When pressed quickly. (less 0.8 seconds)

!Ÿ
Activates voice recognition
When pressed and held. (more 0.8 seconds)
!Ÿ
Ends voice recognition

!Ÿ
Activ e la Siri Eyes Free
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056

7
You can view the previous or next
image by flicking left/right on an
image on the USB Image screen.
Flick left/right on the frequency bar
in the radio player to look up the pre-
vious/next frequency available.
Press and Hold
Pressing the and
buttons in the music or video player
will fast forward/rewind the music or
video.

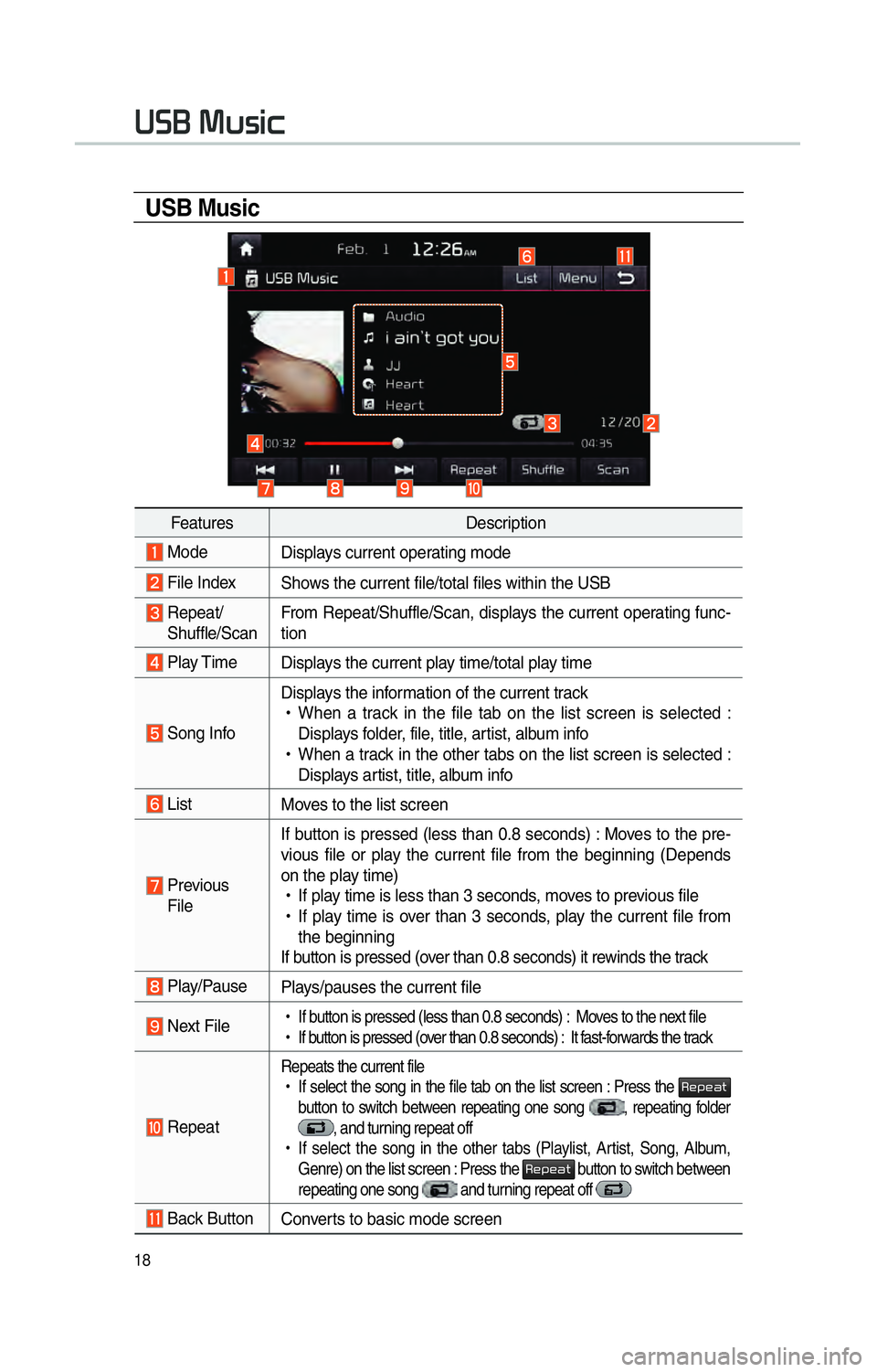

18
0038003600250003003000580056004C0046
USB Music
FeaturesDescription
Mode
Displays current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the current operating func-
tion
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track

!Ÿ
When a track in the file tab on the list screen is selected :
Displays folder, file, title, artist, album info

!Ÿ
When a track in the other tabs on the list screen is selected :
Displays artist, title, album info
List Moves to the list screen
Previous
File If button is pressed (less than 0.8 seconds) : Moves to the pre-
vious file or play the current file from the beginning (Depends
on the play time)

!Ÿ
If play time is less than 3 seconds, moves to previous file

!Ÿ
If play time is over than 3 seconds, play the current file from
the beginning
If button is pressed (over than 0.8 seconds) it rewinds the track
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If button is pressed (less than 0.8 seconds) : Moves to the next file

!Ÿ
If button is pressed (over than 0.8 seconds) : It fast-forwards the track
Repeat
Repeats the current file

!Ÿ
If select the song in the file tab on the list screen : Press the 003500480053004800440057
button to switch between repeating one song
, repeating folder , and turning repeat off

!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen : Press the
003500480053004800440057 button to switch between
repeating one song and turning repeat off
Back Button Converts to basic mode screen

19
FeaturesDescription
ShufflePlays files in random order

!Ÿ
If select the song in the file tab on the list screen : Press the
0036004B005800490049004F0048
button to switch between Shuffle Folder , Shuffle All , and
turning shuffle off

!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album, Genre)
on the list screen : Press the
0036004B005800490049004F0048 button to switch between Shuffle
Category and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)

!Ÿ
If select the song in the file tab on the list screen : Press the 0036004600440051 button to
switch between Scan Folder
, Scan All , and turning scan off

!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album, Genre)
on the list screen : Press the 0036004600440051 button to switch between Scan cat-
egory
and turning scan off
Menu
!Ÿ
Add to Playlist : Add the current track to the Playlist Playlist is placed
on the left tab in the list

!Ÿ
Save to My Music: You can save the current track to My Music. You
can play saved track from My Music without USB. Access to My
Music in the Media mode.
SEEK/
TRACK If button is pressed (less than 0.8 seconds) moves to previous/next file
or play the current track from the beginning

!Ÿ
If play time is less than 3 seconds, moves to previous/next file

!Ÿ
If play time is over than 3 seconds, play the current file from the beginning
If button is pressed (over than 0.8 seconds) it will rewind/fast-forward the track
TUNE Turn the
00370038003100280003
knob to search a desired track. If the desired track is
displayed, press the 00370038003100280003
knob to play the track.

20
0038003600250003002C00500044004A0048
USB Image
FeaturesDescription
Mode
Displays current operating mode
Folder/File
Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow Images as slideshow in 5, 10, 20, 30 second intervals
Rotate Rotate image in clockwise direction
InfoShows the file name, resolution and file type of current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next Image Swipe image left or right to see previous/next image
