2015 KIA SORENTO display

41
Route Calculation
• Once you have set a destination, cal-
culate the route. The route overview
a
nd route option menus will be dis -
played.
• After checking the Route Overview,
press the
MAP
VOICE key or the
Start Guidance button or just drive
for over 3 mph or for approximately 5
seconds to start guidance.
Demo
After a route has been calculated,
press the
Demo button to begin
simulated driving of the calculated
route.
• Within the Route Overview screen,
press the
Demo button.
• During Demo, press the MAP
VOICE
key to end the demo and display
the current map position. If you
start driving while viewing the route
demo, demo will end and route
guidance will start.
Add Waypoint
After searching for waypoints, press
the
Add Waypoint button to add
the waypoint to the current route.
Navigation

42
Route Recalculation
Once a route has been set, the
Recalculate button is displayed at the
top of the menus.
Pressing the Recalculate button
will display a pop-up that allows you to
change route options. Once the settings
are changed, the route is recalculated
by reflecting the changes.
Cancel Route
In the Map menu screen, press the
Cancel Route button.
Navigation

43
Route Guidance
Preliminary guidance, highway mode,
turn list guidance, and other guidance
screens are displayed according to
the current road condition.
Within the guidance map screen, if
the current position is on route, then
intersection guidance will be provided
once you are nearby an intersection.
Also, the intersection zoom screen is
displayed when nearby an intersec-
tion.
Preliminary Guidance Mode
At the top right side of the screen, the
next/ after next turn info, remaining
distance, direction, and other informa -
tion are displayed.
Intersection Zoom Mode
This mode provides detailed guidance
nearby intersections before the next
turn.
This mode is displayed starting from
300m before the intersection.
Navigation

44
highway Mode
Upon entering a highway during route
guidance, the highway mode will auto-
matically be displayed. This mode is
d
isplayed when driving on a highway
and mainly displays highway related
POIs.
You can check information for vari -
ous POIs by using the
View All ,
Summary , and Rest Area but -
tons.
When
scrolling through POIs by using
the
▼ , ▲ buttons, pressing the
button will select the POI closest
to the current position.
Turn List Mode
Turn List Mode shows turn informa -
tion on the current route.
Name Description
1 View AllGuidance for all POIs on the
highway
2 SummaryShows list of turn points and
other directional route
guidance while driving within
highway
3 Rest Area
Guidance for only the rest
areas on the highway
123
Navigation

45

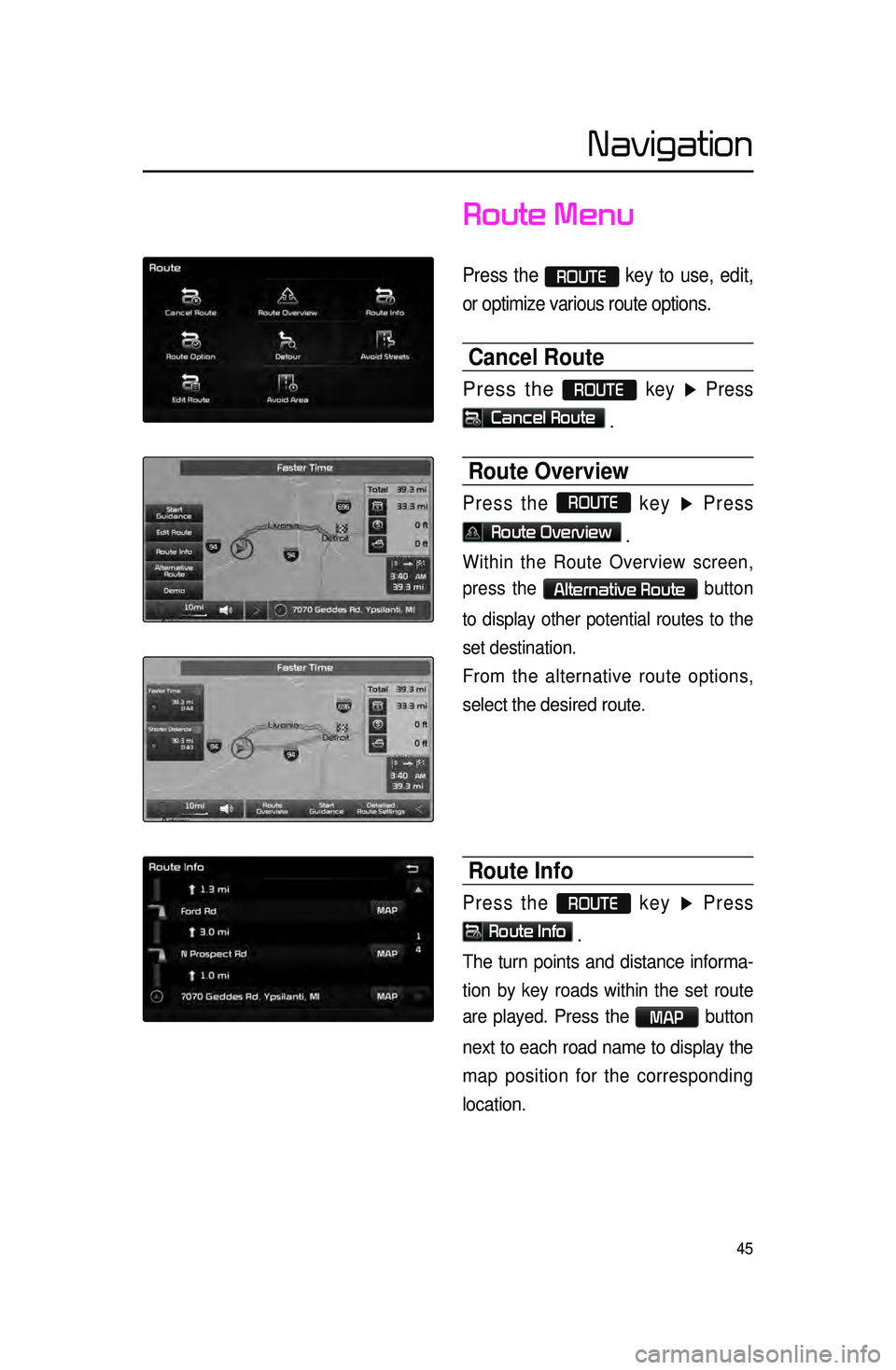

Route Menu
Press the ROUTE key to use, edit,
or optimize various route options.
Cancel Route
Press the ROUTE key ▶ Press
Cancel Route .
Route Overview
Press the ROUTE
key ▶ Press
Route Overview .
Within the Route Overview screen,
press the
Alternative Route button
to display other potential routes to the
set destination.
From the alternative route options,
select the desired route.
Route Info
Press the ROUTE key ▶ Press
Route Info
.
The turn points and distance informa-
tion
by key roads within the set route
are played.
Press the MAP button
next to each road name to display the
map position for the corresponding
location.
Navigation

46
Route Option
Press the ROUTE
key ▶ Press
Route Option
▶ Set and press
Done
.
Route Options refer to conditions used to
calculate the route to the destination. The
route is automatically recalculated if the
route options and detailed route settings
are changed.
Detour
Press the ROUTE key ▶ Press
Detour
.
The Detour menu is used to redefine
the route by setting a detour to a cer -
tain distance from the current position.
Avoid Streets
Press the ROUTE key ▶ Press
Avoid Streets ▶ Select the streets
you want to avoid and press
Done .
This feature is used to select specific
streets to avoid within the current route.
Select
Avoid to avoid the particular
streets in the route overview that are
desired to be avoided.
Edit Route
Press the ROUTE key ▶ Press
Edit Route ▶ Set and press Done
.
The Edit Route menu displays the
start point, waypoints, and the desti -
nation in list format and is used to edit
corresponding posit
ions or the order
of destinations within the route.
Navigation

48
Using Bluetooth® Handsfree
Pairing from the Bluetooth® Device
Press the key on the steering
wheel or press the
PHONE ▶ Press
Ye s
.
In the Search from Device screen
▶ Search for the car name and pair
the device ▶ Enter the Passkey ▶
Bluetooth
® becomes connected.
• When searching from the
Bluetooth
® device, the car name is
Kia Motors and the default passkey
is ‘0000’, then press Ok.
• To learn more about searching from
Bluetooth
® devices and pairing, refer to the
user's manual for your Bluetooth
® device.
• The Bluetooth® Audio screen is displayed
once audio streaming is available.
NOTICE
• This process may take a few minutes.
Radio may play during the wait.
• Some phones (i.e., iPhone, Android
and Blackberry phones) may offer an
option to allow acceptance of all future
Bluetooth
® connection requests by
default.
• Phonebook transfer will occur auto -
matically at initial pairing. Wait until
complete before placing a call.
• Visit http://www.kia.com/us/bluetooth
for additional information on pair -
ing your Bluetooth
® enabled mobile
phone, and to view a phone compat -
ibility list.
Bluetooth® Wireless Technology

49
Making/Answering
Calls
Calling by Dialing a Number
Enter number on the dial pad ▶ Press
the
Send or the key on the
steering wheel.
If you press the Send button
without entering a number, the Call
History screen is displayed. Press and
hold the dial pad
0 +(over 0.8 sec -
onds) to enter a "+".
Name Description
1 SendCalls the entered phone
number
2 End Deletes all entered numbers
Answering a Call
Incoming call notice ▶ Press the
Accept button or the key on
the steering wheel.
1
1
2
2
Bluetooth® Wireless Technology
