Page 61 of 92
58
Basic Features
Operating Navigation
Screen
Basic features on the map screen.
Name Description
Go to the Home
screen.
Change the map
view mode.
Voice Guidance
On/Off.
Zoom in the map.
Set the zoom
level automatically
according to the
guidance.
Zoom out the map.
MenuQuick and easy
selection of a desti-
nation and options.
Touch to scroll the
map.
Set asDestination
Quick and easy
selection of a des-
tination from the
map screen.
AddWaypointSet a waypoint to
the current route.
Add toAddress Book
Save frequently
used address to
address book.
POI
Find a POI(Point
Of Interest) around
the current position.
View the vehicle’s
current position on
the map screen.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E
< 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 63 of 92
60
Menu
Route
Press Menu button on the bottom
left of the screen ▶
Press
Route
button
Press the Route button to set
Route Options and Detour.
Route Option
Name Description
Faster TimeCalculates the fast-
est time of arrival.
Shorter Distance
Calculates the
shortest distance to
destination.
Done
Save the option.
Route will be calcu-
lated based on the
selected option
when setting
a destination.
DetailedRoute SettingsSet more route
options.
Detour
The Detour button is activated only
when the route is planned.
Selected distance is detoured from
the current location.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 64 of 92
61
Press the Using Map button to
select the distance ahead to avoid.
(Highlighted grey indicates distance
to avoid)
Navigation Volume
Press the Navi Volume button to
adjust the volume.
Press the Navi Volume button.
Name Description
ShorterReduce the length of the
section to avoid.
LongerIncrease the length of the
section to avoid.
DetourConfirm detour.
Nearby POIs
Display nearby POIs on the map.
View Nearby POIs
Select the Menu on the bottom of
the left screen. ▶
Select the
POI
button.
Press ON, OFF button to set
whether to show nearby POIs or not.
When categories are selected, they
will appear on the map. (ex. Gas
Station)
Name Description
Set the volume to mute.
Turn the volume down.
Turn the volume up.
Slide to set the volume.
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 65 of 92
62
The lists of nearby gas station are
displayed.
Display in order of distance, name,
and price.
Name Description
Call to the selected
location (Phone
needs to be con-
nected via Bluetooth).
Set as DestinationSet the place as a
destination.
Add WaypointSet the location as a
waypoint.
Add toAddress BookSave the location.
POISearch nearby POIs.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 67 of 92
64
Address
Set destination by address search.
Press the
NAVI head unit key. ▶
Select the
Destination tab. ▶
Select
the
Address icon.
How to Search Address
Name Description
Select state to search
Enter the house number. If
you don’t know the house
number, press the Skip
button.
Enter the street name.
Entering exact street
name is required.
The letters on the key-
board are automatically
enabled and disabled
based on the search
result, and words are
automatically completed.
When same street names
are available in other
cities, the lists of city are
displayed.
Select a city before
entering the street name.
Addresses are searched
only from the selected city.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E
< 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 69 of 92
66
Local Search
Press the NAVI head unit key.▶
Select the
Destination tab. ▶
Select
the
Local Search icon.
Runs Google Local Search.
Enter the desired keywords and
press the
Done button.
Searching is in progress.
If search failed, the above screen is
displayed. Please try again. Search result displayed. Select one
of the search results.
Press the
Set as Destination button to
start guidance.
POI Categories
Press the NAVI head unit key. ▶
Select the
Destination tab. ▶
Select
the
POI Categories icon.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 71 of 92
68
Select the desired destination
among the searched items.
Emergency
Search emergency facilities.
Press the
NAVI head unit key. ▶
Select the
Destination tab. ▶
Select the
Emergency
Check the current location informa-
tion and select the desired item in
the sub menu (ex. Police Station)
Select the desired destination
among the searched items.
Address Book
Search the destination with the
address book.
Press the
NAVI head unit key. ▶
Select the
Destination tab. ▶
Select
the
AddressBook
Select the desired group.
Save in the Favorite Places, then
route can be set easily by using
3 buttons such as
Go Home and
Office on the button of the menu.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1

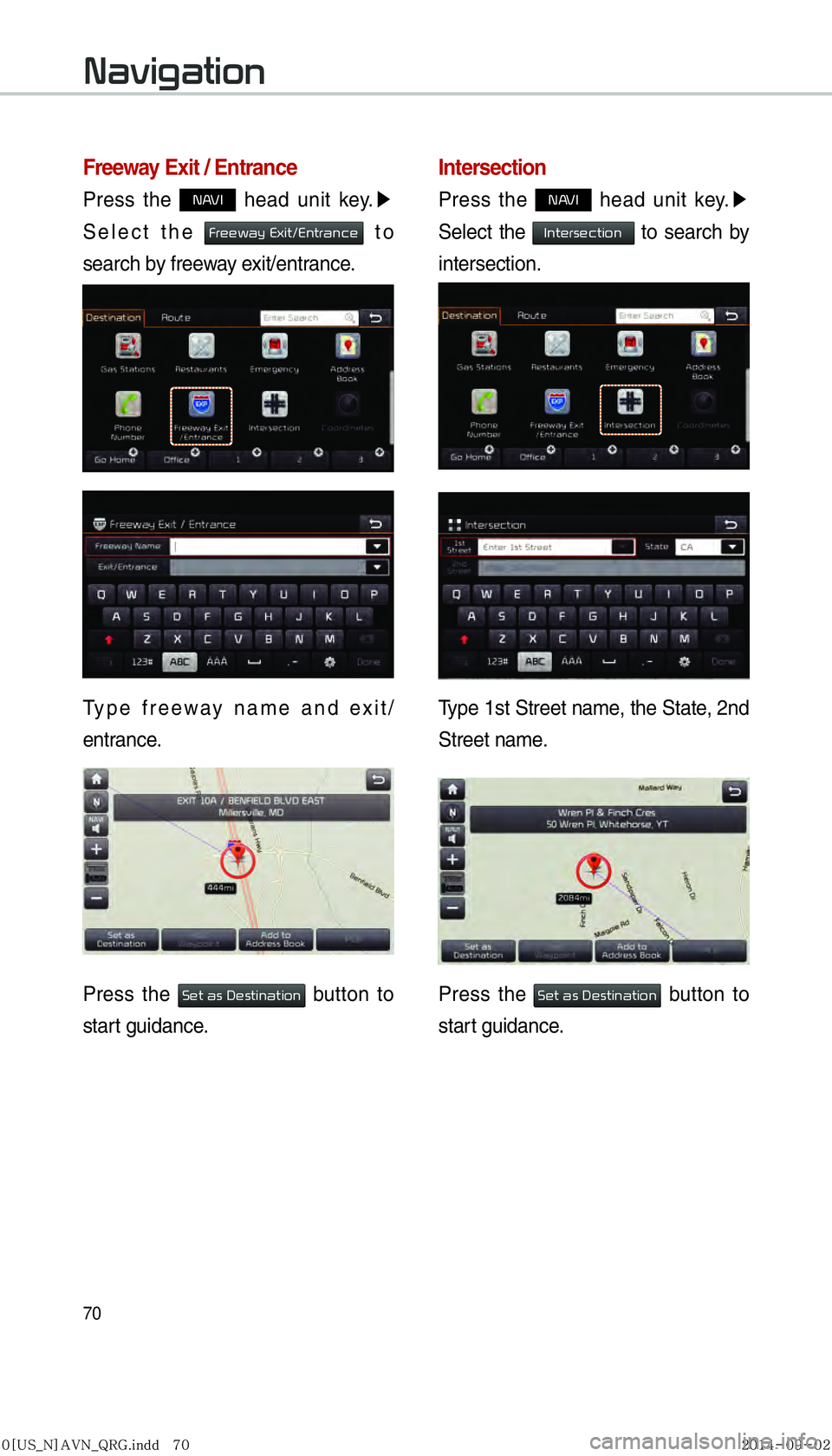

Page 73 of 92
70
Freeway Exit / Entrance
Press the NAVI head unit key.▶
Select the
Freeway Exit/Entrance to
search by freeway exit/entrance.
Type freeway name and exit/
entrance.
Press the Set as Destination button to
start guidance.
Intersection
Press the NAVI head unit key. ▶
Select the
Intersection to search by
intersection.
Type 1st Street name, the State, 2nd
Street name.
Press the Set as Destination button to
start guidance.
