Maintenance
76
7

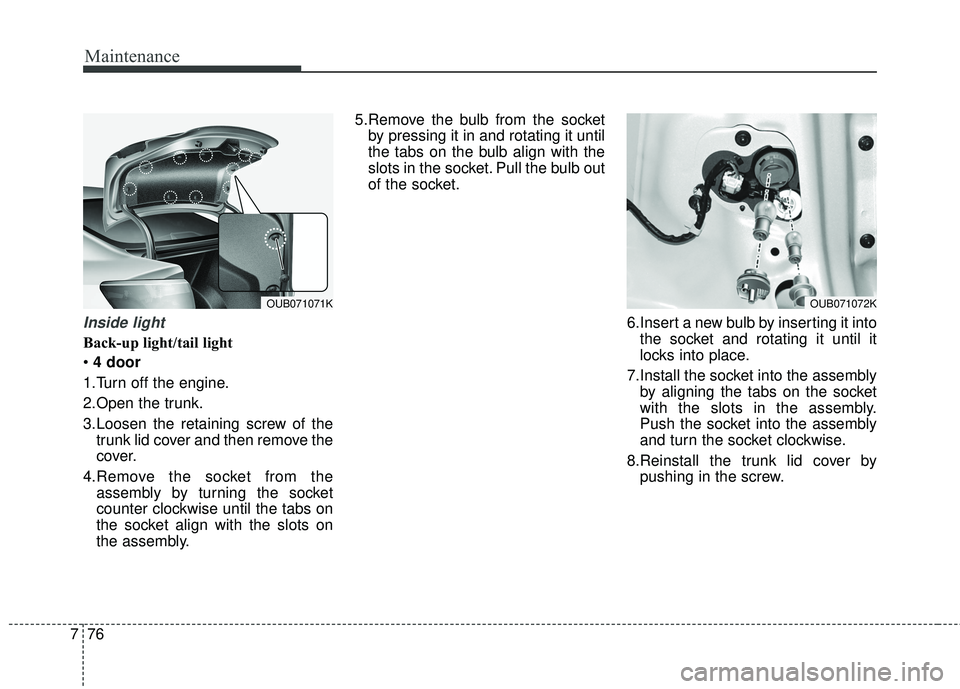

Inside light
Back-up light/tail light
4 door
1.Turn off the engine.
2.Open the trunk.
3.Loosen the retaining screw of the trunk lid cover and then remove the
cover.
4.Remove the socket from the assembly by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the assembly. 5.Remove the bulb from the socket
by pressing it in and rotating it until
the tabs on the bulb align with the
slots in the socket. Pull the bulb out
of the socket.
6.Insert a new bulb by inserting it intothe socket and rotating it until it
locks into place.
7.Install the socket into the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8.Reinstall the trunk lid cover by pushing in the screw.
OUB071072KOUB071071K

777
Maintenance

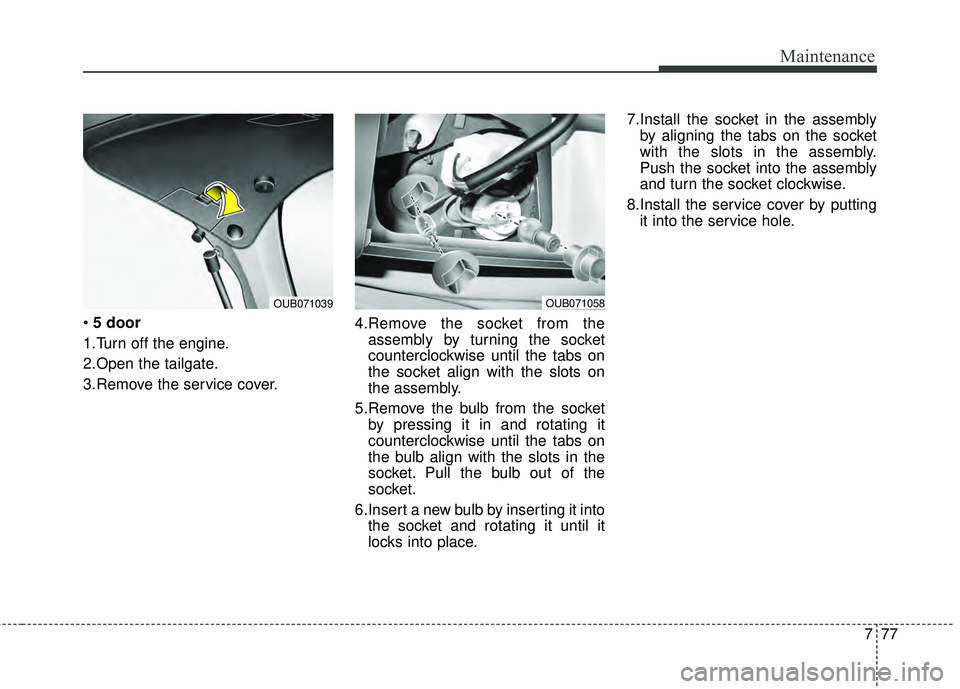

5 door
1.Turn off the engine.
2.Open the tailgate.
3.Remove the service cover. 4.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place. 7.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8.Install the service cover by putting it into the service hole.
OUB071058OUB071039

Maintenance
78
7
High mounted stop light
replacement

1.Turn off the engine
2.Open the trunk 3.Remove the socket from the
assembly by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb by pulling it straight out.
5.Insert a new bulb in the socket.
6.Reinstall the socket in the assem- bly in the reverse order of removal.

1.Turn off the engine
2.Open the tailgate.
3.Gently remove the rubber cover(1).
4.Disconnect the electrical connec- tor.
OUB071060N
OUB071042
ORBC070043
ORBC070036

779
Maintenance

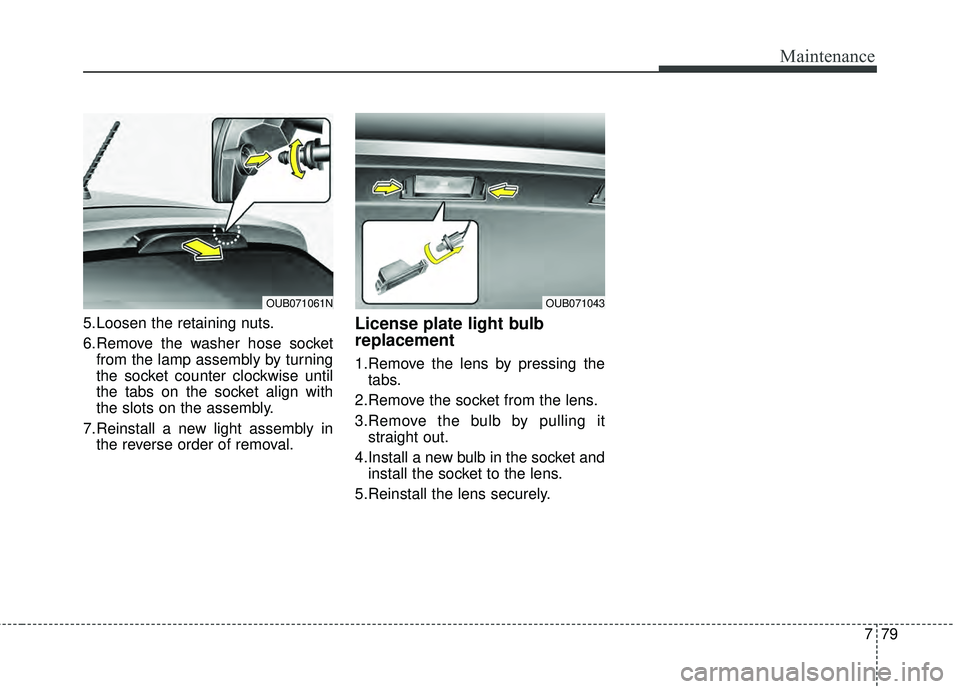

5.Loosen the retaining nuts.
6.Remove the washer hose socketfrom the lamp assembly by turning
the socket counter clockwise until
the tabs on the socket align with
the slots on the assembly.
7.Reinstall a new light assembly in the reverse order of removal.License plate light bulb
replacement
1.Remove the lens by pressing thetabs.
2.Remove the socket from the lens.
3.Remove the bulb by pulling it straight out.
4.Install a new bulb in the socket and install the socket to the lens.
5.Reinstall the lens securely.
OUB071043OUB071061N
