2015 KIA OPTIMA trunk release

ESSENTIAL FEATURES
OPTIMA FE ATURES & FUNCTIONS GUIDE
Air Conditioning / Climate Control . . . . . . . . . . . .25
Active ECO System . . . . . . . . . . . . . . . . . . . . 09
Audio System – Standard* . . . . . . . . . . . . . . . .21
Audio System – UVO eServices System* . . . . . . . . . 23
Audio System – Navigation System* . . . . . . . . . . .22
Aux/USB/iPod®* Port* & Power Outlets . . . . . . . . . 24
Bluetooth® Wireless Technology . . . . . . . . . . . . .18
Cruise Control . . . . . . . . . . . . . . . . . . . . . . 20
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . 24
Passenger Airbag Off Indicator . . . . . . . . . . . . . . 38
Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . 37
Tire Pressure Monitoring System (TPMS) . . . . . . . . 05
Windshield Wipers & Washers . . . . . . . . . . . . . .16
*IF EQUIPPED
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
VIDEOS & QR CODES . . . . . . . . . . . . . . . . . . 02
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . 03Indicators & Warning Lights . . . . . . . . . . . . . . . . 04Tire Pressure Monitoring System (TPMS) . . . . . . . . . 05LCD Instrument Cluster Modes . . . . . . . . . . . . . . . 06Trip Computer / Tripmeter . . . . . . . . . . . . . . . . . 06Instant Fuel Consumption Mode* . . . . . . . . . . . . . . 07Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . 07User Settings . . . . . . . . . . . . . . . . . . . . . . . . 08Service Mode . . . . . . . . . . . . . . . . . . . . . . . . 08Drive Mode Integrated Control System* . . . . . . . . . . 09Active ECO System . . . . . . . . . . . . . . . . . . . . . 09
DRIVER’S PANELBlind Spot Detection System* . . . . . . . . . . . . . . . 10Electric Parking Brake (EPB)* . . . . . . . . . . . . . . . 11AUTO HOLD* . . . . . . . . . . . . . . . . . . . . . . . . 11Instrument Panel Dimmer* . . . . . . . . . . . . . . . . . 12Electronic Stability Control (ESC) . . . . . . . . . . . . . . 12Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . 12Engine Start/Stop Button* . . . . . . . . . . . . . . . . . 13Power Windows, Window Lock & Central Door Lock* . . . 14Automatic Door Lock /Unlock . . . . . . . . . . . . . . . . 14Power/Heated Outside Mirrors* . . . . . . . . . . . . . . 14Power Folding Mirrors* . . . . . . . . . . . . . . . . . . . 14
STEERING WHEEL CONTROLSHeadlights & High Beams . . . . . . . . . . . . . . . . . . 15Turn Signals & Fog Lights . . . . . . . . . . . . . . . . . 15Windshield Wipers & Washers . . . . . . . . . . . . . . . 16Heated Steering Wheel Button* . . . . . . . . . . . . . . . 16Tilt/ Telescoping Steering Wheel* . . . . . . . . . . . . . . 17Bluetooth® Wireless Technology . . . . . . . . . . . . . . 18Audio Controls* . . . . . . . . . . . . . . . . . . . . . . 20Cruise Control . . . . . . . . . . . . . . . . . . . . . . . 20
AUDIO SYSTEMStandard Audio System* Operation/Overview . . . . . . . 21Navigation System* . . . . . . . . . . . . . . . . . . . . . 22UVO eServices System* . . . . . . . . . . . . . . . . . . 23
CENTER PANELDigital Clock . . . . . . . . . . . . . . . . . . . . . . . . 24Aux/USB/iPod® Port & Power Outlets . . . . . . . . . . . 24Automatic Climate Control* . . . . . . . . . . . . . . . . 25Manual Climate Control* . . . . . . . . . . . . . . . . . . 26Automatic Gear Shift with Sportmatic® Shifting . . . . . . 27Paddle Shifters* . . . . . . . . . . . . . . . . . . . . . . 27
S E AT I N GDriver Position Memory System* . . . . . . . . . . . . . . 28Power Adjustable Driver’s Seat* . . . . . . . . . . . . . . 28Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . 296-Way Manual Adjustable Driver’s Seat . . . . . . . . . . 29Front Seat Headrest Adjustment . . . . . . . . . . . . . . 30
OTHER KEY FEATURESSmart Key* . . . . . . . . . . . . . . . . . . . . . . . . . 31Remote Keyless Entry (Folding Key)* . . . . . . . . . . . . 32Double-Turn Lock /Unlock All . . . . . . . . . . . . . . . . 32Fuel Cap / Malfunction Indicator (Check Engine Light) . . . 32HomeLink® with Auto-Dimming Rearview Mirror* . . . . . 33Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . 34Panoramic Sunroof Operation* . . . . . . . . . . . . . . . 34Hood Release Lever and Latch . . . . . . . . . . . . . . . 35Fuel Door and Trunk Release . . . . . . . . . . . . . . . . 35Trunk Release Button (Exterior) . . . . . . . . . . . . . . 35Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . 35Back-Up Warning System (Rear Parking Assist System)* . 36Rear-Camera Display* . . . . . . . . . . . . . . . . . . . 36Child Safety Locks . . . . . . . . . . . . . . . . . . . . . 37Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . . 37
SAFETY FEATURESOccupant Detection System (ODS) /Passenger Airbag Off Indicator . . . . . . . . . . . . . . . 38Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . 39Seat Belt Retractor Inertia Locks . . . . . . . . . . . . . . 39
NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
LEGAL DISCLAIMERS (See Back Inside Cover Page) MAINTENANCE (See Back Cover)

11
REMINDERS:
• As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
• If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
• A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
Electric Parking Brake (EPB)*
The Electric Parking Brake (EPB) system utilizes
an electric motor to engage the parking brake .
Applying the Parking Brake
Depress the brake pedal and pull up the EPB
switch A . Ensure that the indicator light is
illuminated on the instrument cluster .
Releasing the Parking Brake
The EPB will automatically release when the
shifter is placed in Reverse or Drive .
To release EPB manually, depress the brake pedal, then press the EPB
switch A, with the ignition switch in the ON position . Ensure that the
indicator light i s O F F .
Electric Parking Break (EPB)/AUTO HOLD Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www.KuTechVideos.com/qf13/2015
AUTO HOLD*
AUTO HOLD temporarily maintains the
vehicle at a standstill even if the brake pedal
is released . AUTO HOLD can be turned ON/
OFF using the AUTO HOLD switch B on
the driver’s panel . Before AUTO HOLD will
operate, the driver’s door, engine hood and
trunk must be closed, and the driver’s seat
belt must be fastened .
The AUTO HOLD indicator has four states:
White: Standby - With vehicle at a standstill,
and AUTO HOLD switch B turned ON, the
indicator will illuminate white . While driving
the vehicle (vehicle is not at a standstill), the
AUTO HOLD indicator will remain white .
Yellow: Malfunction - When the indicator
is illuminated yellow, there may be a system
malfunction . Take your vehicle to a local Kia dealer .
Green: Engaged - When coming to a complete stop by depressing the brake
pedal, the AUTO HOLD indicator changes from white to green .
OFF (not illuminated) - The indicator will turn OFF when the AUTO HOLD
switch B is manually turned OFF or when the EPB is manually turned ON .
Refer to page 4 for location of Instrument Cluster indicators.
•
•When leaving your keys with parking lot attendants or valet, make sure to inform them how to operate the EPB •If parked on a steep incline, pull up the EPB switch for more than 3 seconds for a firmer EPB application •Pull up and hold EPB switch a second time to increase brake pressure if parked on a decline or incline
QUICK TIPS
A
B
(Located on Center Panel)
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
DRIVER'S PANEL

31
Smart Key Fob:
A Press to lock All Doors
B Press to unlock Driver’s Door . Press twice in 4 seconds to
unlock All Doors
C Press and hold to unlock Trunk and manually open
REMINDER: The Trunk unlocks when the Smart Key fob is within close proximity of the vehicle .
D Press and hold more than 1 second for Panic Alarm . To turn
off Alarm, press any button
E Press to release Mechanical Key (on reverse side of fob)
Mechanical Key F:
•Use to unlock Driver’s Door
• Use to turn Child Safety Locks

Driver’s Door Lock/Unlock button G:
• Press button once to unlock Driver’s Door
•Press again within 4 seconds to unlock All Doors
•Press again to lock All Doors
Smart Key*
HOLD
HOLD
G
Engine Start/Stop Button & Smart Key Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www.KuTechVideos.com/qf13/2015
REMINDER: Remote button configuration may vary depending on vehicle options .

•If the Smart Key battery is weak or not working properly, hold the Smart Key fob up to the ENGINE START/STOP button (Lock button side closest) and press to start engine •The Smart Key’s signal can be blocked by the normal operation of a cell phone or smartphone . To help prevent this, store each device separately
QUICK TIPS
A
B
C
D
F
E
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES

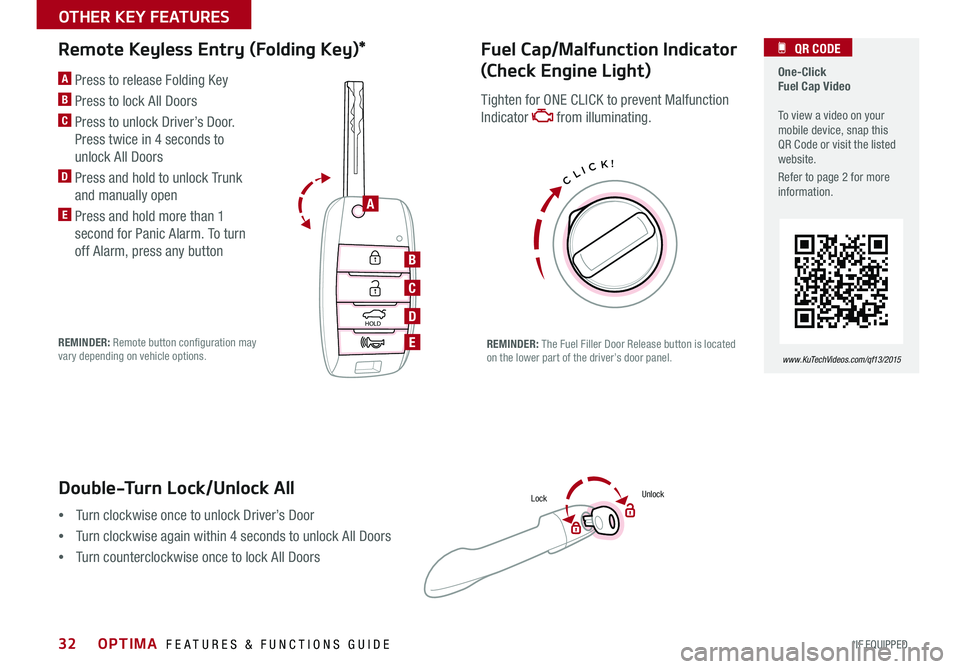

32
One-Click Fuel Cap Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www.KuTechVideos.com/qf13/2015
HOLD
HOLD
A Press to release Folding Key
B Press to lock All Doors
C Press to unlock Driver’s Door .
Press twice in 4 seconds to
unlock All Doors
D Press and hold to unlock Trunk
and manually open
E Press and hold more than 1
second for Panic Alarm . To turn
off Alarm, press any button
REMINDER: Remote button configuration may vary depending on vehicle options .REMINDER: The Fuel Filler Door Release button is located on the lower part of the driver’s door panel .
Remote Keyless Entry (Folding Key)*
CLICK!
Fuel Cap/Malfunction Indicator
(Check Engine Light)
Tighten for ONE CLICK to prevent Malfunction
Indicator from illuminating .
LockUnlockDouble-Turn Lock/Unlock All
•Turn clockwise once to unlock Driver’s Door
•Turn clockwise again within 4 seconds to unlock All Doors
•Turn counterclockwise once to lock All Doors
B
A
C
D
E
OPTIMA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
OTHER KEY FEATURES

35
(Buttons located on Driver's Door)
Hood Release Lever and Latch
Press the button C to release the fuel door .
Pull the button D to open the trunk .
Fuel Door and Trunk Release
C
D
Located underneath the Trunk lid . With Trunk unlocked, press the Trunk Release
button E and pull the Trunk lid up by the handle to open .
Trunk Release Button (Exterior)
( Trunk Release Button)(Located on Driver side kick panel)

•The Trunk must be unlocked before it can be opened by the Trunk Release Button •Smart Key* - The Trunk unlocks automatically, and can then be opened manually, when the Smart Key fob* is within close proximity to the vehicle
QUICK TIPS
E
REMINDERS:
•Sunvisor may not shield all direct light
• Do not operate the vehicle if Sunvisor is impairing your visibility
Sunvisor
Use the Sunvisor to shield direct light through the front or side windows .
Slide the Sunvisor out and adjust as needed .
Opening the Hood:
1 . Pull the Hood Release Lever A to unlatch the Hood
2 . In the front of the vehicle, lift the Hood slightly, pull the
secondary Latch B inside of the Hood’s center and lift the Hood
Closing the Hood:
Lower the Hood about halfway and then press down to securely lock
in place .
A
B
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES
