2015 KIA CEED key

Features of your vehicle
14
4
Vehicles equipped with a theft alarm sys-
tem will have a label attached to the vehi-
cle with the following words:
1. WARNING
2. SECURITY SYSTEM This system is designed to provide pro-
tection from unauthorized entry into the
vehicle. This system is operated in three
stages: the first is the "Armed" stage, the
second is the "Theft-alarm" stage, and
the third is the "Disarmed" stage. If trig-
gered, the system provides an audible
alarm with blinking of the hazard warning
lights.Armed stage
Using the smart key
Park the vehicle and stop the engine.
Arm the system as described below.
1. Turn off the engine.
2. Make sure that all doors, the engine
hood and tailgate are closed and latched.
3. • Lock the doors by pressing the button of the front outside door handle with
the smart key in your possession.
After completion of the steps above,
the hazard warning lights will operateonce to indicate that the system is
armed. If the tailgate or engine hood remains
opened, the hazard warning lights will
not operate and theft-alarm will not
arm. After this, if the tailgate andengine hood are closed, the hazard
warning lights will blink once and the
theft-alarm will arm.
THEFT-ALARM SYSTEM (IF EQUIPPED)Armed
stage
Theft-alarm stageDisarmed
stage
OJC040170
JD eng 4a.QXP 3/4/2015 4:22 PM Page 14

415
Features of your vehicle

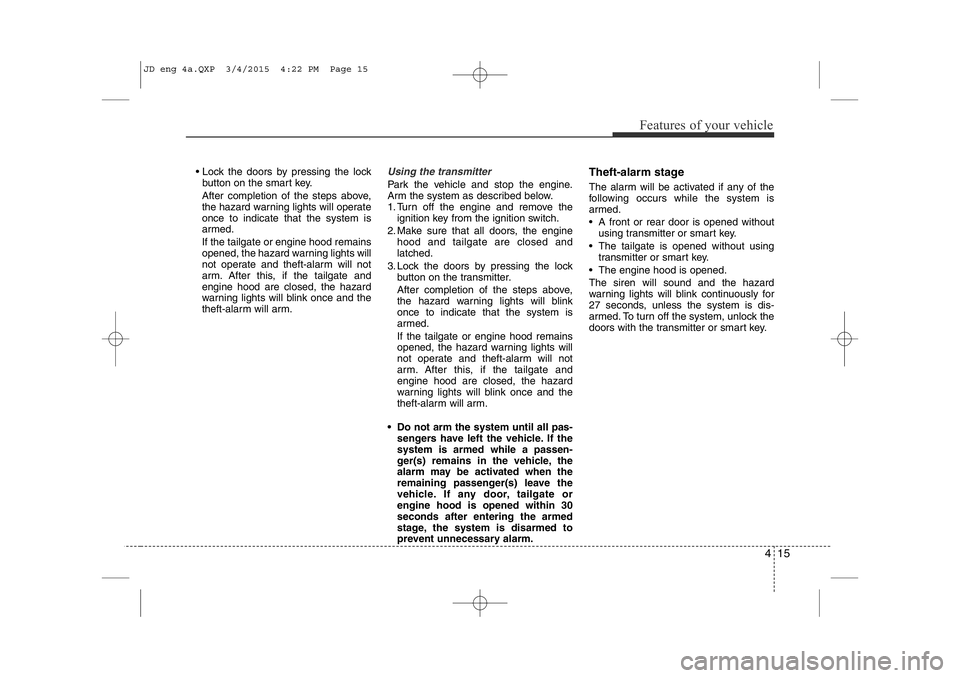

• Lock the doors by pressing the lockbutton on the smart key.
After completion of the steps above,
the hazard warning lights will operate once to indicate that the system is
armed. If the tailgate or engine hood remains
opened, the hazard warning lights will
not operate and theft-alarm will not
arm. After this, if the tailgate andengine hood are closed, the hazard
warning lights will blink once and the
theft-alarm will arm.Using the transmitter
Park the vehicle and stop the engine.
Arm the system as described below.
1. Turn off the engine and remove the ignition key from the ignition switch.
2. Make sure that all doors, the engine hood and tailgate are closed andlatched.
3. Lock the doors by pressing the lock button on the transmitter.
After completion of the steps above,
the hazard warning lights will blink once to indicate that the system is
armed.
If the tailgate or engine hood remains opened, the hazard warning lights will
not operate and theft-alarm will not
arm. After this, if the tailgate andengine hood are closed, the hazard
warning lights will blink once and the
theft-alarm will arm.
• Do not arm the system until all pas- sengers have left the vehicle. If thesystem is armed while a passen-
ger(s) remains in the vehicle, the
alarm may be activated when the
remaining passenger(s) leave the
vehicle. If any door, tailgate orengine hood is opened within 30seconds after entering the armed
stage, the system is disarmed to
prevent unnecessary alarm. Theft-alarm stage
The alarm will be activated if any of the
following occurs while the system is
armed.
• A front or rear door is opened without
using transmitter or smart key.
• The tailgate is opened without using transmitter or smart key.
• The engine hood is opened.The siren will sound and the hazard
warning lights will blink continuously for
27 seconds, unless the system is dis-
armed. To turn off the system, unlock the
doors with the transmitter or smart key.
JD eng 4a.QXP 3/4/2015 4:22 PM Page 15

Features of your vehicle
16
4
Disarmed stage
The system will be disarmed when:
Transmitter
- The door unlock button is pressed.
- The engine is started.
- The ignition switch is in the “ON” posi-
tion for 30 seconds or more.
Smart key
- The door unlock button is pressed.
- The button of the front outside door is
pressed while carrying the smart key.
- The engine is started.
After the doors are unlocked, the hazard
warning lights will blink twice to indicate
that the system is disarmed.
After pressing the unlock button, if any door (or tailgate) is not opened within 30
seconds, the system will be rearmed.
✽NOTICE
• Without smart key system If the system is not disarmed with the
transmitter, insert the key into the
ignition switch and start the engine.
Then the system will be disarmed.
• With smart key system
If the system is not disarmed with the
smart key, open the door with the
mechanical key and start the engine.
Then the system will be disarmed.
• If you lose your keys, we recommend
that you consult an authorized Kia
dealer.CAUTION
Do not change, alter or adjust the
theft-alarm system because it could cause the theft-alarm system tomalfunction and we recommendthat the system be serviced by an
authorized Kia dealer.
Malfunctions caused by improperalterations, adjustments or modifi-cations to the theft-alarm system
are not covered by your vehiclemanufacturer warranty.
JD eng 4a.QXP 3/4/2015 4:22 PM Page 16

417
Features of your vehicle
Operating door locks from out-
side the vehicle
Transmitter/Smart key
• Doors can be locked and unlocked withthe transmitter or smart key.
• Doors can be locked and unlocked by pressing the button of the outside door
handle with the smart key in your pos-
session. (vehicles equipped with smart
key system)
• Once the doors are unlocked, they may be opened by pulling the door handle.
• When closing the door, push the door by hand. Make sure that doors are
closed securely.
Mechanical key
• If the transmitter or smart key does notoperate normally, you can lock or unlock
the doors by the mechanical key.
Insert the key into the key hole of the
outside door handle. Turn the key toward
the rear of the vehicle to unlock and
toward the front of the vehicle to lock.
• If you lock/unlock the driver’s door with a key while the power door lock switch
does not operate normally, only the dri-
ver’s door will lock/unlock.
• Once the door is unlocked, it may be opened by pulling the door handle.
• When closing the door, push the door by hand. Make sure that doors are
closed securely.
DOOR LOCKS
OJD043010
ORP042235
OJD043503
■ Type B
■
Type A
OJD042001
■
Type C
JD eng 4a.QXP 3/4/2015 4:22 PM Page 17

Features of your vehicle
18
4
✽NOTICE
• In cold and wet climates, door lock and door mechanisms may not work
properly due to freezing conditions.
• If the door is locked/unlocked multi- ple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operating
temporarily in order to protect the
circuit and prevent damage to system
components.
In case of an emergency
(5 Door and wagon)
If the power door lock switch does not
operate electrically, the only way to lock
the door(s) is with the mechanical key
from the outside key hole.
You can lock the doors without the out-
side key hole as follows:
1. Open the door.
2. Insert the key into the emergency door lock hole and turn the key horizontally
to lock.
3. Close the door securely. Operating door locks from inside
the vehicleWith the door handle
Driver’s door and front passanger’s door
(if equipped) If the inner door handle is pulled when
the door is locked, the door will unlockand open.
Rear door (if equipped) If the inner door handle is pulled once
when the door is locked, the door will
unlock. If the inner door handle is pulled once
more, the door will open.
OJD042012
LLoocckk
OJD042013
UUnnlloocckk
WARNING
• If you don't close the door secure- ly, the door may open again.
• Be careful that someone's body and hands are not trapped when
closing the door.
JD eng 4a.QXP 3/4/2015 4:22 PM Page 18

419
Features of your vehicle

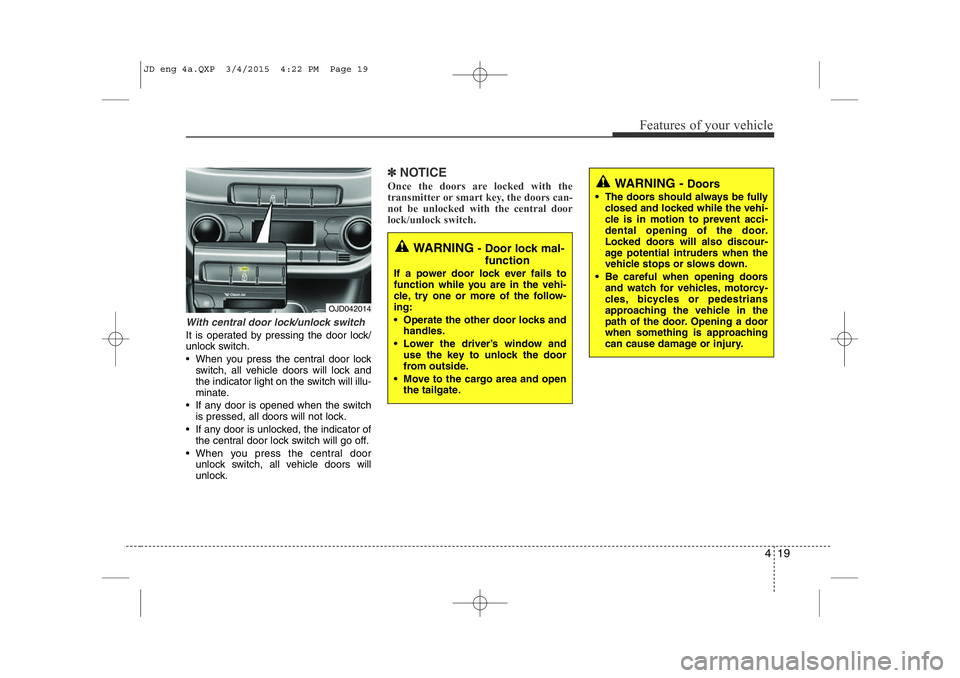

With central door lock/unlock switch
It is operated by pressing the door lock/
unlock switch.
• When you press the central door lockswitch, all vehicle doors will lock and
the indicator light on the switch will illu-
minate.
• If any door is opened when the switch is pressed, all doors will not lock.
• If any door is unlocked, the indicator of the central door lock switch will go off.
• When you press the central door unlock switch, all vehicle doors will
unlock.
✽NOTICE
Once the doors are locked with the
transmitter or smart key, the doors can-
not be unlocked with the central door
lock/unlock switch. WARNING - Doors
• The doors should always be fully closed and locked while the vehi-
cle is in motion to prevent acci-
dental opening of the door.
Locked doors will also discour-
age potential intruders when the
vehicle stops or slows down.
• Be careful when opening doors and watch for vehicles, motorcy-
cles, bicycles or pedestrians
approaching the vehicle in the
path of the door. Opening a door
when something is approaching
can cause damage or injury.
WARNING - Door lock mal-
function
If a power door lock ever fails to
function while you are in the vehi-
cle, try one or more of the follow-ing:
• Operate the other door locks and handles.
• Lower the driver’s window and use the key to unlock the door
from outside.
• Move to the cargo area and open the tailgate.
OJD042014
JD eng 4a.QXP 3/4/2015 4:22 PM Page 19

Features of your vehicle
20
4
Deadlocks (if equipped)
Some vehicles are equipped with a
deadlock system. Deadlocks preventopening of a door from either inside or
outside the vehicle once the deadlocks
have been activated providing an addi-
tional measure of vehicle security.
To lock the vehicle using the deadlock
function, the doors must be locked by
using the transmitter or smart key. To
unlock the vehicle, the transmitter or
smart key must be used again. Door lock/unlock features
Impact sensing door unlock system
All doors will automatically unlock when
an impact causes the air bags to deploy.
Speed sensing door lock system
(if equipped)
All doors will automatically lock after the
vehicle speed exceeds 15 km/h.
Engine off door unlock system (if equipped)
All doors will automatically unlock:
Without smart key system
When the key is removed from the igni-
tion switch.
With smart key system
When the engine start/stop button is in the OFF position.
Shift lever door lock/unlock system
• All doors will automatically lock when the shift lever is moved out of P (Park).
• All doors will automatically unlock when the shift lever is moved into P (Park).
You can activate or deactivate the auto
door lock/unlock features in the vehicle.
Refer to "User setting" in this chapter.
WARNING
Do not lock the doors with the
transmitter or the smart key with
anybody left in the vehicle. The pas-
senger in the vehicle cannot unlock
the doors with the door lock button.
For example, if the door is locked
with the transmitter, the passenger
in the vehicle cannot unlock the
door without the transmitter.
WARNING - Unlocked
vehicles
Leaving your vehicle unlocked can
invite theft or possible harm to you
or others from someone hiding in
your vehicle while you are gone.
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
WARNING - Unattended
children
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil- dren or animals who cannot escape
the vehicle. Furthermore, children
might operate features of the vehi-
cle that could injure them, or they
could encounter other harm, possi-
bly from someone gaining entry to
the vehicle. Never leave children or
animals unattended in your vehicle.
JD eng 4a.QXP 3/4/2015 4:22 PM Page 20

421
Features of your vehicle
Child-protector rear door lock
(5 Door and wagon)
The child safety lock is provided to help
prevent children from accidentally open-
ing the rear doors from inside the vehicle.
The rear door safety locks should be used
whenever children are in the vehicle.
1. Open the rear door.
2. Insert a key (or screwdriver) into thehole (1) and turn it to the “lock( )”
position. When the child safety lock is
in the lock position, the rear door will
not open even though the inner door
handle (3) is pulled inside the vehicle. 3. Close the rear door.
To open the rear door, pull the outside door handle (2).
Even though the doors may be unlocked,
the rear door will not open by pulling the inner door handle (3) until rear door child
safety lock is unlocked.
WARNING
- Rear door
locks
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and be
severely injured or killed. To pre-
vent children from opening the rear
doors from the inside, the rear door
safety locks should be used when-
ever children are in the vehicle.
OJD042015
JD eng 4a.QXP 3/4/2015 4:22 PM Page 21
