Features of your vehicle
Service mode
This mode calculates when you need a
scheduled maintenance service (mileage
or days)
If you want to see the service mode when
other modes are displayed, press the ▲
or  button less than 1 second. If you do not have your vehicle servicedaccording to the scheduled maintenance
service on the LCD display, this LCD dis-
play will show the elapsed mileage or
days.
If you want to reset the maintenance
schedule, when the service required mes-
sage is displayed :
- Press the button more than 5 sec-
onds.
- " : Reset" will be shown on the LCD display.
- Press the button again more than 1 second.
If you do not press the button within 5
seconds, " : Reset" will disap pear.If you want to change the interval of the
maintenance service schedule, we rec-
ommend that you consult an authorised
Kia dealer.
✽NOTICE
• If you reset the maintenance schedule, when the displayed service schedule
has not elapsed or elapsed without
actual vehicle service, the displayed
service schedule on the LCD display
might not be match the actual service
schedule anymore.
You should comply with the displayed
service schedule on the LCD display
for the maintenance of your vehicle.
• If the battery is disconnected or dis- charged, the displayed service sched-
ule might not match the actual service
schedule.
OJD042061ROJD042059N
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 55

Features of your vehicle
56
4
If service mode is not activated, the LCD
display shows, like the above picture.
In this case, we recommend that you
consult an authorised Kia dealer.User Settings
In this mode there are 3 kinds of the sub-
menu. 1. Stop the vehicle with the ignition
switch in the ON position or engine
running.
2. Press the ▲ or  button until the User
setting mode is displayed.
3. With the User setting mode displayed, press the button until the screen is changed.
4. You can change the item by pressing the ▲ or  button and select an item
by pressing the button.
OJD042063OJD042064OJD042060
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 56

Features of your vehicle
58
4
• AVG fuel ECO Reset
Auto Reset - The average fuel economy
will reset automatically
when you drive after refu-elling.
Manual Reset - The average fuel econo- my will not reset auto-
matically when you drive
after refuelling. You can
reset the average fuel
economy by pressing
the button for more than 1 second when the
average fuel economy is
displayed.
• Language
Choose the language you prefer within
the LCD display.
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 58

459
Features of your vehicle

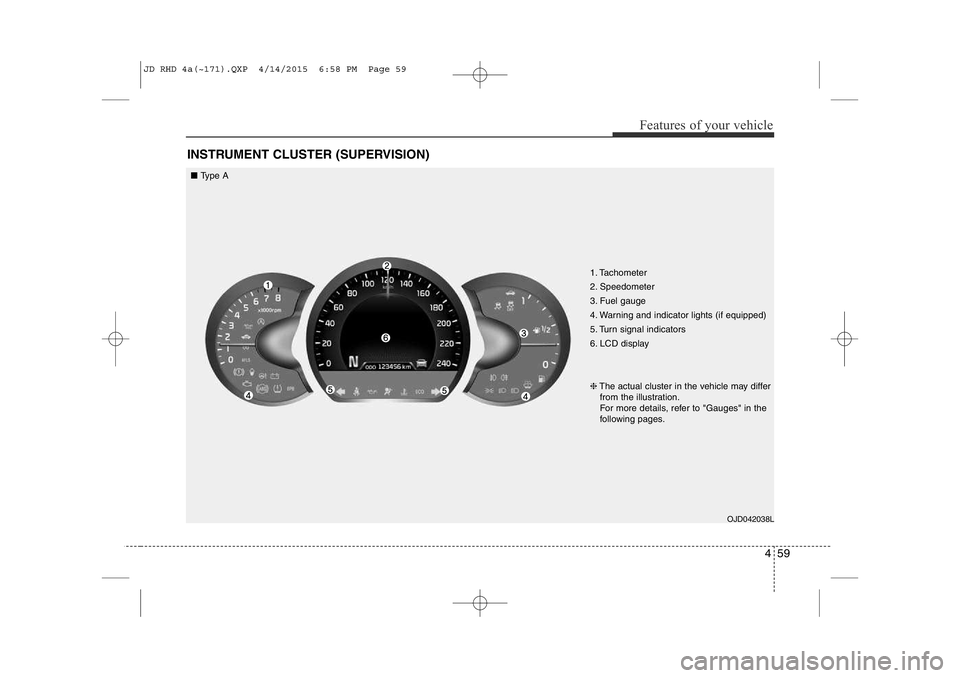

INSTRUMENT CLUSTER (SUPERVISION)
1. Tachometer
2. Speedometer
3. Fuel gauge
4. Warning and indicator lights (if equipped)
5. Turn signal indicators
6. LCD displayOJD042038L
❈
The actual cluster in the vehicle may differ
from the illustration.
For more details, refer to "Gauges" in the
following pages.
■ Type A
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 59

Features of your vehicle
60
4
1. Tachometer
2. Speedometer
3. Fuel gauge
4. Warning and indicator lights (if equipped)
5. Turn signal indicators
6. LCD display
7. Engine torque gauge
8. Turbo boost pressure gauge
9. Engine coolant temperature gauge
OJD043038/OJD043248
❈
The actual cluster in the vehicle may differ
from the illustration.
For more details, refer to "Gauges" in the
following pages.
■ Type B (for T-GDI engine)
• Analog Mode • Digital Mode
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 60

461
Features of your vehicle
Instrument panel illumination
The instrument panel illumination intensity
can be adjusted as follows:
• Ignition switch in the ON position
• Pressing the upper or lower part of theswitch
The illumination intensity is shown on the
instrument cluster LCD display. Cluster display mode conversion
(for T-GDI engine)
You can switch the display mode "Analog"
or "Digital" with pressing the button.
Gauges
Tachometer
The tachometer indicates the engine
speed in revolutions per minute (rpm). Use the tachometer to select the correct
shift points and to prevent lugging and/or
over-revving the engine.
OJD042047R
CAUTION
Do not operate the engine within
the tachometer's RED ZONE. Thismay cause severe engine damage.
OJD042044/OJD042045
■
Diesel Engine
■ Petrol EngineOJD043161
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 61

465
Features of your vehicle
Automatic transaxle shift position indicator (if equipped)
The indicator displays which automatic
transaxle shift lever is selected.Automatic Transaxle Shift Indicator insports mode (if equipped, For Europe)
In the Sports Mode, this indicator informs
which gear is desired whilst driving to
save fuel.
For example
: Indicates that shifting up to the 3rdgear is desired (currently the shift
lever is in the 2nd or 1st gear).
: Indicates that shifting down to the 3rd gear is desired (currently the shift
lever is in the 4th, 5th, or 6th gear).
When the system is not working properly,
the indicator is not displayed. Double clutch transmission (DS mode) shift indicator (if equipped)
The indicator displays which Double
clutch transmission shift lever is selected.
In DS mode, the “S” indicator displays
with “SPORTS” indicator in cluster. For
more detailed information about DS
mode, refer to the chapter 5.
OJD042235ROJD042238ROJD042236R/OJD042237R
JD RHD 4a(~171).QXP 4/14/2015 6:59 PM Page 65

Features of your vehicle
66
4
Speed limiter indicator (if equipped) The indicator illuminates when the speed
limit control system is enabled by move
the lever up on the steering wheel.
The indicator goes off when the lever
up again to deactivate the system.
If there is a problem with the speed limit
control system, the “---” indicator will blink.
If this occurs, we recommend that the
system be checked by an authorised Kia
dealer.
For more details, refer to “Speed limit
control system” in section 5.The speed limiter indicators illuminates
on the LCD display. Odometer (km or mi.) The odometer indicates the total dis-
tance the vehicle has been driven.
You will also find the odometer useful to
determine when periodic maintenance
should be performed.
OJD052043N
OJD043504
■
Type B
■Type A
OJD042173
CAUTION - DCT
• When the problem of gear system
occurs, the transaxle indicatorwill blink. For your safety, we rec- ommend that you contact an authorised Kia dealer and have
the system checked.
• When the clutch is overheated, the safe protection mode oper-ates. According to the safe protec-
tion mode, the transaxle indicatorblinks with buzzer sound. The buzzer beeps 3 times. In this time, the LCD warning about safe pro-
tection mode also displays. In this
condition, the driving may not besmoothly. If you ignore this warn- ing, the driving condition is get-ting worse and the system may have problem. To return the nor-
mal driving condition, apply thefoot brake and stop the vehicle for few minutes before driving off.
* DCT : Double clutch transmission
