GETTING TO KNOW YOUR CADENZA
Congratulations on Your New Kia Purchase!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable and dependable driving. Kia is committed to quality, innovation, safety and — above all — your satisfaction.
Using This Guide
The information contained in this guide is a brief overview that will help you become familiar with the operation and features of your new Kia vehicle. The flipbook format facilitates information access, while the detailed illustrations ensure the instructions are easy to follow.
This Features & Functions Guide and the specific operational and safety information it provides is not a substitute for your Owner’s Manual. In the interest of your safety and that of your family, and to help you avoid risks that may result in death or serious injury, Kia reminds you to carefully read your Owner’s Manual in order to fully familiarize yourself with the important information it contains.
While the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in advance or after the fact, and assumes no liability in connection with such changes.

VIDEOS & QR CODES . . . . . . . . . . . . . . . . . . 02
INSTRUMENT CLUSTER
Instrument Cluster Overview . . . . . . . . . . . . . . . . 03
Indicators & Warning Lights . . . . . . . . . . . . . . . . 04
Tire Pressure Monitoring System (TPMS) . . . . . . . . . 05
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . 05
LCD Instrument Cluster Modes . . . . . . . . . . . . . . 06
Trip Computer / Tripmeter . . . . . . . . . . . . . . . . . 06
User Settings . . . . . . . . . . . . . . . . . . . . . . . . 07
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . 07
DRIVER’S PANEL
Electronic Stability Control (ESC) . . . . . . . . . . . . . . 08
Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . 08
Blind Spot Detection (BSD) System* . . . . . . . . . . . . 09
Lane Departure Warning System (LDWS)* . . . . . . . . . 10
Instrument Panel Dimmer . . . . . . . . . . . . . . . . . 10
Power Windows, Window Lock & Central Door Lock . . . . 11
Power Folding Outside Mirrors . . . . . . . . . . . . . . . 11
Heated Outside Mirrors* . . . . . . . . . . . . . . . . . . 11
Automatic Door Lock /Unlock . . . . . . . . . . . . . . . 11
Reverse Parking Aid Function* . . . . . . . . . . . . . . . 12
Fuel Door and Trunk Release Buttons . . . . . . . . . . . 12
Engine Start/Stop Button . . . . . . . . . . . . . . . . . . 13
STEERING WHEEL CONTROLS
Manual Tilt/ Telescoping Steering Wheel* . . . . . . . . . 14
Power Tilt/ Telescoping Steering Wheel* . . . . . . . . . . 14
Headlights & High Beams . . . . . . . . . . . . . . . . . . 15
Turn Signals & Fog Lights . . . . . . . . . . . . . . . . . 16
Windshield Wipers & Washers . . . . . . . . . . . . . . . 17
Bluetooth® Wireless Technology . . . . . . . . . . . . . . 18
Advanced Smart Cruise Control (ASCC)* . . . . . . . . . . 20
Audio Controls . . . . . . . . . . . . . . . . . . . . . . . 21
Cruise Control* . . . . . . . . . . . . . . . . . . . . . . . 21
CENTER PANEL
Navigation System . . . . . . . . . . . . . . . . . . . . . 22
Surround View Monitor (SVM)* . . . . . . . . . . . . . . . 23
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Aux/USB/iPod® Port & Power Outlets . . . . . . . . . . . 24
Automatic Climate Control . . . . . . . . . . . . . . . . . 25
Automatic Gear Shift / Sportmatic® Shifting . . . . . . . . 26
Electric Parking Brake* . . . . . . . . . . . . . . . . . . . 27
Auto Hold* . . . . . . . . . . . . . . . . . . . . . . . . . 27
Heated Steering Wheel* . . . . . . . . . . . . . . . . . . 28
Power Rear Sunshade* . . . . . . . . . . . . . . . . . . . 28
Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . 29
S E AT I N G
Power Adjustable Driver’s Seat . . . . . . . . . . . . . . . 30
Front Seat Headrest Adjustment . . . . . . . . . . . . . . 31
Driver Position Memory System* . . . . . . . . . . . . . . 31
OTHER KEY FEATURES
Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . 32
HomeLink® with Auto-Dimming Rearview Mirror . . . . . . 33
Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . 34
Panoramic Sunroof Operation* . . . . . . . . . . . . . . . 35
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Rear-Camera Display . . . . . . . . . . . . . . . . . . . . 36
Back-Up Warning System (Rear Parking Assist System)* . 36
Trunk Release Button . . . . . . . . . . . . . . . . . . . . 37
Fuel Cap / Malfunction Indicator (Check Engine Light) . . . 37
Child Safety Locks . . . . . . . . . . . . . . . . . . . . . 37
Hood Release Lever and Latch . . . . . . . . . . . . . . . 38
SAFETY FEATURES
Occupant Detection System (ODS) /
Passenger Airbag Off Indicator . . . . . . . . . . . . . . . 39
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Seat Belt Retractor Inertial Locks . . . . . . . . . . . . . 40
LEGAL DISCLAIMERS (See Back Inside Cover Page) MAINTENANCE (See Back Cover)
ESSENTIAL FEATURES
CADENZA FE ATURES & FUNCTIONS GUIDE
Air Conditioning / Automatic Climate Control . . . . . . 25
Audio System – Navigation System . . . . . . . . . . . 22
Aux/USB/iPod®* Port* & Power Outlets* . . . . . . . . . 24
Bluetooth® Wireless Technology . . . . . . . . . . . . .18
Cruise Control* . . . . . . . . . . . . . . . . . . . . . . 21
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Passenger Airbag Off Indicator . . . . . . . . . . . . . . 39
Service Mode . . . . . . . . . . . . . . . . . . . . . . . 07
Smart Key . . . . . . . . . . . . . . . . . . . . . . . . 32
Tire Pressure Monitoring System (TPMS) . . . . . . . . 05
Trip Computer / Tripmeter . . . . . . . . . . . . . . . . 06
User Settings . . . . . . . . . . . . . . . . . . . . . . . 07
Windshield Wipers & Washers . . . . . . . . . . . . . .17
*IF EQUIPPED
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.

3

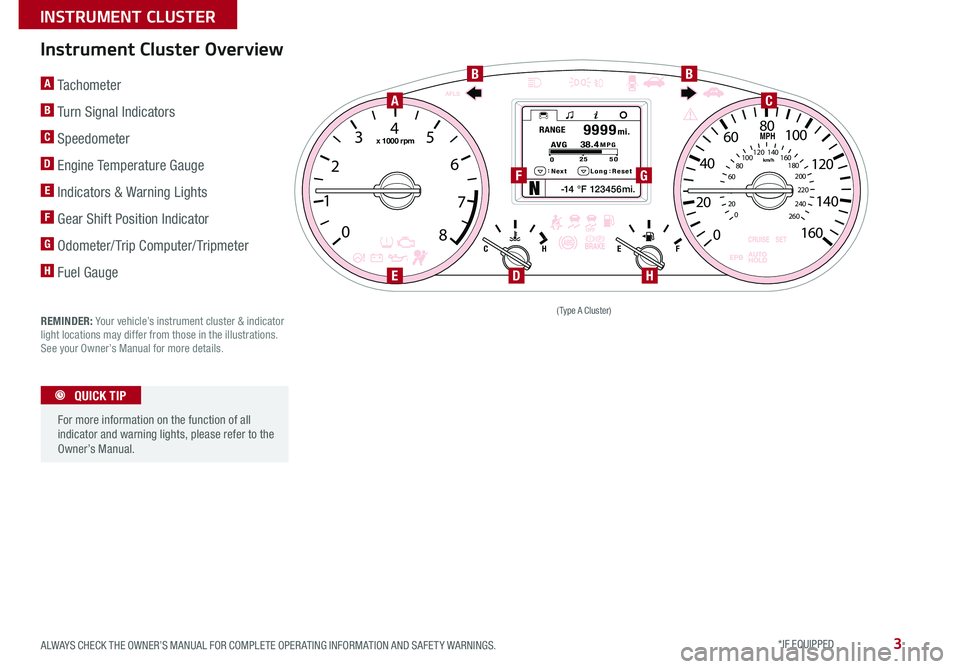

Instrument Cluster Overview
REMINDER: Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . See your Owner’s Manual for more details .
-14 °F 123456mi.
0
1 2
3
4
5
6
7
8
0
20
40 60
80
100
120
140
160
180
200
220
240
260
0
20 40
60
80
100
120
140
160
Next Long:
Reset
: 0
2
5 50
MPG
A
VG38.4RAN GE
mi.9 999
AUTO
HOLD
EPBC
H EF
x 1000 rpm
AFLS
km/h
MPH
A Tachometer
B Turn Signal Indicators
C Speedometer
D Engine Temperature Gauge
E Indicators & Warning Lights
F Gear Shift Position Indicator
G Odometer/ Trip Computer/ Tripmeter
H Fuel Gauge
(Type A Cluster)
For more information on the function of all indicator and warning lights, please refer to the Owner’s Manual .
QUICK TIP
AC
BB
F
DEH
G
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
INSTRUMENT CLUSTER

4
Indicators & Warning Lights
REMINDER: Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . See your Owner’s Manual for more details .
Electronic Power Steering Warning Light
Charging System Warning Light
Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator
Engine Oil Pressure Warning Light
Malfunction Indicator
Airbag Warning Light
Adaptive Front Lighting System Warning Light*
Lane Departure Warning Light
Advanced Smart Cruise Control Radar Warning Light*
Advanced Smart Cruise Control Warning Indicator*
Master Warning Light
Seat Belt Warning Light
High Beam Indicator
Light on Indicator
Front Fog Light Indicator
Door Ajar Warning Light
Trunk Open Warning Light
Immobilizer Indicator*
025
50
: NextHold : Reset
AVGRANGE
444
44.4
mi.
MPG
ODO1 2 3
4 5
6 mi.-32
°FEF
C
H
AUTO
HOLD
EPBx 1000 rpm
MPH
For more information on the function of all indicator and warning lights, please refer to the Owner’s Manual .
QUICK TIP
Auto Hold Indicator
Cruise Indicator
Cruise SET Indicator
Parking Brake & Brake Fluid Warning Light
Electric Parking Brake
Electronic Stability Control (ESC) Warning Indicator
Electronic Stability Control (ESC) OFF Indicator
Anti-Lock Braking System (ABS) Warning Light
Low Fuel Level Warning Light
(Type B Cluster)
SET27MPH
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
INSTRUMENT CLUSTER

5
The TPMS indicator functions as both Low Tire Pressure Light and
TPMS Malfunction Indicator .
The indicator will illuminate if one or more tires is significantly
underinflated, the vehicle has a spare tire installed without TPMS or the
outside temperature becomes significantly lower .
Inflate tire(s) to specifications using an accurate digital tire pressure
gauge to turn off Low Tire Pressure Light . See front driver’s door
jamb for PSI specification .
When there is a problem with the TPMS, the TPMS Malfunction
Indicator will blink for approximately one minute then illuminate .
See dealer for service .
Tire Pressure Monitoring System (TPMS)
REMINDER: Consult your dealer for service if Low Tire Pressure Light remains illuminated after inflating your tire(s) .
Fuel Economy
There are several factors that contribute to your vehicle’s fuel economy, including maintenance of your vehicle, driving style,
environmental conditions, vehicle weight and vehicle aerodynamics . Below are tips on how to help improve fuel economy:
For more information on Fuel Economy, you can snap the QR code above to view a video or refer to the brochure “GETTING MORE OUT OF EVERY GALLON, FUEL-SAVING TIPS TO DRIVE BY” available at your local dealership.
REMINDER: Driving range varies depending on a vehicle’s fuel tank size, e .g .12-gal .vs .24-gal . Even though the two vehicles MPG may be the same, the vehicle with the larger tank will have the greater range .
• Keep your vehicle in good condition with regular
maintenance
• Don’t let the engine idle longer than necessary
• Drive at a moderate speed, accelerating smoothly and at
a moderate rate
• Keep tires inflated to the recommended pressure
• Travel lightly, without carrying unnecessary weight in
your vehicles
• Avoid placing large or heavy items on roof racks
• Avoid hilly, winding or poorly maintained roads
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
Tire Pressure Monitoring System
Fuel Economy Video
QR CODES
www. KuTechVideo s.c om/vg13/2015
www. KuTechVideo s.c om/vg13/2015

•Even with TPMS, tire pressure should be checked manually at least once a month . Only adjust tire pressure on “cold tires” •For proper maintenance and optimal fuel economy, maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle •In winter or cold weather, the TPMS light may illuminate if the tire pressure was adjusted to the recommended tire inflation pressure during warm weather
QUICK TIPS
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
INSTRUMENT CLUSTER

6
Trip Computer / Tripmeter
The Trip Computer is a driver information
system that displays information related
to driving on the display when the ENGINE
START/STOP button is in the ON position .
To cycle through the LCD Instrument
Cluster modes, press the Mode/Select
button A .
When in the Trip Computer mode ,
press the Move/Reset button B to cycle
through the screens . When displaying
TRIP A or TRIP B screens, press and hold
the Move/Reset button B to reset the
Tripmeter to zero .
(Type B Cluster)
025
50: NextHold : Reset
AVGRANGE
444
44.4
mi.
MPG
ODO1 2 3
4 5
6 mi. -32 °F
FUEL ECONOMY
 R ANGE  Average MPG  Instant MPG
TRIP A
 Tripmeter A  Average MPH  Elapsed Time (E / T )
TRIP B
 Tripmeter B  Average MPH  Elapsed Time (E / T )
REMINDERS:
• Appearance of Tripmeter display may differ as equipped
• All stored driving information (except Odometer and Range) is reset if the battery is disconnected
LCD Instrument Cluster Modes*
Press Mode/Select button A to scroll through different LCD Instrument
Cluster Modes:
(Buttons located on Steering Wheel)
Ty p e ATy p e B
Trip Computer Mode: Displays driving information
for tripmeter, fuel economy, etc .
A/V Mode: Displays the state of the A / V System
Turn-by-Turn Mode*: Displays the state of the
Navigation system
Information Modes: Informs on service intervals
and pressure status of each tire
User Settings Mode: Change settings of the doors,
lamps and other features
Advanced Smart Cruise Control (ASCC) / Lane
Departure Warning System (LDWS)*: Displays the
state of the ASCC and LDWS
Your vehicle’s steering wheel buttons may differ from those in the illustrations.
A
B
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
INSTRUMENT CLUSTER

7
Service Interval Setting
To set the service interval when
in User Settings mode:
• Press the Move/Reset button B and scroll to Service
Interval . Press the Mode/
Select button A to enter
• Press the Move/Reset button B and toggle to ON, then
press the Move/Select button A . Then press the Move/
Reset button B to scroll and
select the desired miles or
months for your next service
• Press the Mode/Select button A to enter
To enter the User Settings
mode in the LCD Instrument
Cluster Modes, press the
Mode/Select button A when
the vehicle is at a standstill
and with the ENGINE START/
STOP button in the ON
position and select User
Settings .
You can navigate the selections on the display by pressing the
Move/Reset button B, and then selecting the item by pressing
the Mode/Select button A .
Door:
• Auto Door Lock
& Unlock
• Two Press Unlock
• Lock /Unlock Sound
• Horn Feedback

Lamp:
• One-Touch Turn
Lamp
• Headlamp Delay
• Welcome Light*
User Settings
Settings:
• Language
• Temperature Unit
• Speed Unit ( Type B Cluster)*
• Speedometer Size ( Type
B Cluster)*
• AVG Fuel Economy Reset
• Easy Seat Access*
• Welcome Sound
• Steering Position
Service Interval:
• ON/OFF
• Set mileage/months
To enter Service Mode, press the Mode/Select
button A, scroll to Service Mode by pressing Move/
Reset button B . Then press the Mode/Select button A to
enter . System will display number of miles remaining until
next service is due, and type of service .
When service is required, the following will be displayed:
Service Required .
To reset the Service Mode system, press and hold the
Move/Reset button B for more than 1 second .
To turn Service In OFF, go to User Settings .
Service Mode
ODO 123456 miHold : Reset
Service in
or 15000 mi.
90 days
ODO 123456 mi
Service in
OFF
ODO 123456 miHold : Reset
Service required
or 0 mi.
0 days
ODO 123456 miHold : Reset
Service in
or 15000 mi.
90 days
ODO 123456 mi
Service in
OFF
ODO 123456 miHold : Reset
Service required
or 0 mi.
0 days
ODO 123456 miHold : Reset
Service in
or 15000 mi.
90 days
ODO 123456 mi
Service in
OFF
ODO 123456 miHold : Reset
Service required
or 0 mi.
0 days
To view a video on your mobile device, snap these QR Codes or visit the listed website .
Refer to page 2 for more information .
LCD Display: Maintenance Video
LCD Display Video
QR CODES
www. KuTechVideo s.c om/vg13/2015
www. KuTechVideo s.c om/vg13/2015
(Type B cluster)
(Buttons located on right side of steering wheel)
A
B
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
INSTRUMENT CLUSTER

10
Lane Departure Warning System Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www. KuTechVideo s.c om/vg13/2015
Lane Departure Warning System (LDWS)*
With the ENGINE START/STOP button in the ON position, press
the LDWS button C to turn system ON . The instrument cluster
indicator will illuminate green .
If the LDWS detects that you are veering outside of your lane,
the system may issue a warning on the LCD screen and an alert
may sound, under these conditions:
•The vehicle exceeds approximately 43 mph
•The LDWS system recognizes the lane the vehicle is
traveling in
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWSLDWSLDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWSLDWSLDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWSLDWSLDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWSLDWSLDWS
Instrument Panel Dimmer
With parking lights/headlights ON, press button D (+) or (-)
to adjust the brightness of the instrument panel illumination .
REMINDER: The Instrument Panel Dimmer does not adjust brightness on the Navigation System screen, use Navigation setup to adjust brightness on the Navigation System .
REMINDER: LDWS will not issue a warning if the turn signal is activated .
(Button panel located left of Steering Wheel)
D
C
When the LDWS sensor detects the lane traveling inWhen the LDWS sensor does not detect the lane traveling in
The Lane Departure Warning System (LDWS) is not a substitute for safe and proper driving. Always drive safely and use caution. LDWS may not always alert the driver if the vehicle is driven outside of it’s lane. When the LDWS sensor detects the vehicle veering outside of the lane traveling in, a yellow indicator will illuminate
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
DRIVER'S PANEL
